Hansgrohe 31261000 Metris S Bidet Mixers Instruction Manual

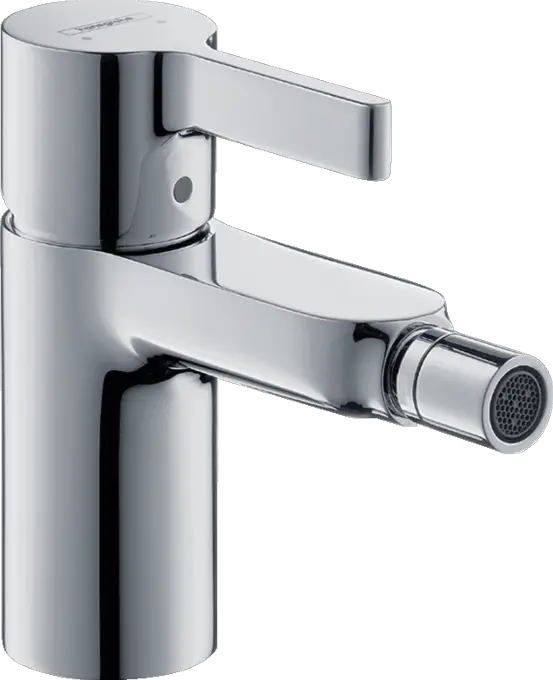

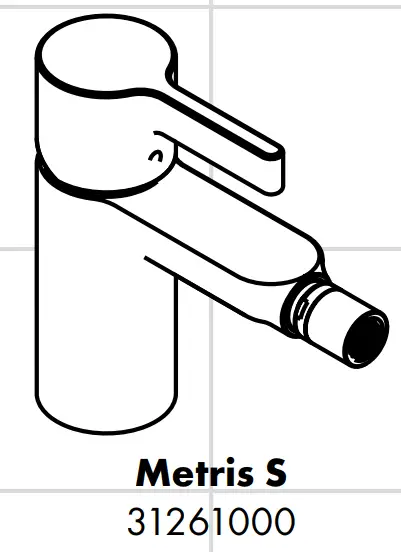

hansgrohe 31261000 Metris S Bidet Mixers

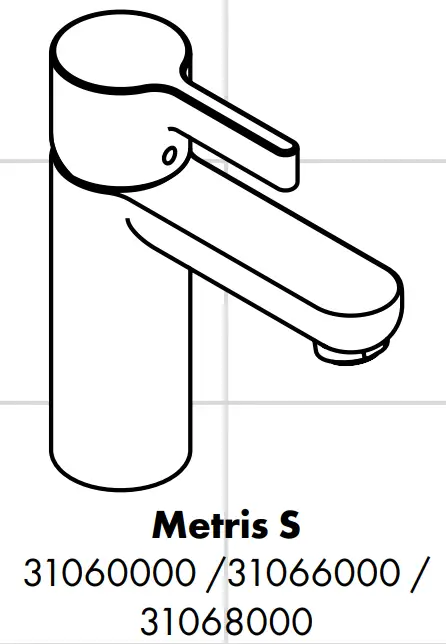

Others Models

Safety Notes

• Gloves should be worn during installation to prevent crushing and cutting injuries.
•   The shower system may only be used for bathing, hygienic and body cleansing purposes.
•    The hot and cold supplies must be of equal pressures

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)

Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C

Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Symbol description

• To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.
• Do not use silicone containing acetic acid!
• Dimensions (see page 34)
• Flow diagram (see page 34)
  1. with EcoSmart®
  2. without EcoSmart®
• Spare parts (see page 36)
• Special accessories special tool (58085000) order as an extra
•  Installation kit order as an extra
• Operation (see page 35)
• Cleaning (see enclosed brochure)
• Test certificate (see page 35)
• Assembly see page 31

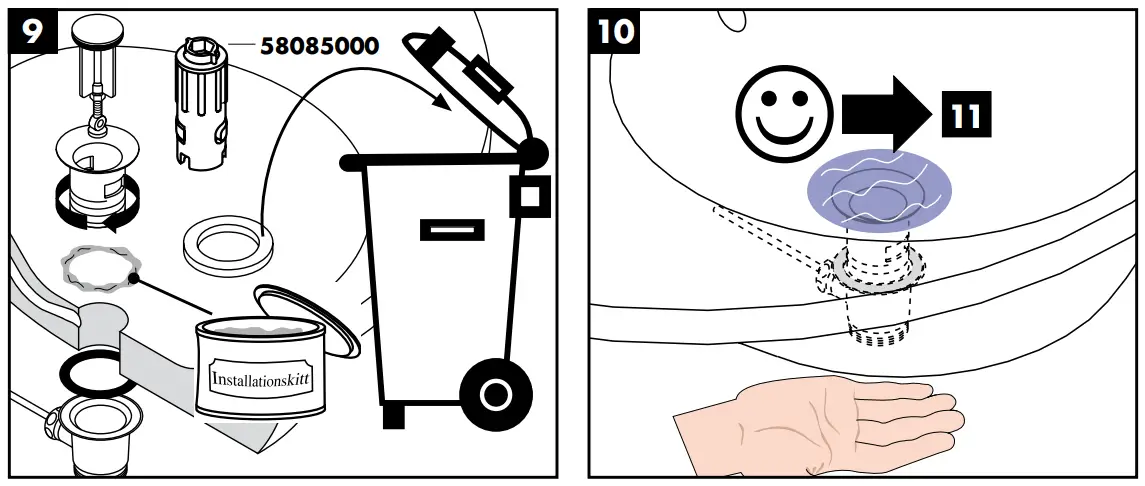

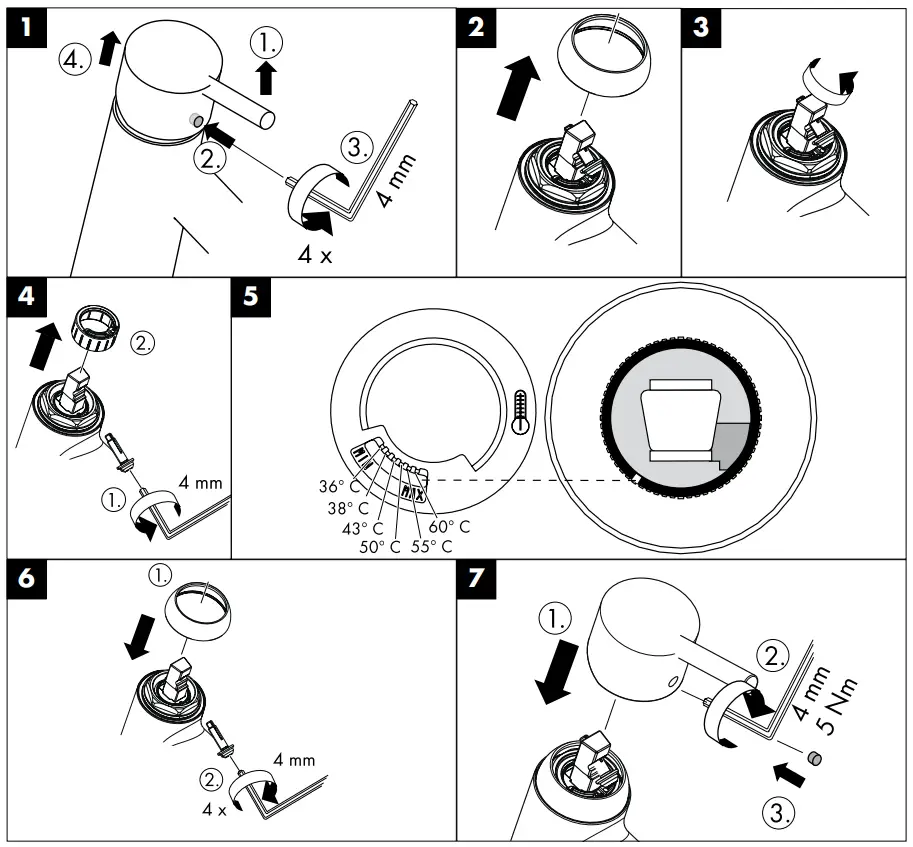

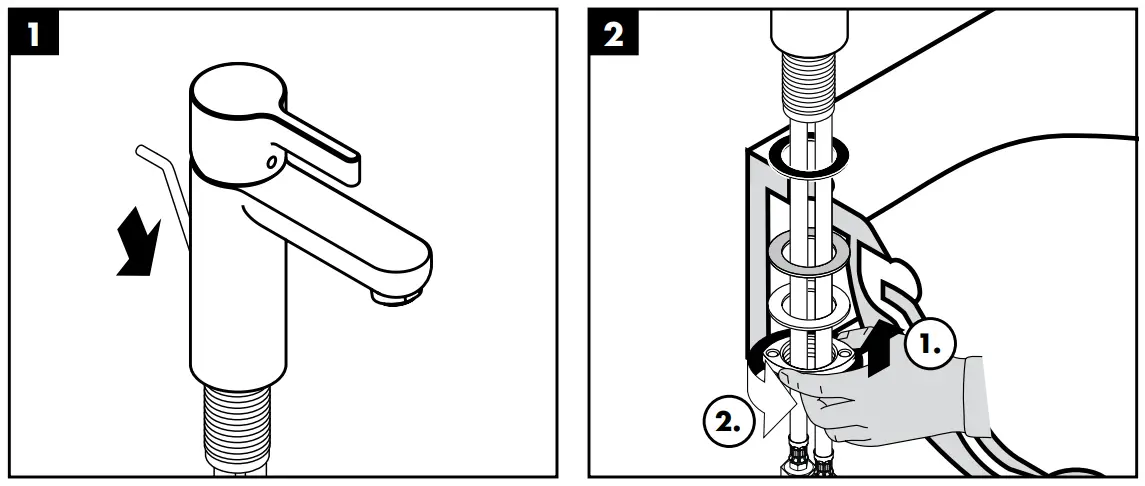

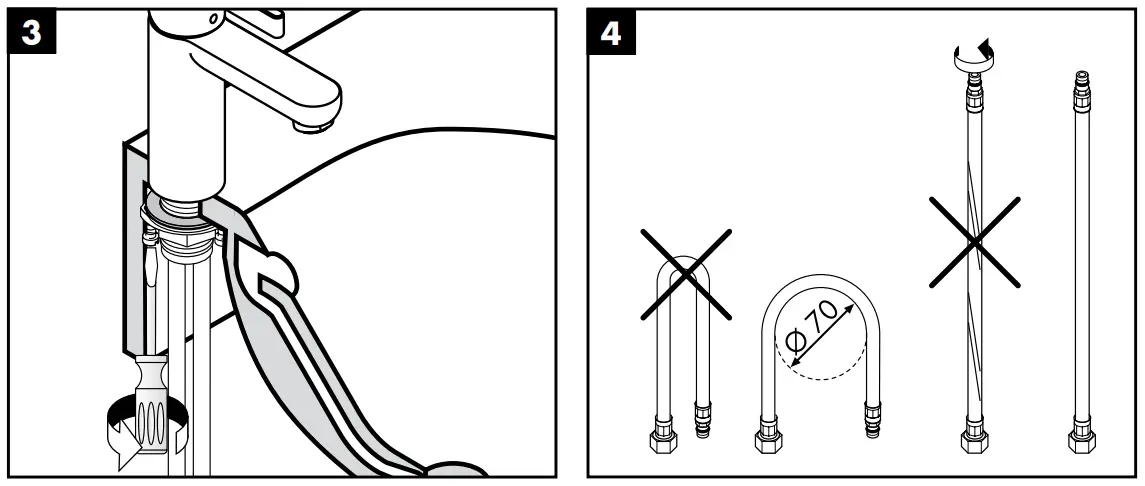

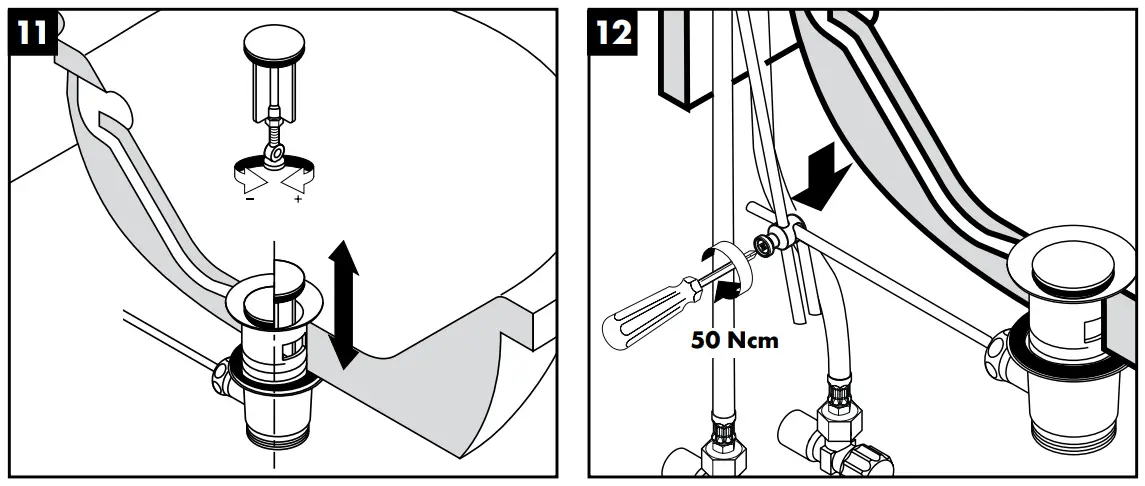

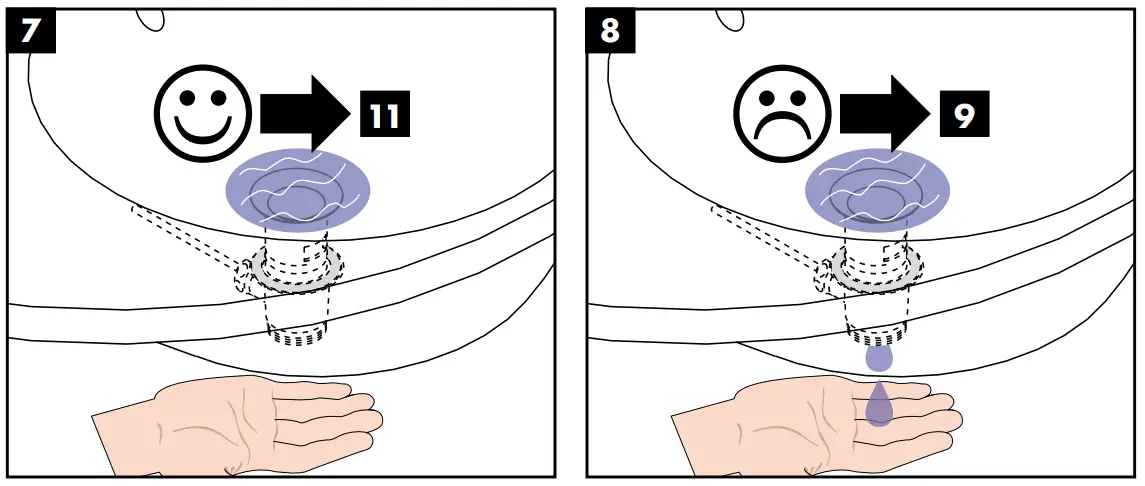

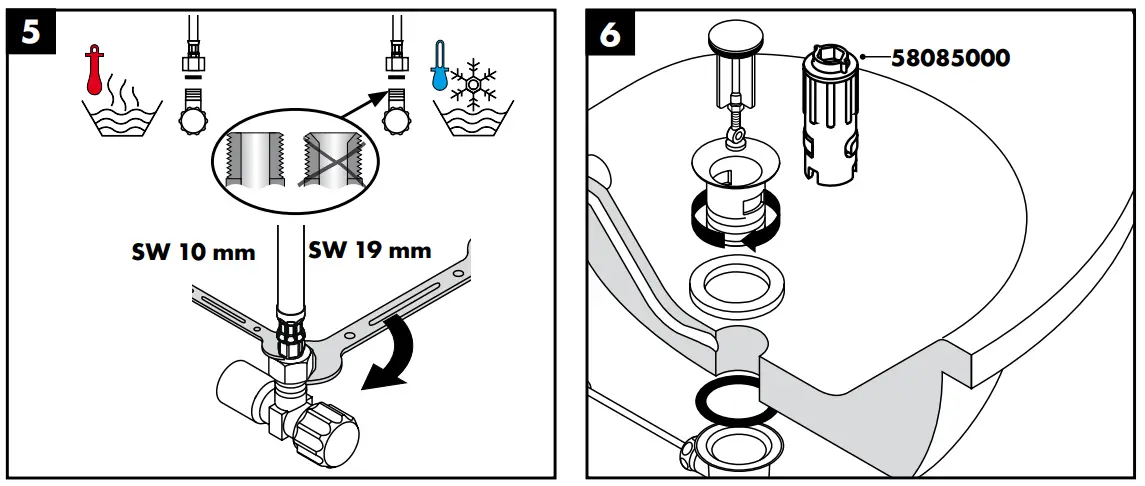

Assembly

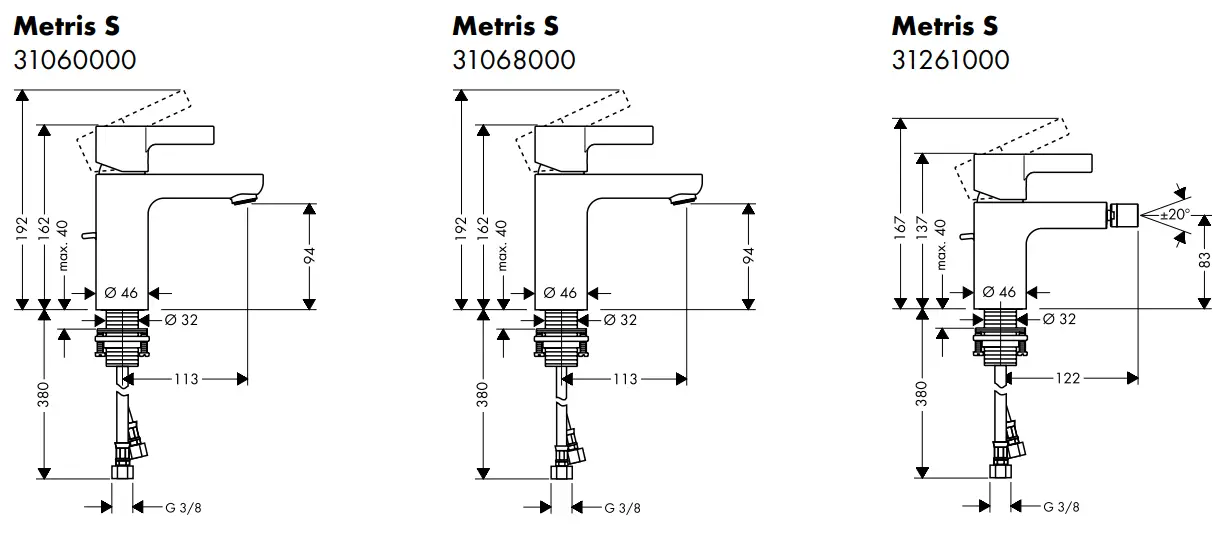

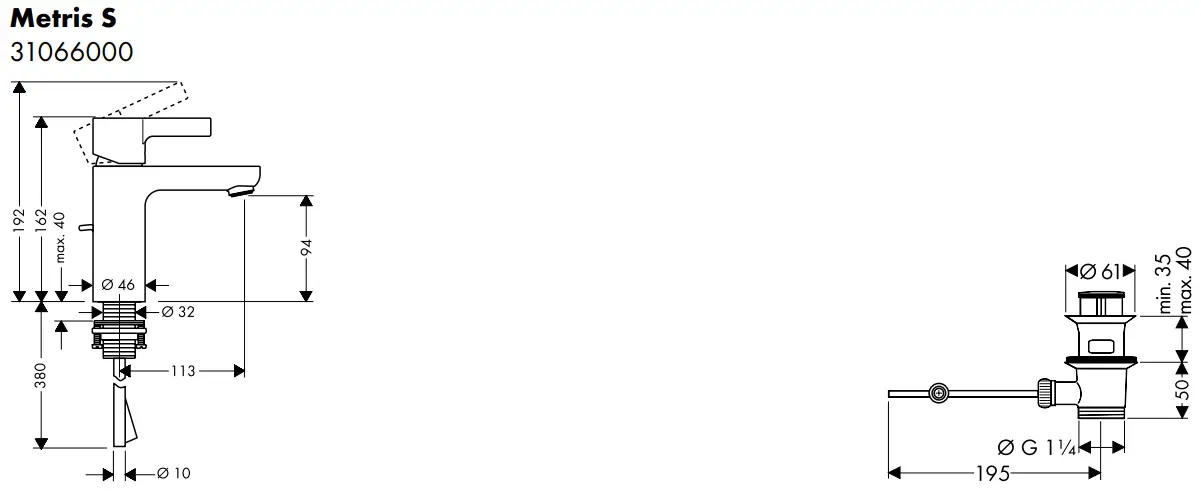

Dimensions

Flow diagram

1. with EcoSmart®
2. without EcoSmart®

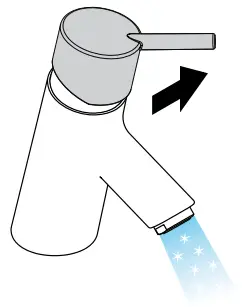

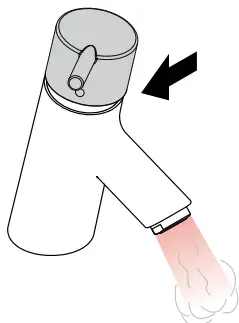

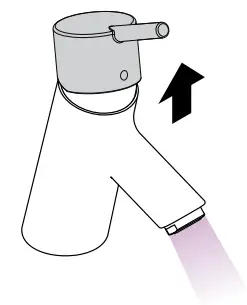

Operation

• open

• close

• cold

• hot

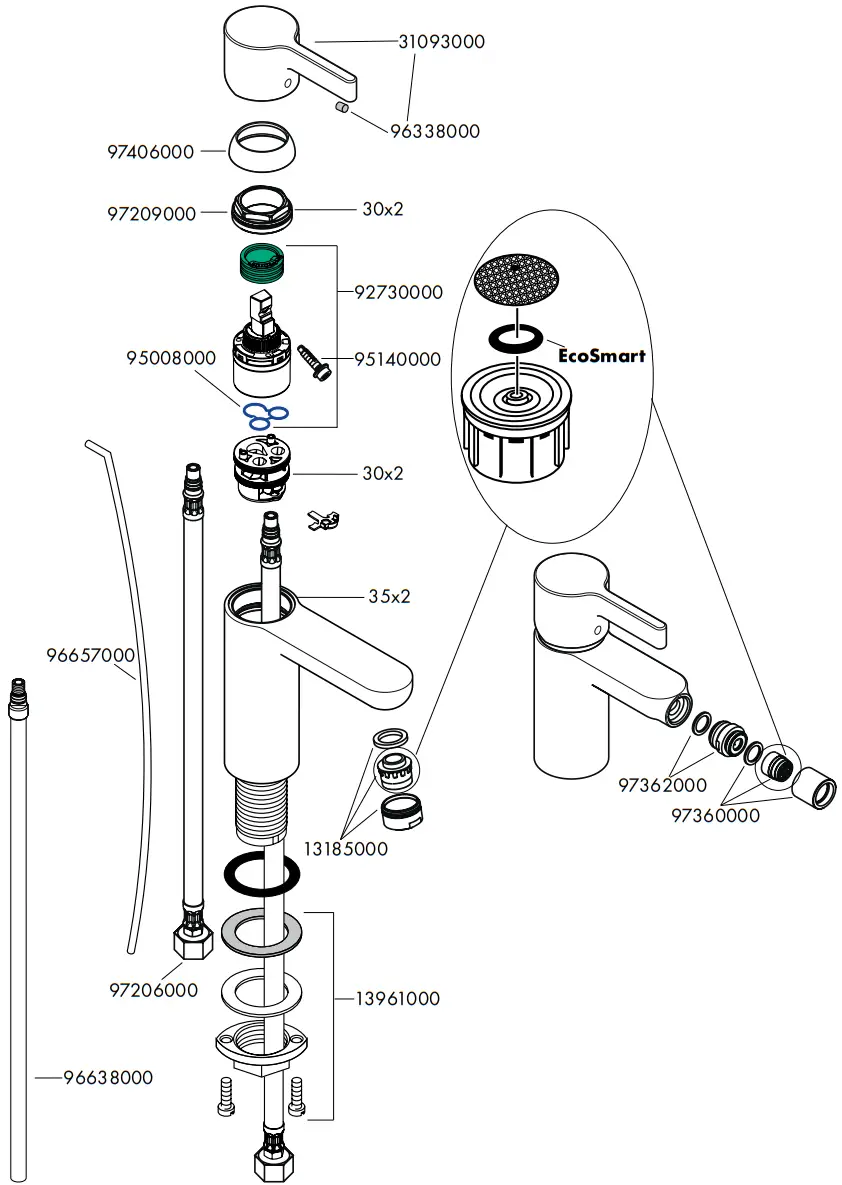

Spare parts

Test certificate

Customer Service

Hansgrohe · Postfach 1145 · D-77761 Schiltach ·
Telefon +49 (0) 78 36/51-1282 ·
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
