Hansgrohe 31078xxx Metris Classic Basin Water Mixer Instruction Manual

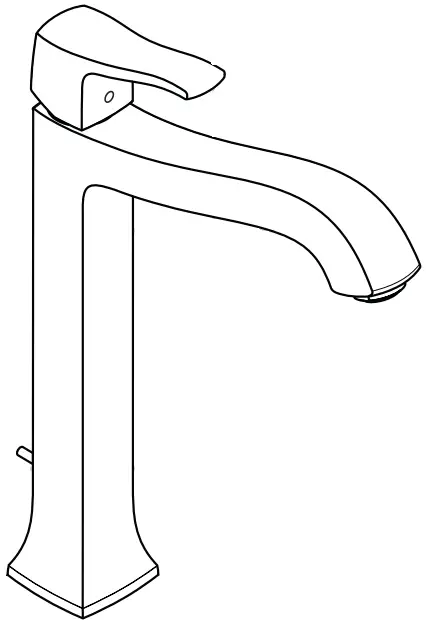

hansgrohe 31078XXX Metris Classic Basin Water Mixer

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.

 Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.

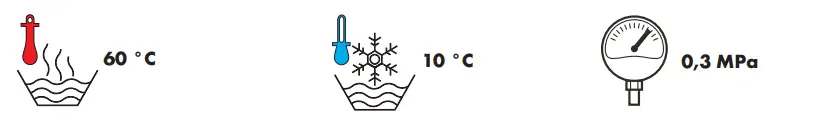

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)

Symbol description

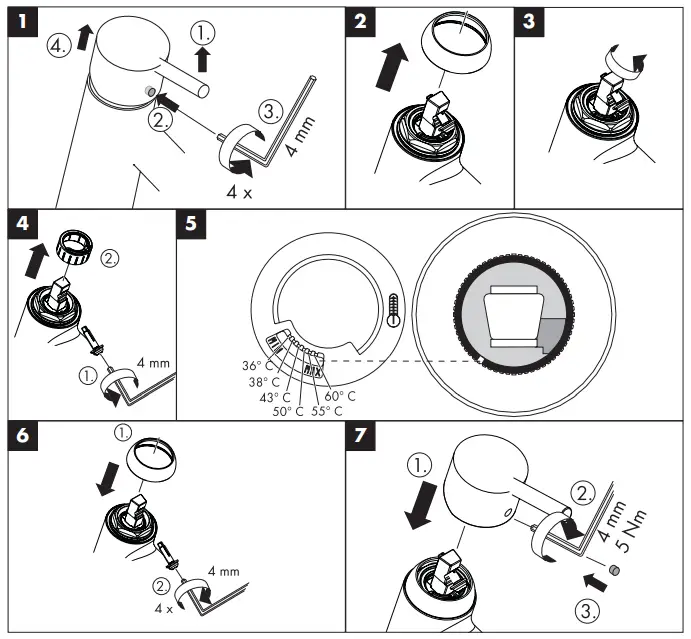

To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.

Do not use silicone containing acetic acid.

Special accessories

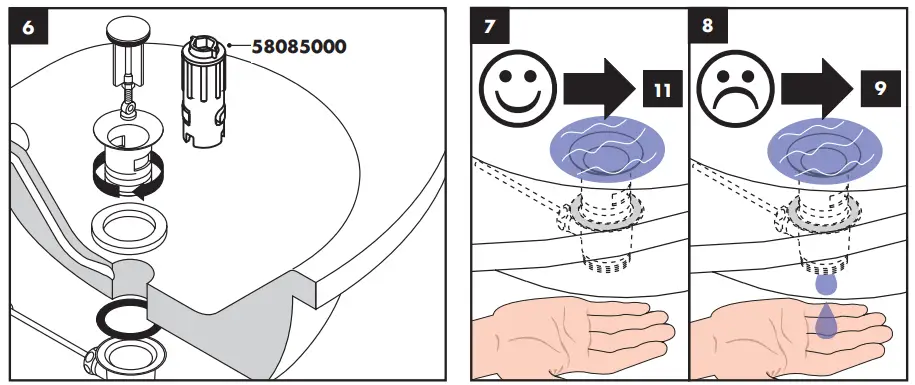

special tool (58085000) order as an extra

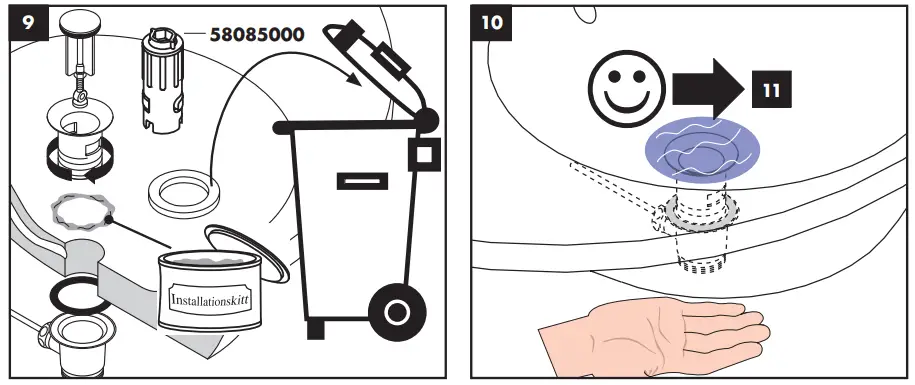

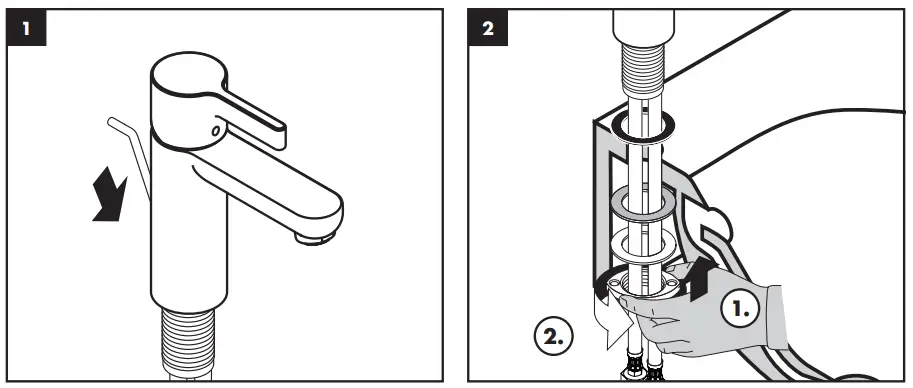

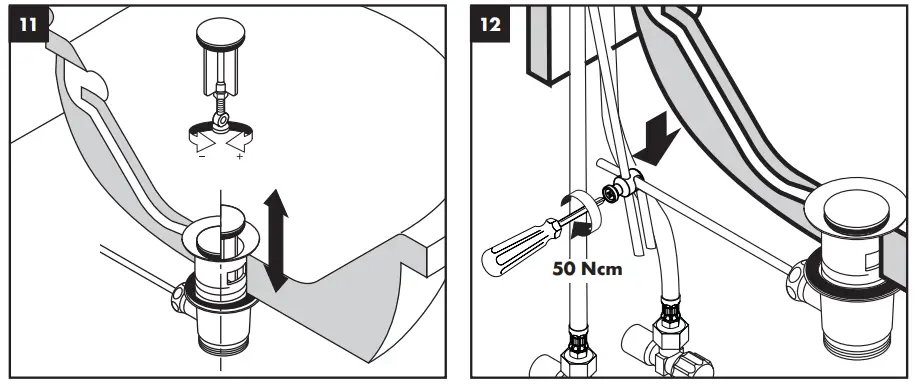

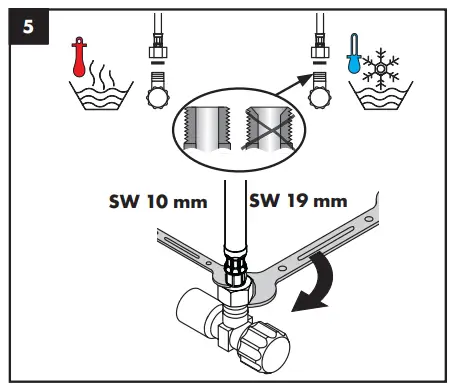

Assembly

Operating instruction

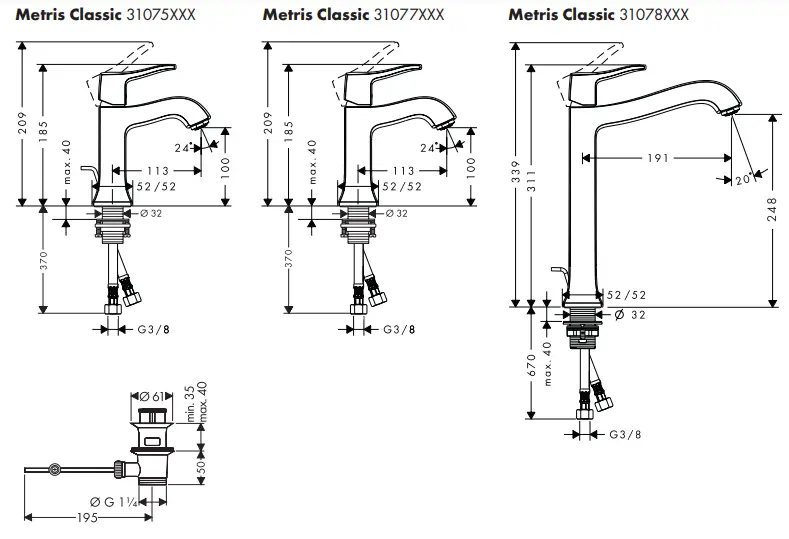

Dimensions

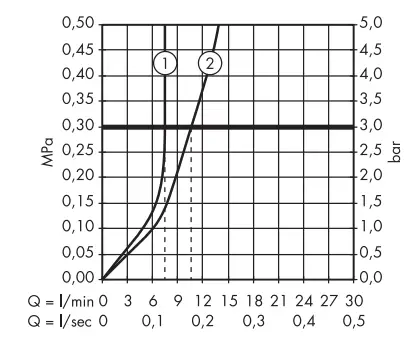

Flow diagram

1. with EcoSmart®
2. without EcoSmart

Metris Classic
31075XXX / 31077XXX / 31078XXX

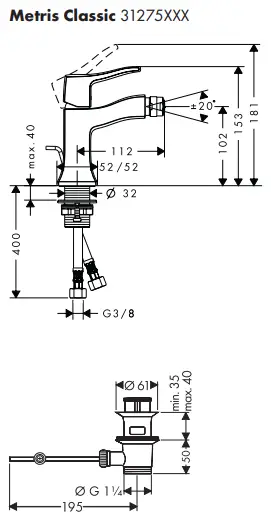

Metris Classic
31275XXX

Operation

• open

• close

• cold

• hot

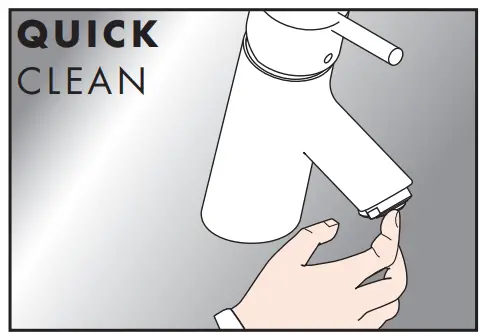

Cleaning

The QuickClean cleaning function only needs a small manual rub over to remove the lime scale from the spray channels.

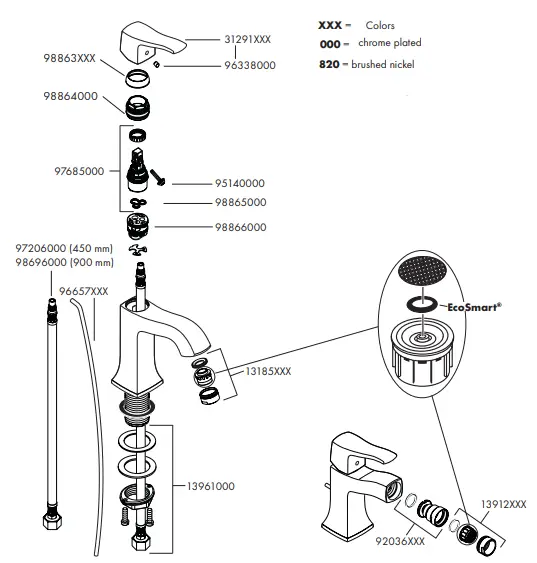

Spare parts

Test certificate

Others Models

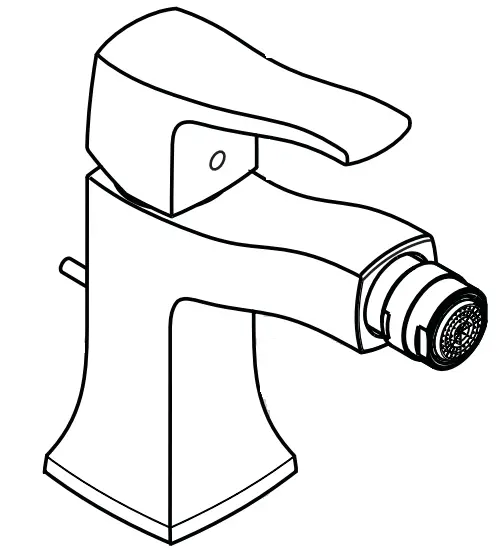

Metris Classic
31275XXX

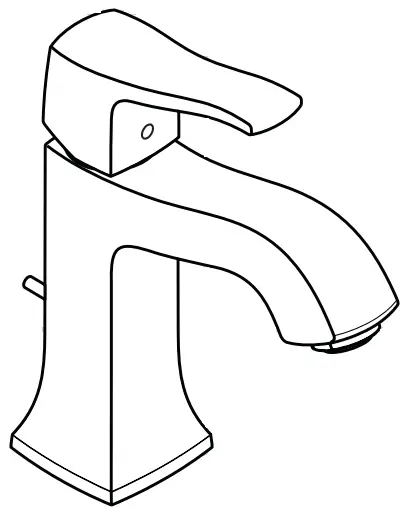

Metris Classic
31075XXX / 31077XXX

Customer Support

Hansgrohe · Postfach 1145 ·
D-77761 Schiltach ·
Telefon +49 (0) 78 36/51-1282 ·
Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
