Instructions for use / assembly instructions
Safety Notes
Gloves should be worn during installation to preventcrushing and cutting injuries. The shower system may only be used for bathing, hygienic and body cleansing purposes. The hot and cold supplies must be of equal pressures.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter)located be hind the aerator can be removed.
Technical Data
This mixer series-produced with EcoSmart® (flow limiter)
| Operating pressure: | max. 1 Mpa |
| Recommended operating pressure: | 0,1 – 0,5 Mpa |
| Test pressure: | 1,6 Mpa |
| (1 MPa = 10 bar = 147 PSI) Hot water temperature: | max. 80°C |
| Recommended hot water temp.: | 65°C |
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Symbol description

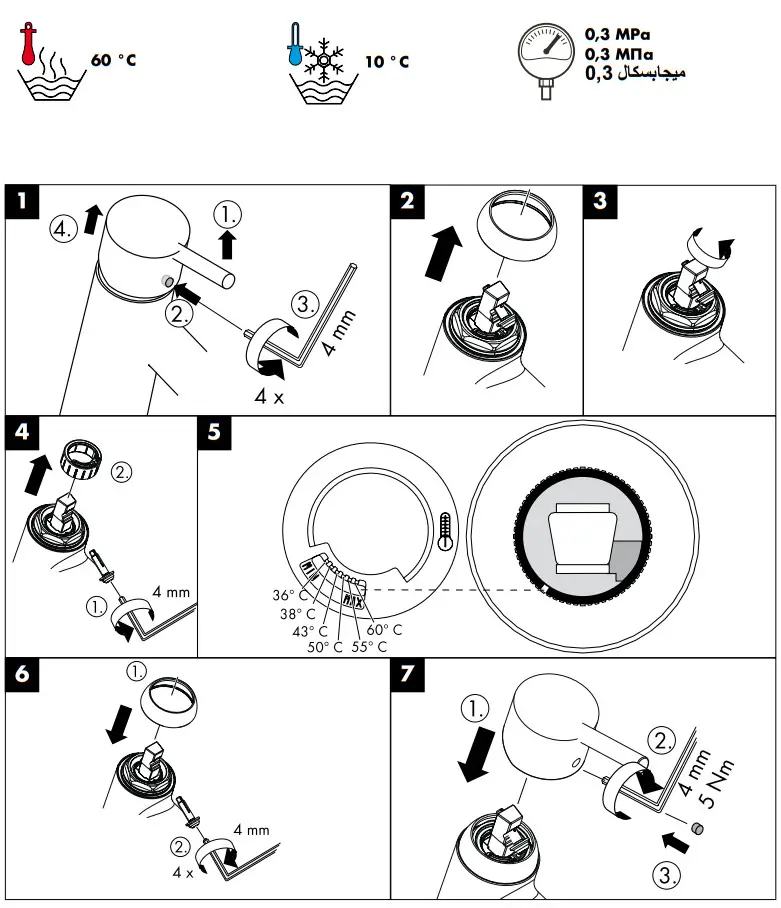

To adjust the hot water limiter on single lever mixers, please see page 32. No adjustment is necessary when using a continuous flow water heater.
Do not use silicone containing acetic acid!

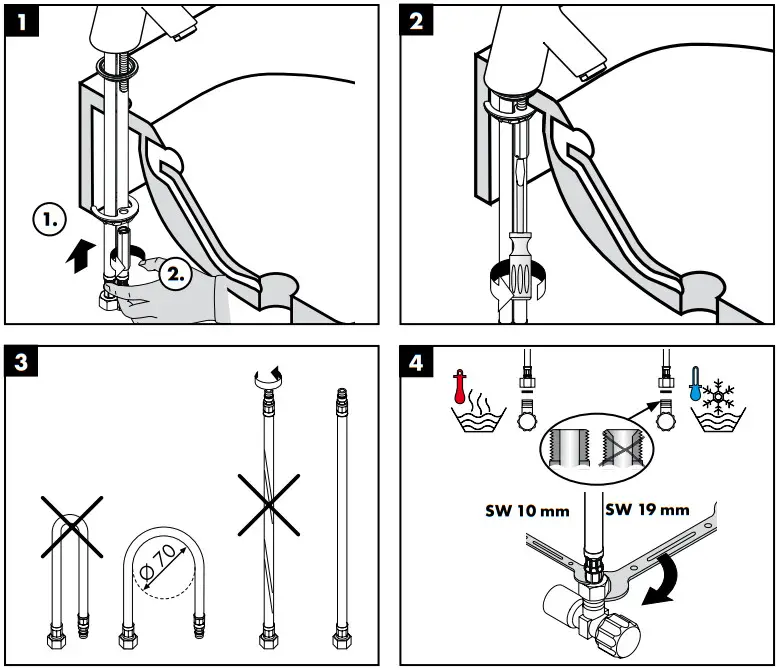

Assembly
Assembly

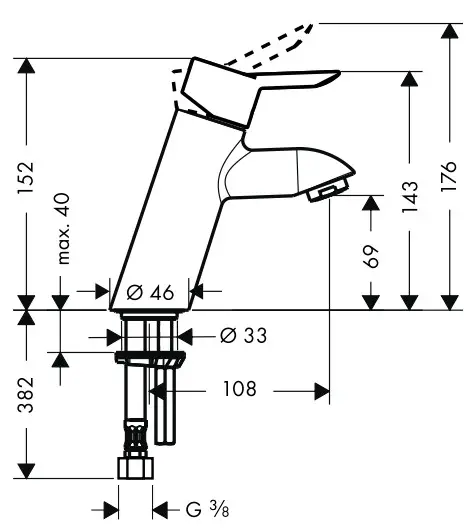

Dimensions
Dimensions
Test certificate
Test certificate| P-IX | DVGW | SVGW | WRAS | KIWA | NF | ACS | ETA | |
| 31711000 | P-IX 18081/IA | X | X | X | X |

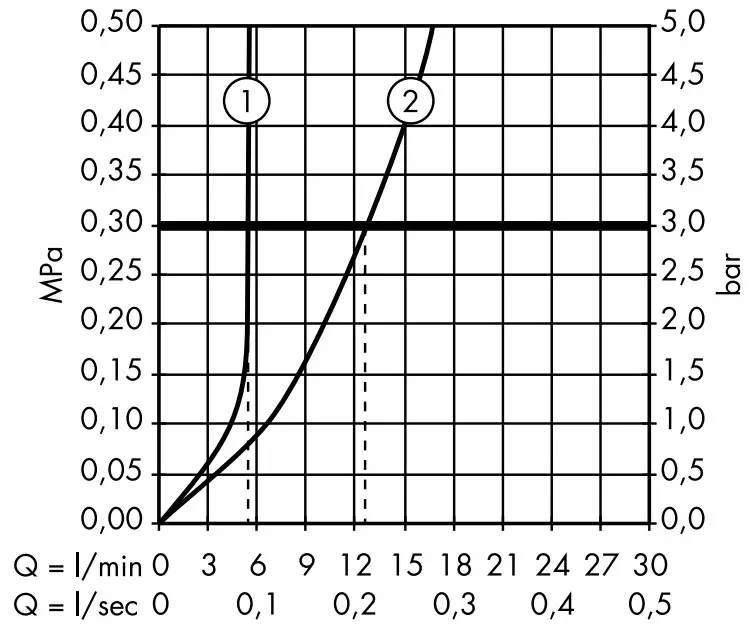

Flow diagram
Flow diagram

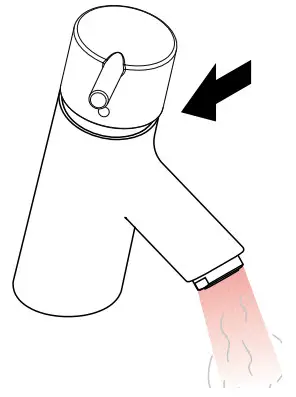

Operation

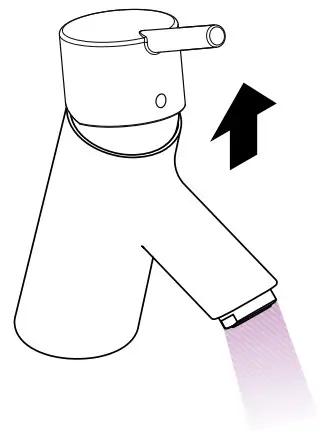

Operation| open | close |
 |  |

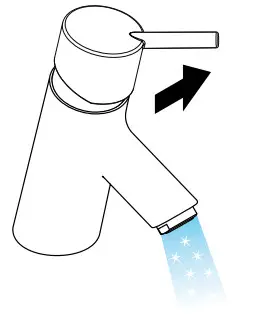

| cold | hot |
 |  |
Cleaning

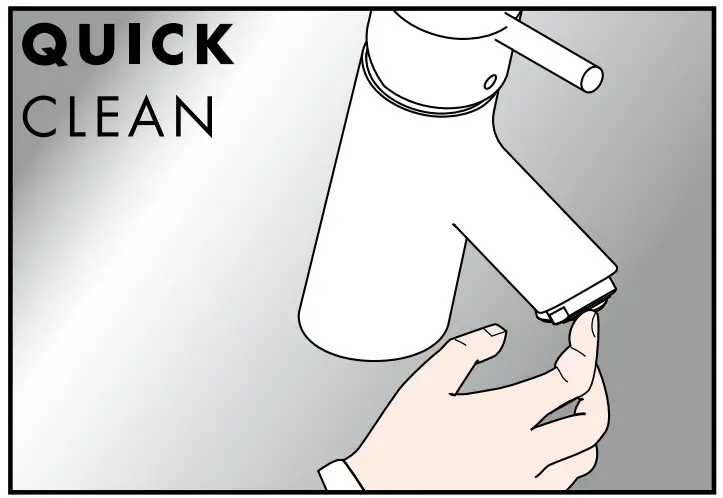

CleaningThe QuickClean cleaning function only needs a small manual rub over to remove the lime scale from the spray channels.

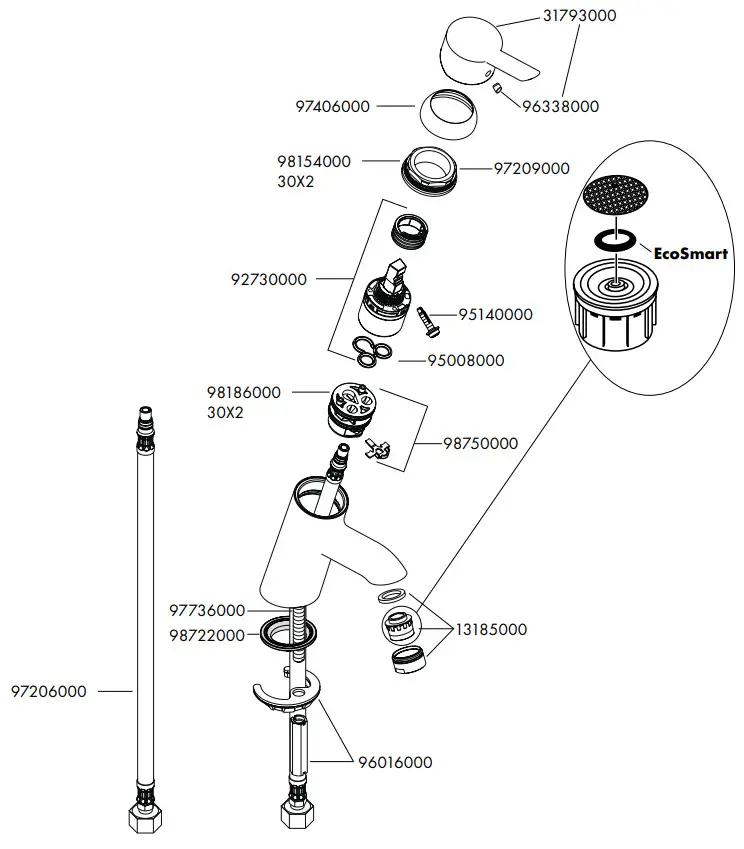

Spare parts
Spare parts
