hansgrohe AXOR Bath Faucet Levers

Product Information

The product is a shower system that can be used for bathing, hygienic and body cleansing purposes. It is an anti-pollutionfunction shower system with an operating pressure of 1.6 MPa. The hot and cold supplies must be of equal pressures. The shower system comes with a safety device that must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year). It is available in different models including Starck 10416000, Starck 10418000, Starck X 10445000,
Starck X 10447000, Citterio M 34425000, Citterio M 34425003, Citterio M 34427000, Citterio 39455000, Citterio 39455003 and Citterio 39457000.

Product Usage Instructions

Wear gloves during installation to prevent crushing and cutting injuries.
Ensure that the hot and cold supplies have equal pressures.
Use only for bathing, hygienic and body cleansing purposes.
Do not use silicone containing acetic acid.
To adjust the hot water limiter on single lever mixers, refer to page 33 of the user manual. No adjustment is necessary when using a continuous flow water heater.
The shower system has a safety device that must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).
Clean the shower system regularly as per the instructions provided on page 36 of the user manual.

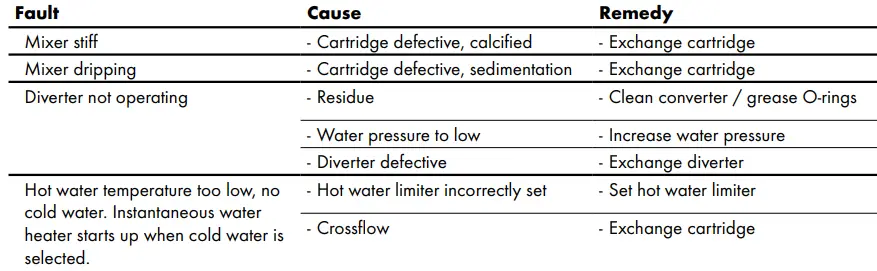

In case of any issues such as Kartusche defekt, verkalkt, Kartusche defekt, Ablagerungen, Ablagerungen, Zu geringer Wasserdruck, Umsteller defekt, Zu niedere Warmwassertemperatur, refer to page 35 for troubleshooting and solution.
For installation instructions and technical data, refer to the user manual pages 31-34.

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.

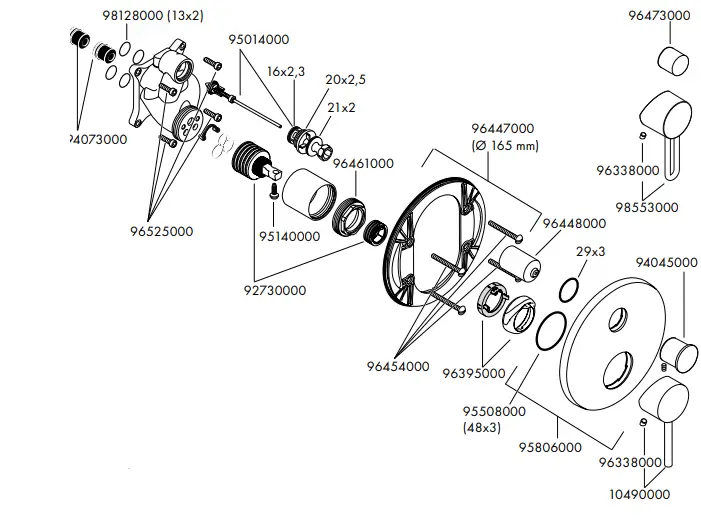

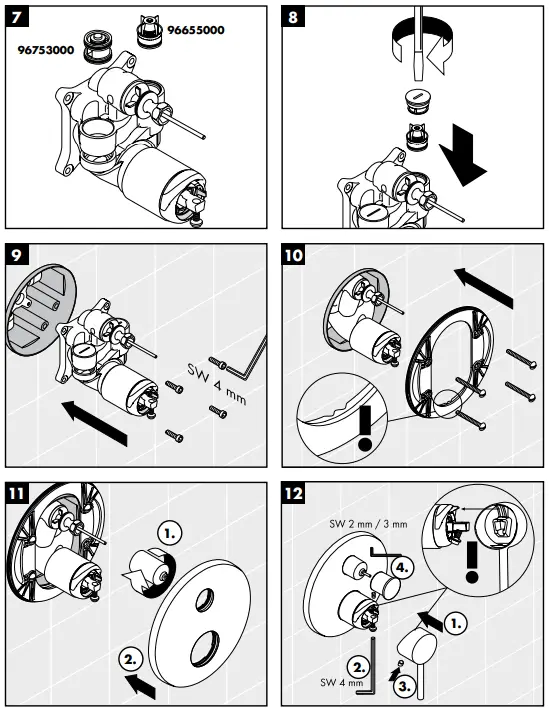

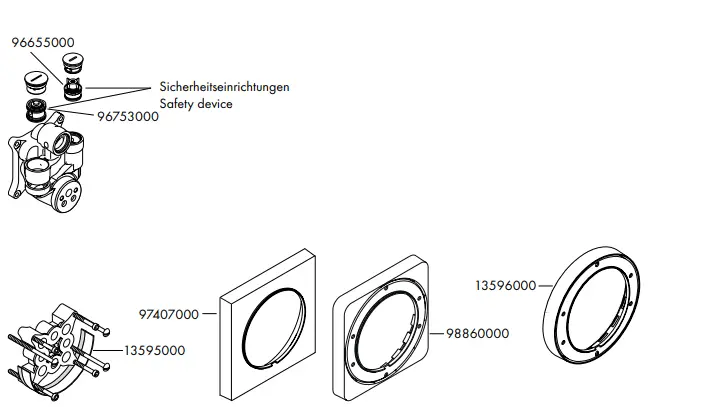

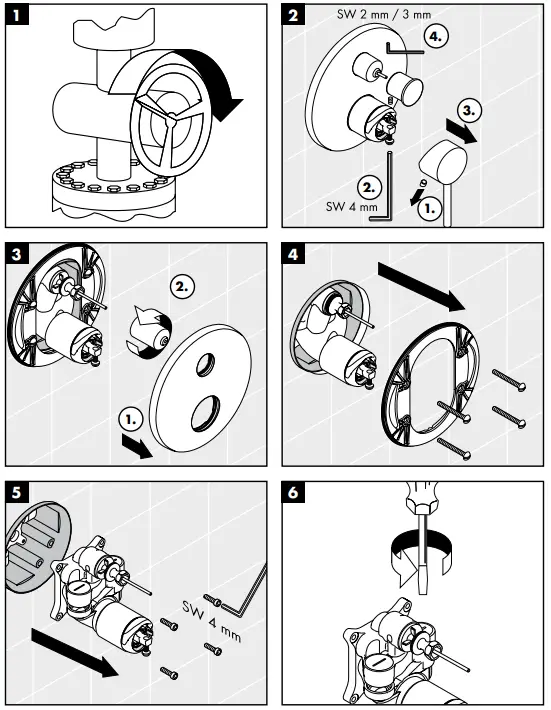

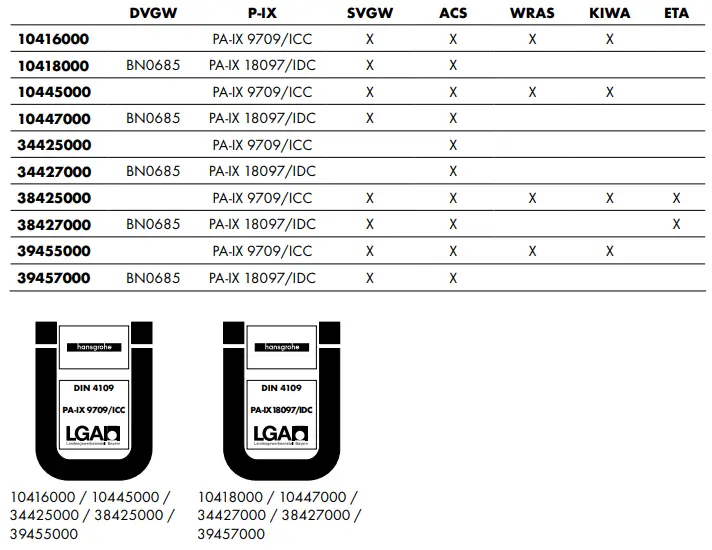

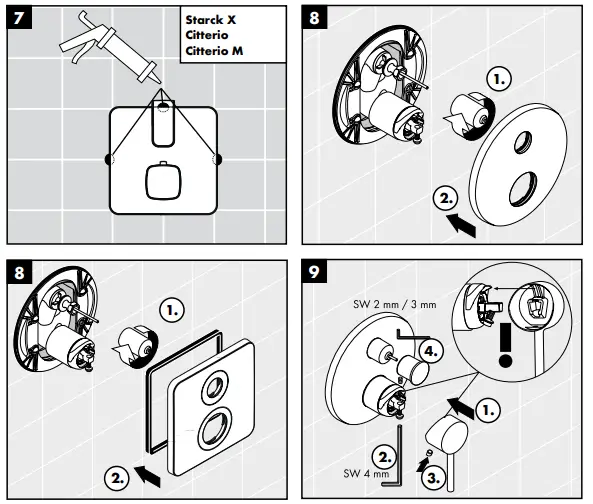

Installation Instructions
The fitting must be installed, flushed and tested after the valid norms.
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Technical Data

Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
anti-pollution function

Symbol description

Do not use silicone containing acetic acid!

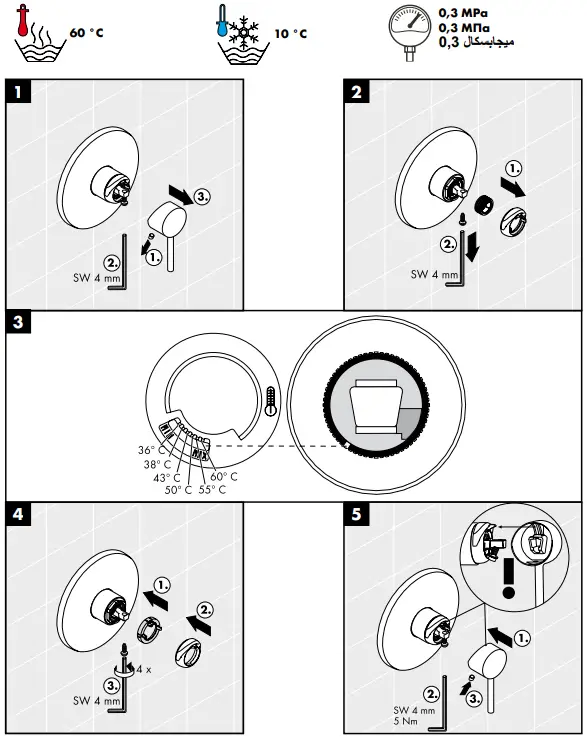

To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.

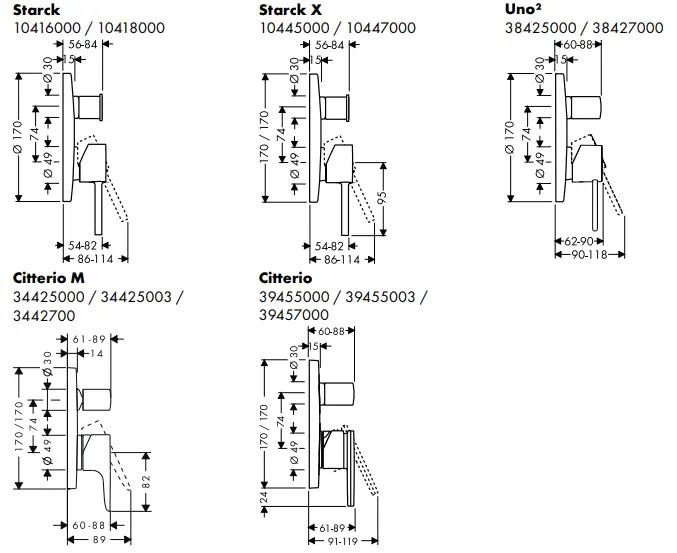

Dimensions

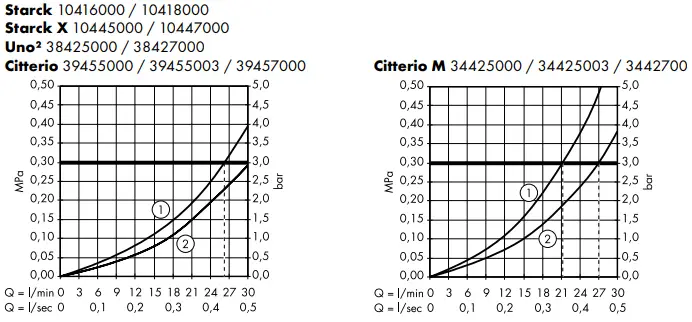

Flow diagram

Shower outlet
Tub outlet

Operation

open
close
hot
cold
open
close

Maintenance

10418000 / 10447000 / 34427000 / 38427000 / 39457000: The safety device must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).
