hansgrohe AXOR 38113000, 38116000 UNO2 Faucet Instruction Manual
Safety Notes
⚠ Gloves should be worn during installation to prevent crushing and cutting injuries.
⚠ The shower system may only be used for bathing, hygienic and body cleansing purposes.
⚠ The hot and cold supplies must be of equal pressures.

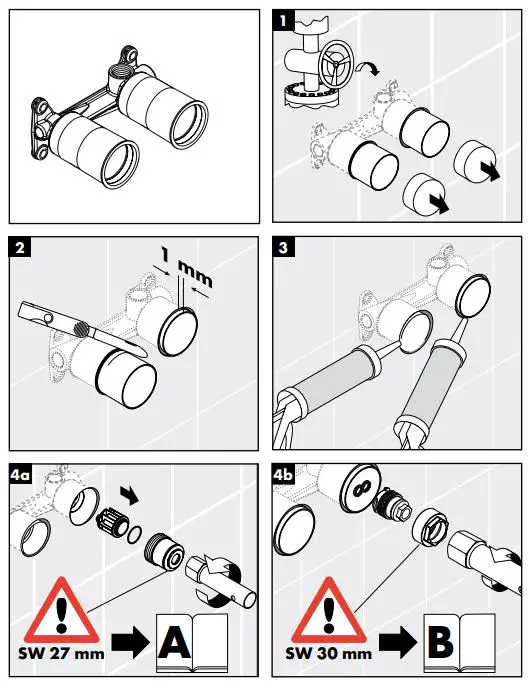

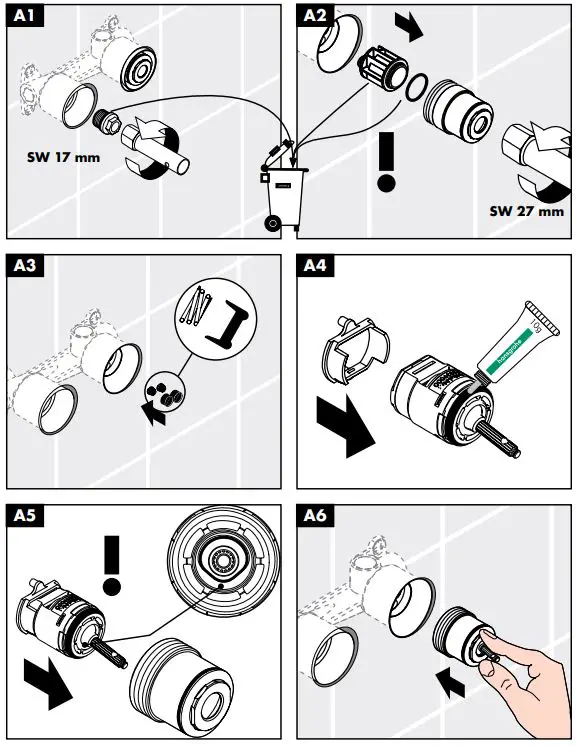

Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
- Hansgrohe mixers can be used together with hydraulically and thermic ally controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

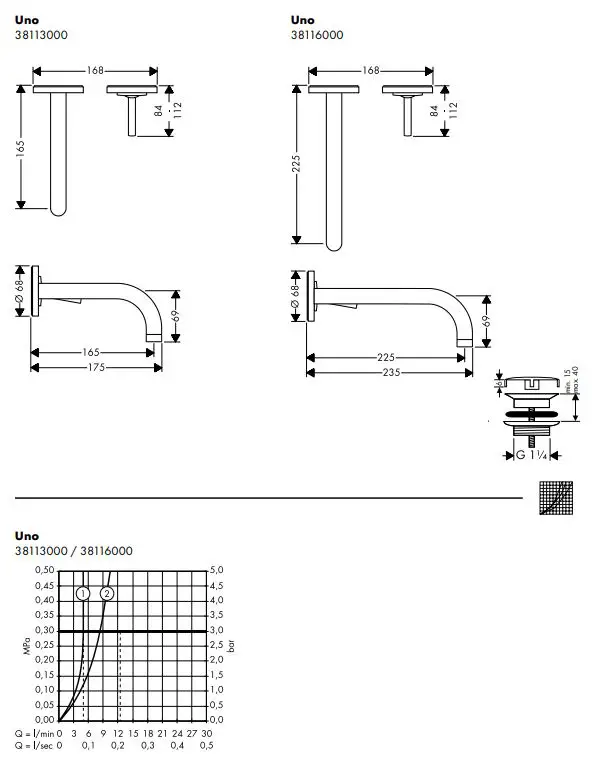

Technical Data
This mixer series-produced with EcoSmart® (flow limiter)
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C

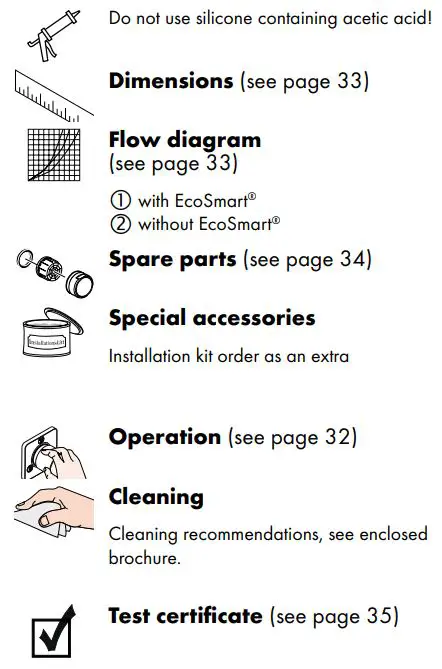

Symbol description
