Axor 17210000 Carlton Lever Bidet Faucet Instruction Manual

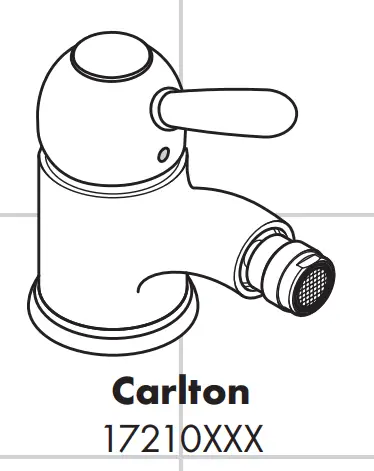

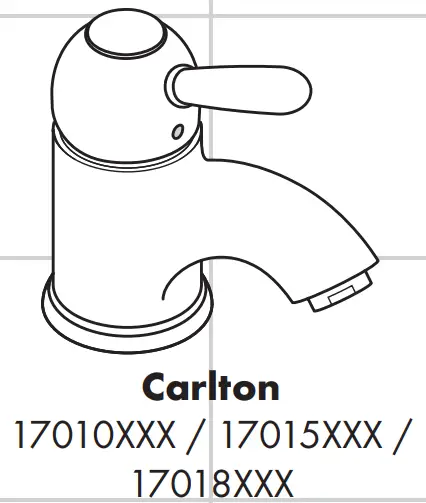

17210000 CARLTON Lever Bidet Faucet
Instruction Manual

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.

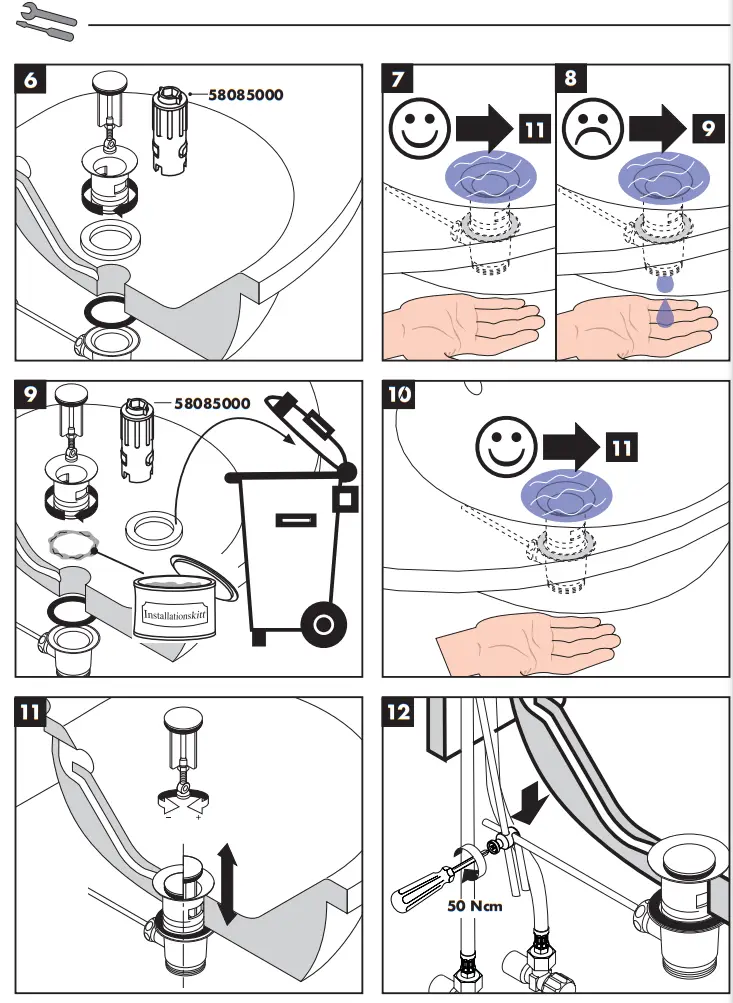

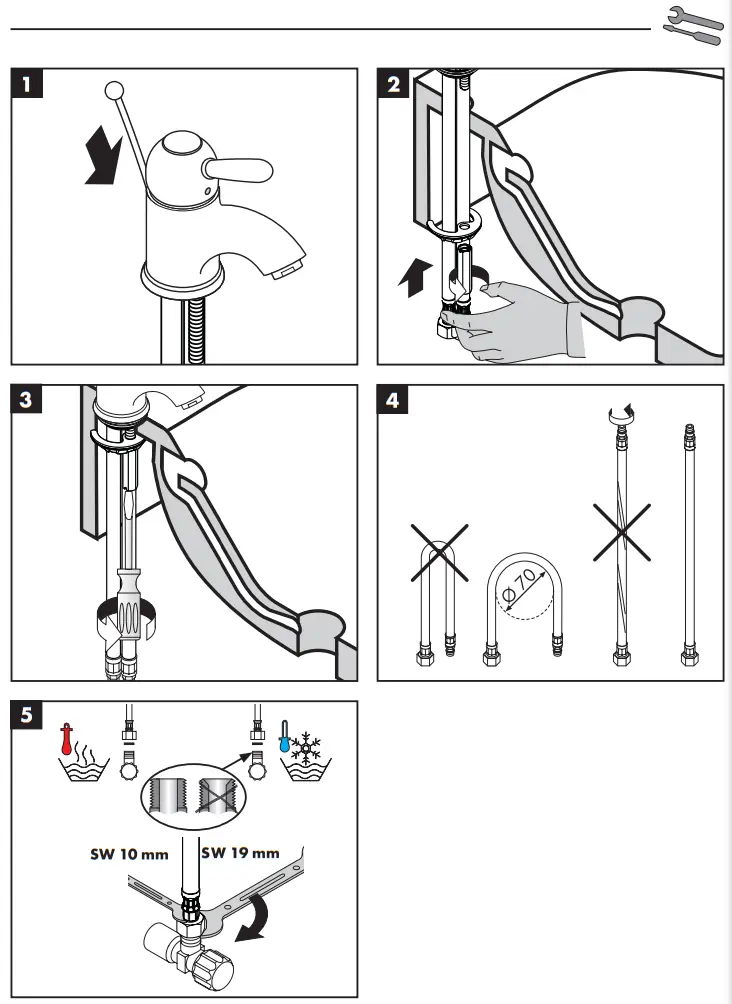

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the Eco Smart ® (flow limiter) located behind the aerator can be removed.

Technical Data

This mixer series-produced with Cosart®(flow limiter)
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Symbol description

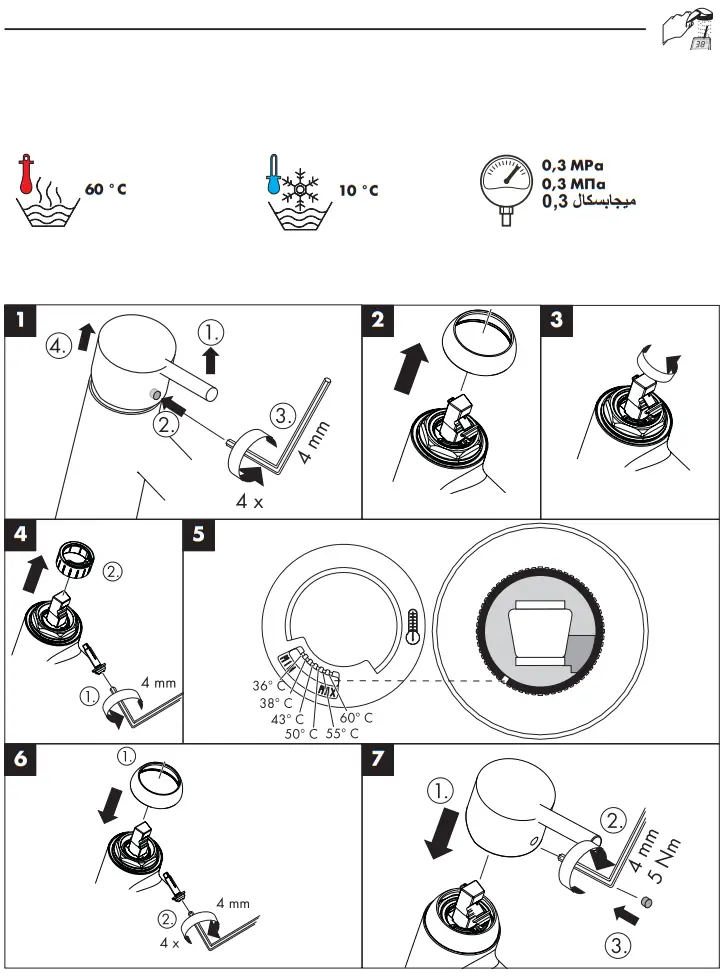

To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.
Do not use silicone containing acetic acid!

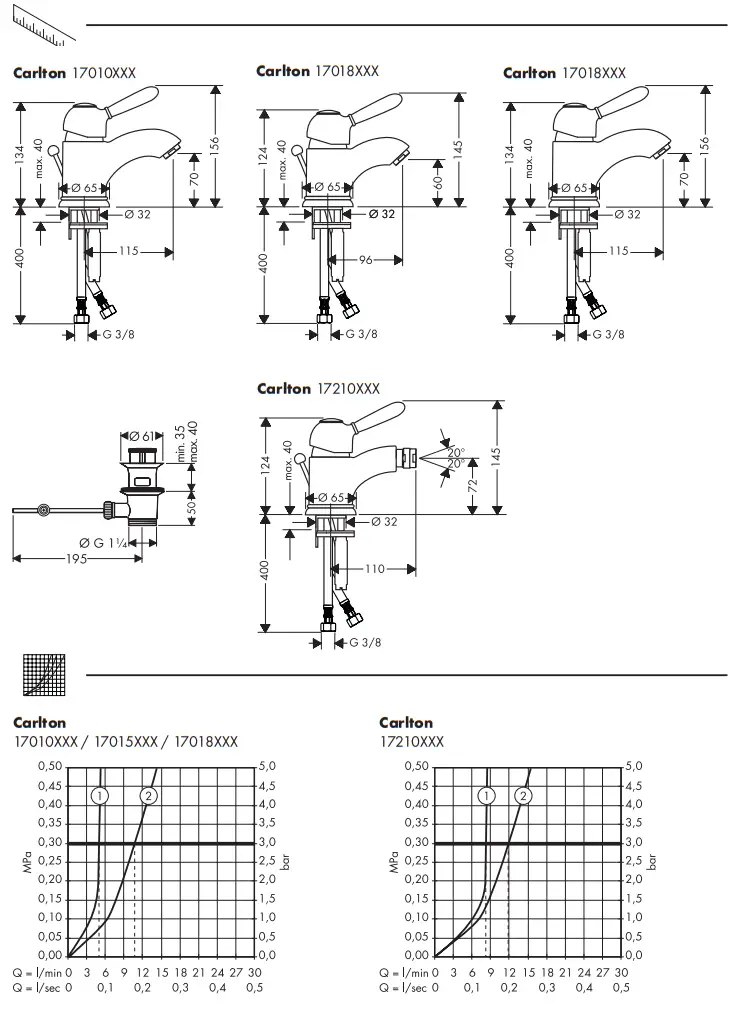

Dimensions (see page 34)
Flow diagram
1. with Eco Smart
2. with out Eco Smart

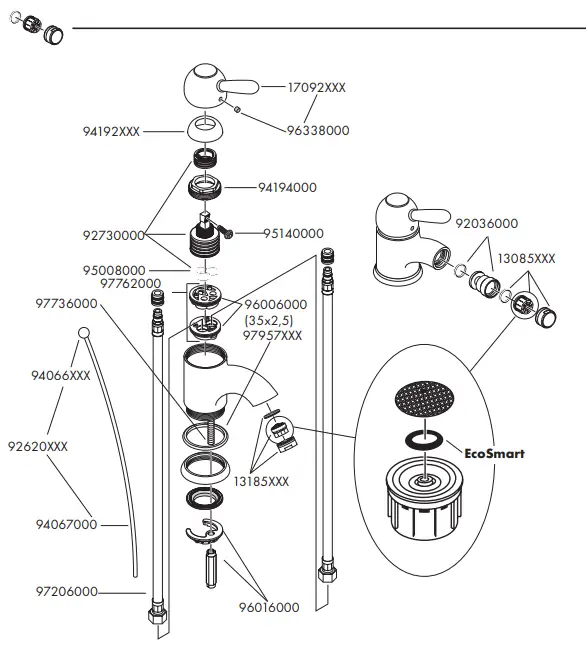

Spare parts (see page 36)
Special accessories
special tool (58085000) order as an extra
Installation kit order as an extra

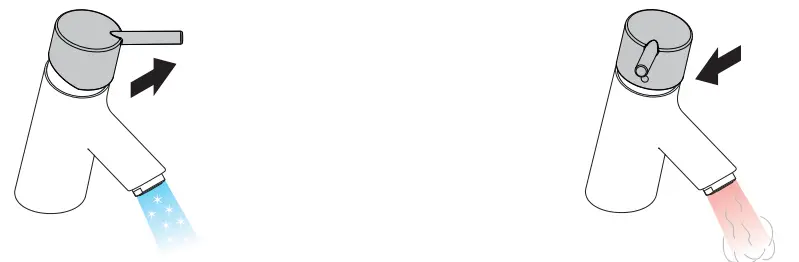

Operation (see page 35)
Cleaning (see enclosed brochure)
Test certificate (see page 35)

open	close
cold	hot

XXX =Colors
000 = chrome plated
090 = chrome plated

Hansgrohe  Postfach 1145 · D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.co
