Hansgrohe Talis S2 Basin Faucet Instruction Manual

Instructions for us

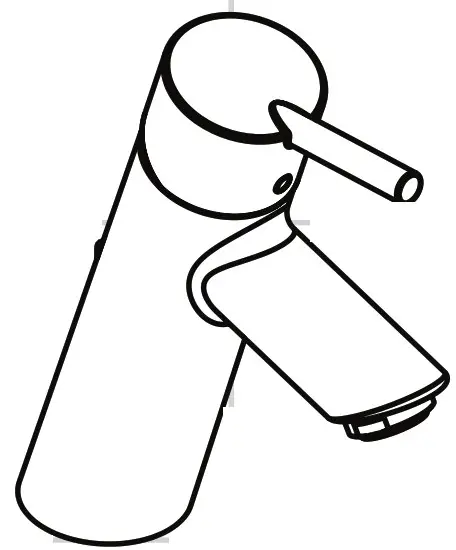

Talis S²
32040000 / 32041000 / 32048000

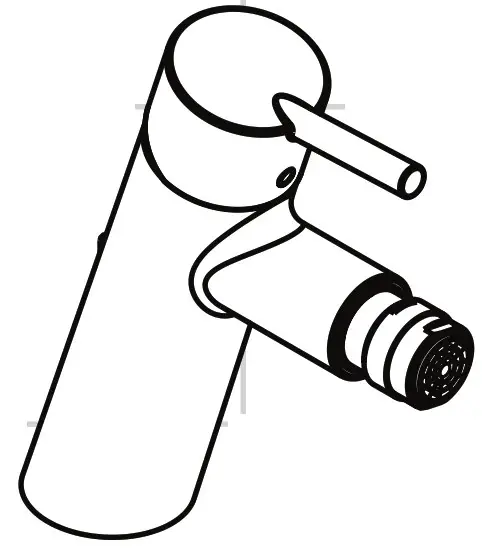

Talis S²
32240000 / 32248000

Safety Notes

• Gloves should be worn during installation to prevent crushing and cutting injuries.
• The shower system may only be used for bathing, hygienic and body cleansing purposes.
• The hot and cold supplies must be of equal pressures.

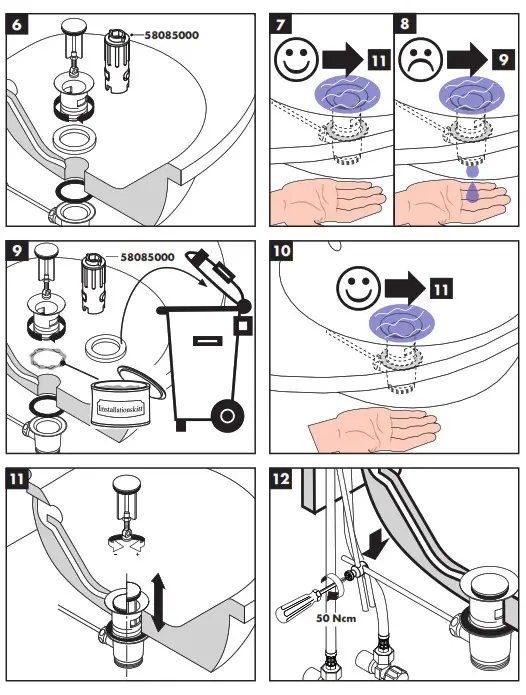

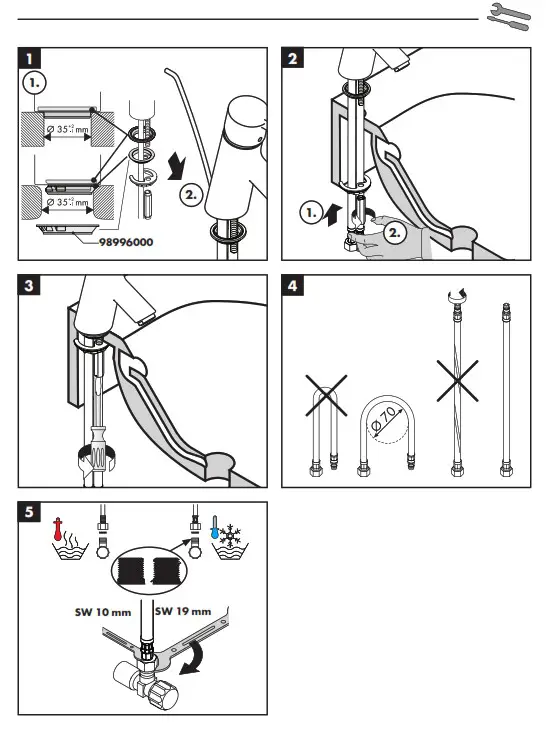

Installation Instructions

• Thefittingmustbeinstalled,flushedandtestedafter the valid norms.
• Iftheinstantaneouswaterheatercausesproblemsor if you wish to increase the water flow, the EcoSmart ®  (flowlimiter)locatedbehindtheaeratorcanbe removed.

Technical Data

This mixer series-produced with EcoSmart  ® (flowlimiter)
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Symbol description

	To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous How water heater.
	Do not use silicone containing acetic acid!

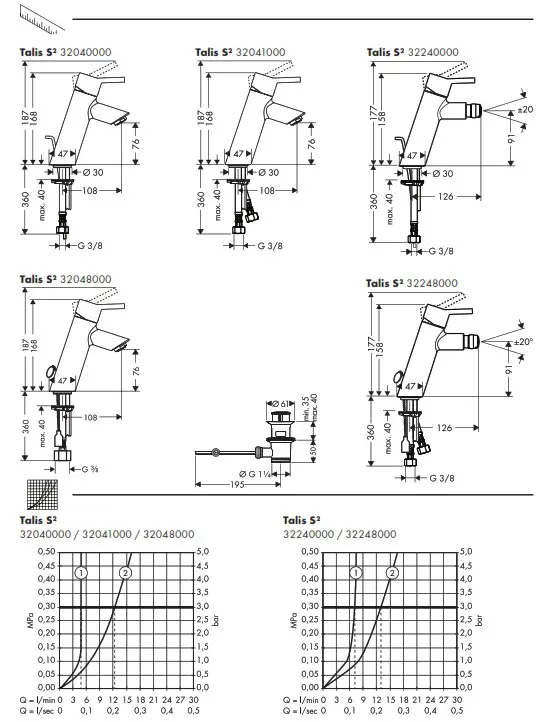

	Dimensions (see page 34)

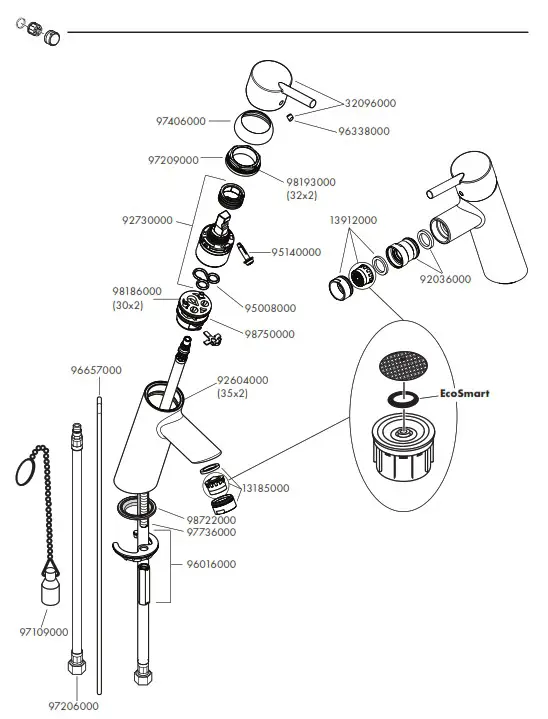

	Flow diagram (see page 34) 0 with EcoSmartr 0 without EcoSmart Spare parts (see page 36)
	Special accessories
	special tool 58085000 (order as an extra)
	Installation kit (order as an extra)
	seal 98996000 (order as an extra)

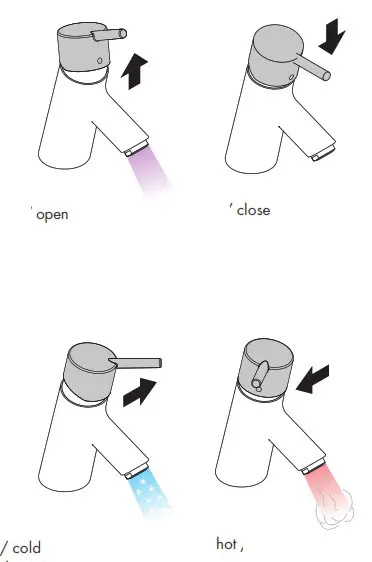

	Operation (see page 35)
	Cleaning see enclosed brochure
	Test certificate (see page 35)
