Hansgrohe Focus S Lever Sink Faucet Instruction Manual

hansgrohe FOCUS S Lever Sink Faucet

Product Information

The product is a shower system that is designed for bathing, hygienic and body cleansing purposes. The shower system has a one-hand mixer with a hot water limiter that can be adjusted as per the instructions provided on page 33 of the user manual. The shower system can be used with continuous-flow water heaters and does not require a warm water block. The operating pressure of the shower system should not exceed 1 MPa, and the recommended operating
pressure is 1.6 MPa. The shower system can be used with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0.15 MPa.

Product Usage Instructions

During installation, it is recommended to wear protective gloves to prevent crushing and cutting injuries. The hot and cold water supplies must have equal pressures to avoid any issues. The shower system is designed for personal hygiene purposes only and should not be used for any other purposes. To adjust the hot water limiter on single lever mixers, refer to page 33 of the user manual. It is important not to use silicone containing acetic acid while installing the shower system.

The shower system can be cleaned as per the instructions provided on page 37 of the user manual. The user manual also provides a flow diagram on pages 34 and 35, which is useful for understanding the flow of water through the shower system. Spare parts for the shower system are available and can be purchased as per the instructions provided on page 38 of the user manual.

To assemble the shower system, refer to pages 31 and 32 of the user manual. It is important to note that an installation kit is not included with the product and must be purchased separately. Special accessories such as a special tool (58085000) can also be purchased separately. The user manual provides technical data and dimensions of the shower system on pages 4 and 34-35.

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.

Installation Instructions

The fitting must be installed, flushed and tested after the valid norms.
If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.

Technical Data

This mixer series-produced with EcoSmart (flow limiter)

• Operating pressure: max. 1 MPa
• Recommended operating pressure: 0,1 – 0,5 MPa
• Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
• Hot water temperature: max. 80°C
• Recommended hot water temp.: 65°C
• Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Symbol description

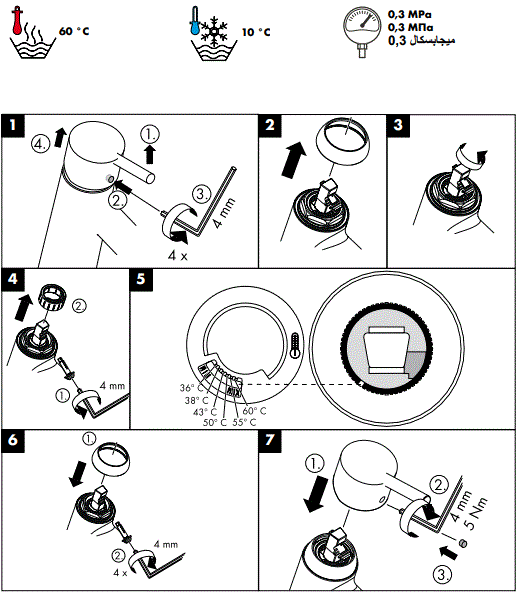

• To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous-flow water heater.



• Do not use silicone containing acetic acid!

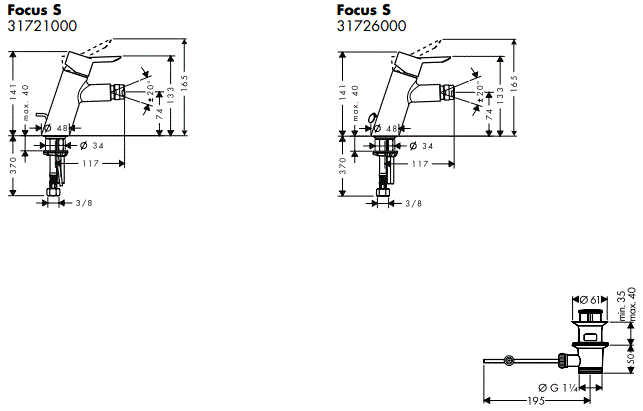

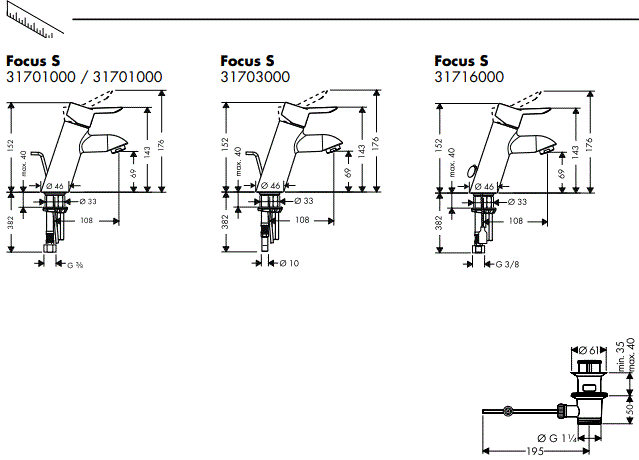

• Dimensions (see page 34 + 35)

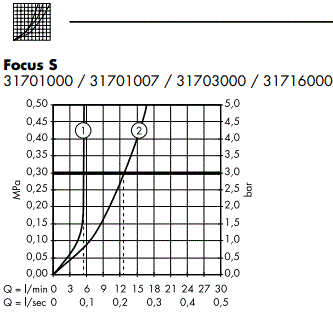

• Flow diagram (see page 34 + 35)
  • with EcoSmart®
  • without EcoSmart®

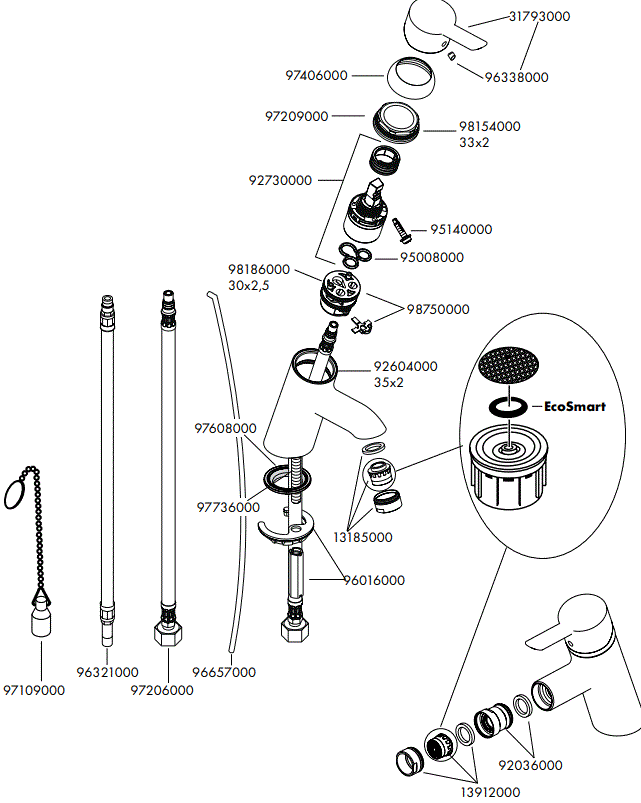

• Spare parts (see page 38)



• Special accessories
  special tool (58085000) order as an extra
• Installation kit order as an extra

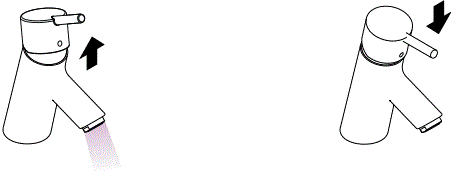

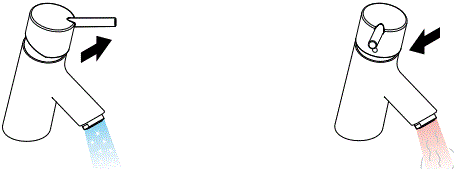

• Operation (see page 36)
  • open
  • close

  • cold
  • hot



• Cleaning (see page 37) enclosed brochure

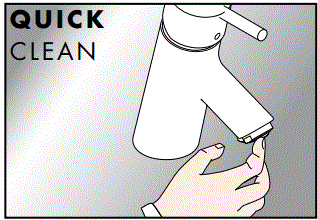

  The QuickClean cleaning function only needs a small manual rub over to remove the lime scale from the spray channels.

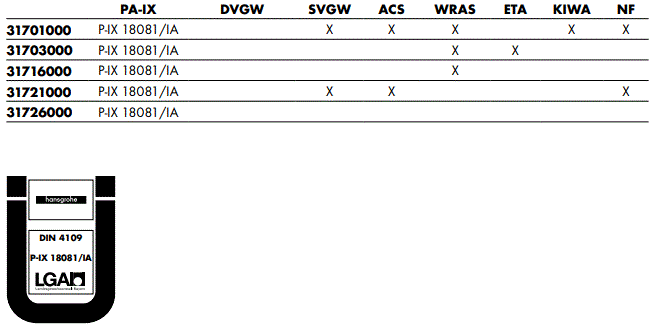

• Test certificate (see page 39)

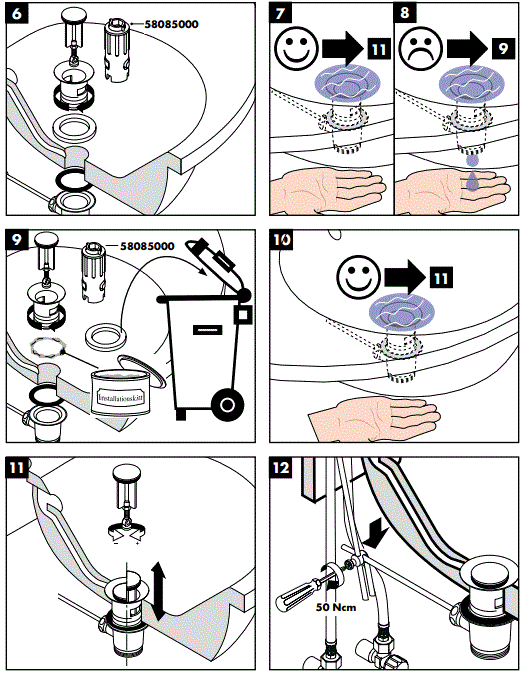

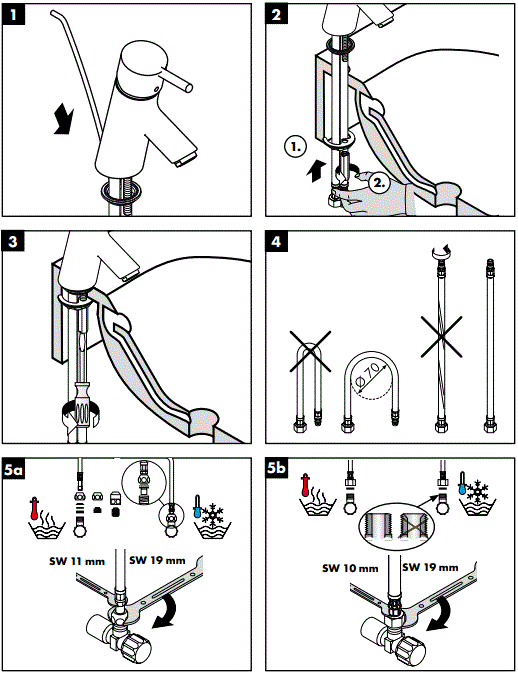

Assembly
