Hansgrohe 10645000 Axor Starck X Bathroom Equipment Instruction Manual

10645000 AXOR Starck
X Bathroom Equipment
Instruction Manual

10645000 AXOR Starck X Bathroom Equipment

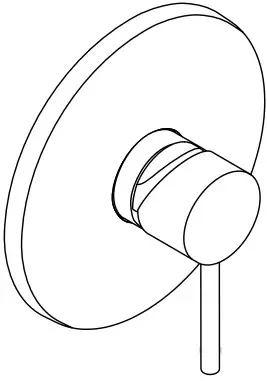

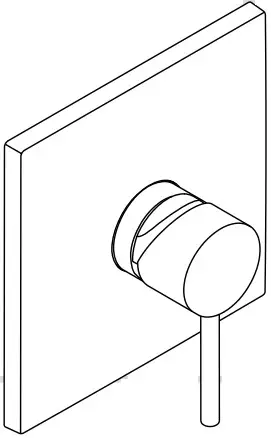

Starck 10616000	Starck X 10645000

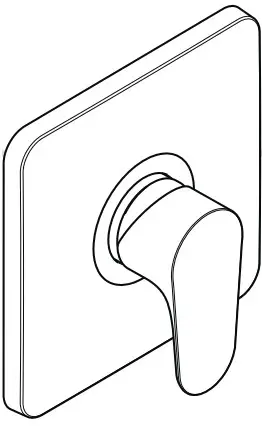

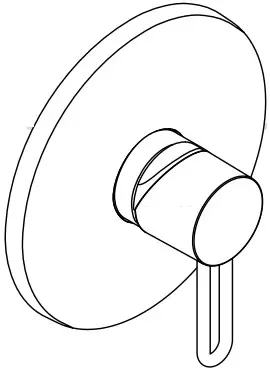

Citterio M 34625000 34625003	Uno² 38625000

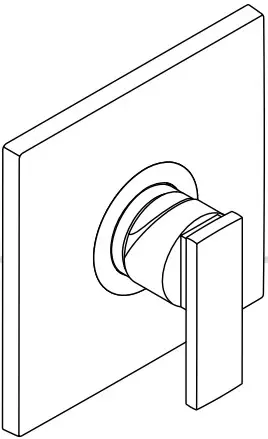

Citterio
39655000
39655003

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.

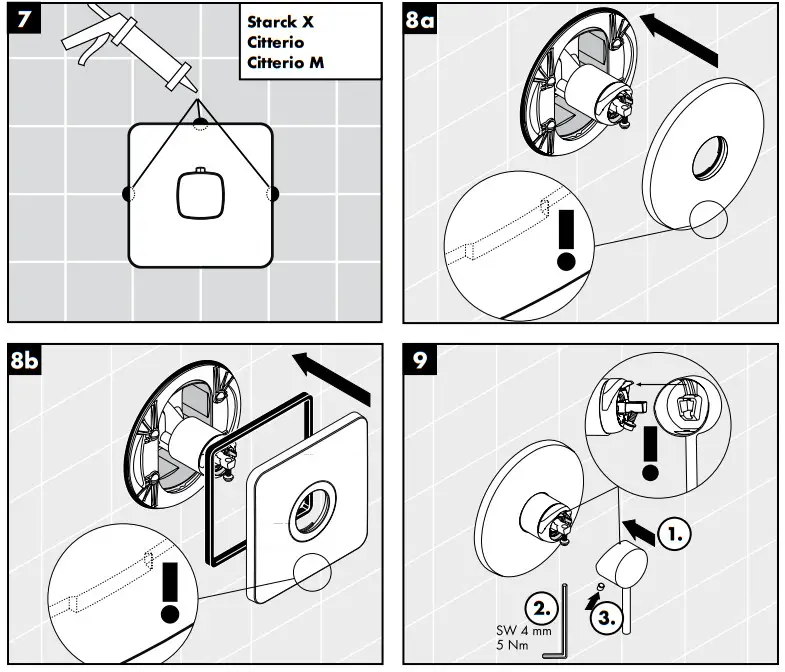

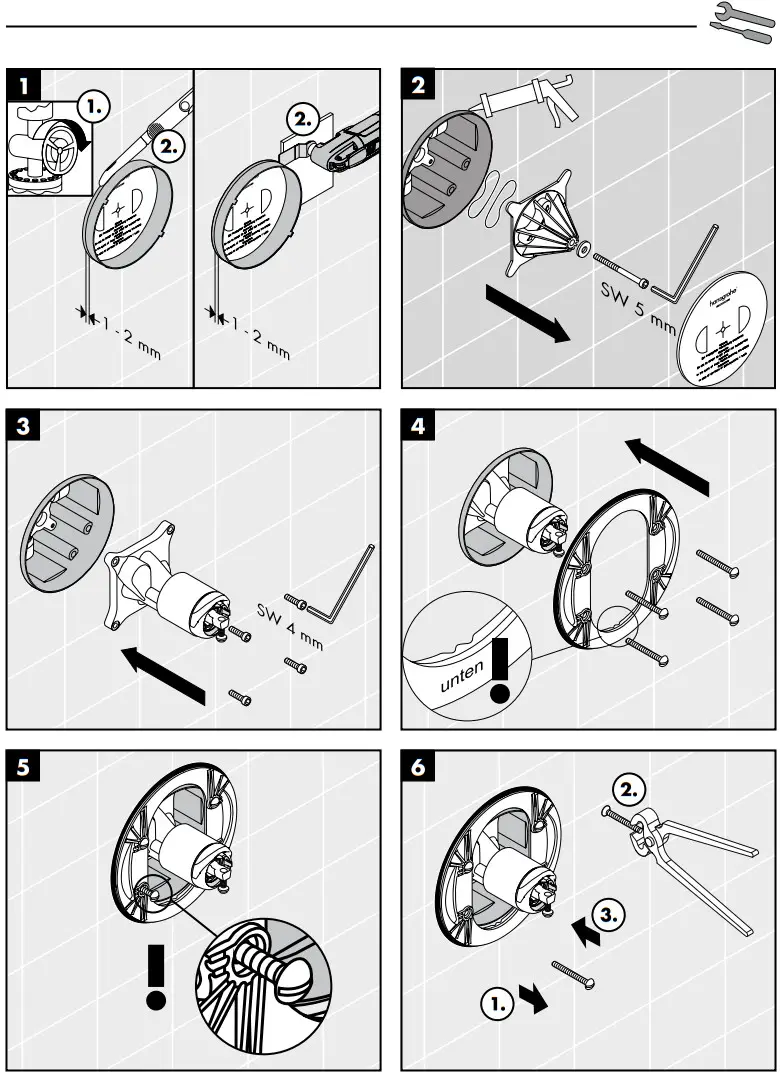

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Technical Data

Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C

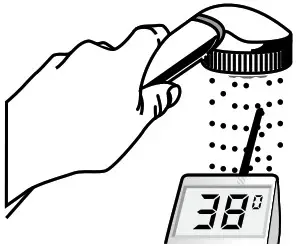

Symbol description

	Do not use silicone containing acetic acid!

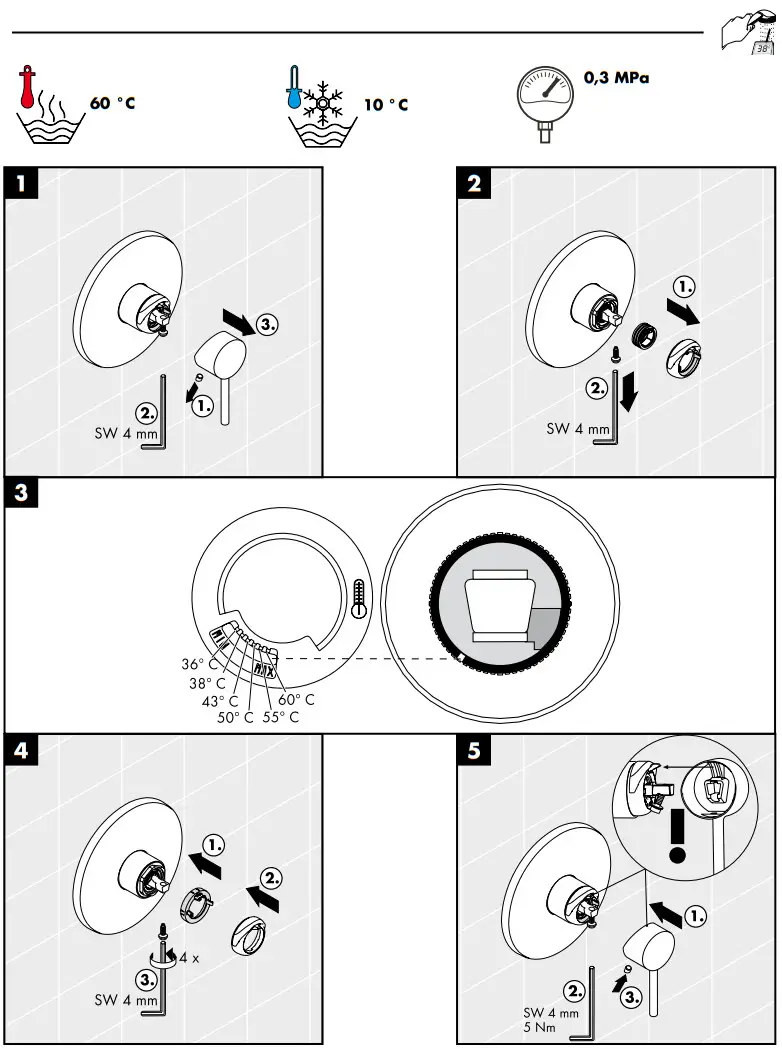

	To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.

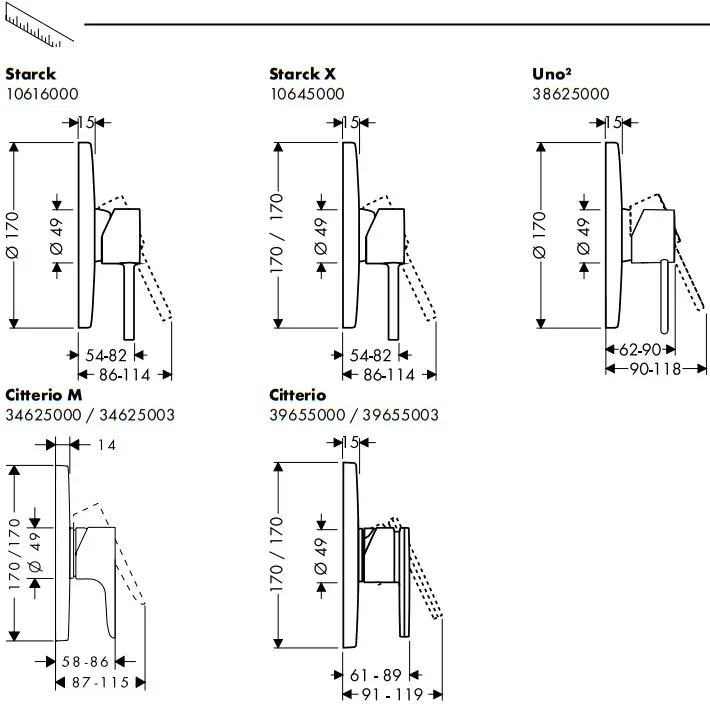

	Dimensions (see page 34)

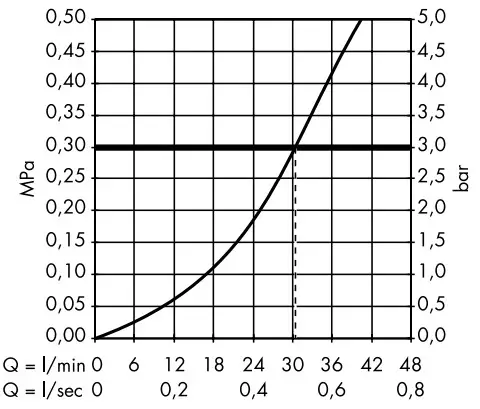

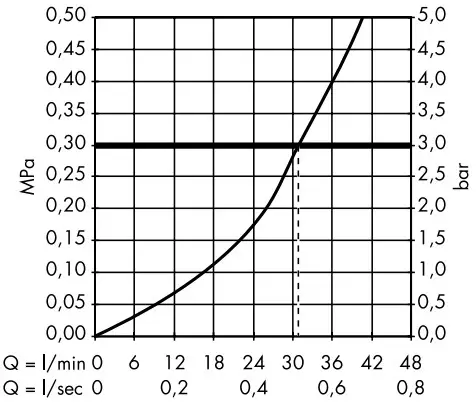

	Flow diagram (see page 34)
	Operation (see page 35)
	Cleaning Cleaning recommendations, see enclosed brochure.
	Spare parts (see page 36)
	Test certificate (see page 35)

Starck 10616000 / Starck X 10645000 / Uno² 38625000 / Citterio 39655000 / 39655003Citterio M 34625000 / 34625003

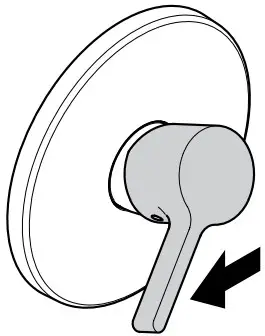

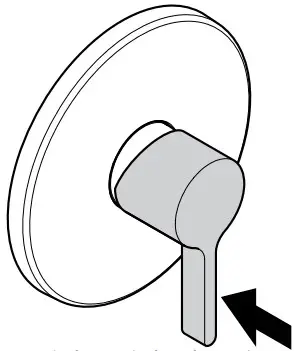

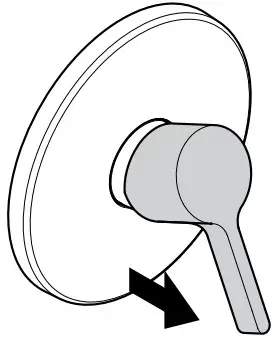

open	hot	close	cold
