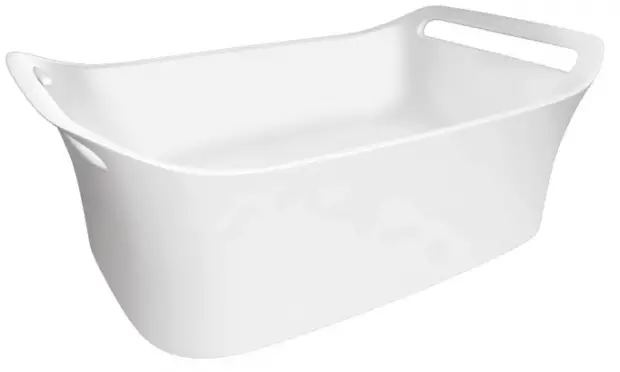

hansgrohe 11300000 Axor Urquiola 20 1/2 Inch Large Vessel Bathroom Sink
Product Information

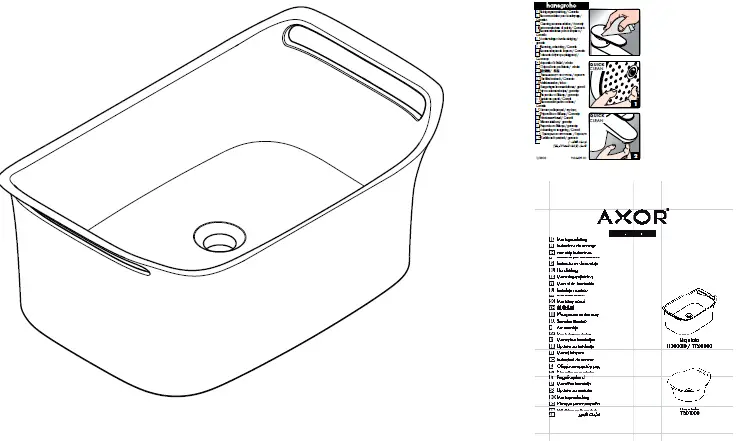

The user manual provides information about the installation and cleaning of the product Urquiola 11300000 / 11302000 and Urquiola 11301000. The manual is available in multiple languages including DE, FR, EN, IT, ES, NL, DK, PL, ZH, RU, FI, SV, LT, HR, TR, RO, EL, SL, ET, LV, SR, NO, and AR. The product comes with a warranty.
Product Usage Instructions
To install Urquiola 11300000 / 11302000:
- Refer to the assembly instructions provided in the user manual in your preferred language.
- Use M6x100 screws to mount the product.
- Apply silicone to the product before mounting it.
- Do not exceed the recommended torque of 5 Nm while installing.
- Use only non-locking drain valves such as HansGrohe drain valve, part no. 500001000 in the wash bowls.
To clean Urquiola 11300000 / 11302000 and Urquiola 11301000:
- Refer to the cleaning recommendation provided in the user manual in your preferred language.

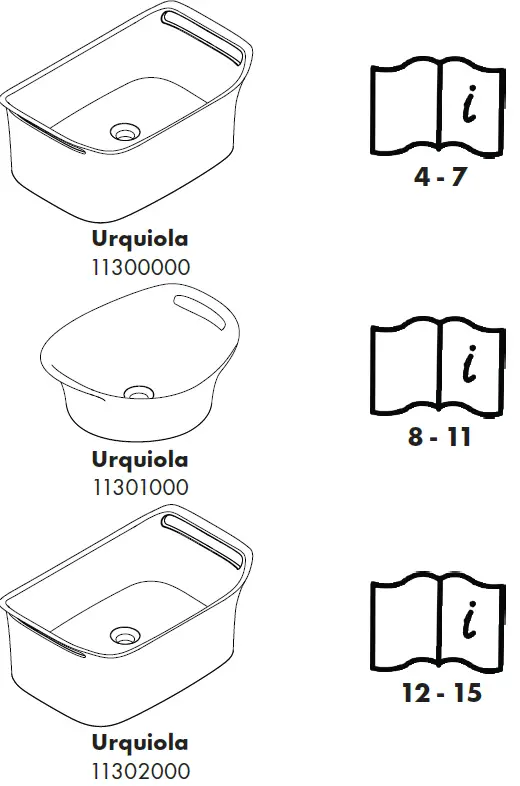

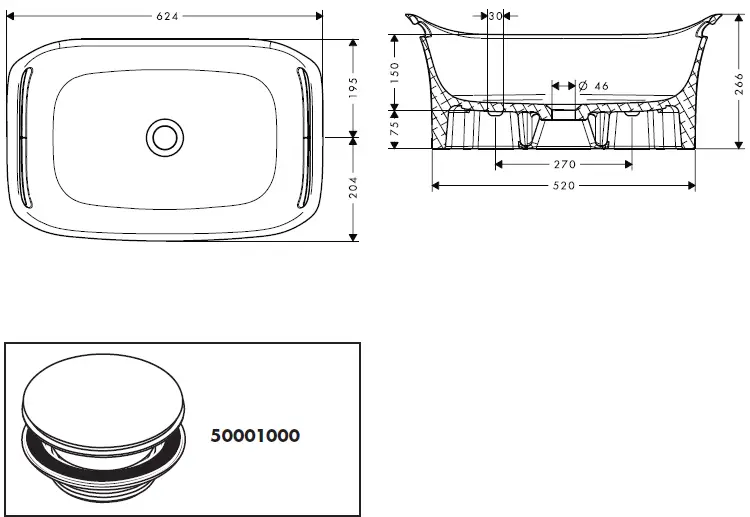

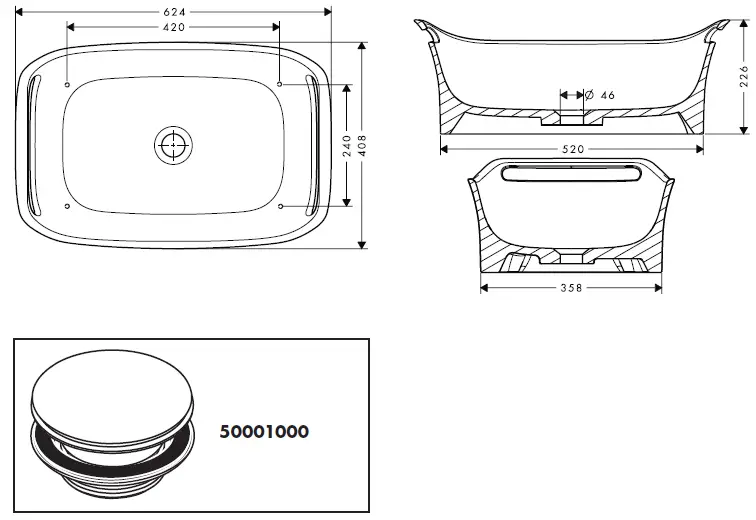

MODELS

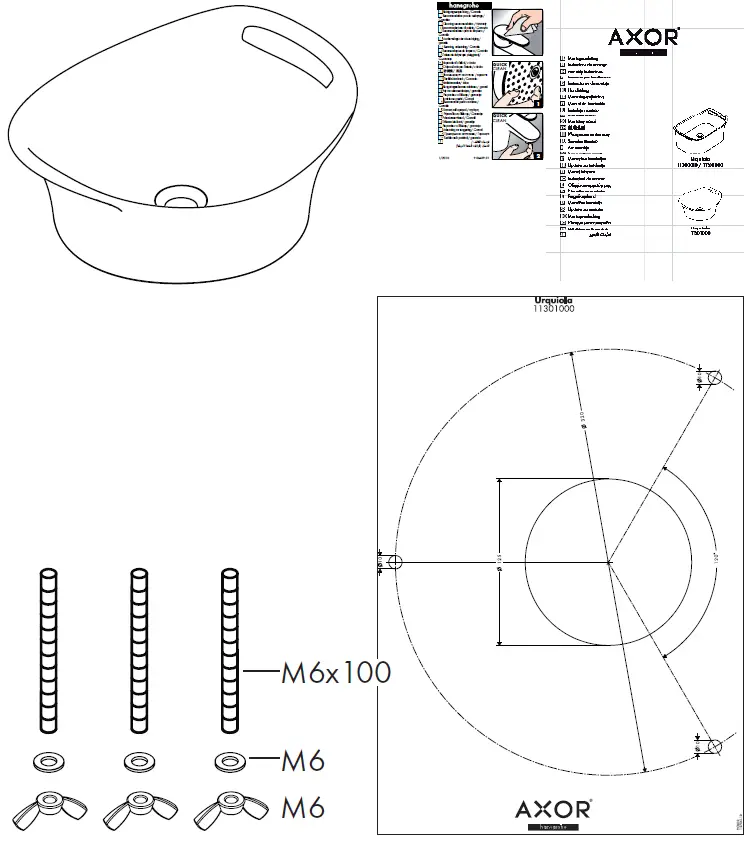

Packing content

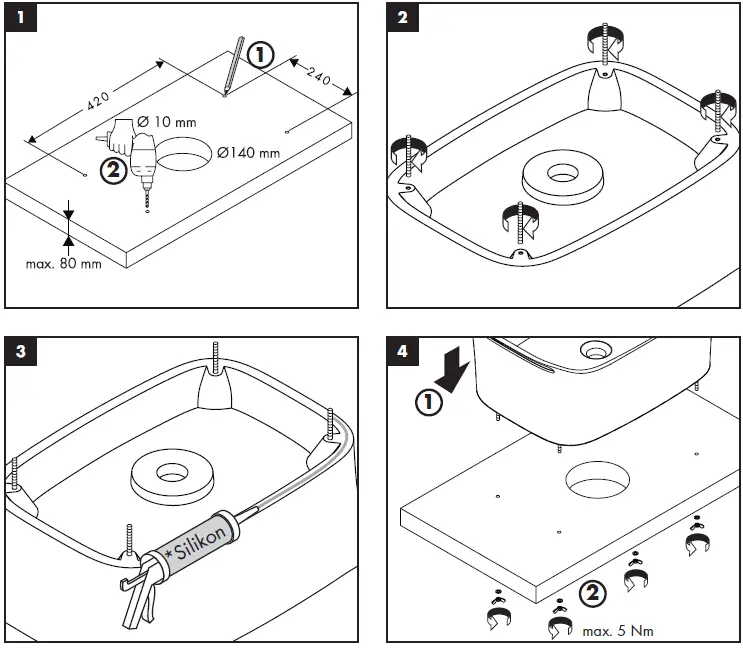

Assembly
Silicone (free from acetic acid)

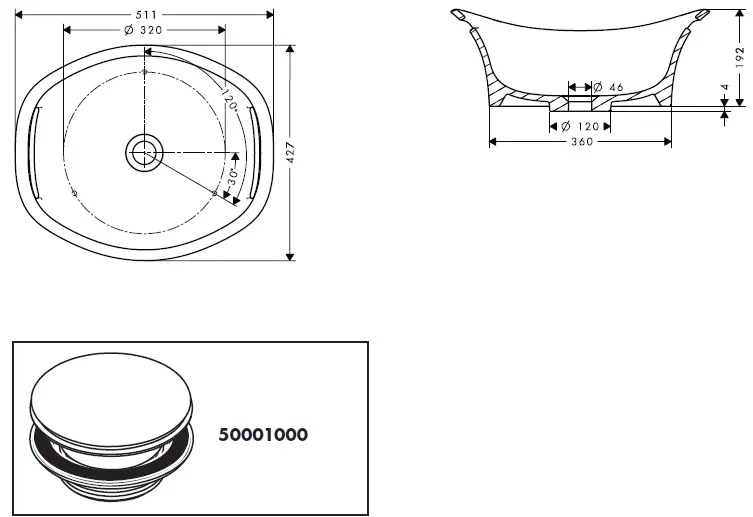

Only non-locking drain valves may be installed in the wash bowls, e.g. HansGrohe drain valve, par t no. 500001000.
Packing content

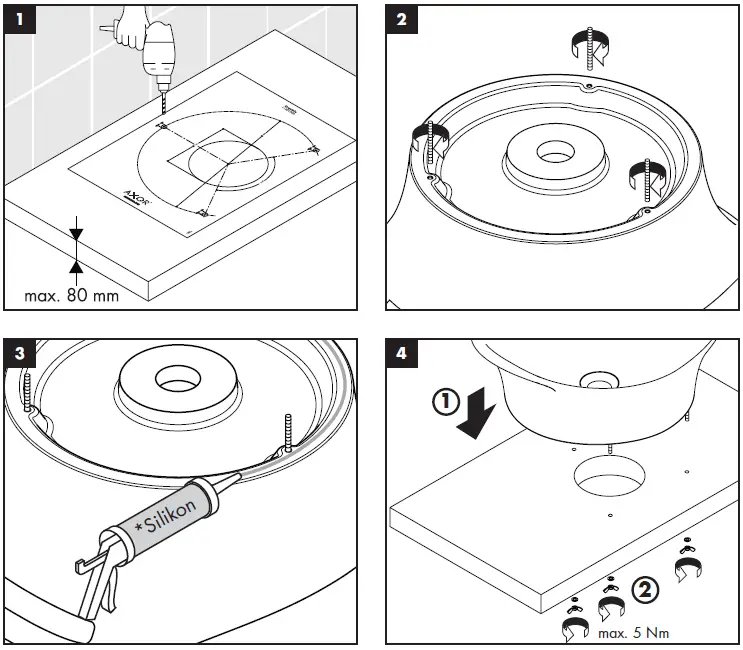

Assembly
Silicone (free from acetic acid)
Only non-locking drain valves may be installed in the wash bowls, e.g. HansGrohe drain valve, par t no. 500001000
Packing content
not included

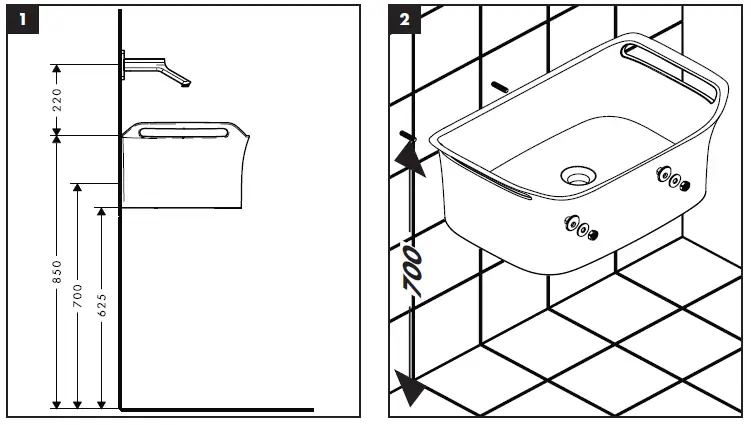

Assembly
Only non-locking drain valves may be installed in the wash bowls, e.g. HansGrohe drain valve, par t no. 500001000.

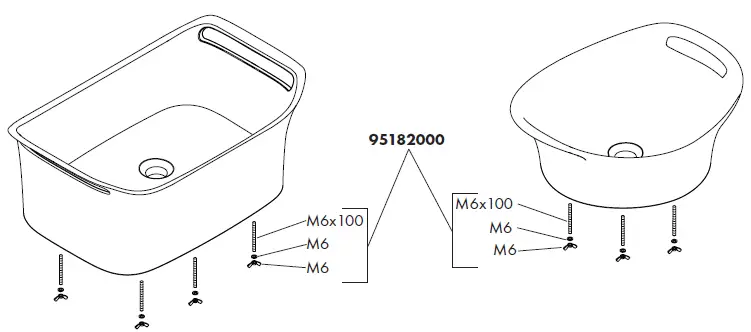

Spare parts
service set for basin
Hansgrohe · Postfach 1145 · D-77761 Schiltach
- Telefon +49 (0) 78 36/51-1282
- Telefax +49 (0) 7836/511440
- E-Mail: [email protected]
- Internet: www.hansgrohe.com
