Franke Fc 3055.084 Orbit Kitchen Faucet Owner's Manual

FRANKE FC 3055.084 Orbit Kitchen Faucet

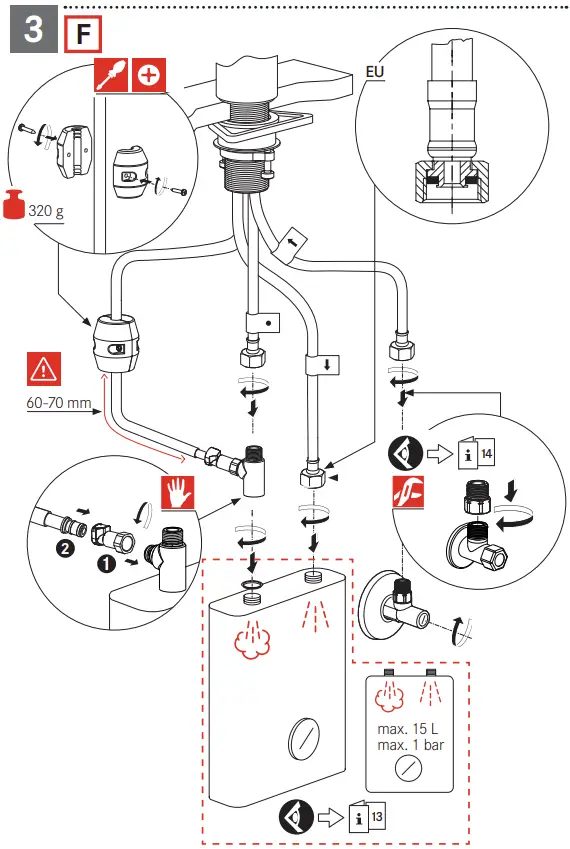

Installation and service Illustration

Not included*

  www.franke.com

Periodic checks

• Check connection and shower hoses periodically for the following:
  – Watertightness
  – Corrosion
  – Mechanical damage
• Use original spare parts only.
• Replace damp or dripping hoses.
• Replace hoses with rusty or oxidized surfaces.
• Replace hoses that show signs of mechanical damage.

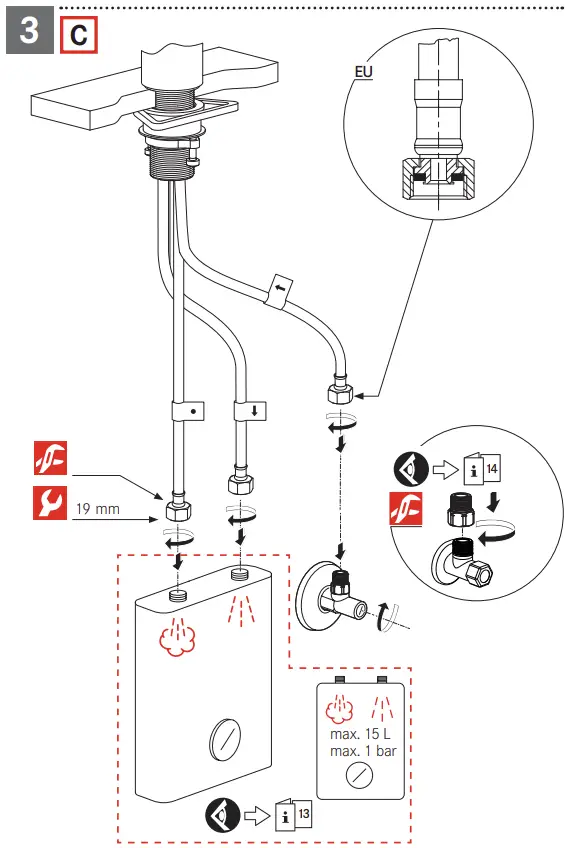

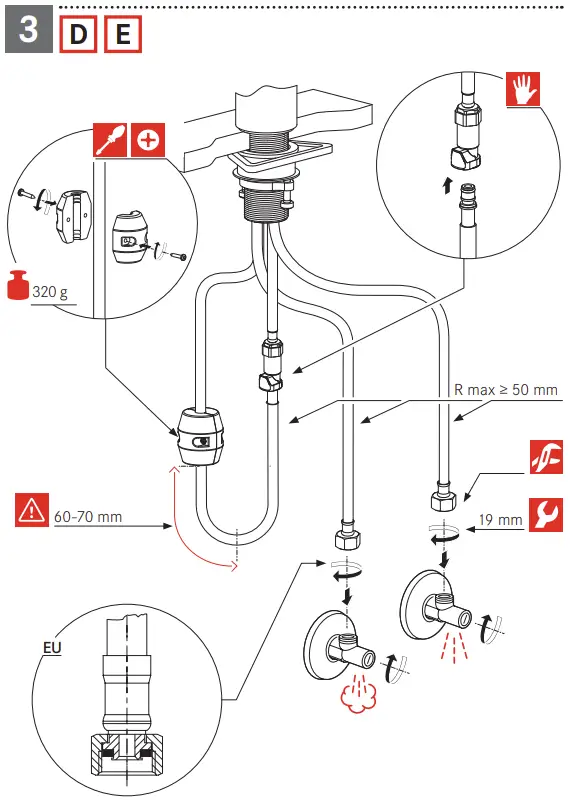

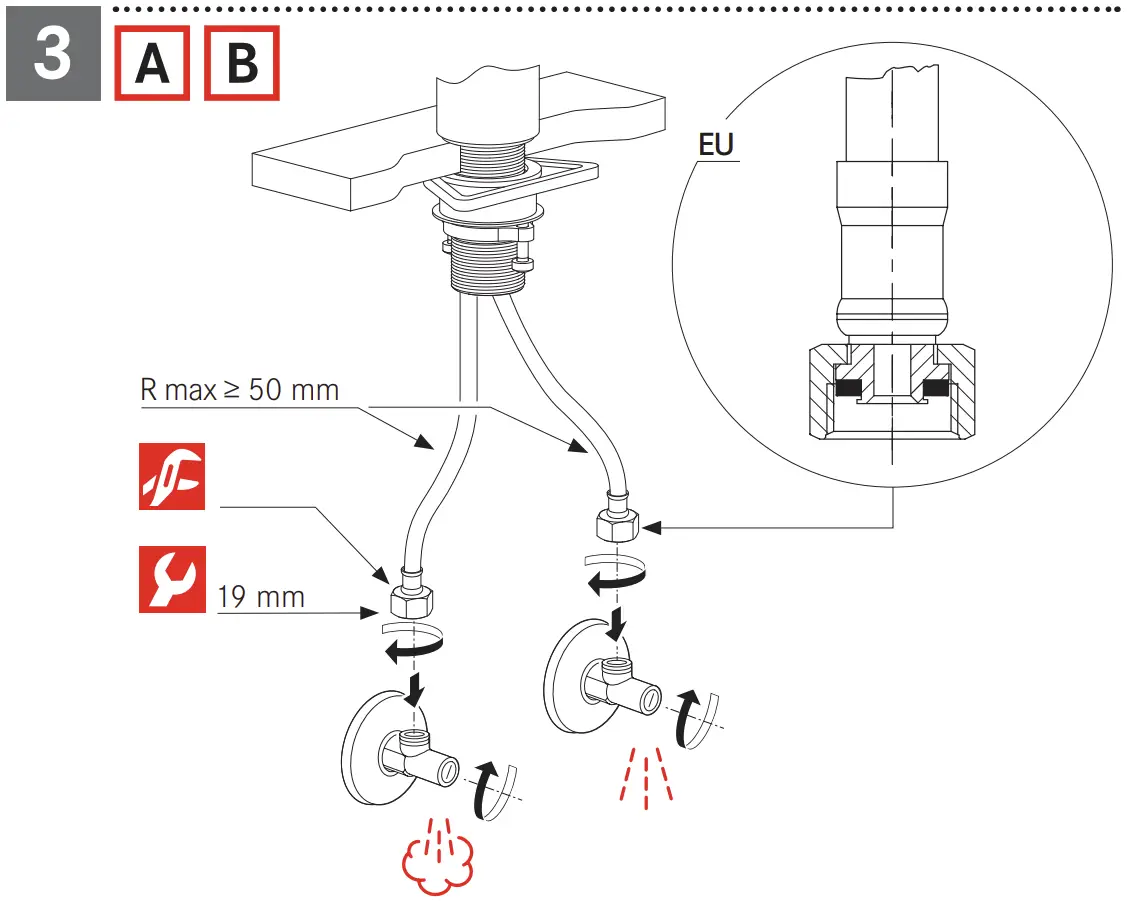

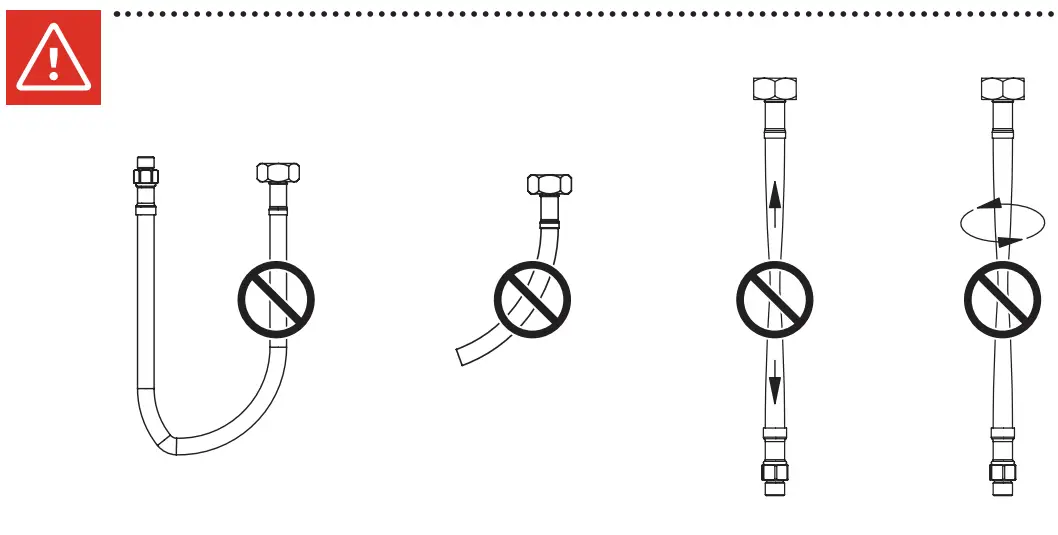

Replacement of the flexibles

• Don‘t use a wrench or other items to mount the flexibles on the tap side.
  Mount these only by hand.
•  Flush all pipes thoroughly before installation.


  Operating data	Value
  Operating pressure (ideal)	3 bar	45 PSI	300 kPa
  Operating pressure (max.)*	5 bar	70 PSI	500 kPa
  Operating pressure (min.)*	1 bar	14.5 PSI	100 kPa
  Water temperature (ideal)	60 °C	140 °F
  Water temperature (max.)	70 °C	158 °F
  * Equal pressure is recommended.

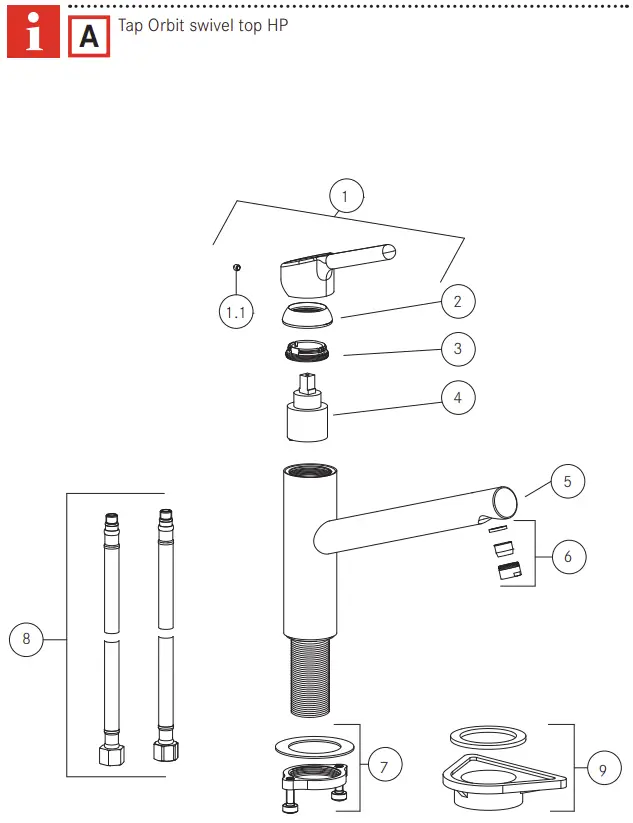

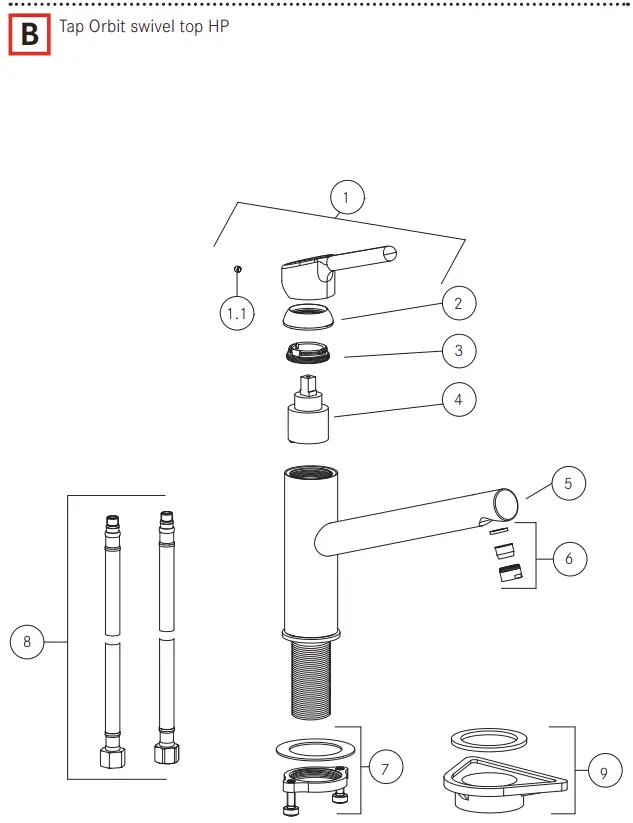

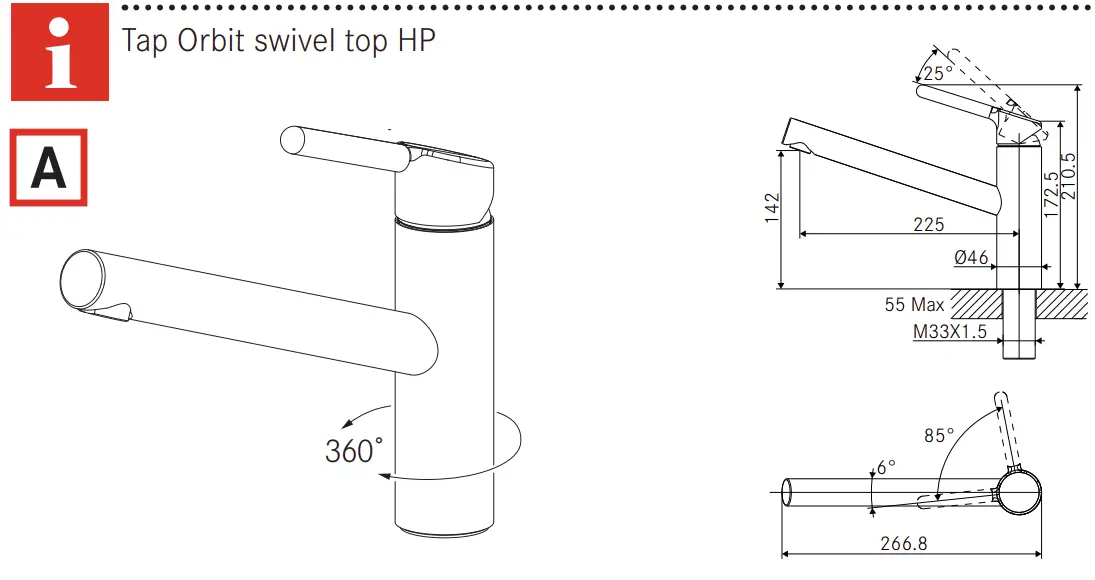

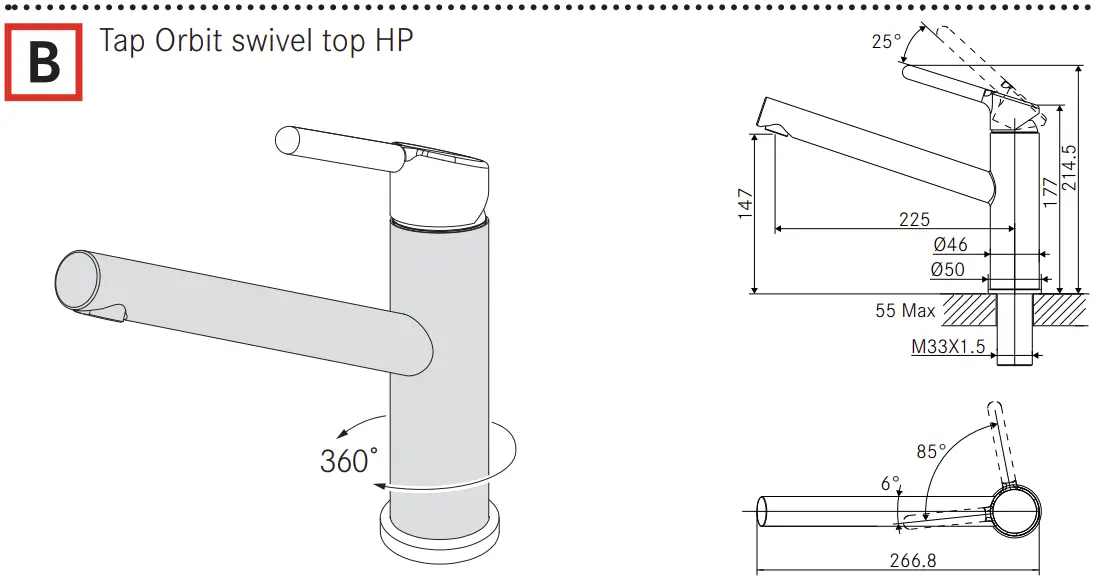

Tap Orbit swivel top HP Illustration

www.franke.com
