FRANKE FC 3054.099 ORBIT Kitchen Faucet Installation Guide

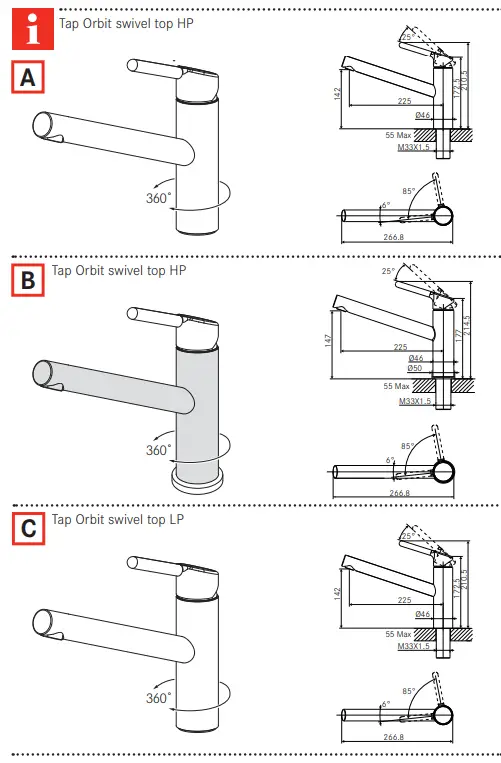

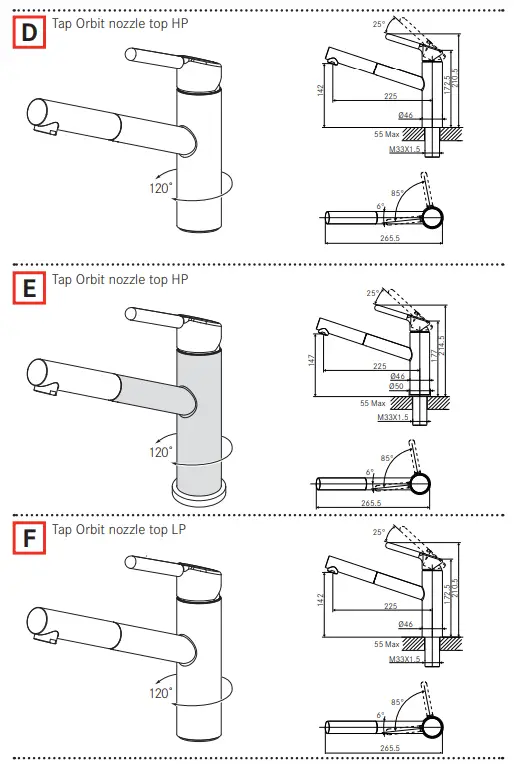

Tap Orbit swivel top HP
Periodic checks
▶ Check connection and shower hoses periodically for the following:
- Watertightness
- Corrosion
- Mechanical damage
▶ Use original spare parts only.
▶ Replace damp or dripping hoses.
▶ Replace hoses with rusty or oxidized surfaces.
▶ Replace hoses that show signs of mechanical damage.

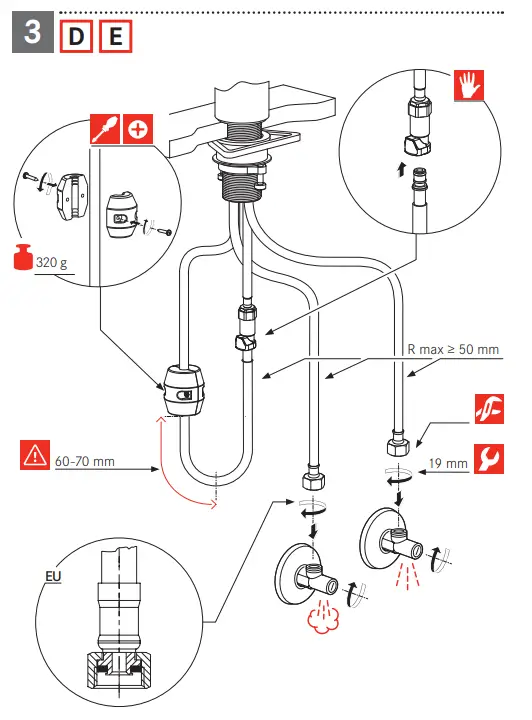

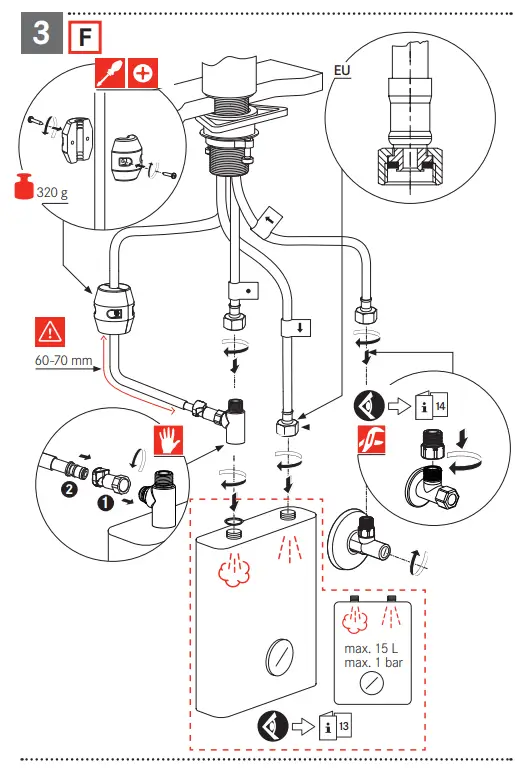

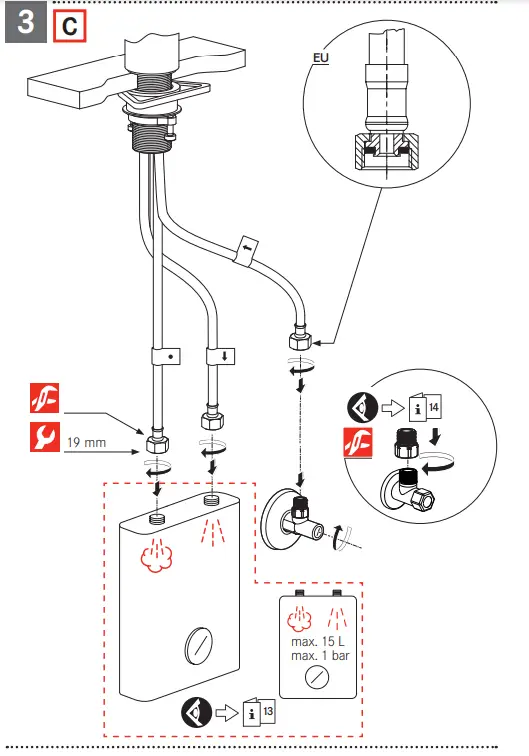

Replacement of the flexibles
▶ Don‘t use a wrench or other items to mount the flexibles on the tap side. Mount these only by hand

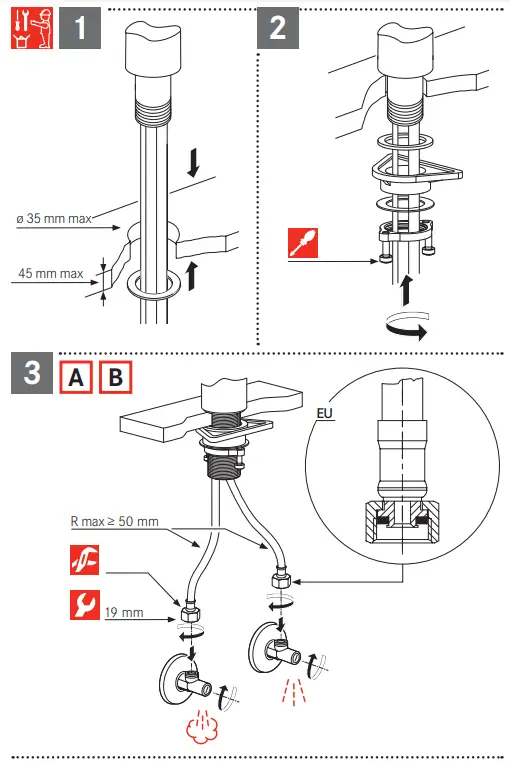

Flush all pipes thoroughly before installation.
| Operating data | Value | ||
| Operating pressure (ideal) | 3 bar | 45 PSI | 300 kPa |
| Operating pressure (max.)* | 5 bar | 70 PSI | 500 kPa |
| Operating pressure (min.)* | 1 bar | 14.5 PSI | 100 kPa |
| Water temperature (ideal) | 60 °C | 140 °F | |
| Water temperature (max.) | 70 °C | 158 °F | |
* Equal pressure is recommended.
