FRANKE SET G200SA ORBIT Kitchen Faucet

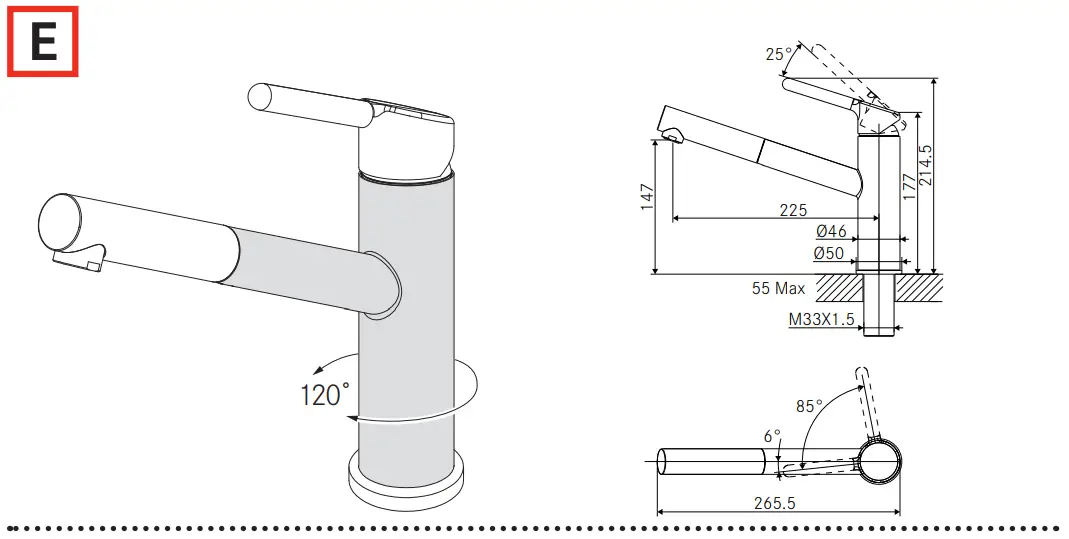

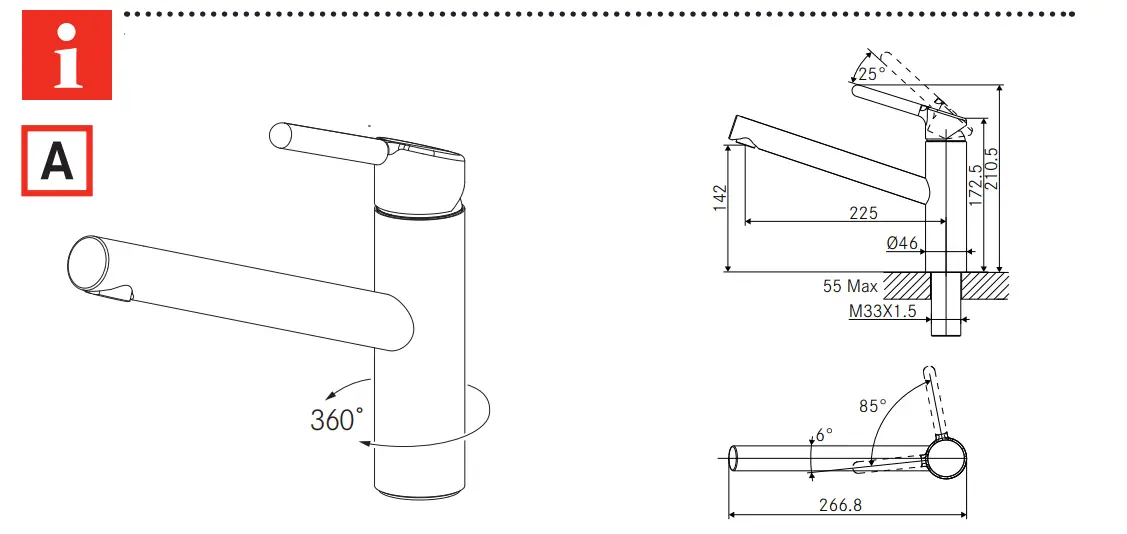

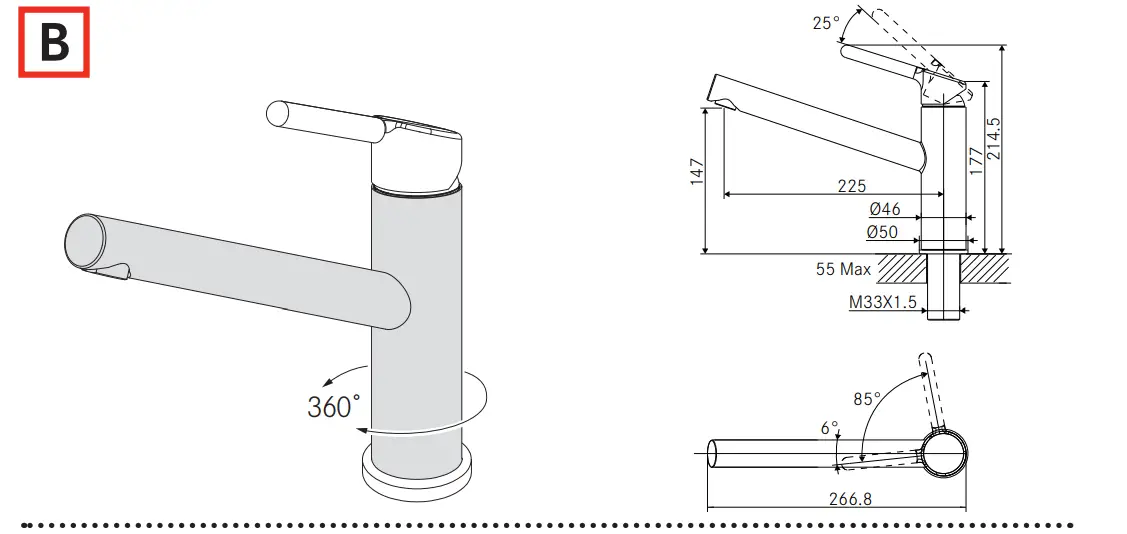

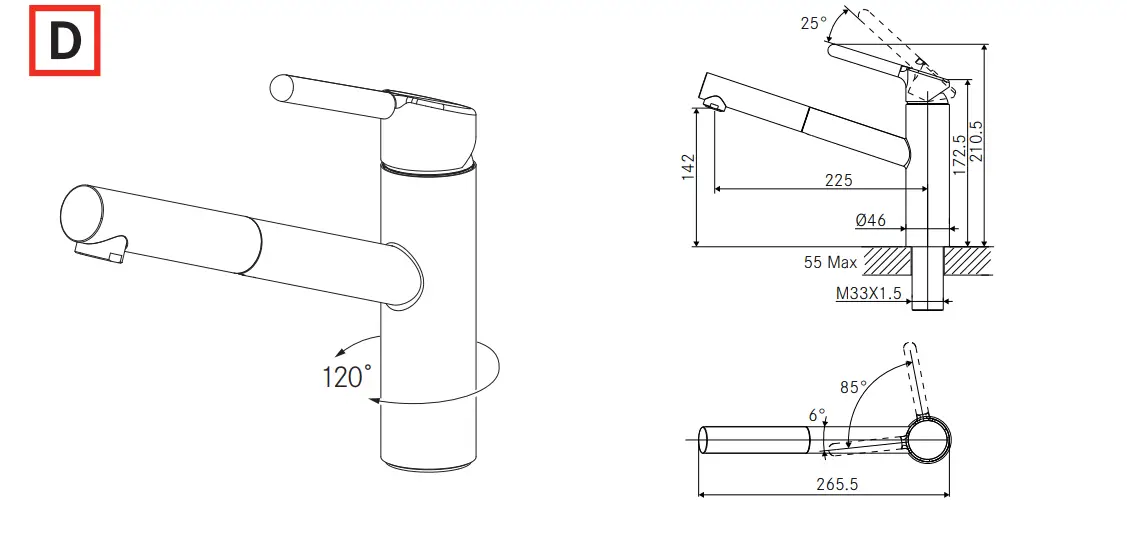

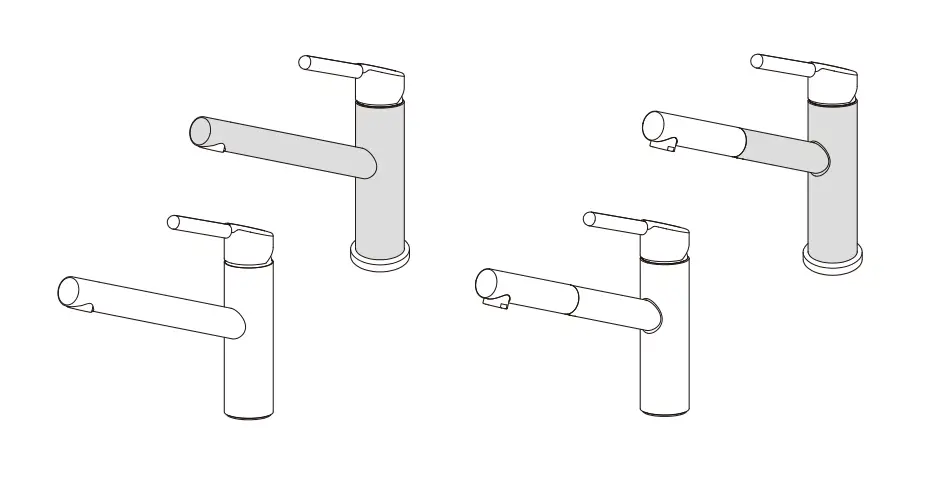

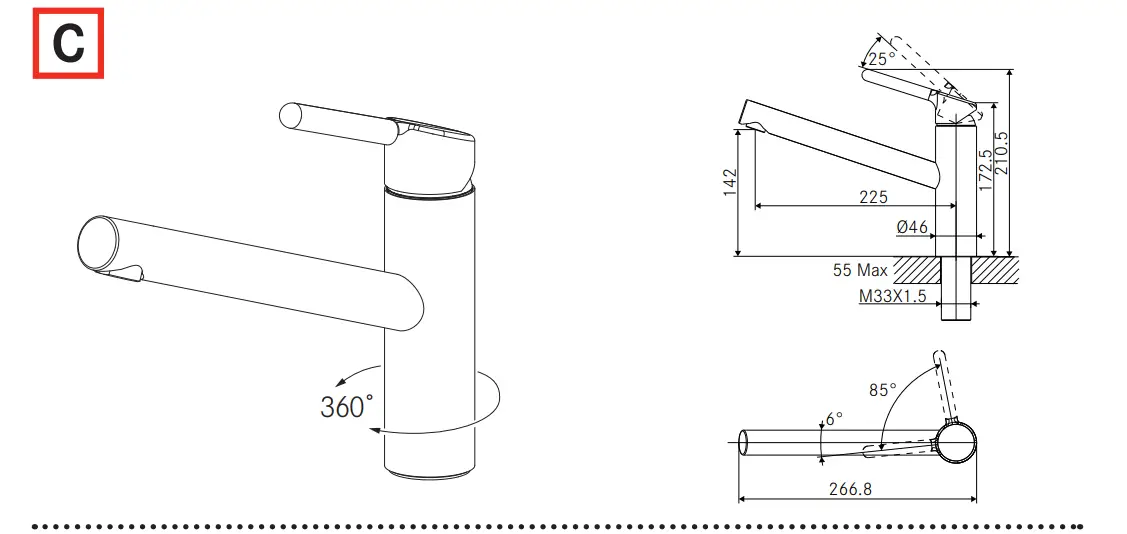

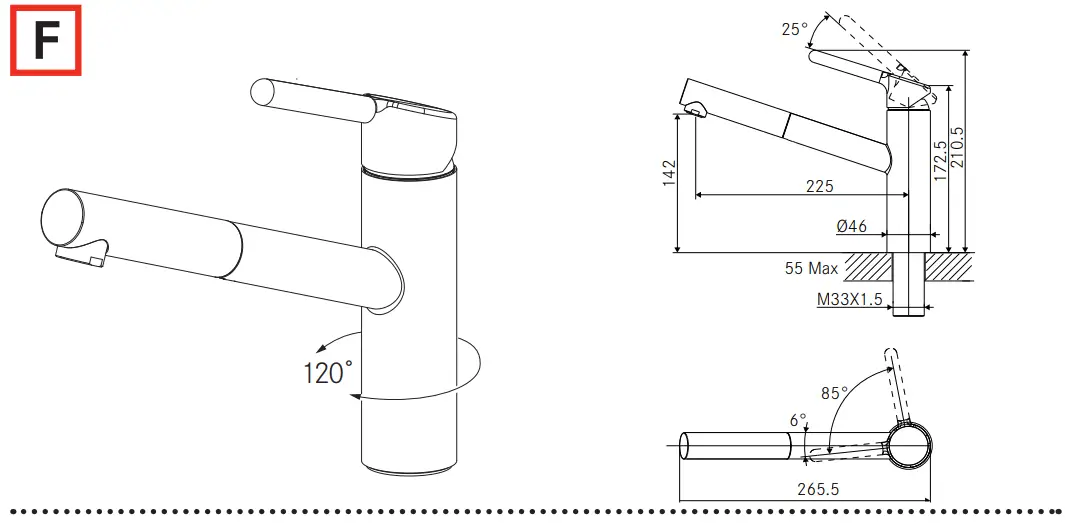

DIMENSIONS
IMPORTANT NOTES
PRECAUTIONS

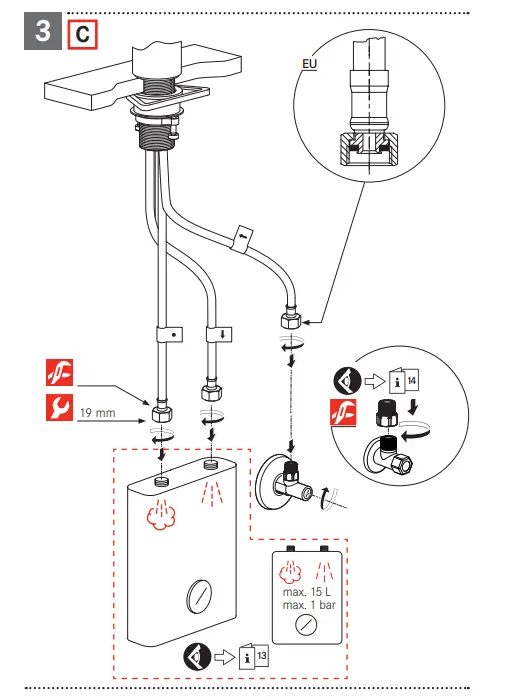

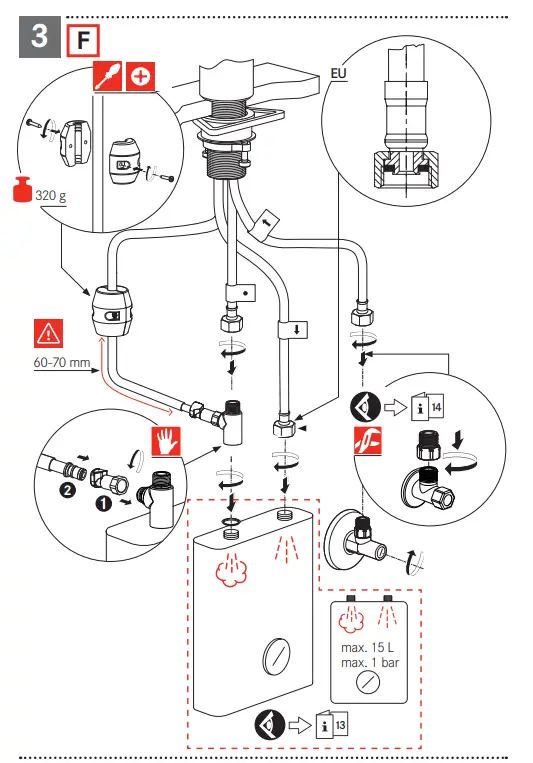

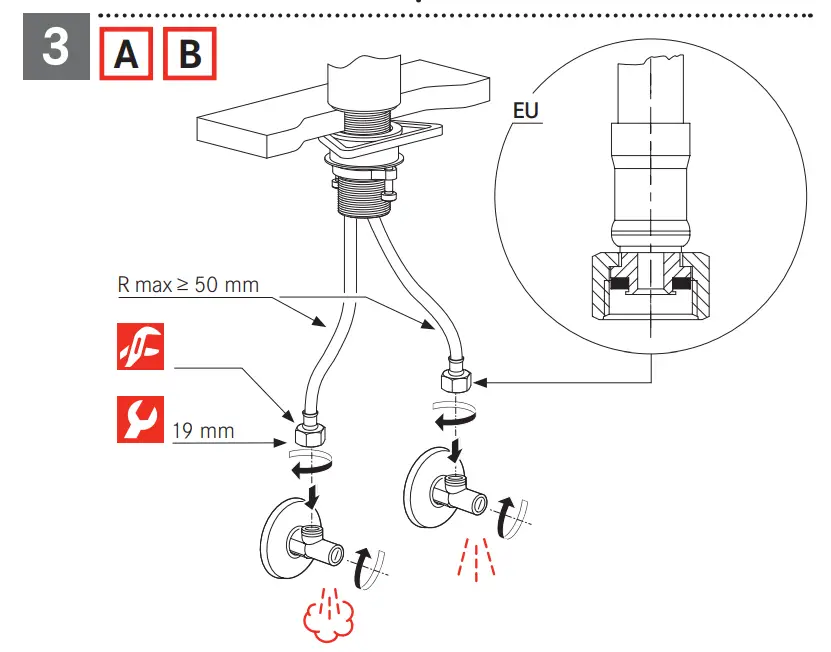

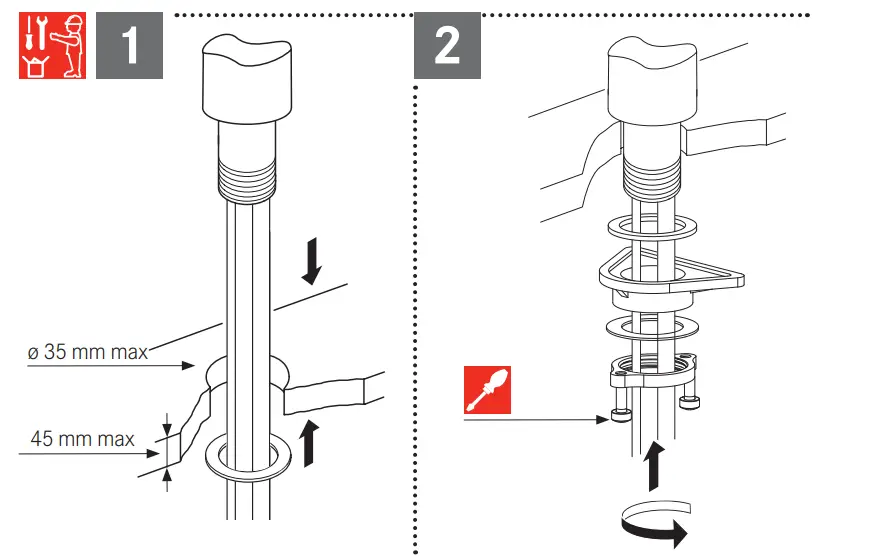

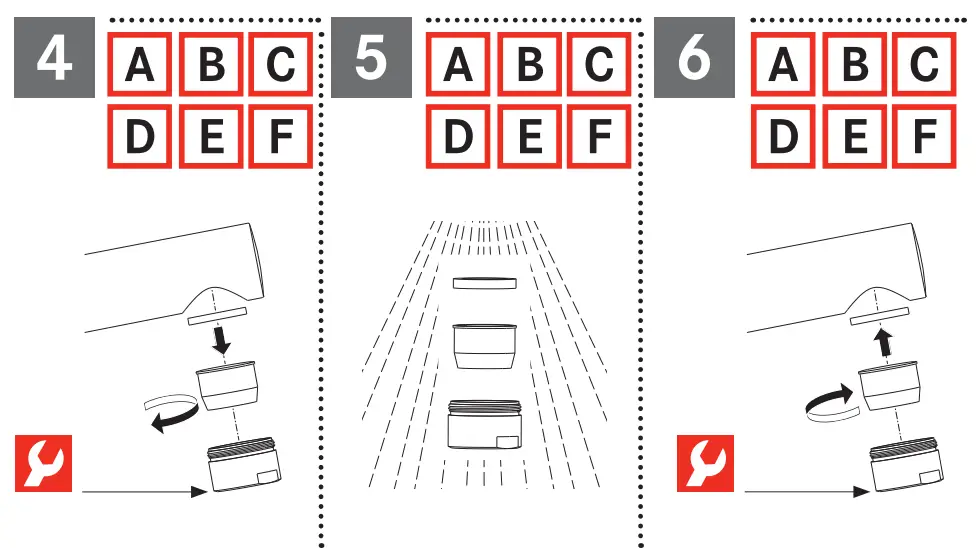

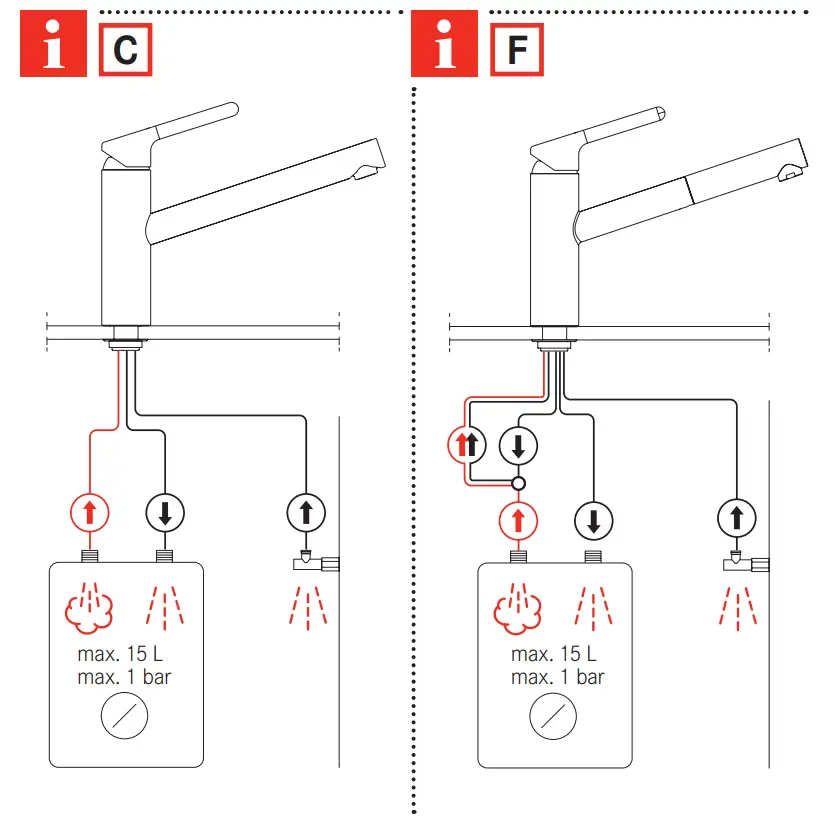

INSTALLATION INSTRUCTIONS

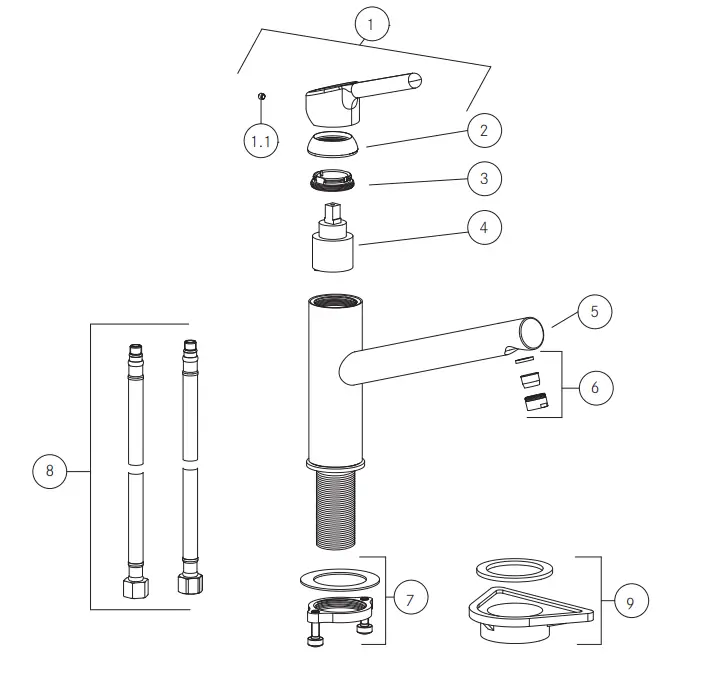

EXPOLORER OVERVIEW
Periodic checks
▶ Check connection and shower hoses periodically for the following:
– Watertightness
– Corrosion
– Mechanical damage
▶ Use original spare parts only.
▶ Replace damp or dripping hoses.
▶ Replace hoses with rusty or oxidized surfaces.
▶ Replace hoses that show signs of mechanical damage.

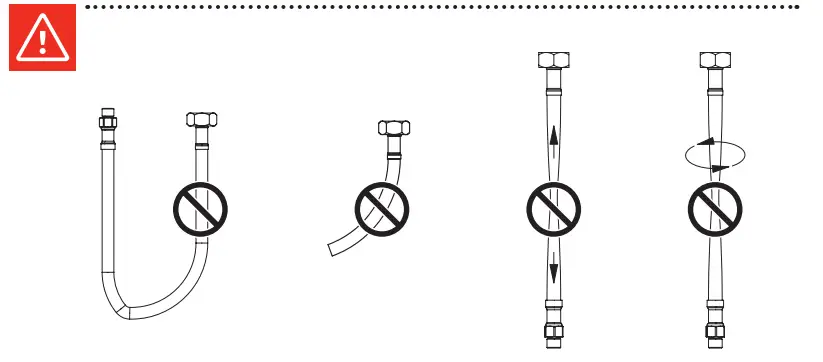

Replacement of the flexibles
▶ Don‘t use a wrench or other items to mount the flexibles on the tap side.
Mount these only by hand.
▶ Flush all pipes thoroughly before installation.
| Operating data | Value | ||
| Operating pressure (ideal) | 3 bar | 45 PSI | |
| Operating pressure (max.)* | 5 bar | 70 PSI | |
| Operating pressure (min.)* | 1 bar | 14.5 PSI | |
| Water temperature (ideal) | 60 °C | 140 °F | |
| Water temperature (max.) | 70 °C | 158 °F | |
* Equal pressure is recommended.

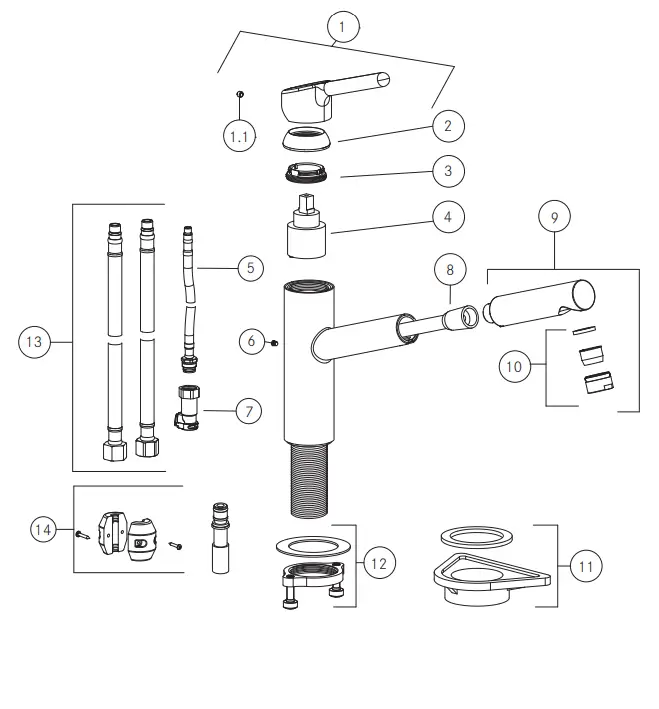

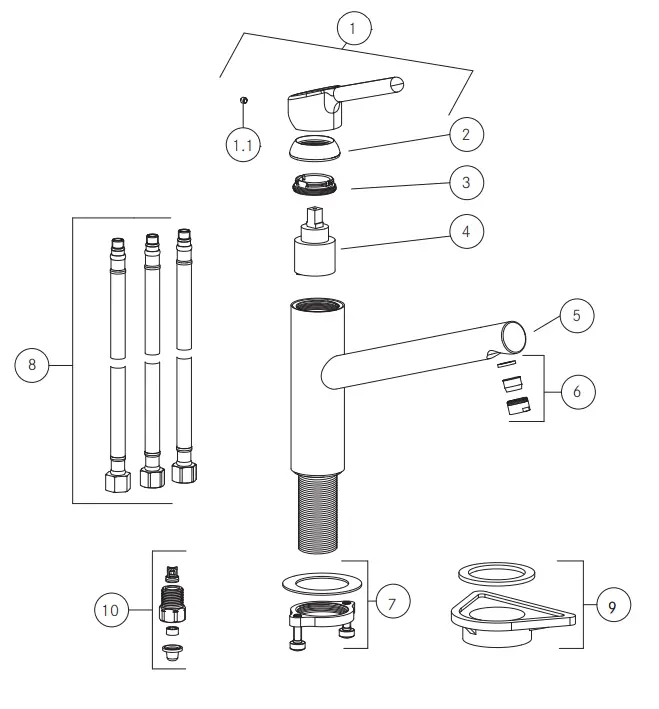

OVERVIEW
