Installation and service manual

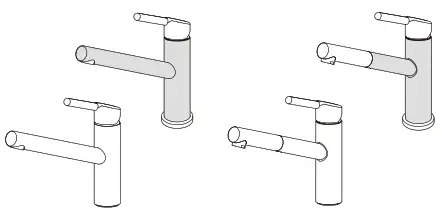

SET G200O ORBIT Kitchen Faucet
 |  |
 |  |
 |  |
 |  |
 |  |
Not included*
Periodic checks
Check connection and shower hoses periodically for the following:- Watertightness
- Corrosion
- Mechanical damage
- Use original spare parts only.
- Replace damp or dripping hoses.
- Replace hoses with rusty or oxidized surfaces.
- Replace hoses that show signs of mechanical damage.

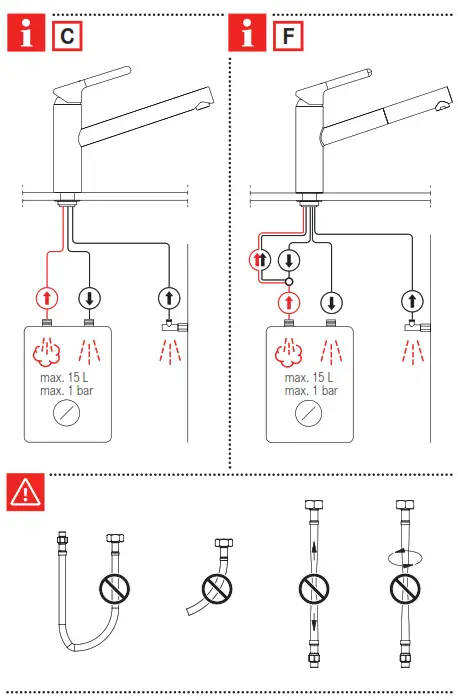

Check connection and shower hoses periodically for the following:Replacement of the flexibles

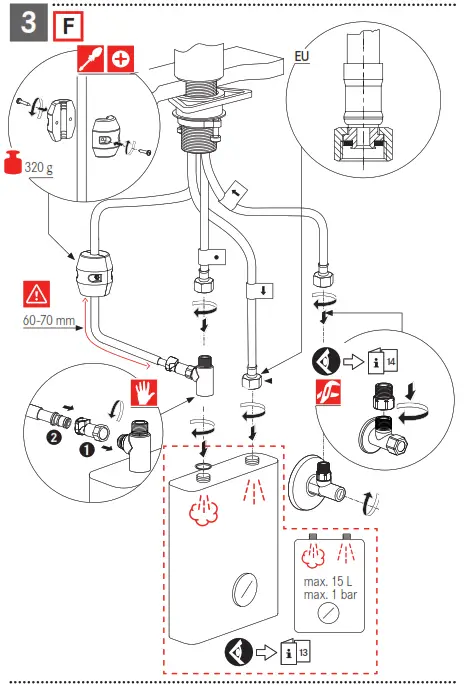

- Don‘t use a wrench or other items to mount the flexibles on the tap side. Mount these only by hand.

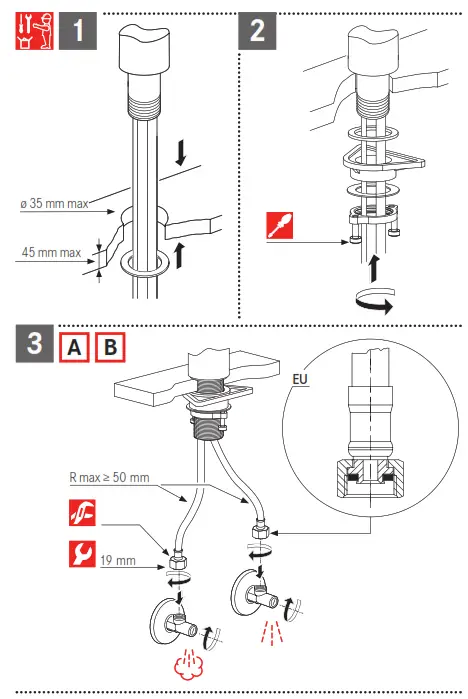

Flush all pipes thoroughly before installation.
Flush all pipes thoroughly before installation.| Operating data | Value | ||
| Operating pressure (ideal) | 3 bar | 45 PSI | 300 kPa |
| Operating pressure (max.)* | 5 bar | 70 PSI | 500 kPa |
| Operating pressure (min.)* | 1 bar | 14.5 PSI | 100 kPa |
| Water temperature (ideal) | 60 °C | 140 °F | |
| Water temperature (max.) | 70 °C | 158 °F |
* Equal pressure is recommended.
 |  |
 |  |
 |  |
