FRANKE FC 3054.031 ORBIT Kitchen Faucet
Installation and service manual

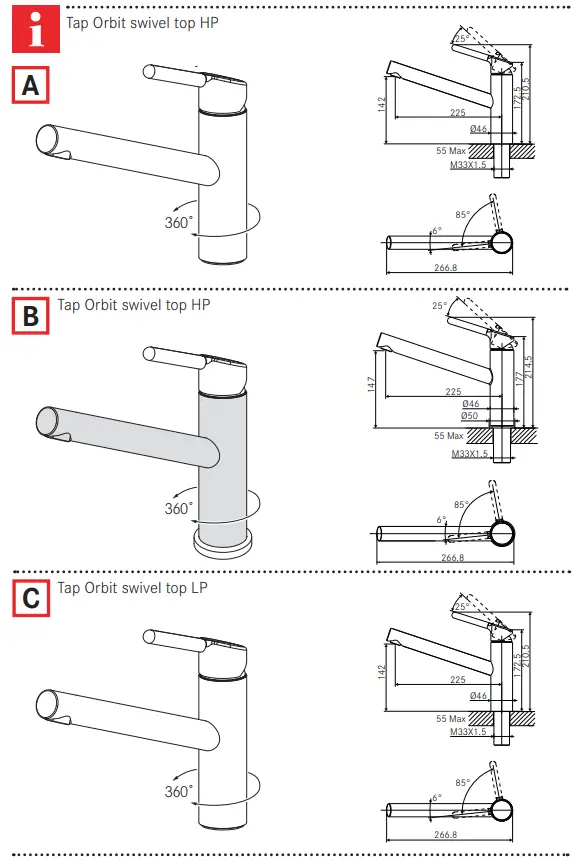

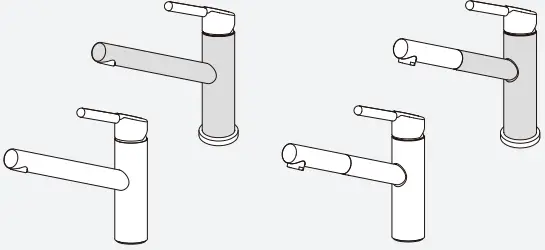

- Tap Orbit swivel top HP

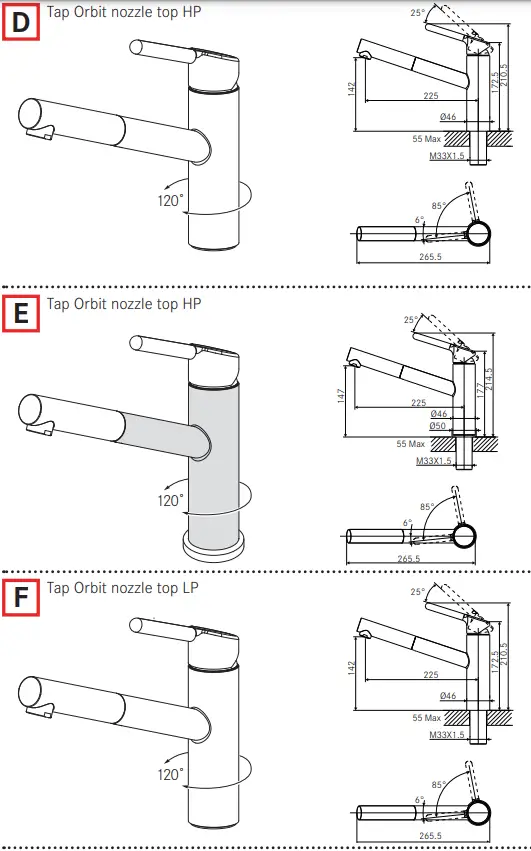

- Tap Orbit nozzle top HP

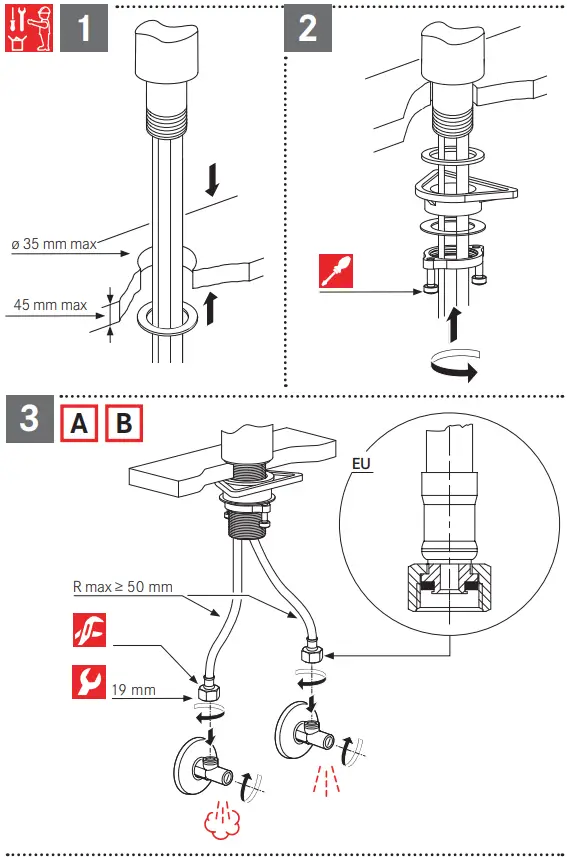

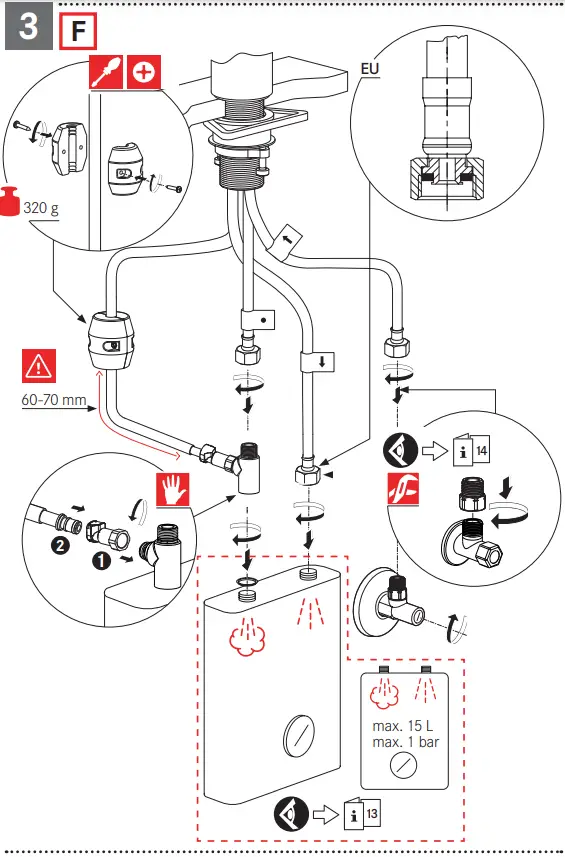

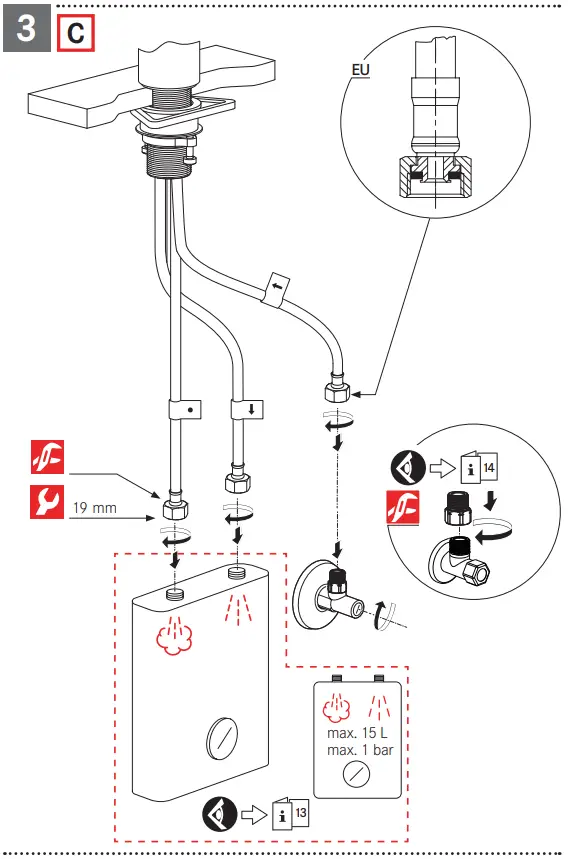

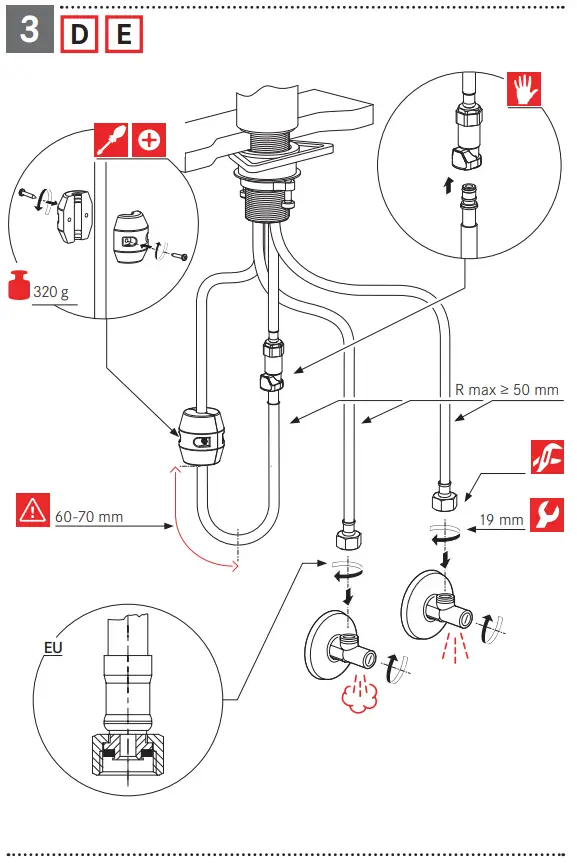

INSTALLATION
Not included*
Periodic checks
- Check connection and shower hoses periodically for the following:
- Watertightness
- Corrosion
- Mechanical damage
- Use original spare parts only.
- Replace damp or dripping hoses.
- Replace hoses with rusty or oxidized surfaces.
- Replace hoses that show signs of mechanical damage.
Replacement of the flexibles
- X Don‘t use a wrench or other items to mount the flexibles on the tap side.
Mount these only by hand. - X Flush all pipes thoroughly before installation
Operating data Value Operating pressure (ideal) 3 bar 45 PSI 300 kPa Operating pressure (max.)* 5 bar 70 PSI 500 kPa Operating pressure (min.)* 1 bar 14.5 PSI 100 kPa Water temperature (ideal) 60 °C 140 °F Water temperature (max.) 70 °C 158 °F Equal pressure is recommended
