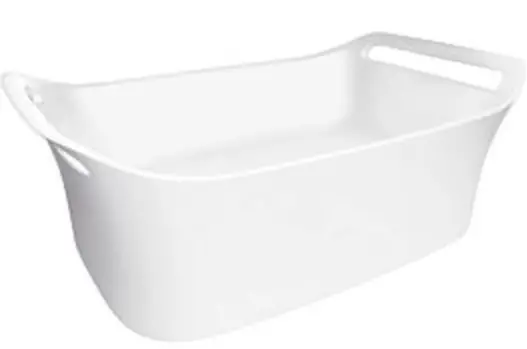

11300000 AXOR URQUIOLA Washbasin
Product Information

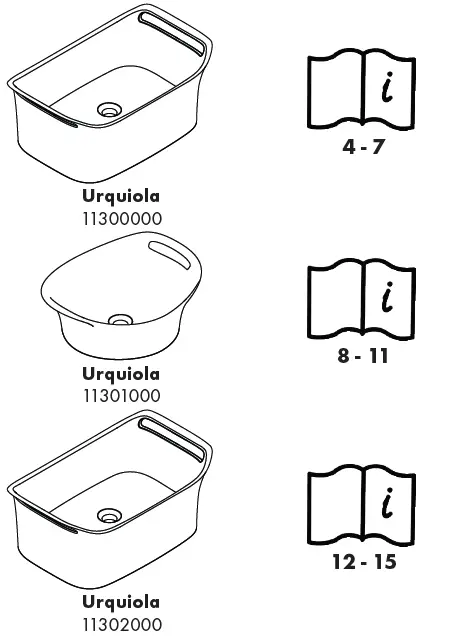

The product is a wash bowl with the model name Urquiola 11300000 / 11302000 / 11301000. The product comes with assembly instructions in multiple languages including German, French, English, Italian, Spanish, Dutch, Danish, Polish, Chinese, Russian, Finnish, Swedish, Lithuanian, Croatian, Turkish, Romanian, Greek, Slovenian, Estonian, Latvian, Serbian and Arabic. The product also comes with cleaning recommendations and warranty information.
Product Usage Instructions
- Before installation, ensure that only non-locking drain valves are installed in the wash bowls.
- Install the wash bowl according to the assembly instructions provided in the user manual.
- Use only silicone without acetic acid and tighten the wash bowl using a maximum torque of 5 Nm.
- For cleaning recommendations, refer to the cleaning recommendation section in the user manual.
Assembly instructions

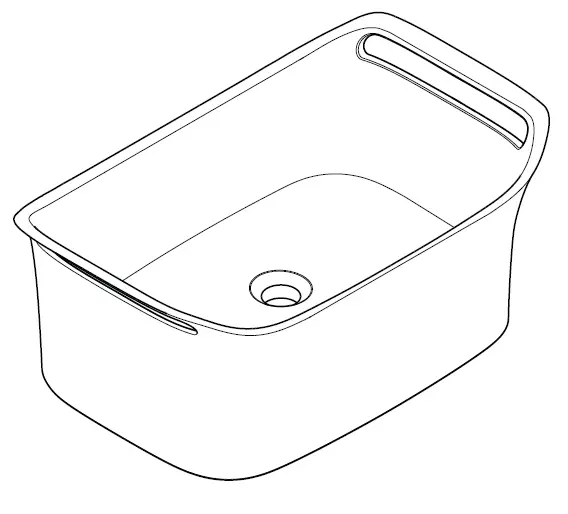

Packing content

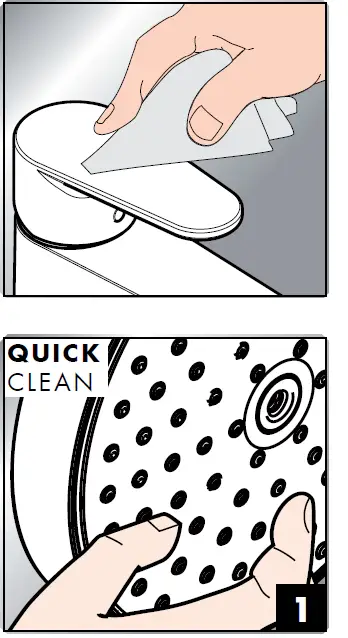

Cleaning recommendation / Warranty

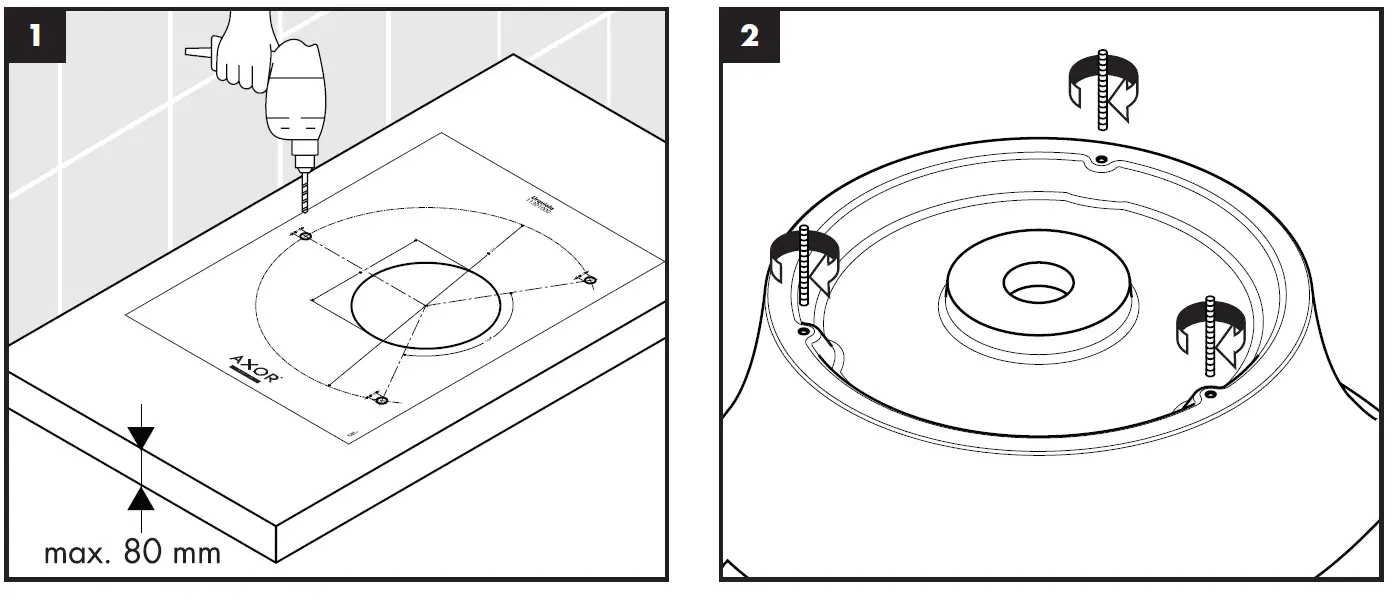

Assembly

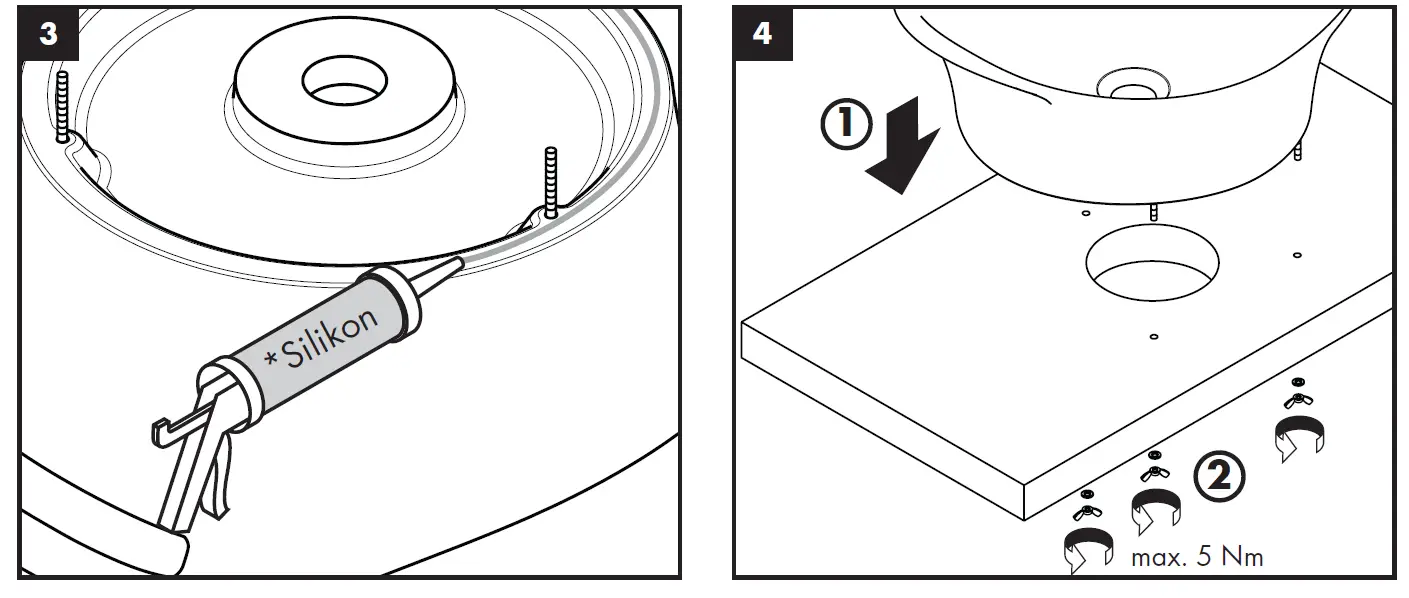

Silicone (free from acetic acid!)

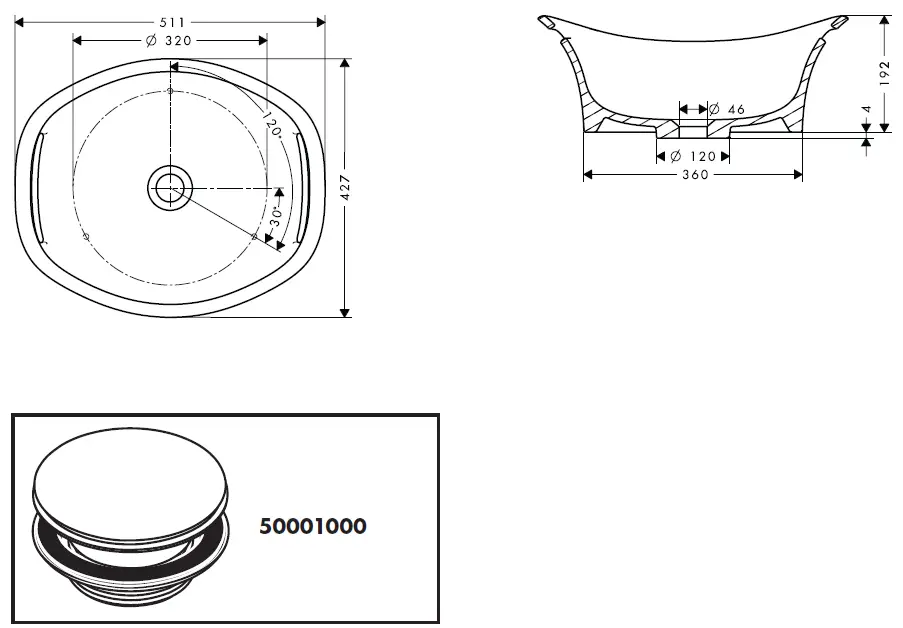

Only non-locking drain valves may be installed in the wash bowls, e.g. HansGrohe drain valve, par t no. 500001000.

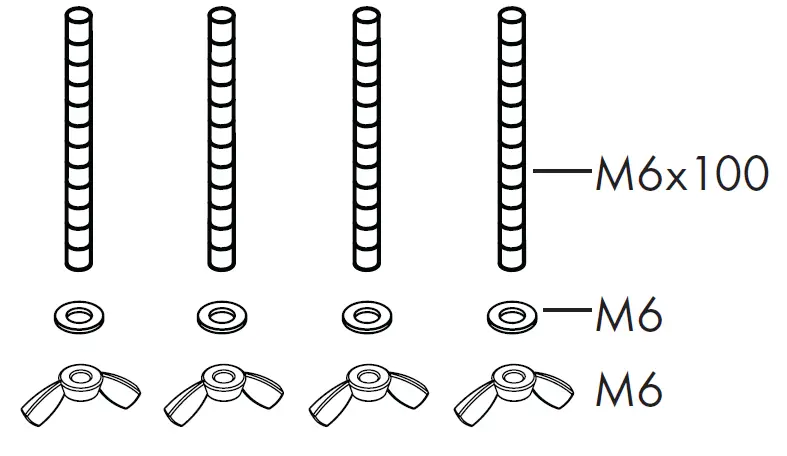

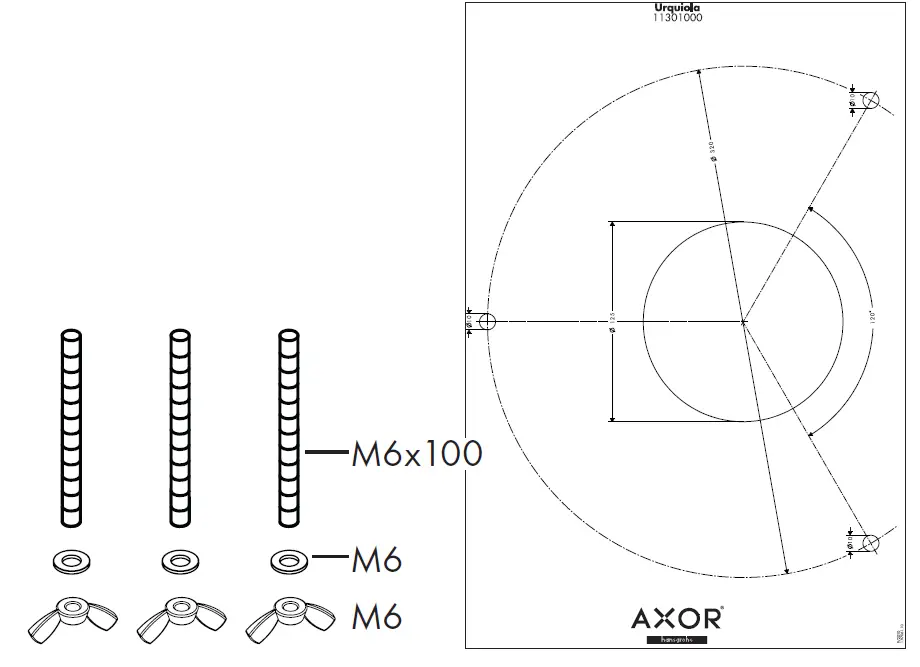

Packing content

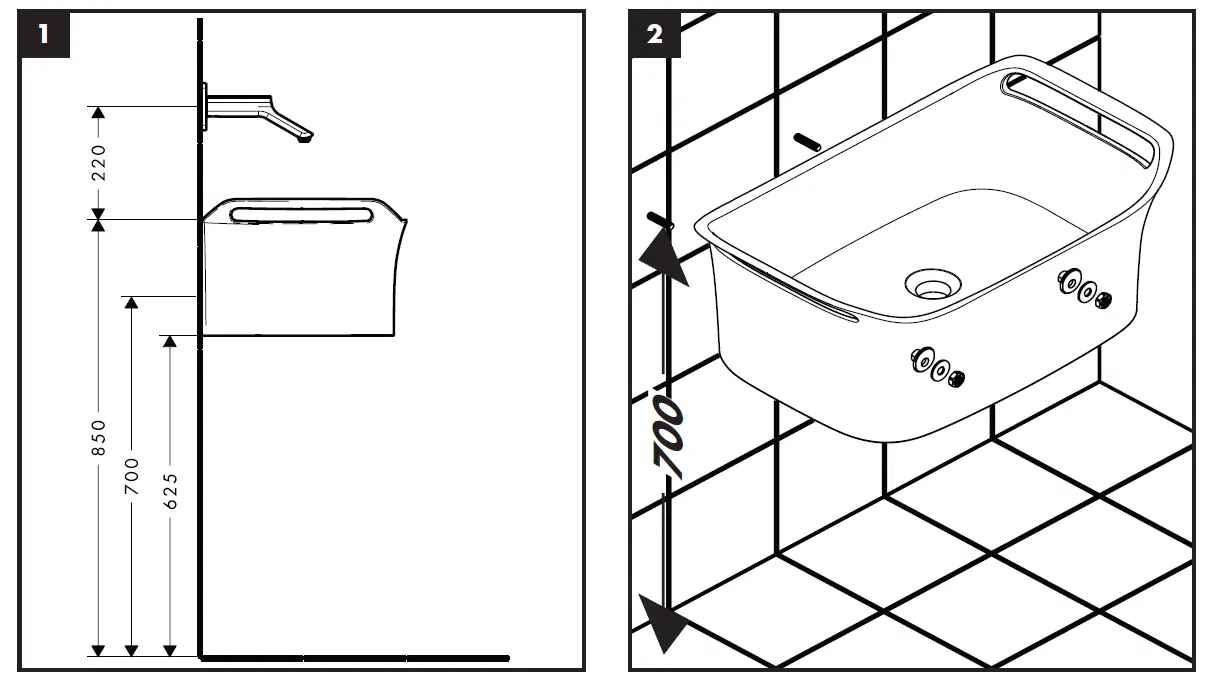

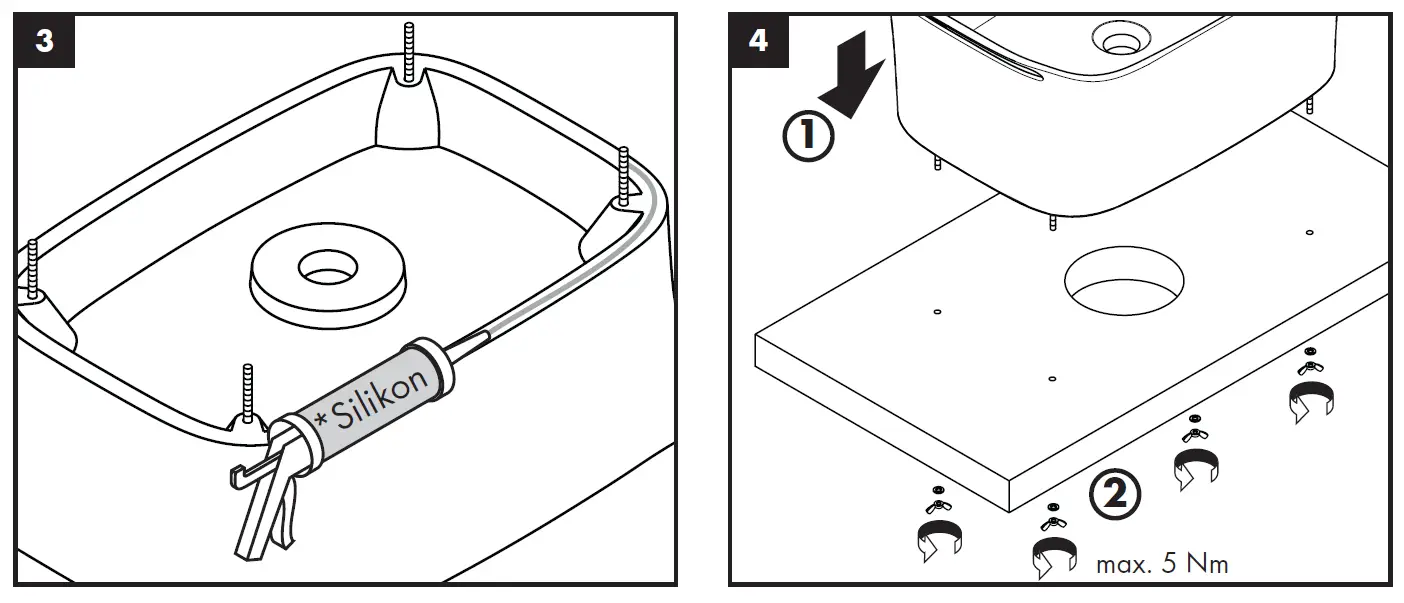

Assembly
*Silicone (free from acetic acid!)

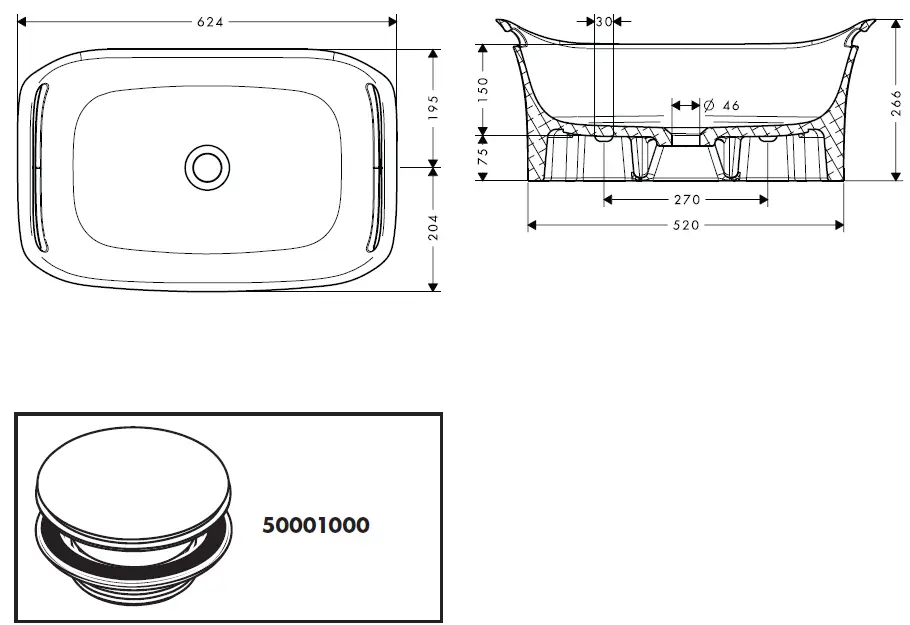

Only non-locking drain valves may be installed in the wash bowls, e.g. HansGrohe drain valve, par t no. 500001000.

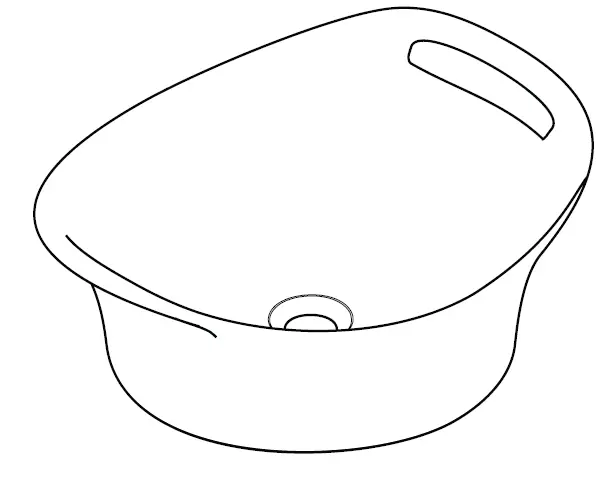

Packing content
*Silicone (free from acetic acid!)
Only non-locking drain valves may be installed in the wash bowls, e.g. HansGrohe drain valve, par t no. 500001000.

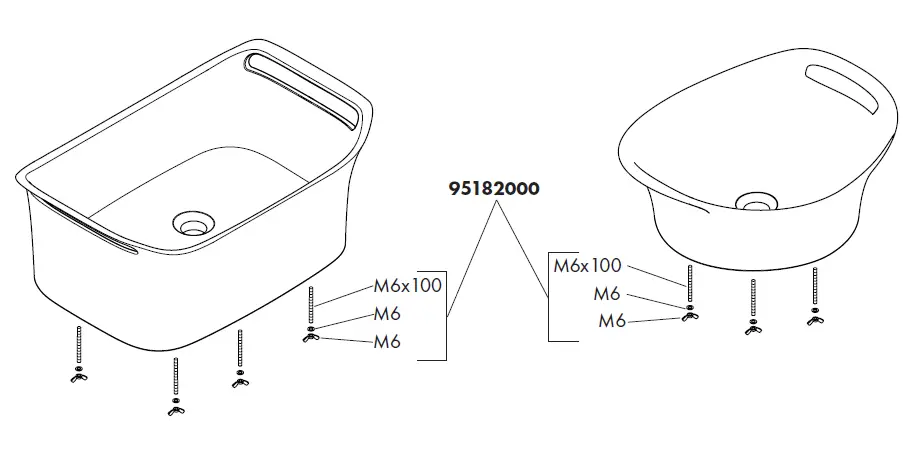

Spare parts

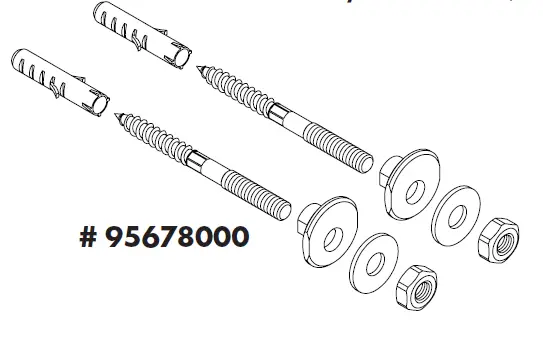

Service set for basin
