AXOR Urquiola, Borollic Shower Holder Unit
Instruction Manual

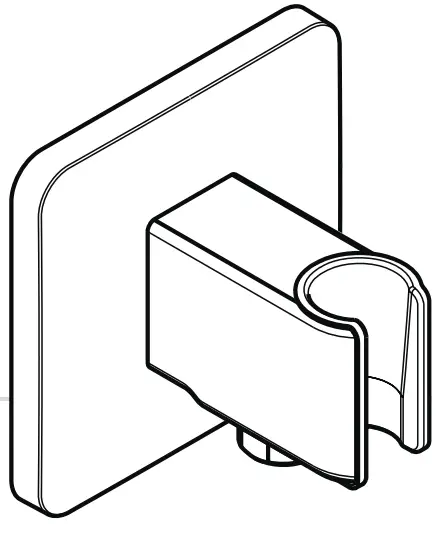

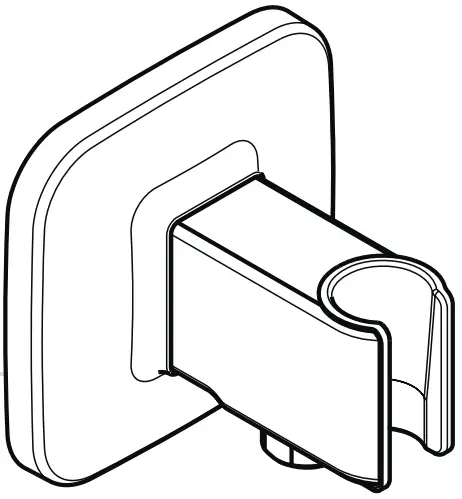

AXOR Urquiola, Borollic Shower Holder Unit
 |  |
| Urquiola 11626000 | Borollic 19622000 |
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.

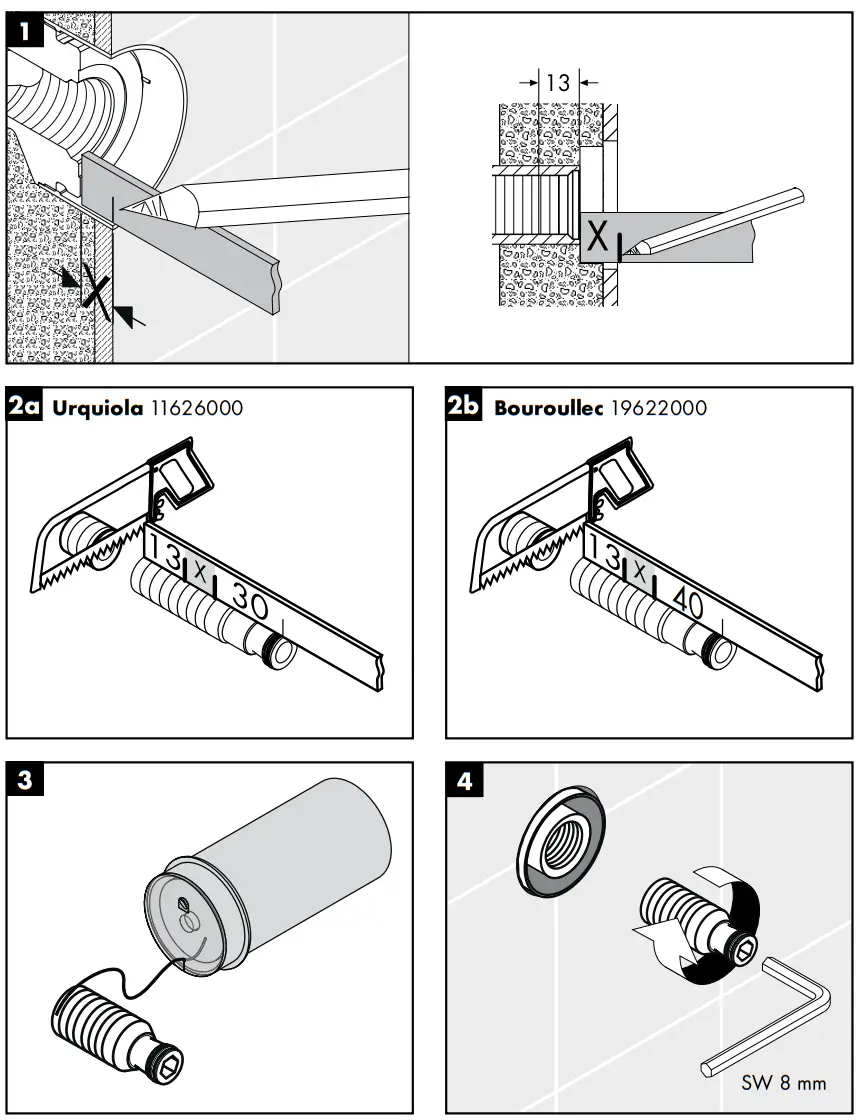

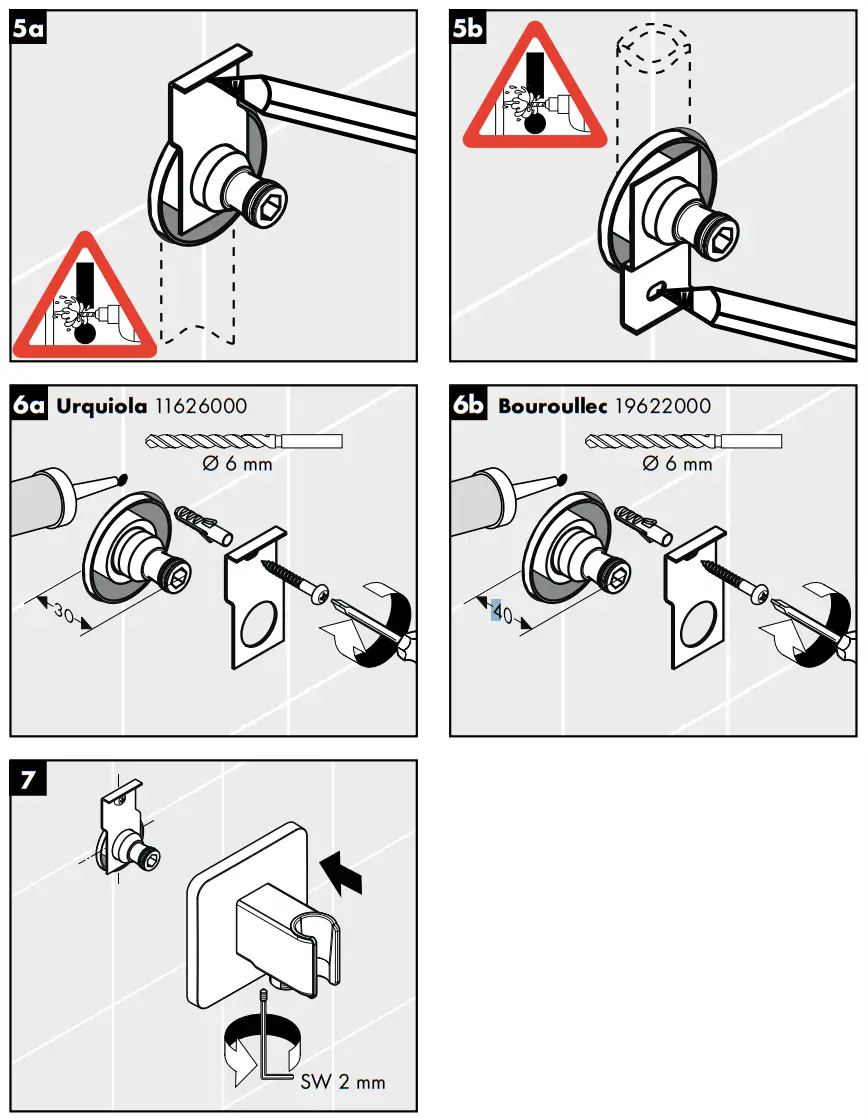

Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms!
Technical Data
| Operating pressure: | max. 1 MPa |
| Recommended operating pressure: | 0,1 – 0,5 MPa |
| Test pressure: | 1,6 MPa |
| (1 MPa = 10 bar = 147 PSI) Hot water temperature: | max. 80°C |
| Recommended hot water temp.: | 65°C |
| Rate of flow by 0,3 MPa: | approx. 22 l/min |
Symbol description
 | Do not use silicone containing acetic acid! |

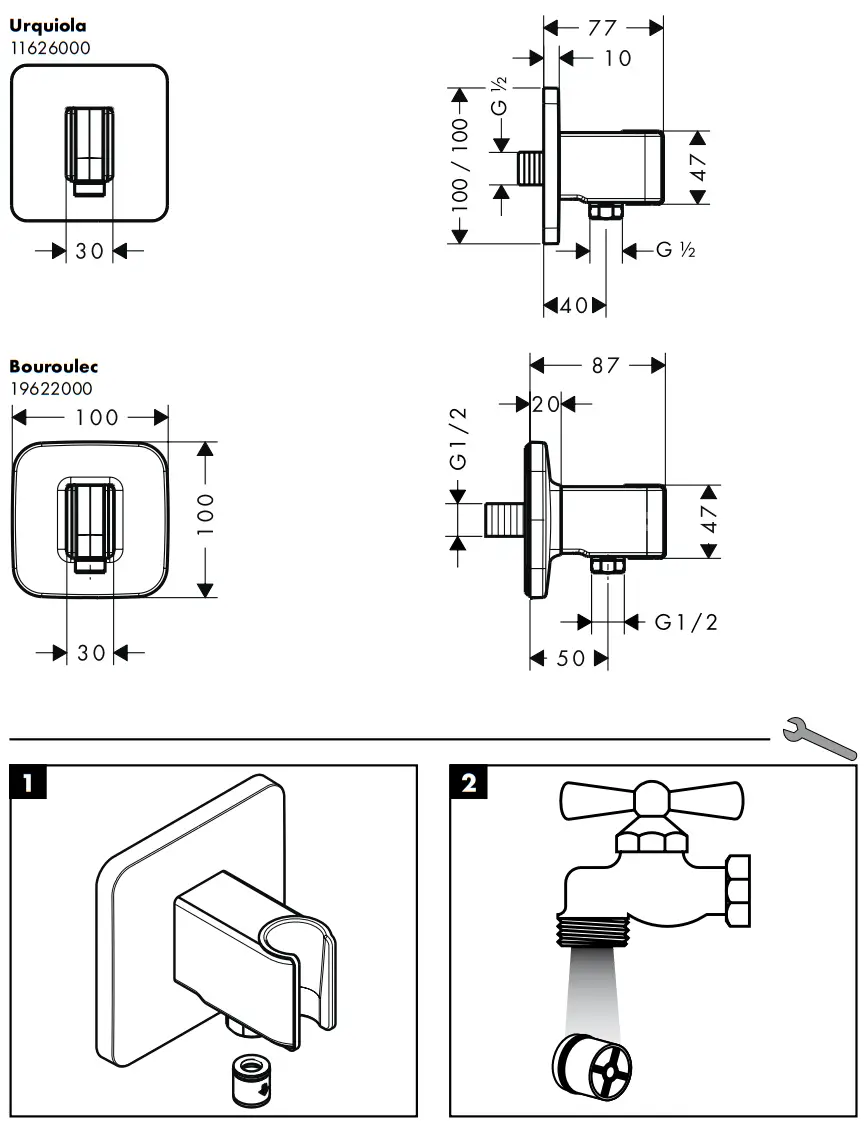

 | Dimensions (see page 19) |
 | Maintenance (see page 19) The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year). |

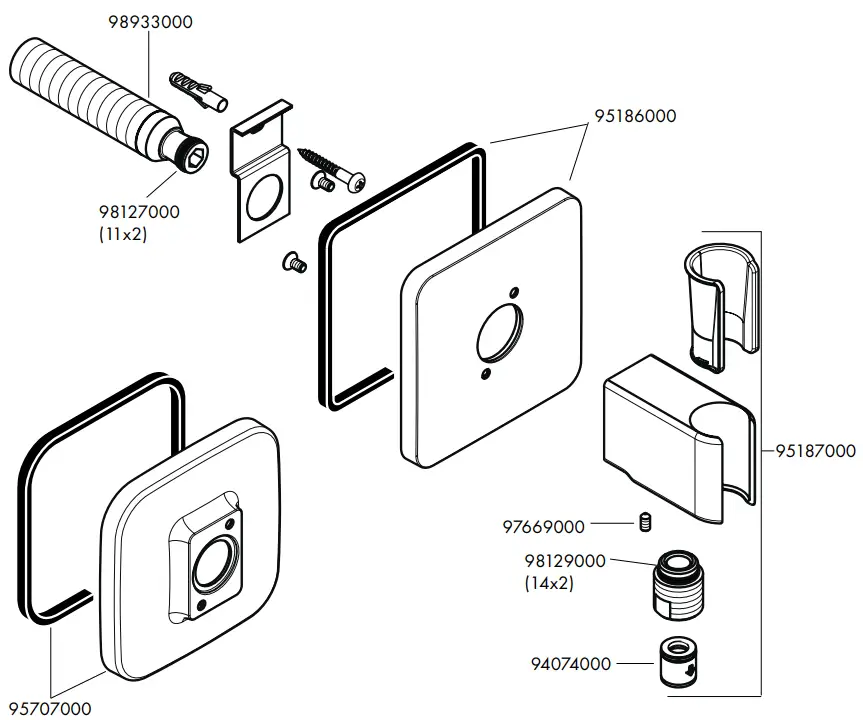

 | Spare parts (see page 20) |
 | Cleaning see enclosed brochure. |
 | Test certificate (see page 20) |
| P-IX | DVGW | SVGW | WRAS | KIWA | NF | ACS | ETA | |
| 11626000 | X | |||||||
| 19622000 |
Hansgrohe · Postfach 1145 · D-77761 Schiltach
· Telecon +49 (0) 78 36/51-1282
· Telefax +49 (0) 7836/511440
E-Mail: [email protected]
· Internet: www.hansgrohe.com
