Hansgrohe 28561000 Hand Showers Instruction Manual

28561000 Hand Showers
Instruction Manual

28561000 Hand Showers

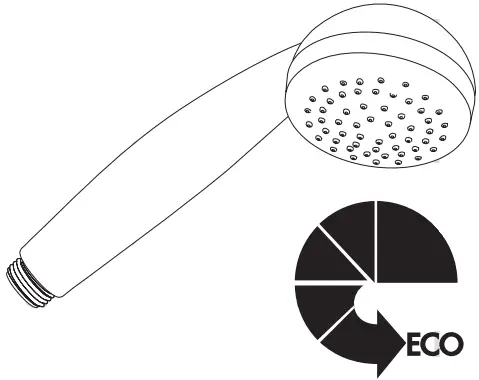

Crometta 85 Green 28561000	Crometta 85 1jet 28606000

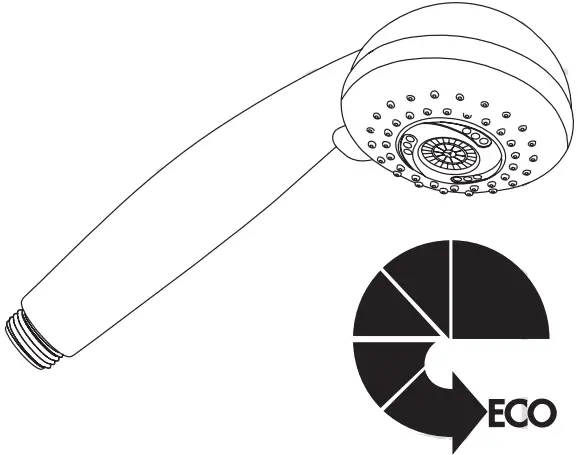

Crometta 85 Vario 28607000	Crometta 85 Multi 28608000

Safety Notes

Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.

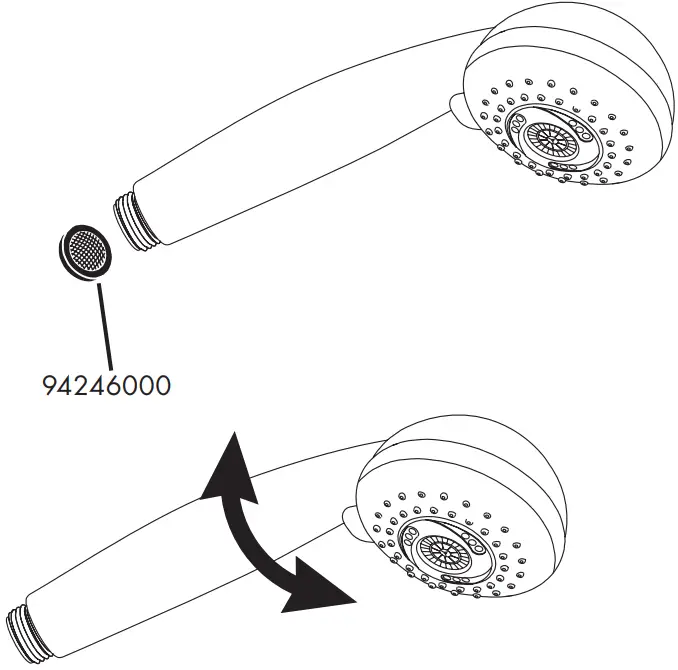

Assembly (see page 19)
The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.

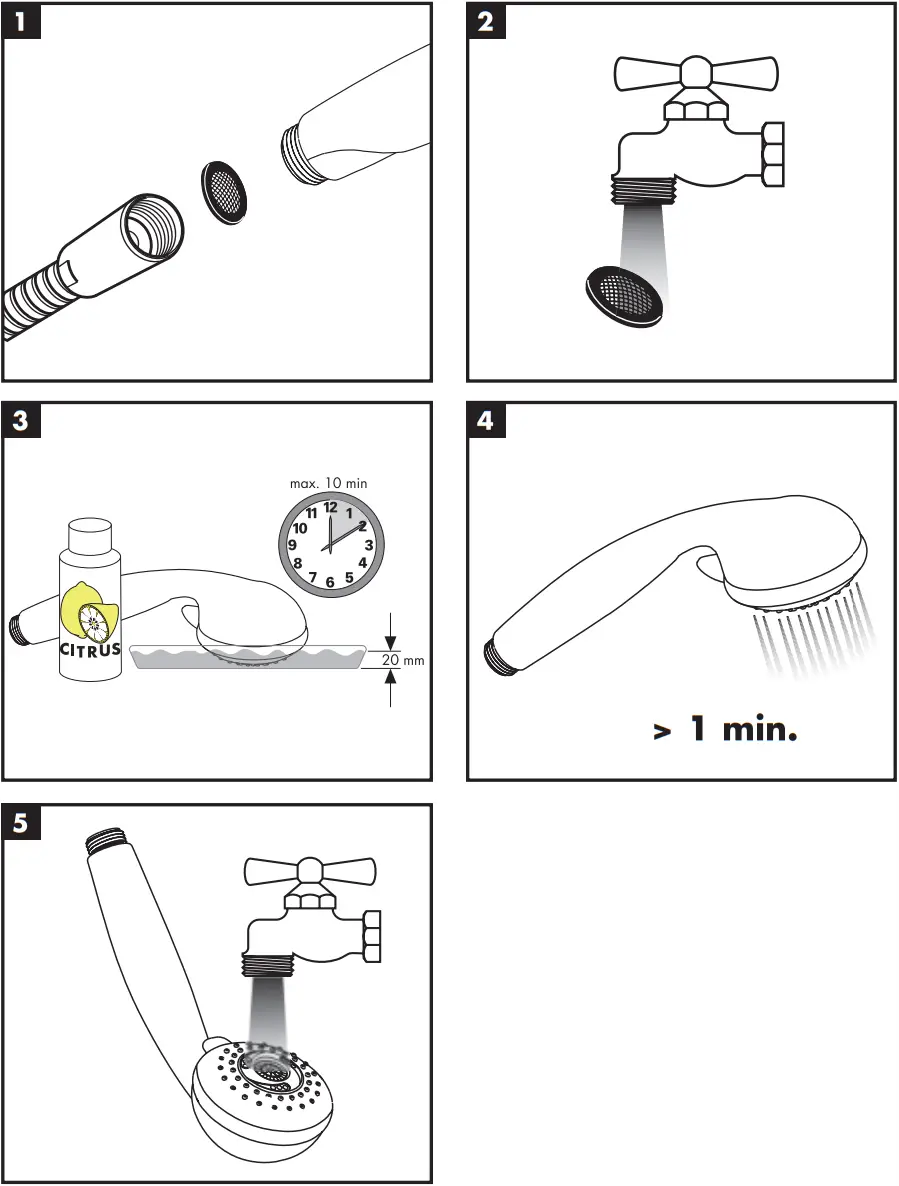

Cleaning (see page 20) and enclosed brochure

Technical Data

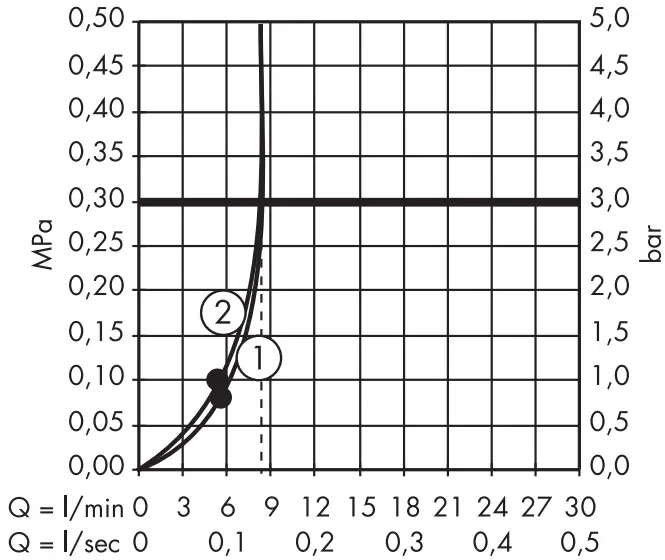

Operating pressure: max. 0,6 MPa
Recommended operating pressure: 0,1 – 0,4 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Test certificate (see page 17)
Spare parts (see page 19)

Crometta 85 Green 28561000	Crometta 85 1jet 28606000
Crometta 85 Vario 28607000	Crometta Multi 28608000

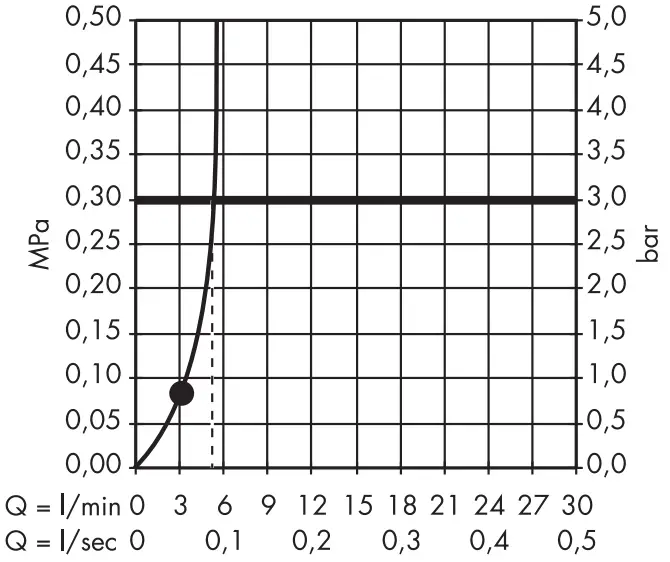

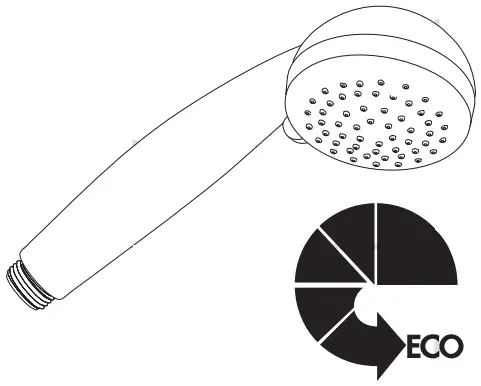

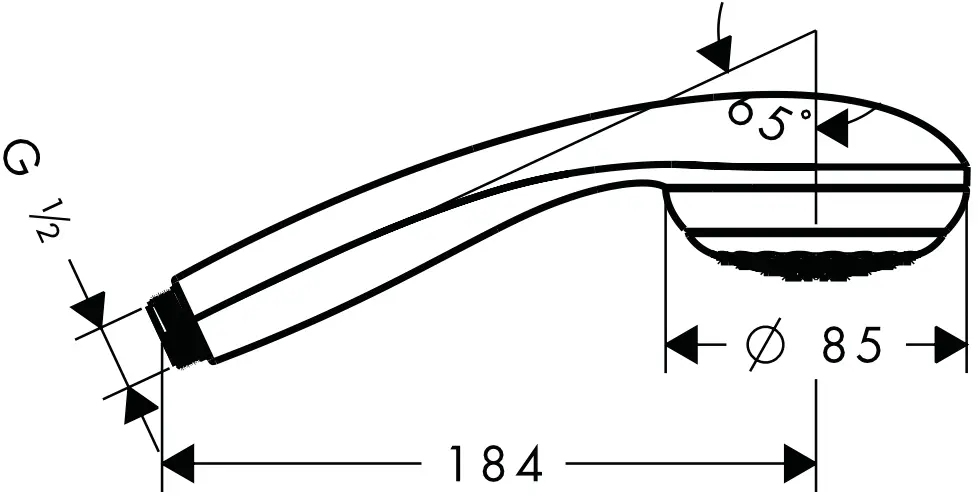

Crometta 85 Green 28561000

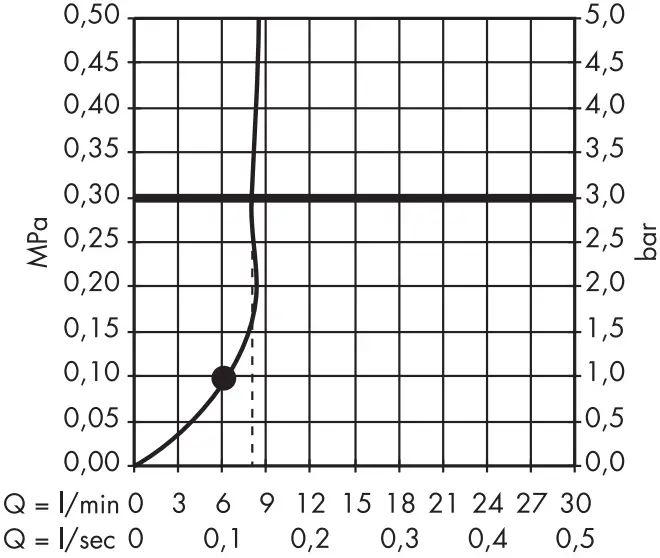

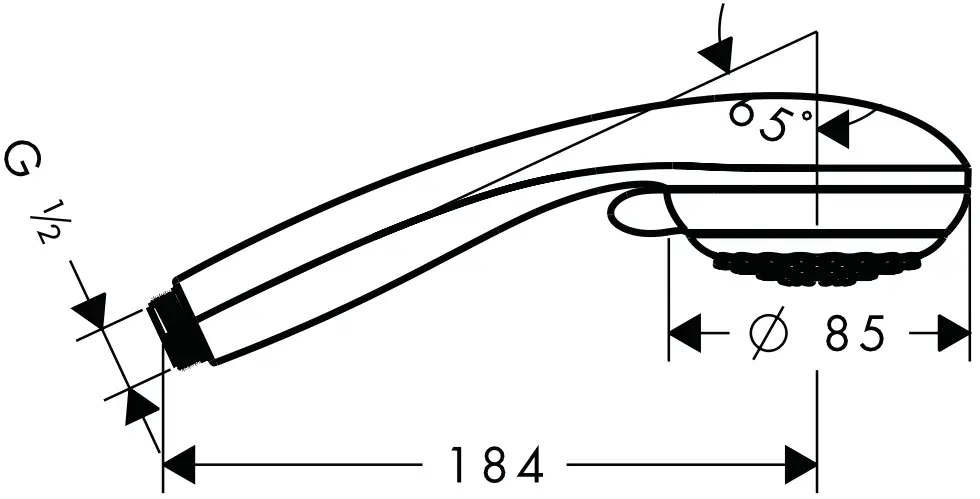

Crometta 85 1jet 28606000Crometta 85 Vario 28607000Crometta 85 Multi 28608000

Crometta 85 Vario 28607000	Crometta 85 Multi 28608000

Hansgrohe · Postfach 1145 · D-77761 Schiltach
Telephone +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
3/2011
9.04594.03
