Hansgrohe 26090000 Vernis Blend Vario Green Hand Showers Instruction Manual

hansgrohe 26090000 Vernis Blend Vario Green Hand Showers

Product Information

The Vernis Blend Vario Green 26090000 and Vernis Blend Vario EcoSmart 26340XXX are high-quality showerheads from Hansgrohe SE. These showerheads come with innovative features that provide a  comfortable showering experience

• The Vernis Blend Vario Green 26090000 comes with a Quick Clean feature that allows easy removal of limescale buildup. It has a green finish.
• The Vernis Blend Vario EcoSmart 26340XXX also comes with a Quick Clean feature and is designed to be eco-friendly. It has an XXX finish.

Product Usage Instructions

To use the Vernis Blend Vario showerheads, follow these instructions:

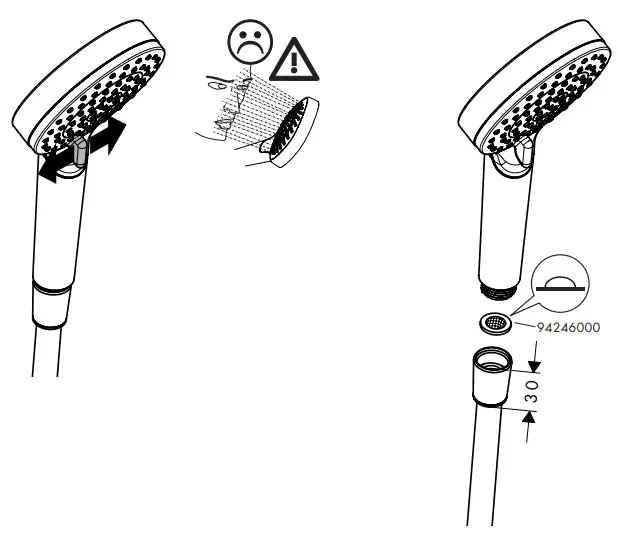

1. Attach the showerhead to the shower arm by screwing it on.
2. To adjust the spray pattern, turn the spray disc. You can choose between Rain and IntenseRain spray patterns.

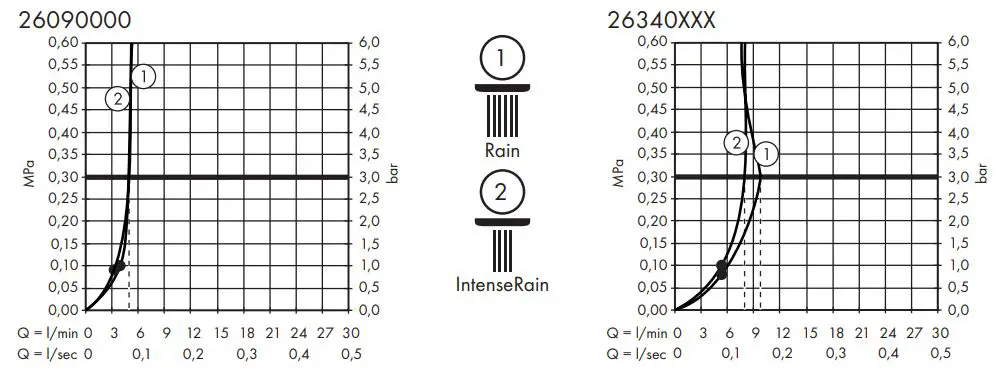

3. To adjust the water flow rate, turn the handle. The water flow rate can be adjusted up to 30 liters per minute.
4. To clean the showerhead, use the Quick Clean feature. Simply rub over the spray nozzles to remove lime scale buildup.

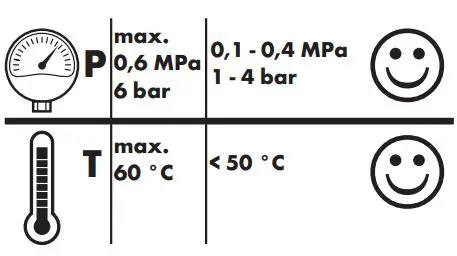

Note: The Vernis Blend Vario showerheads are compatible with a maximum water pressure of 6 bars and a maximum temperature of 60°C.These showerheads are designed to meet the DIN 4109 standard for sound insulation in buildings. They also come with P-IX 29828/IO BT0633 and P-IX 29827/IZ BT0633 X certifications from DVGW NF.

assembly instructions

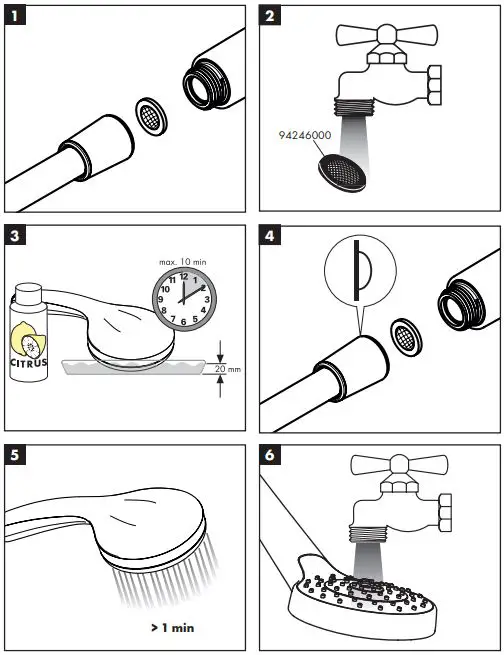

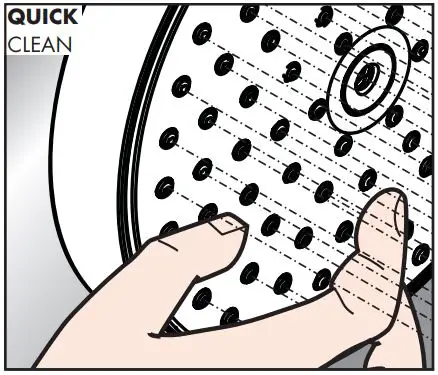

• Just clean: simply rub over the spray nozzles to remove lime scale.

Cleaning recommendation / Warranty / Contact

• www.hansgrohe.com/cleaning-recommendation
• www.hansgrohe.com/cleaning-recommendation
• www.hansgrohe.com/cleaning-recommendation
• www.hansgrohe.com/cleaning-recommendation

INSTALLATION INSTRUCTION

                                                                                                                        Vernis Blend Vario Green                                                                                                         Vernis Blend Vario EcoSmart

• Vernis Blend Vario Green
  • 26090000
• Vernis Blend Vario EcoSmart
  • 26340XXX

P-IX DVGW NF

• 26090000 P-IX 29828/IO BT0633
• 26340XXX P-IX 29827/IZ BT0633 X

Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: [email protected] · Internet: www.hansgrohe.com
