Hansgrohe 28585000 Crometta 85 1jet Hand Showers Instruction Manual

Assembly instructions

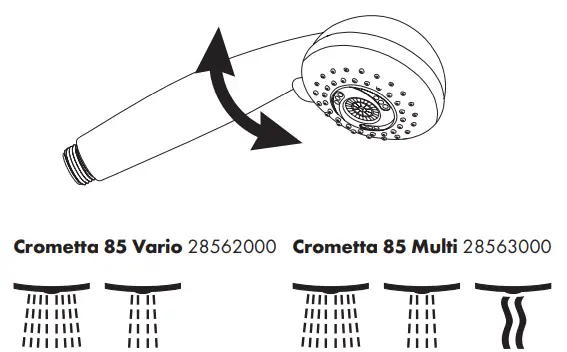

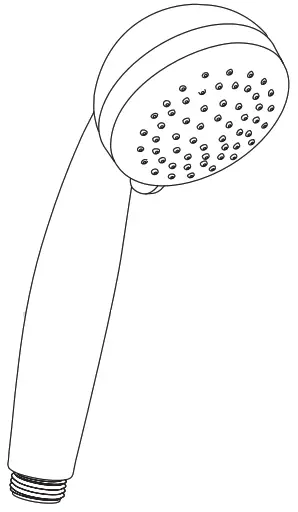

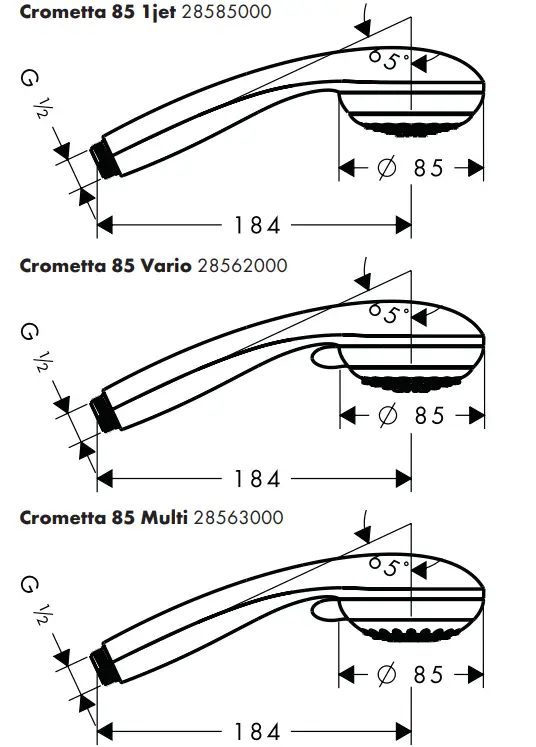

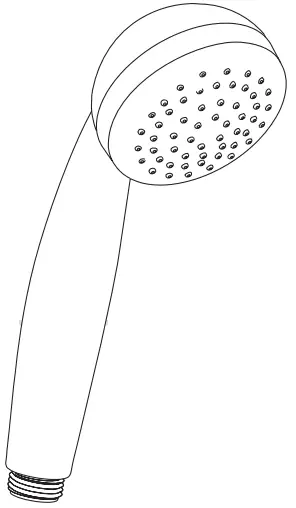

Crometta 85 1jet 28585000	Crometta 85 Vario 28562000	Crometta 85 Multi 28563000

Safety Notes

Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
Assembly (see page 19)
The remounted filter insert must be used to ensure a normal flow of the shower and to prevent dirt from entering through the pipes. Dirt entering can affect the function and/ or lead to damages to the shower. Hansgrohe will not be held liable forthis type of damage.

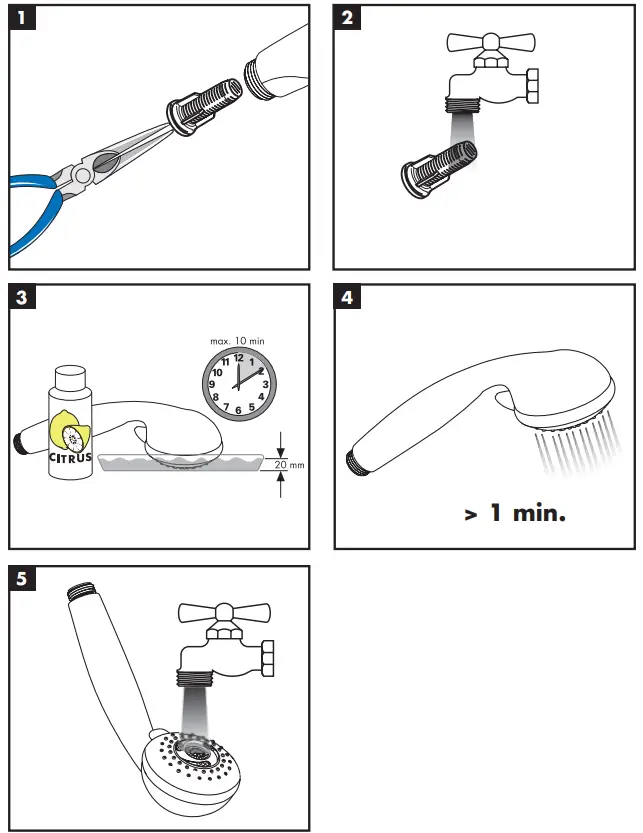

Cleaning (see page 20) and enclosed brochure

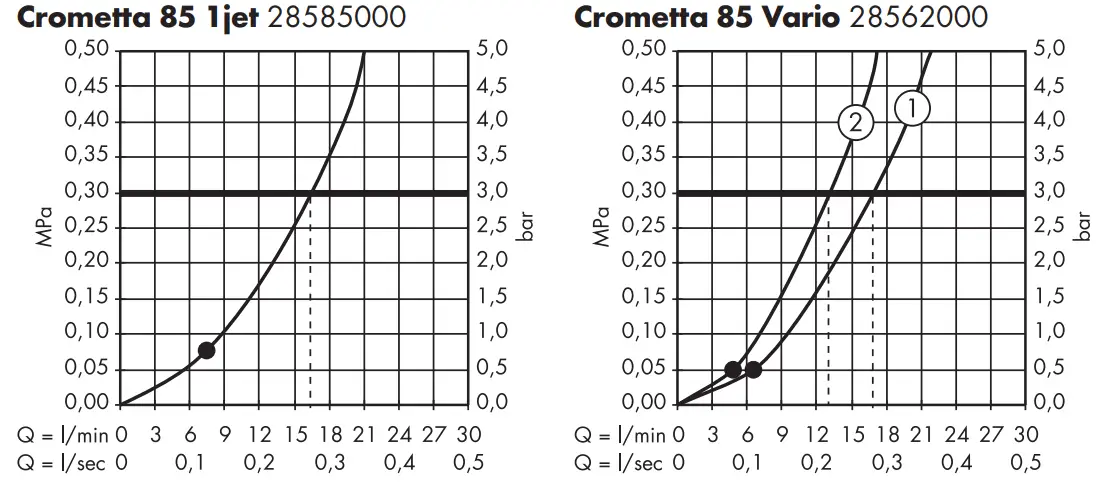

Technical Data

Operating pressure: max. 0,6 MPa
Recommended operating pressure: 0,1 – 0,4 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C

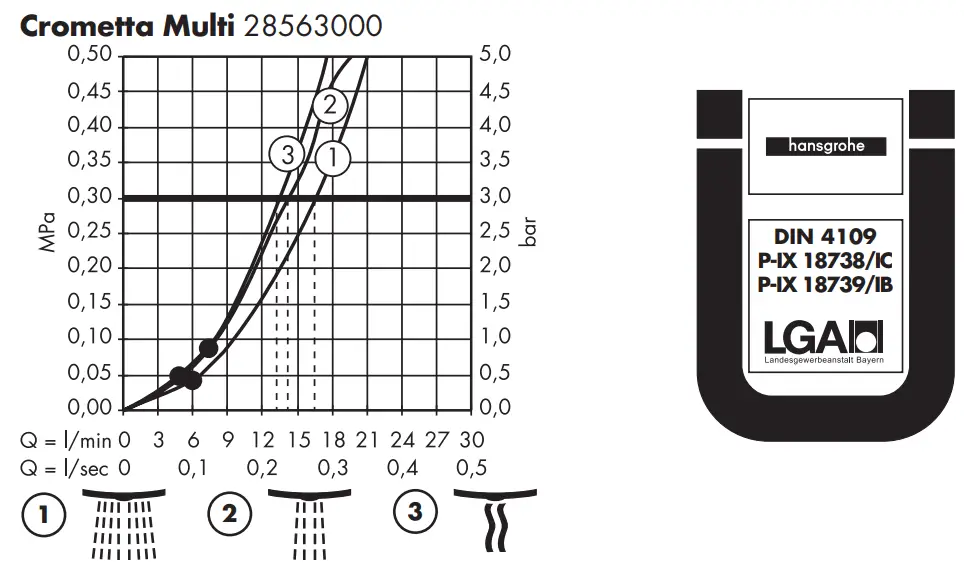

Test certificate (see page 17)
Spare parts (see page 19)

Hansgrohe · Postfach 1145 ·
D-77761 Schiltach ·
Telefon +49 (0) 78 36/51-1282 ·
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
3/2011
9.04575.03
