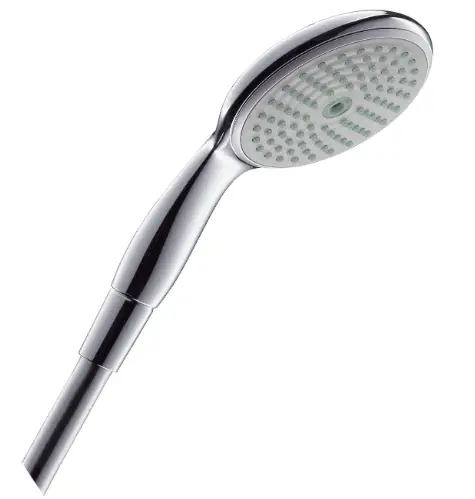

hansgrohe 28514000 Raindance E 100 AIR 3jet Rain Shower Head
Safety Notes
- Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
Assembly

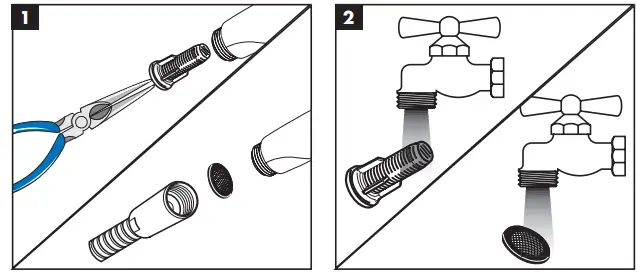

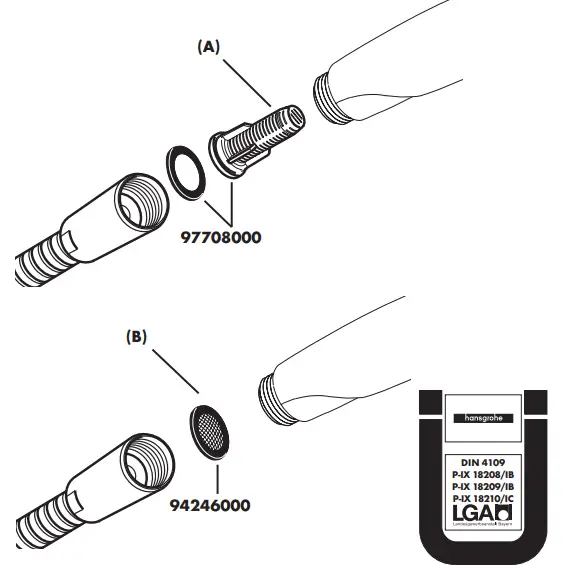

The filter insert (A) must be used to ensure the standard flow rate and to protect the hand shower against incoming dirt by pipework. Do you want a larger water flow rate, then you must use the filter packing (B) instead of the filter insert (A). Incoming dirt leads to defects or/and can damage parts of the hand shower; such caused faults voids all liability and guarantee claims.

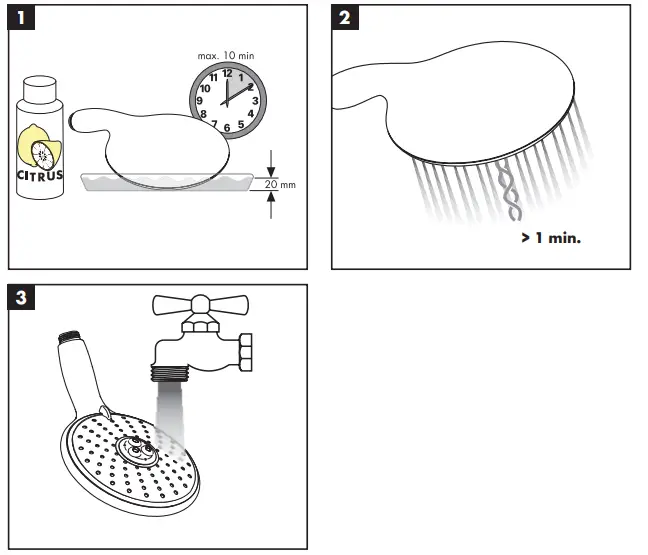

Cleaning
Technical Data
- Operating pressure: max. 0,6 MPa
- Recommended operating pressure: 0,1 0,4 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 60°C
Test certificate
| P-IX | DVGW | SVGW | WRAS | KIWA | NF | ACS | |
| 28502000 | P-IX 18208/IB | BT0634 | X | X | X | X | X |
| 28504000 | P-IX 18208/IB | BT0634 | X | X | X | X | X |
| 28507000 | P-IX 18209/IB | BT0634 | X | X | X | X | |
| 28514000 | P-IX 18209/IB | BT0634 | X | X | X | X | |
| 28518000 | P-IX 18210/IC | BT0634 | X | X | X | X | |
| 28519000 | P-IX 18210/IC | BT0634 | X | X | X | X |
