Hansgrohe Raindance E Shower Set Instruction Manual

Instructions for use
assembly instructions

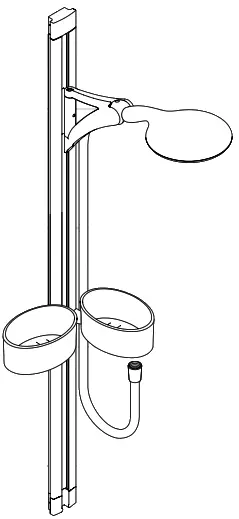

Raindance Unica
27590000
Raindance Unica Set
27657000 / 27870000 /27874000
Raindance Unica Set
27875000 / 27888000

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
Children as well as adults with physical, mental and/ or sensorics impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
The product may not be used as a holding handle. A separate handle must be installed.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
Shower hoses are only suitable for a connection from the shower to the fitting. Never fit a shut-off device between the fitting and the hose.

Technical Data

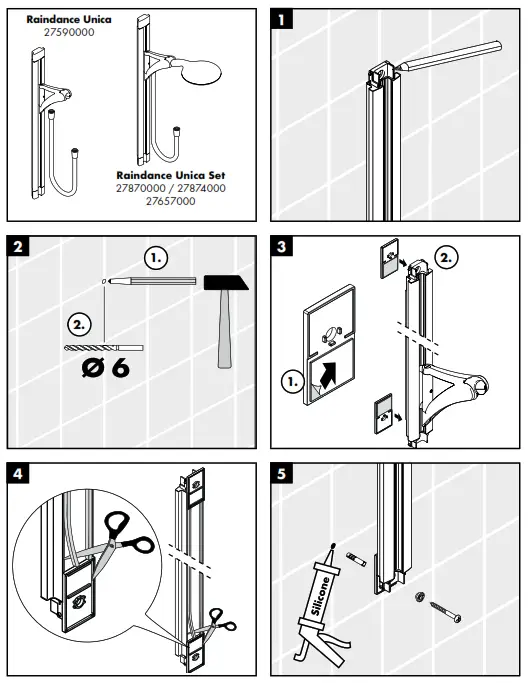

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.

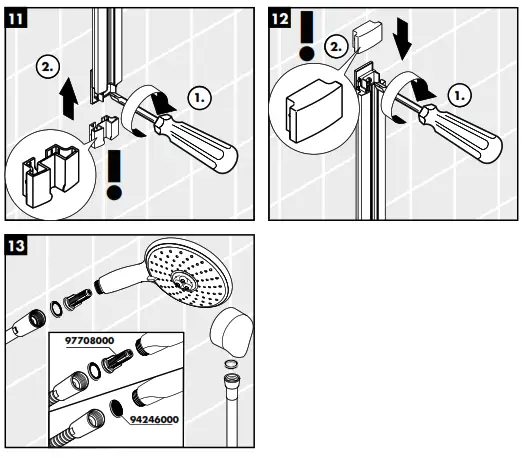

• The filter insert (97708000) must be used to ensure the standard flow rate and to protect the hand shower against incoming dirt by pipework. Do you want a larger water flow rate, then you must use the filter packing (94246000) instead of the filter insert (97708000). Incoming dirt leads to defects or/and can damage parts of the hand shower; such caused  faults voids all liability and guarantee claims.
• The wall bar must be mounted stress relieved!
• Optimal functioning is only guaranteed with the combination of Hansgrohe hand showers and Hansgrohe shower hoses.

Symbol description

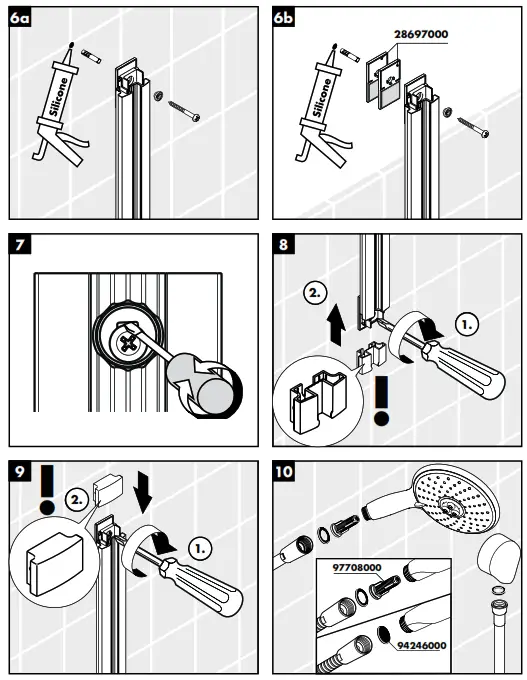

	Do not use silicone containing acetic acid!

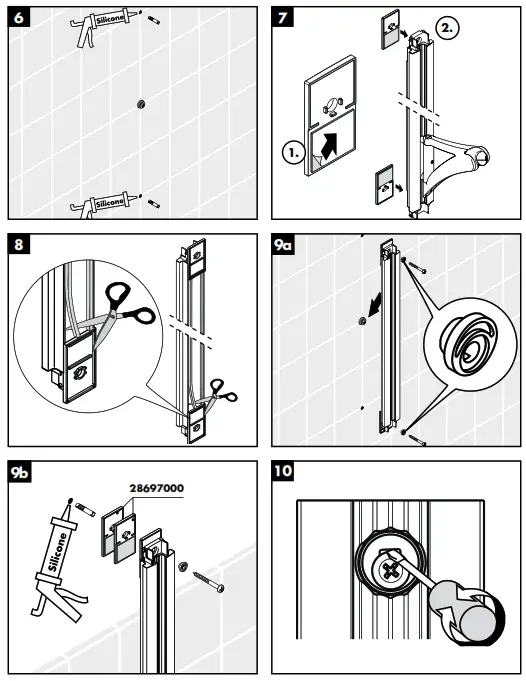

	With the eccentric washer it is possible to equalize tolerance of the drilling. (see page 35 + 37)

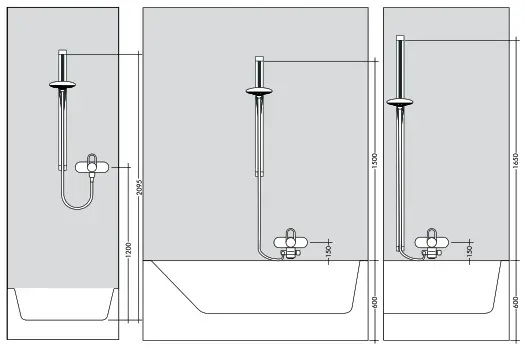

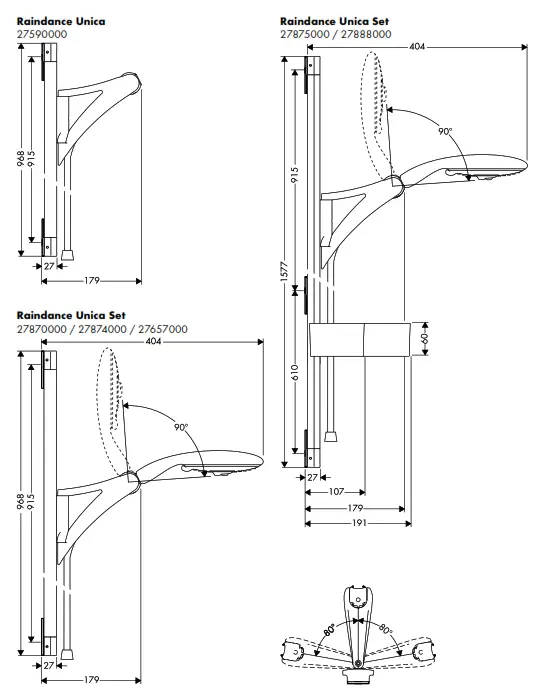

	Dimensions (see page 31 – 33)

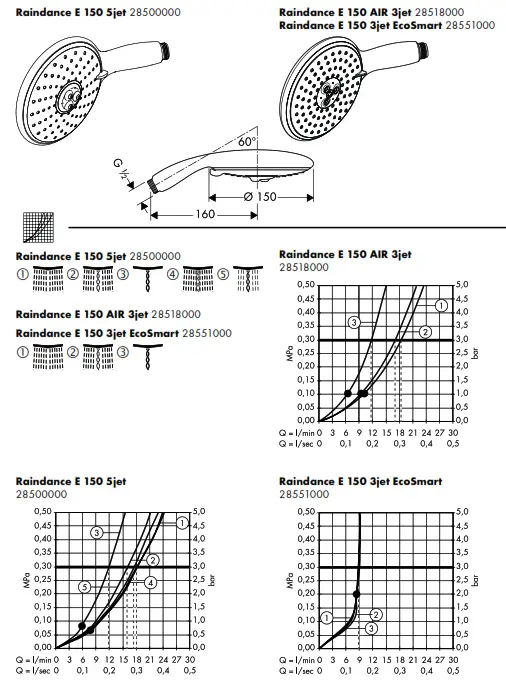

	Flow diagram (see page 32)

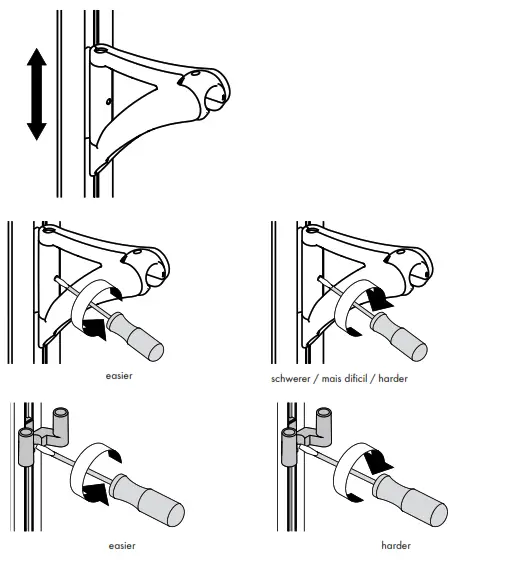

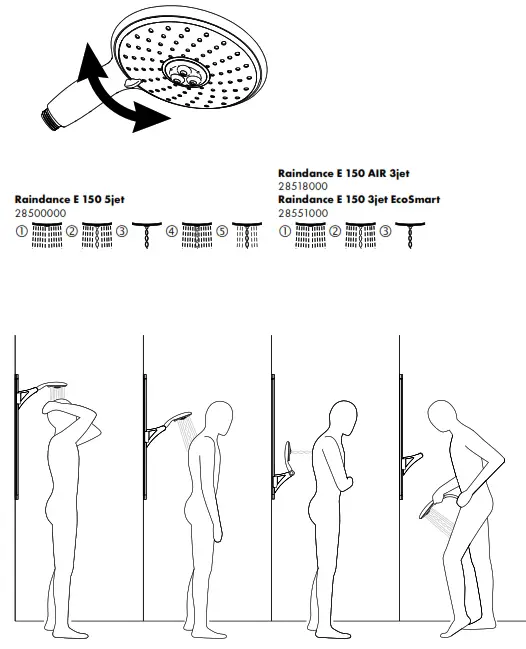

	Operation (see page 39 – 40)

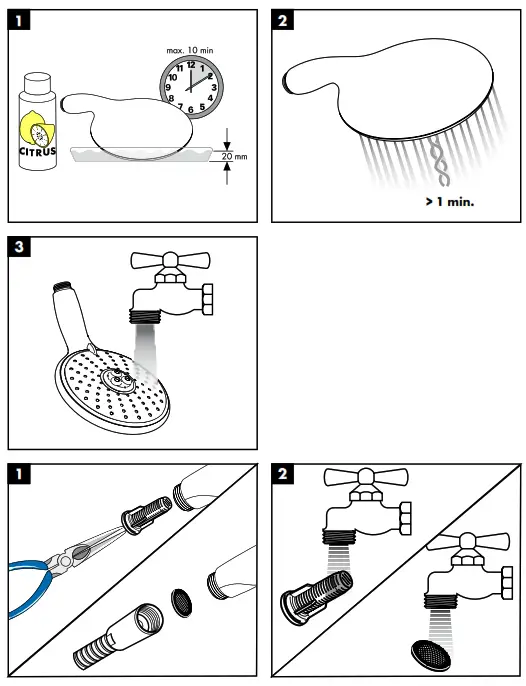

	Cleaning (see page 41) enclosed brochure

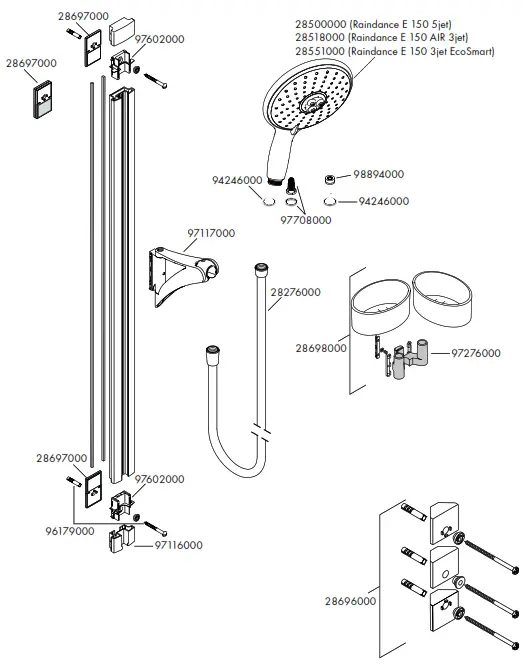

	Spare parts (see page 42)
	Test certificate (see page 43)

Hansgrohe · Postfach 1145 · D-77761 Schiltach
Telecon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
07/2010 9.06138.08
