Hansgrohe 27841820 Raindance C 100 Air 3jet Unica Classic Shower Set Instruction Manual

Instructions for use / assembly instructions

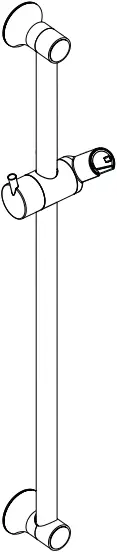

Unica´Classic
27616XXX / 27617XXX

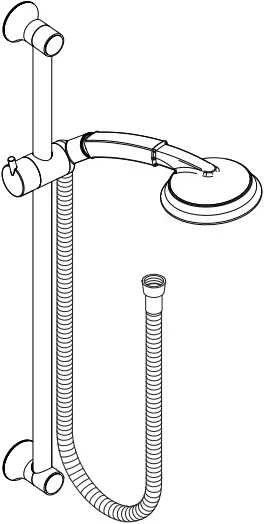

Raindance C 100 AIR 3jet
Unica´Classic
27841XXX / 27843XXX

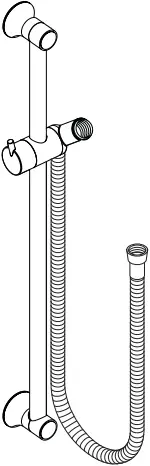

Unica´Classic
27627XXX / 27628XXX

Croma C 100 Multi
Unica´Classic
27768XXX / 27769XXX

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
Children as well as adults with physical, mental and/or sensoric impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
The product may not be used as a holding handle. A separate handle must be installed.
Shower hoses are only suitable for a connection from the shower to the fitting. Never fit a shut-off device between the fitting and the hose.

Installation Instructions

• Optimal functioning is only guaranteed with the combination of Hansgrohe hand showers and Hansgrohe shower hoses.
• Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
• The premounted filter insert must be used to ensure a normal flow of the shower and to prevent dirt from entering through the pipes. Dirt entering can affect the function and/or lead to damages to the shower. Hansgrohe will not be held liable for this type of damage.

Technical Data

Operating pressure:                                      max. 0,6 MPa
Recommended operating pressure:              0,1 – 0,4 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:                                   max. 60 °C

Symbol description

Do not use silicone containing acetic acid!

Dimensions

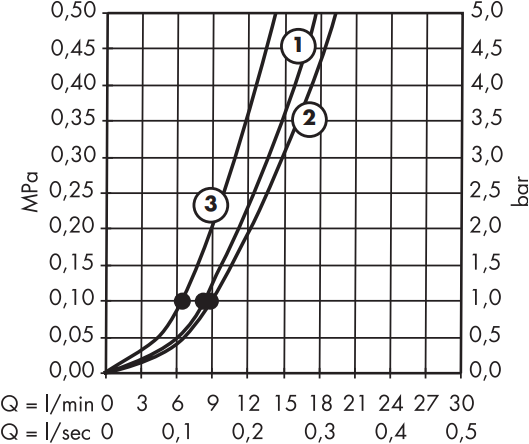

Flow diagram

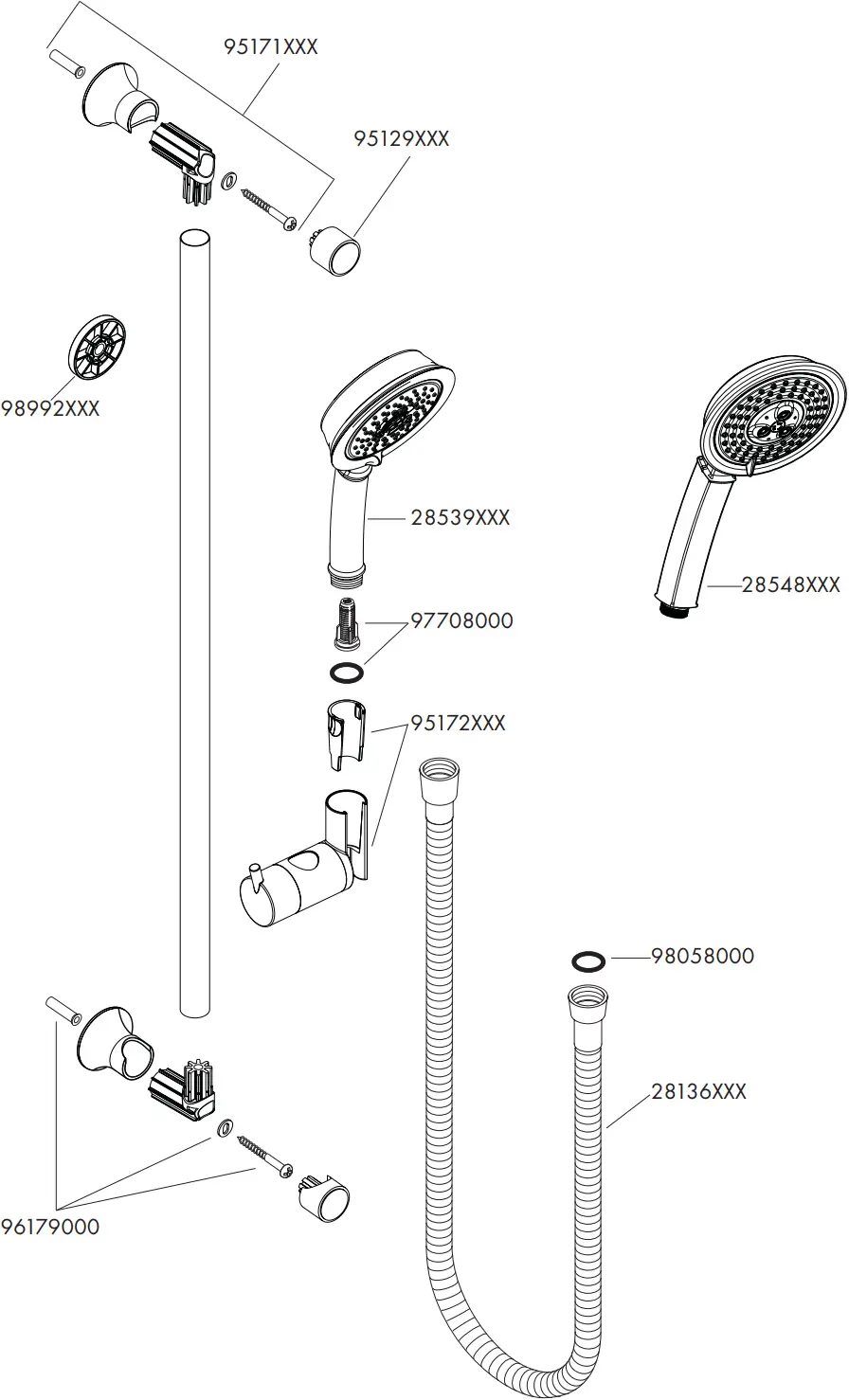

Spare parts
XXX = Colors
000 = chrome plated
820 = brushed nickel

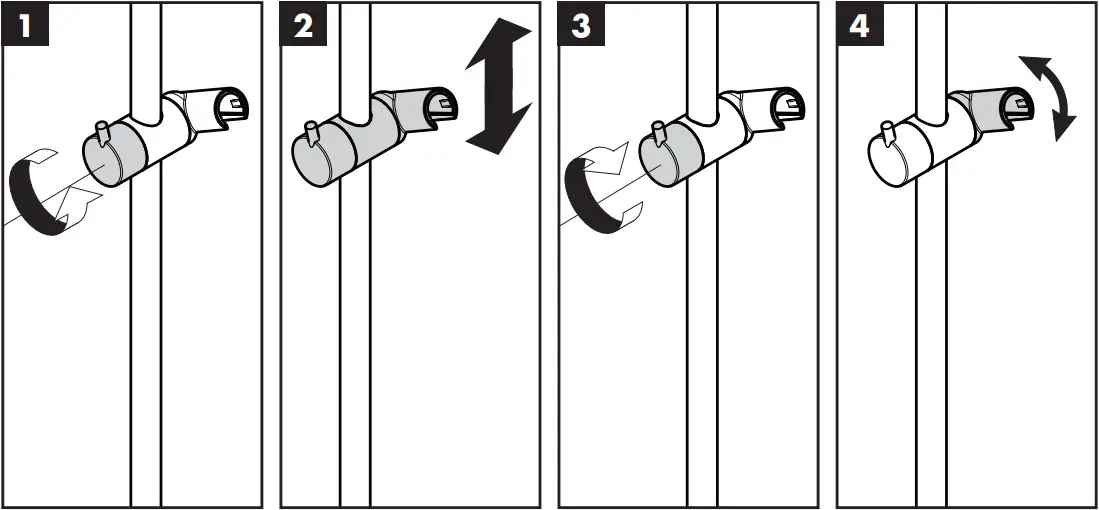

Operation

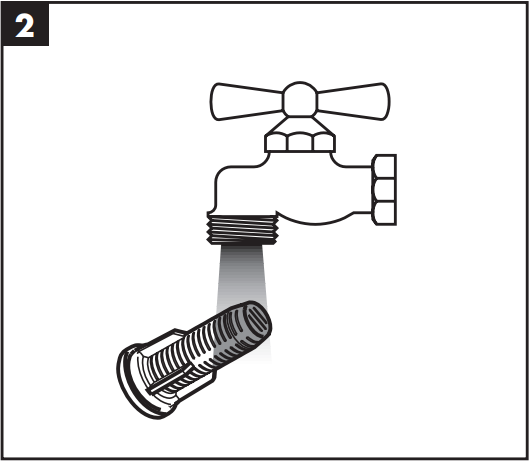

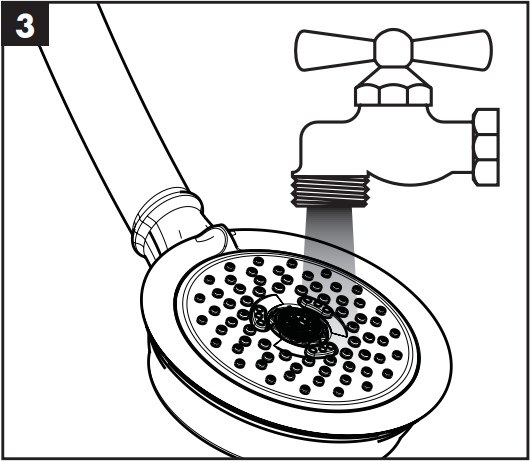

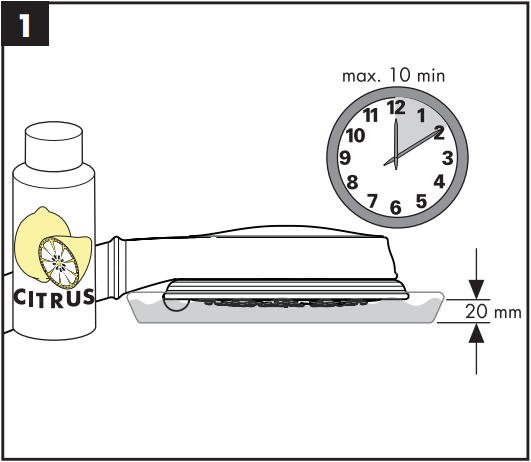

Cleaning and enclosed brochure

Test certificate

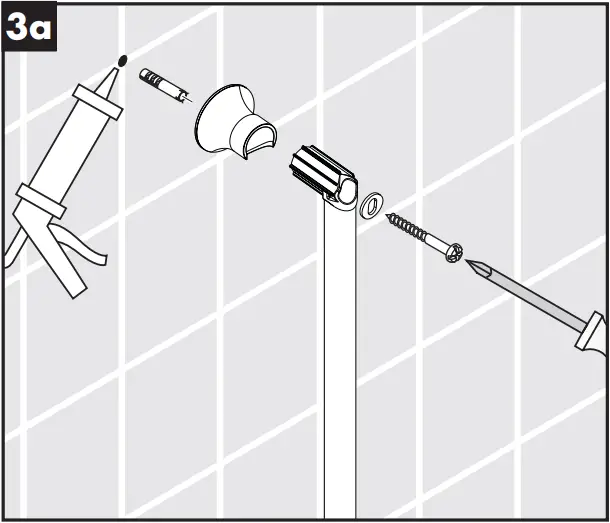

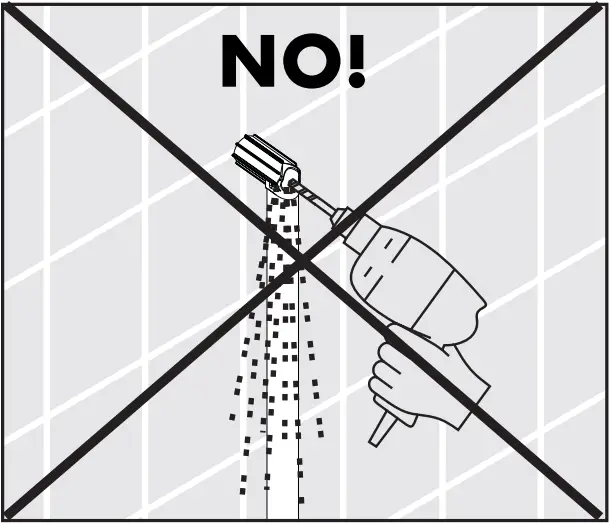

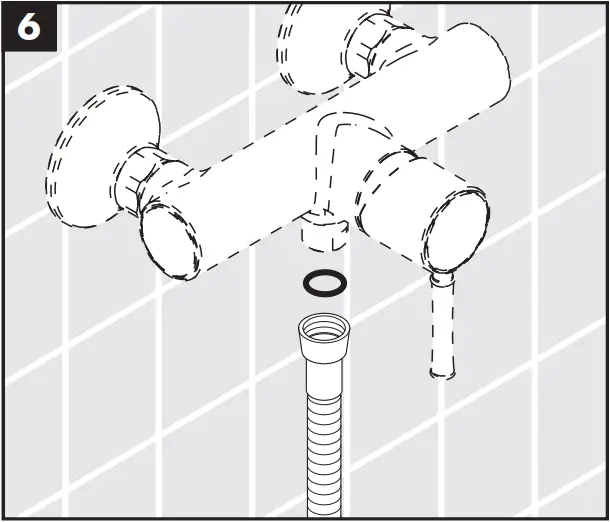

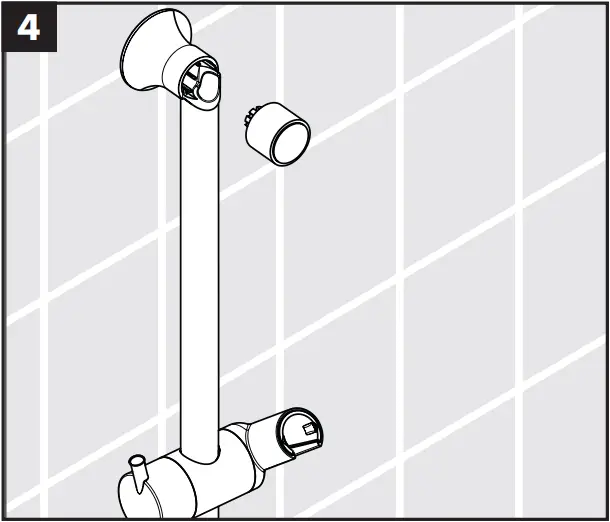

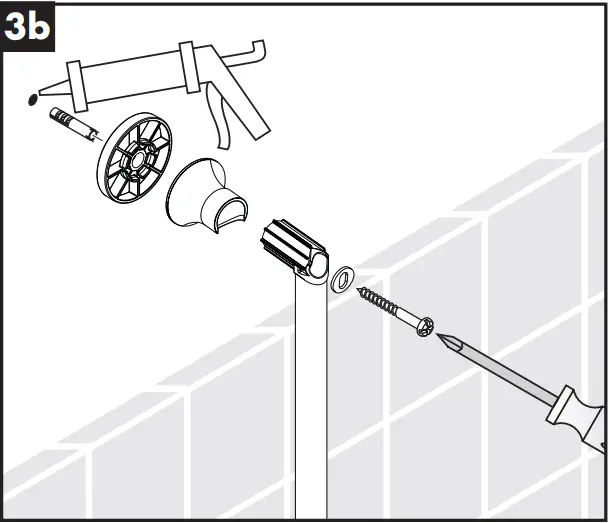

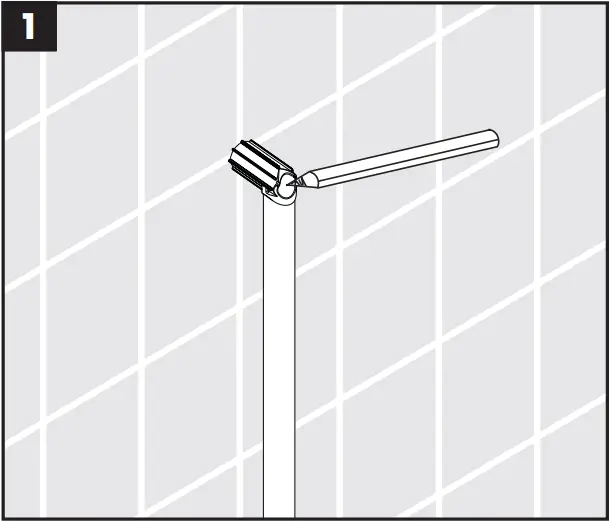

Assembly

Assembly

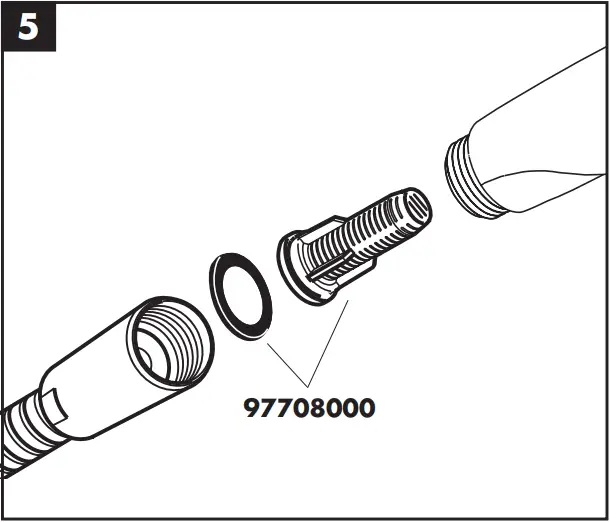

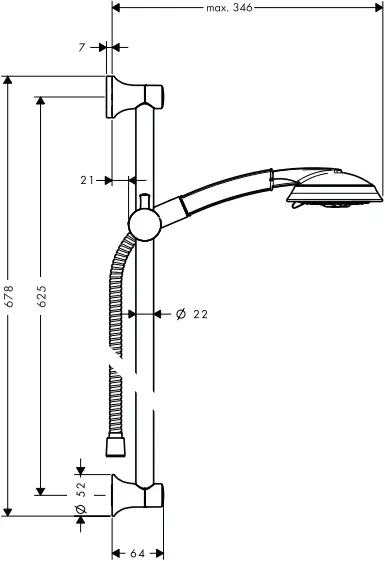

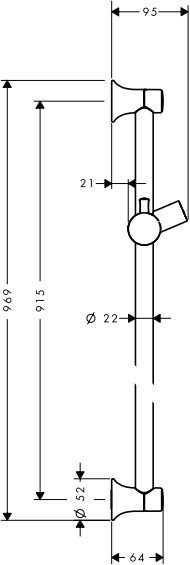

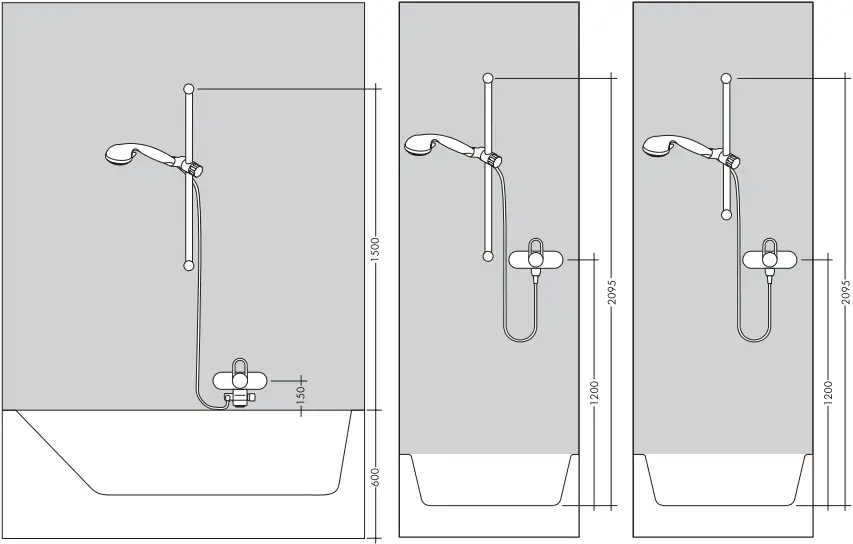

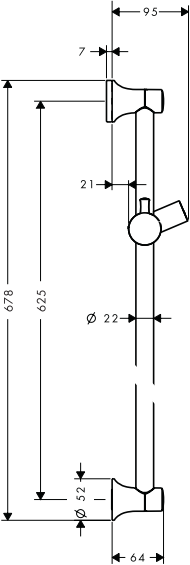

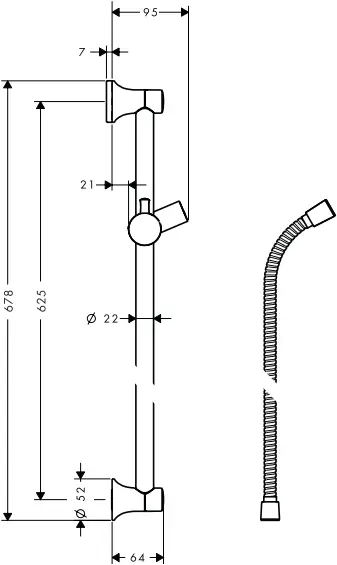

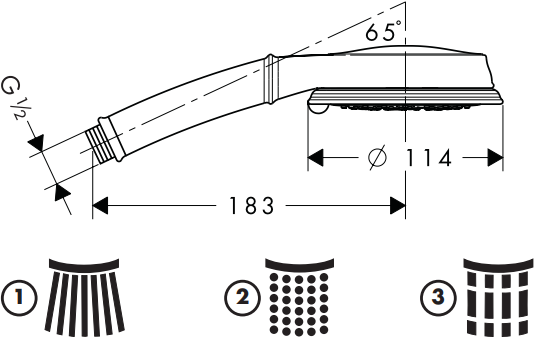

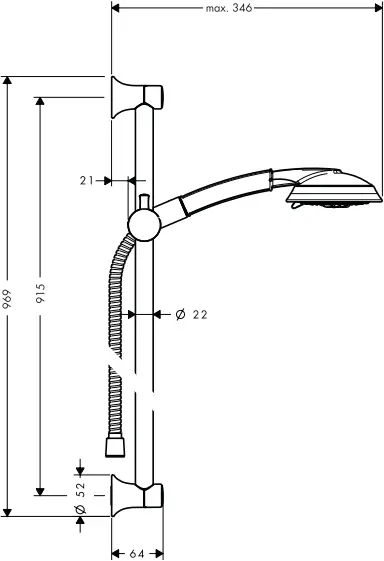

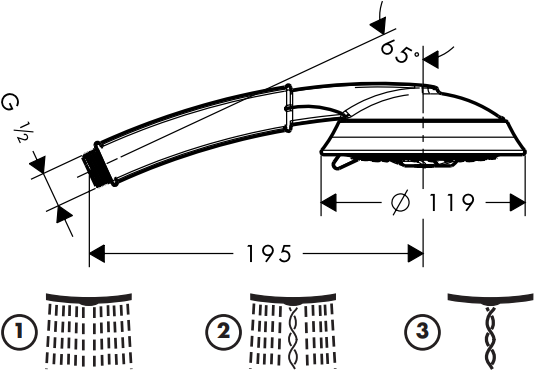

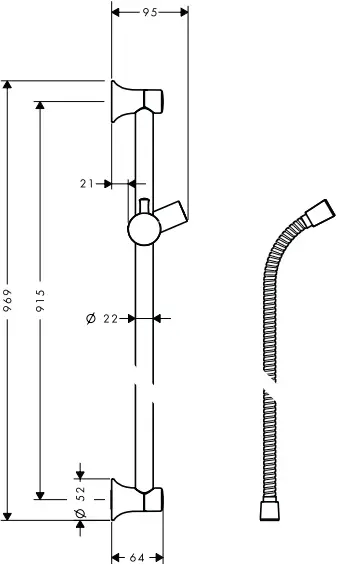

Dimensions

Croma C 100 Multi Unica´Classic 900
27768XXX

Croma C 100 Multi Unica´Classic 650
27769XXX

Unica´Classic 900
27616XXX

Unica´Classic 650
27617XXX

Raindance C 100 AIR 3jet Unica´Classic 900
27841XXX

Raindance C 100 AIR 3jet Unica´Classic 650
27843XXX

Unica´Classic 900
27628XXX

Unica´Classic 650
27627XXX

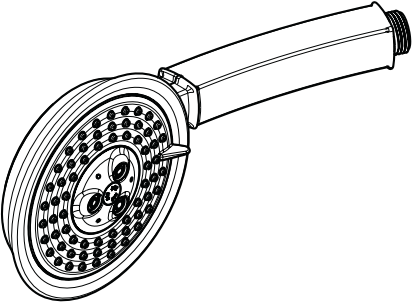

Croma 100 Classic Multi
28539XXX

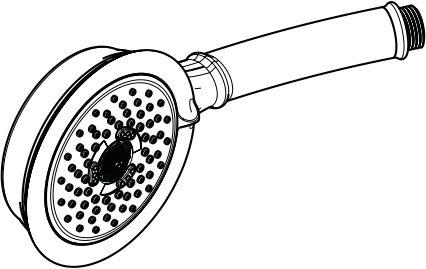

Raindance Classic 100 AIR 3jet
28548XXX

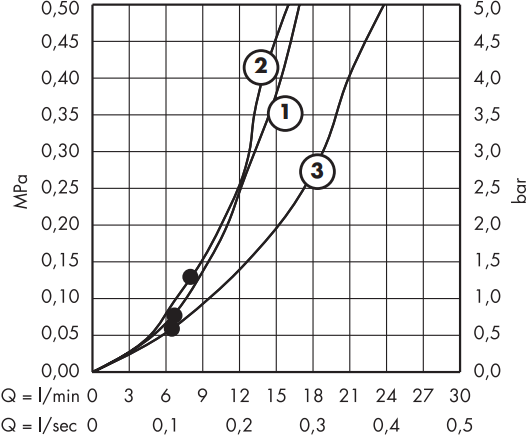

Flow diagram

Croma 100 Classic Multi
28539XXX

Raindance Classic 100 AIR 3jet
28548XXX

Spare parts

Operation

Cleaning

Test certificate

Hansgrohe • Postfach 1145 • D-77761 Schiltach • Telefon +49 (0) 78 36/51-1282 • Telefax +49 (0) 7836/511440
E-Mail: [email protected] • Internet: www.hansgrohe.com

9/2010
9.04627.04
