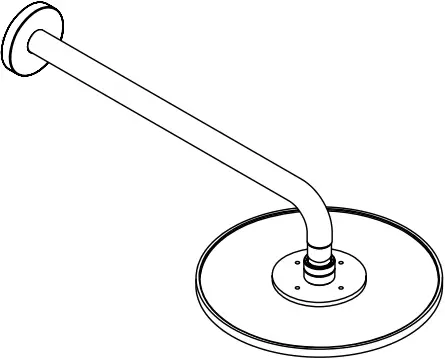

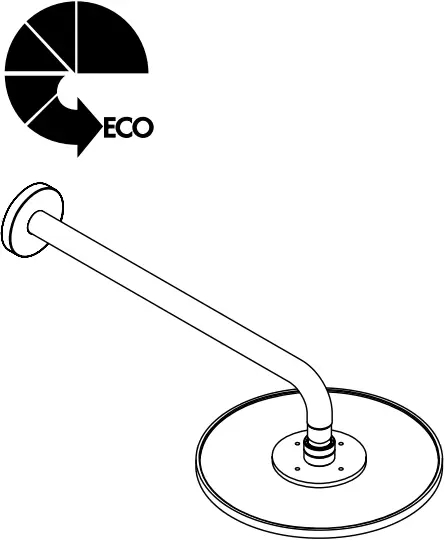

Hansgrohe 27461000 Air Plate Upper Shower Instruction Manual

Instructions for use / assembly instructions

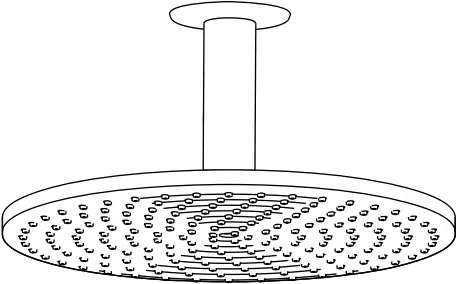

Raindance AIR
27461000 / 27462000

Raindance AIR
27463000 / 27464000

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
Children as well as adults with physical, mental and/or sensoric impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
The arm of the shower head is intended only to hold the shower head. Do not load it down with other objects!

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms!
• Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
• The filter insert must be use to protect the shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.

Technical Data

Operating pressure:                                           max. 0,6 MPa
Recommended operating pressure:                   0,1 – 0,4 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:                                         max. 60°C

The shower can not used together with a continuous flow water heater.

Symbol description

Do not use silicone containing acetic acid!

Dimensions

Flow diagram

Cleaning
enclosed brochure

Spare parts

Test certificate

Wall mount

Ceiling mount

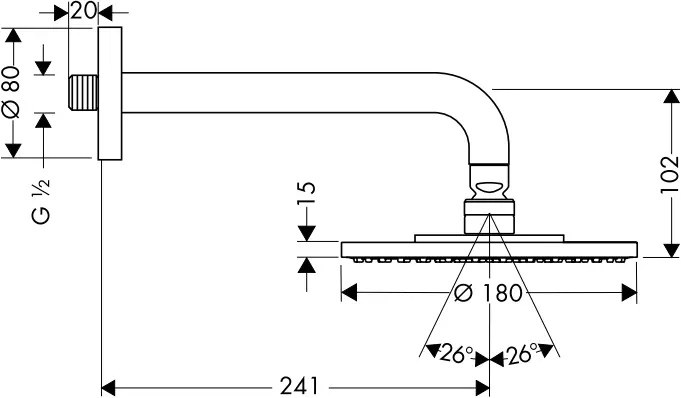

Dimensions

Raindance Air
27461000

Raindance Air
27462000

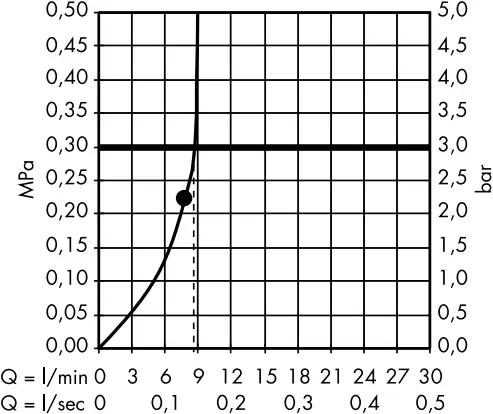

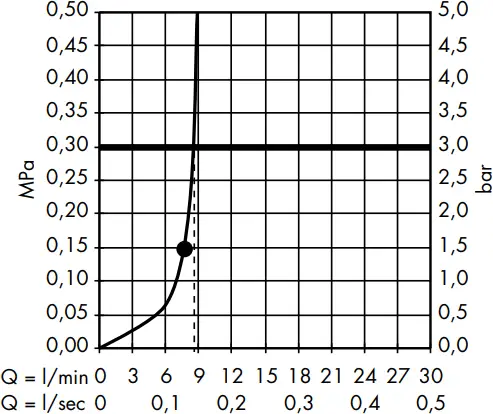

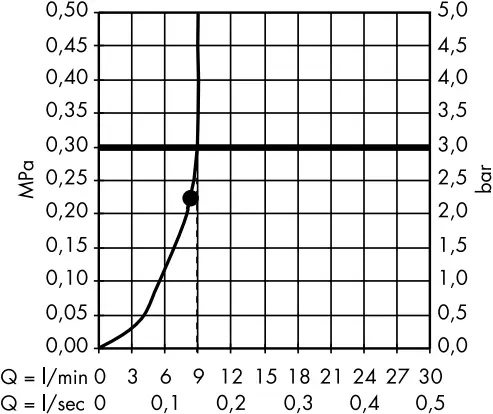

Flow diagram

Raindance Air
27461000

Raindance Air
27462000

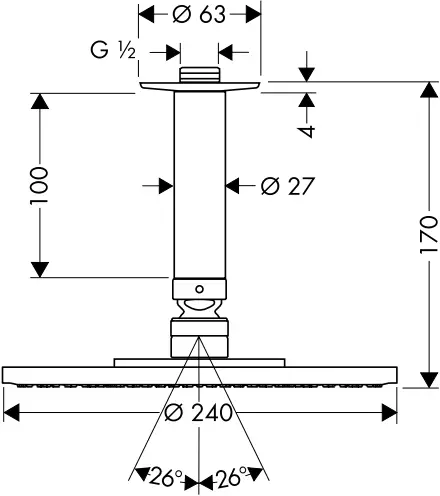

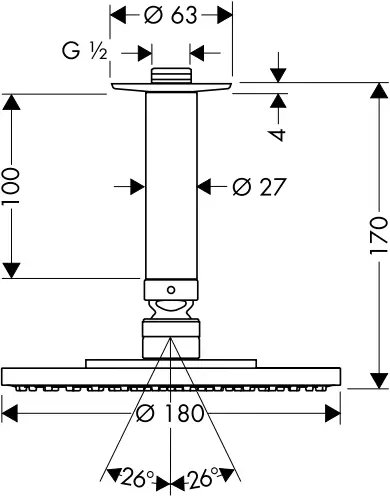

Dimensions

Raindance AIR
27463000

Raindance AIR
27464000

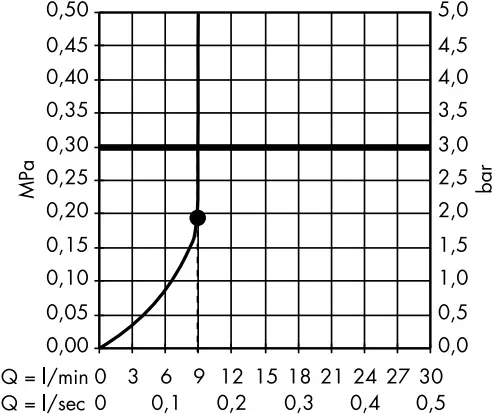

Flow diagram

Raindance AIR
27463000

Raindance AIR
27464000

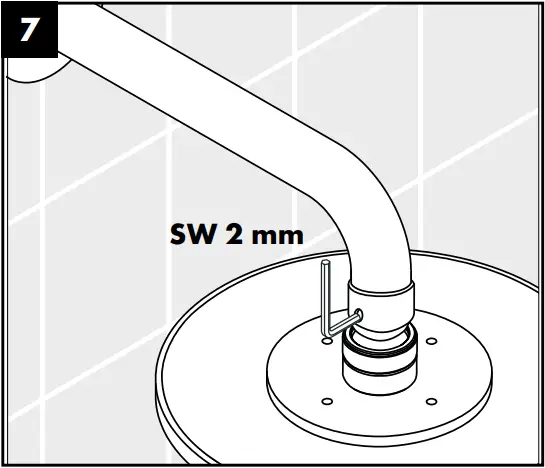

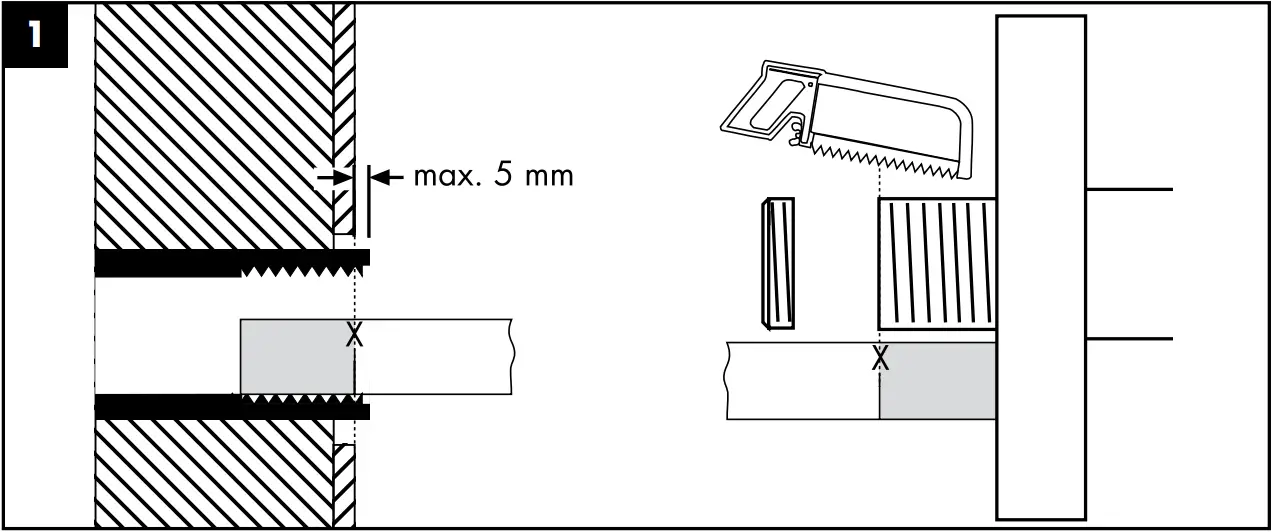

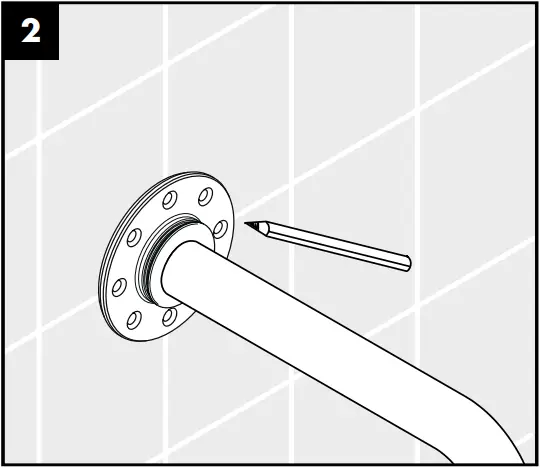

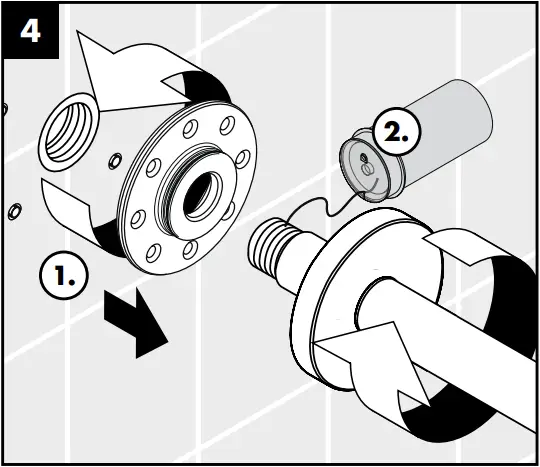

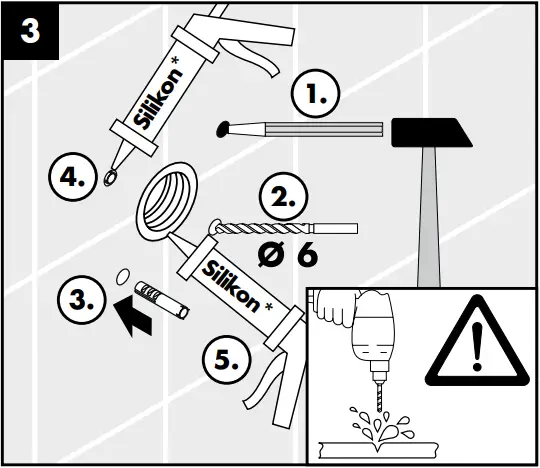

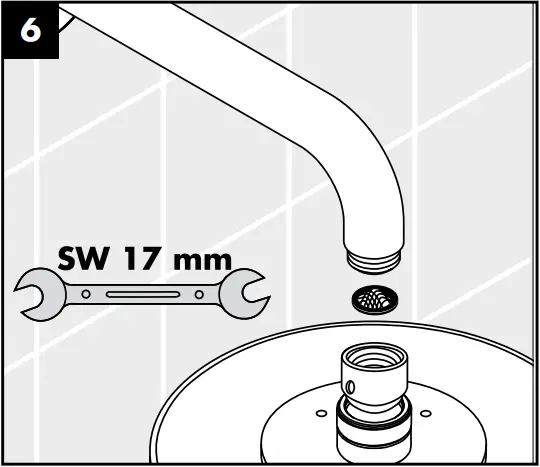

Wall mount

Raindance Air 27461000 / 27462000

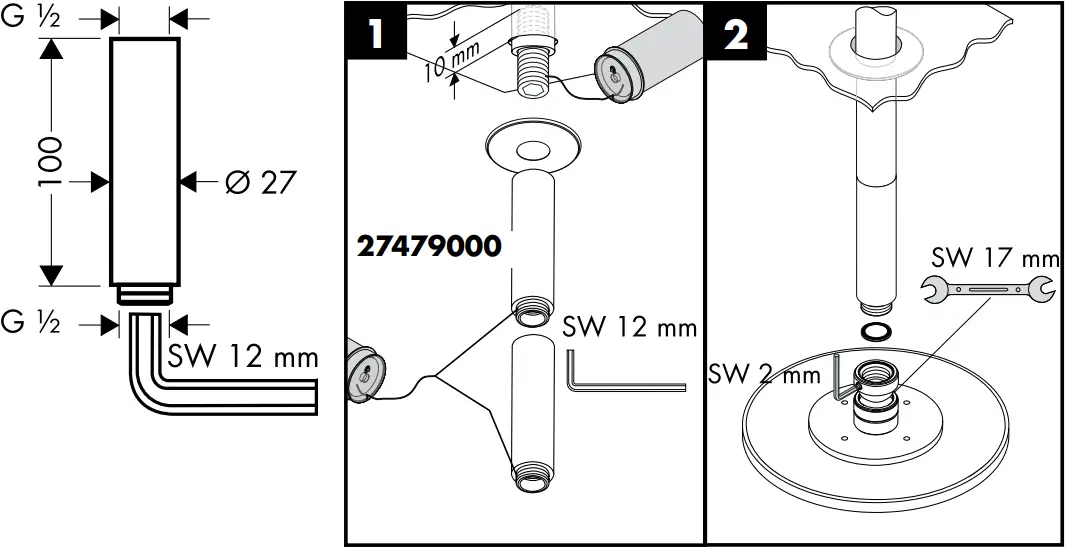

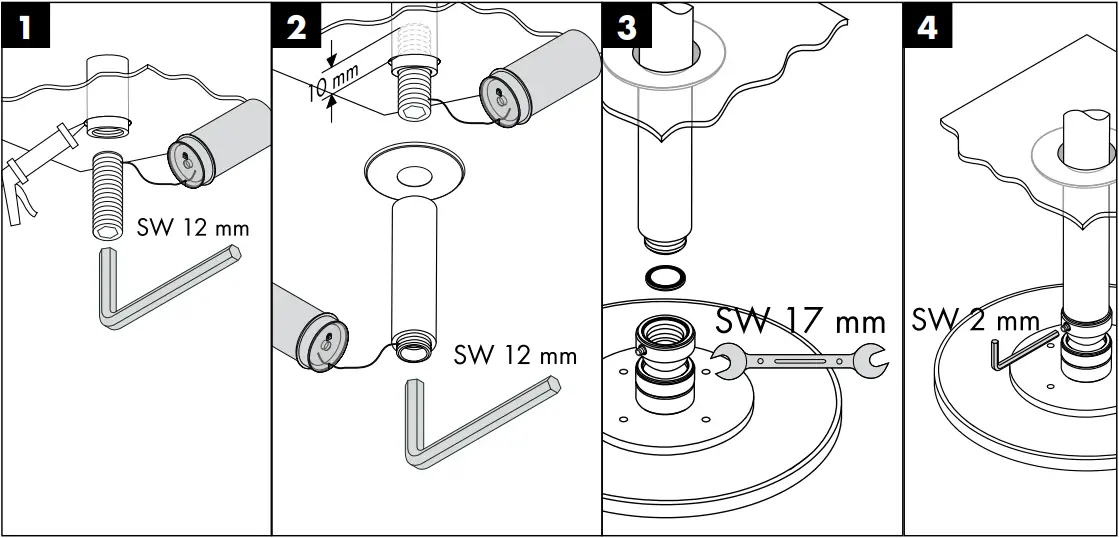

Ceiling mount

 Raindance Air 27463000 / 27464000

27479000

Extension 100 mm

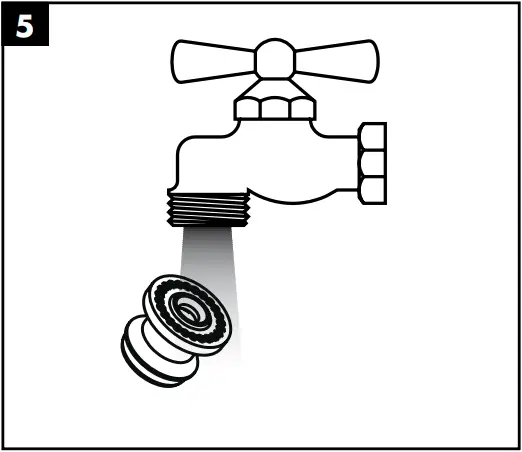

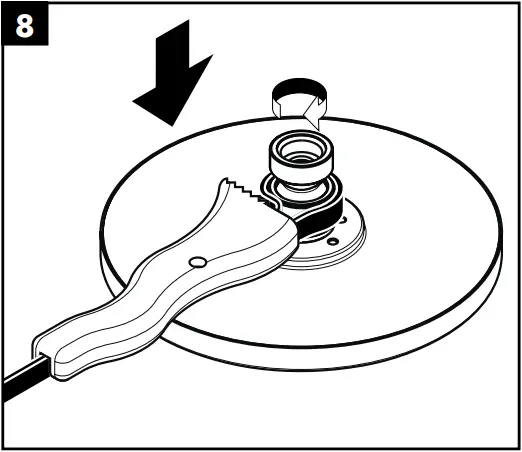

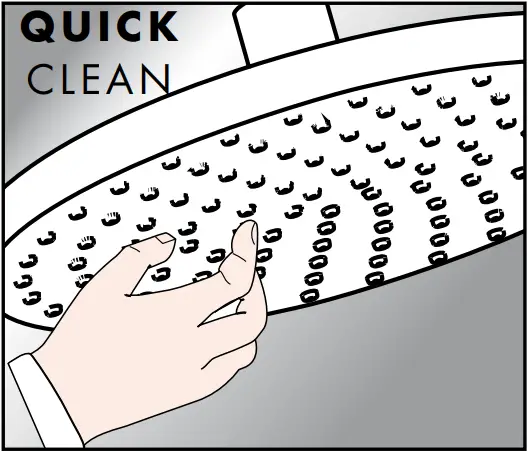

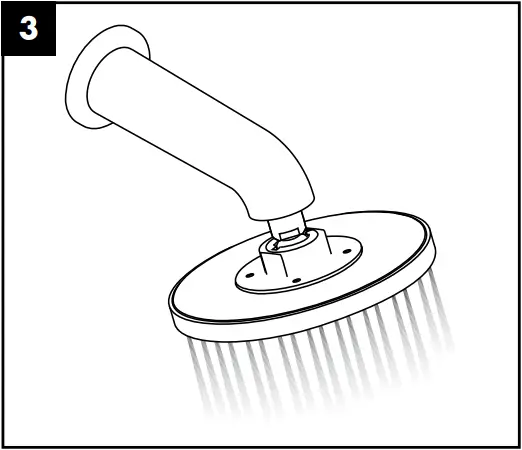

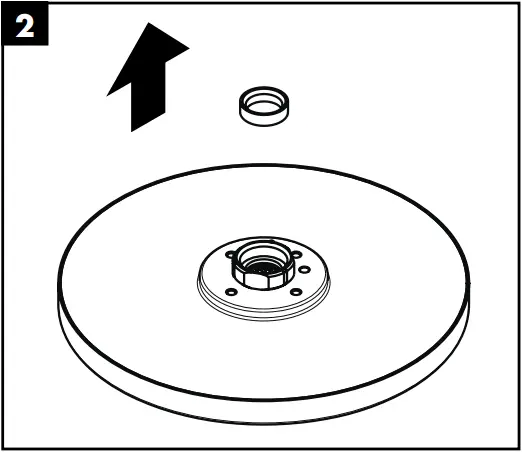

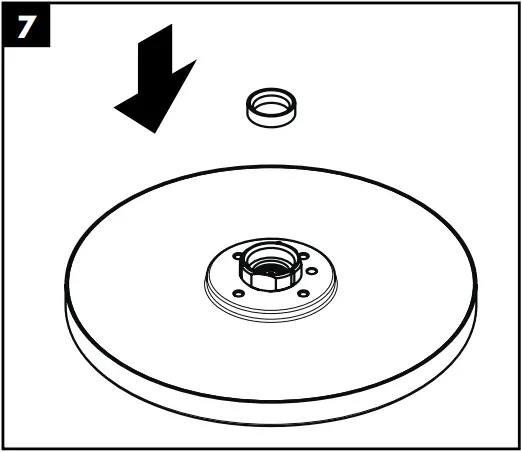

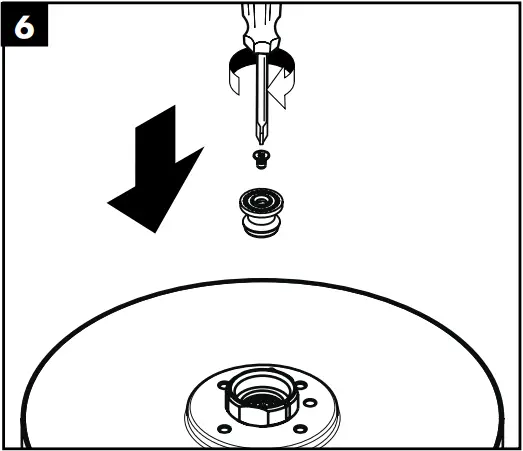

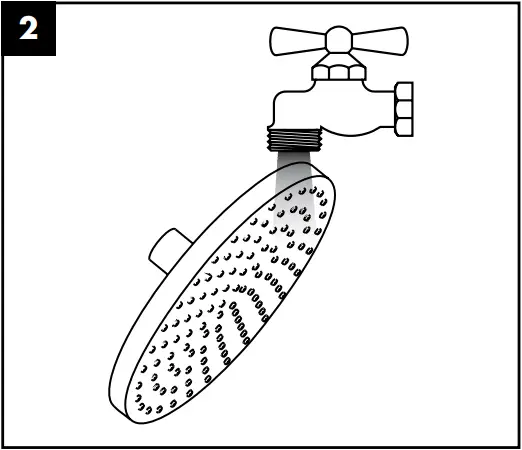

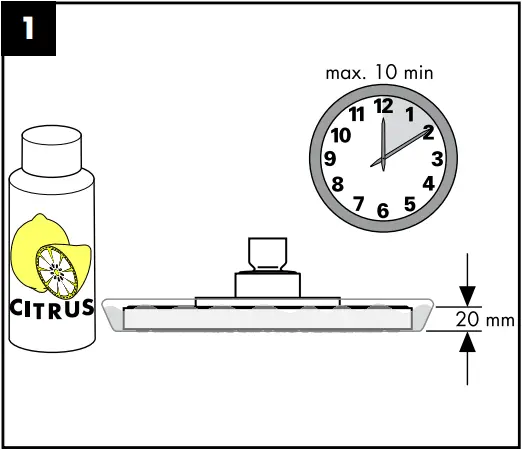

Cleaning

Just clean: simply rub over the spray nozzles to remove lime scale.

Test certificate

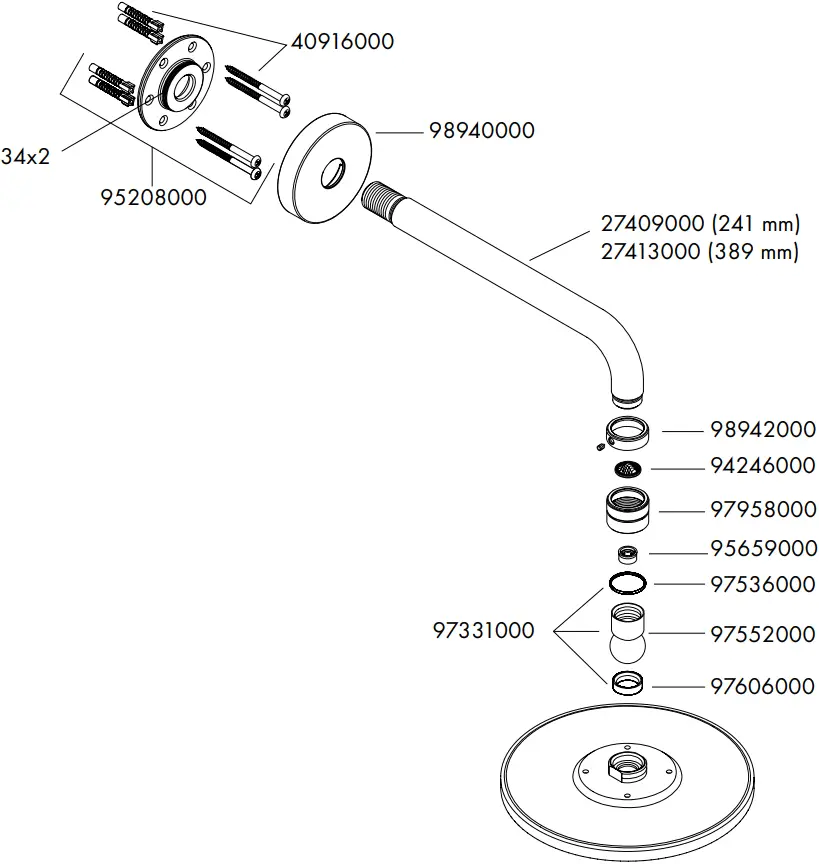

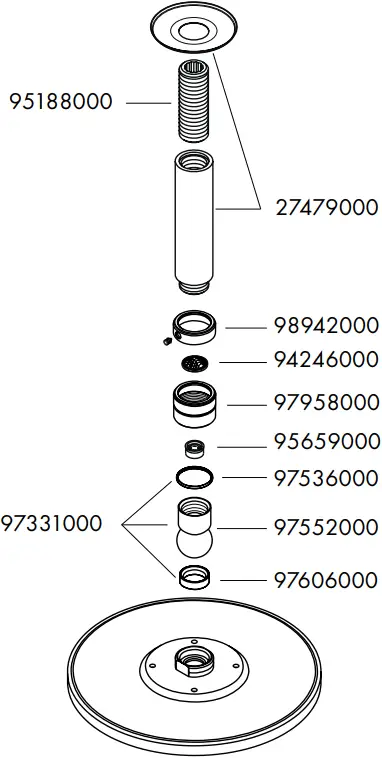

Spare parts

Raindance AIR
27461000 / 27462000

Raindance AIR
27463000 / 27464000

Hansgrohe • Postfach 1145 • D-77761 Schiltach • Telefon +49 (0) 78 36/51-1282 • Telefax +49 (0) 7836/511440
E-Mail: [email protected] • Internet: www.hansgrohe.com

07/2010
9.04009.04
