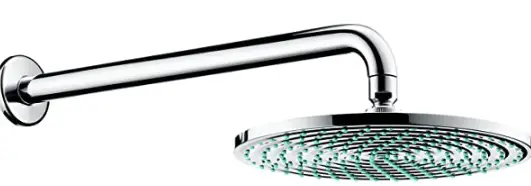

hansgrohe 27474000 RAINDANCE AIR Plate Top Shower 300 mm DN15
Product Information
The product is a shower system with the following model numbers: Raindance 27471000 Raindance AIR 27474000 / 27476000 / 27468000 / 27492000 / 27493000, and Raindance 27472000 Raindance AIR 27477000 / 27478000 / 27494000. The user manual contains instructions in various languages for use and installation of the product.
Safety Notes
- Gloves should be worn during installation to prevent crushing and cutting injuries.
- The shower system may only be used for bathing, hygienic and body cleansing purposes.
- Children as well as adults with physical, mental and/or sensoric impairments must not use this shower system without proper supervision.
- Persons under the influence of alcohol or drugs are prohibited from using this shower system.
- Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
- The arm of the shower head is intended only to hold the shower head. Do not load it down with other objects!
Technical Data
- Operating pressure: Recommended operating pressure: (1 MPa = 10 bar = 147 PSI)
- Hot water temperature:
- The shower can not used together with a continuous flow water heater.
- Do not use silicone containing acetic acid!
Installation Instructions
The user manual provides installation instructions in various languages including German, French, English, Italian, Spanish, Dutch, Danish, Polish, Chinese, Russian, Swedish, Lithuanian, Croatian, Turkish, Romanian, Greek, Slovenian, Estonian, Latvian, Serbian, Norwegian, Bulgarian and Arabic. The instructions include information on wall and ceiling mounting, technical data, dimensions and cleaning.
Product Usage Instructions
The shower system may only be used for bathing, hygienic and body cleansing purposes. Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you. Children as well as adults with physical, mental and/or sensoric impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
When installing the product, gloves should be worn to prevent crushing and cutting injuries. The arm of the shower head is intended only to hold the shower head. Do not load it down with other objects. The user manual provides installation instructions in various languages including German, French, English, Italian, Spanish, Dutch, Danish, Polish, Chinese, Russian, Swedish, Lithuanian, Croatian, Turkish, Romanian, Greek, Slovenian, Estonian, Latvian, Serbian, Norwegian, Bulgarian and Arabic. The instructions include information on wall and ceiling mounting, technical data, dimensions and cleaning.
Safety Notes
- Gloves should be worn during installation to prevent crushing and cutting injuries.
- The shower system may only be used for bathing, hygienic and body cleansing purposes.
- Children as well as adults with physical, mental and/or sensoric impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
- Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
- The arm of the shower head is intended only to hold the shower head. Do not load it down with other objects!
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms!
- Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
- The filter insert must be use to protect the shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.
Technical Data
- Operating pressure: max. 0,6 MPa
- Recommended operating pressure: 0,1 – 0,4 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 60°C
27474000 / 27492000 / 27493000 / 27477000 / 27494000:
The shower can not used together with a continuous flow water heater.
Symbol description
Do not use silicone containing acetic acid!
Dimensions
Flow diagram
Cleaning enclosed brochure
Spare parts
Test certificate
Wall mount
Ceiling mount
Do not use silicone containing acetic acid!

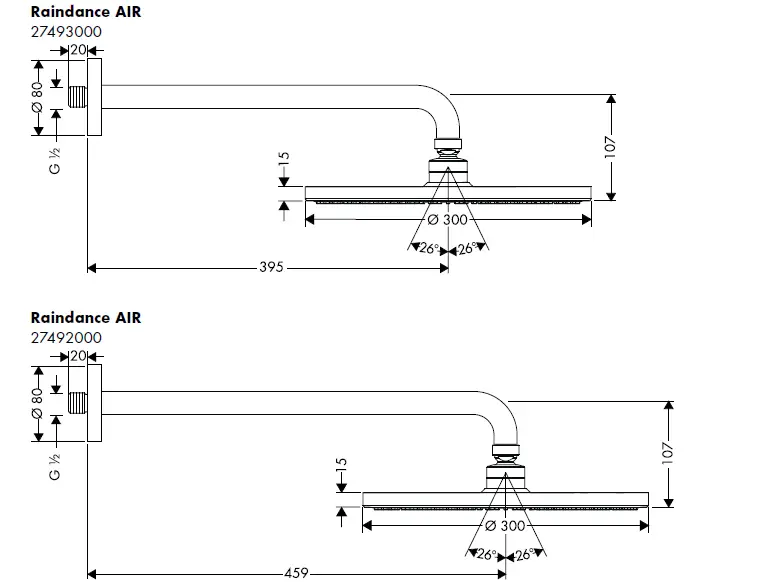

Dimensions

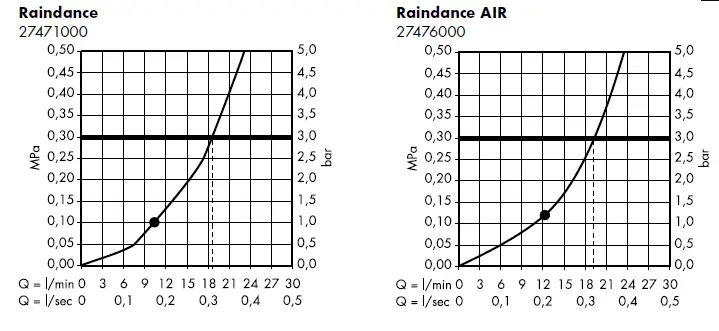

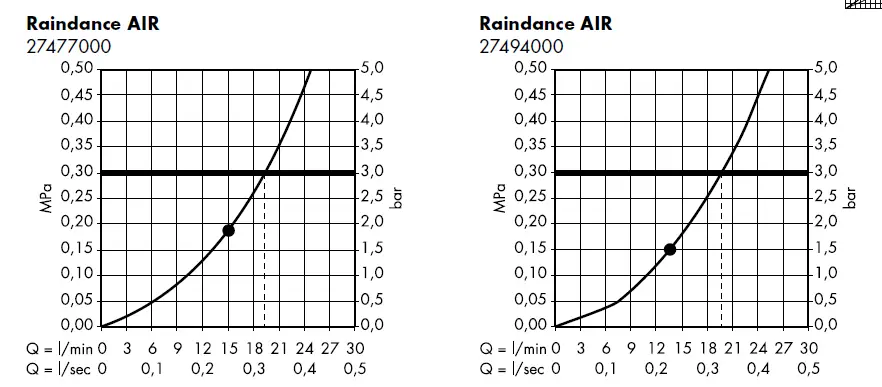

Flow diagram
Cleaning enclosed brochure
Spare parts
Test certificate
Wall mount

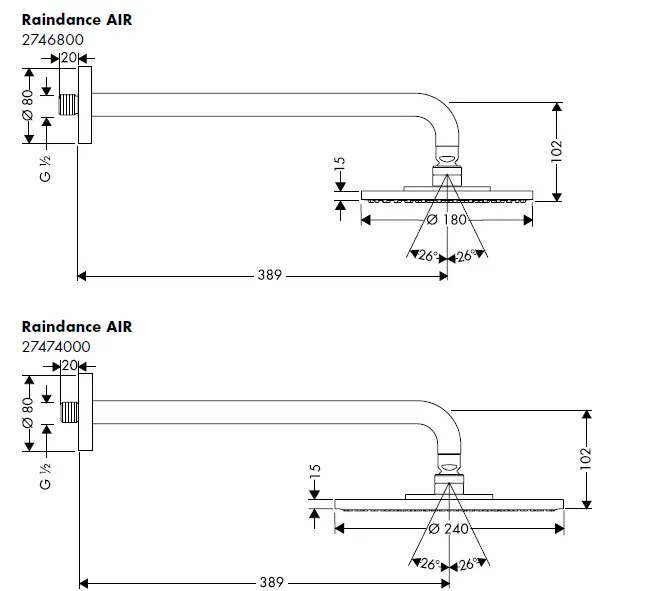

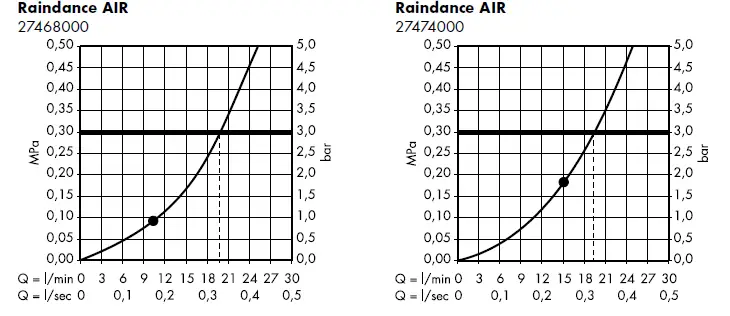

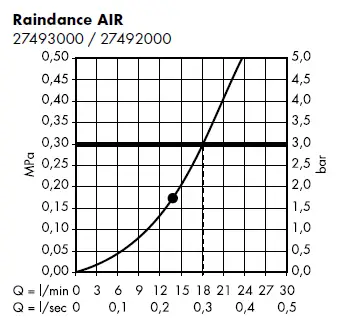

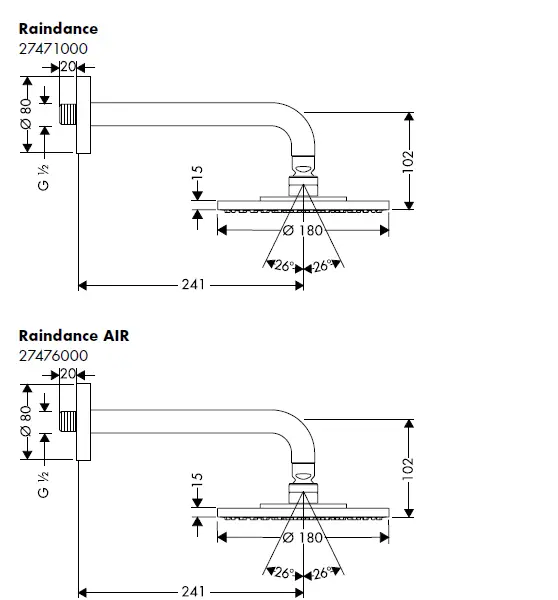

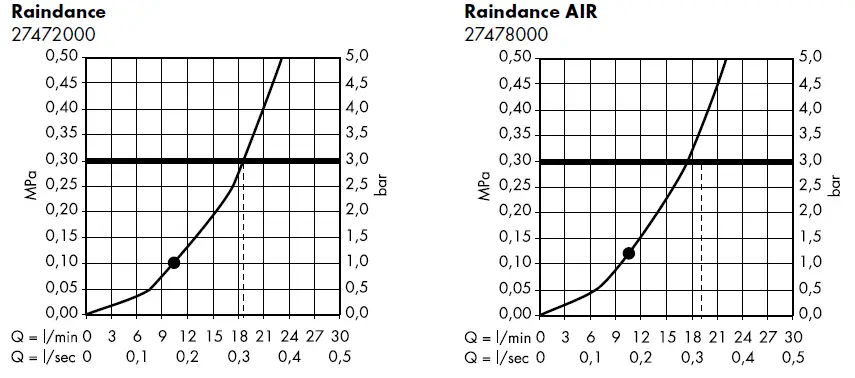

Ceiling mountDimension And Flow Diagram

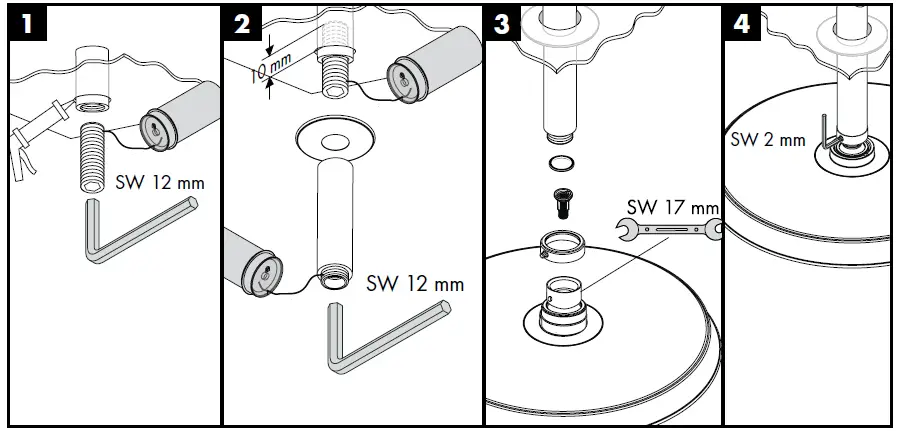

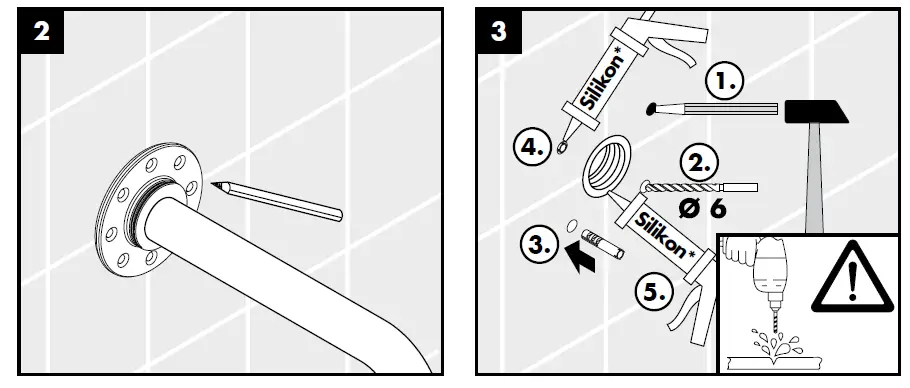

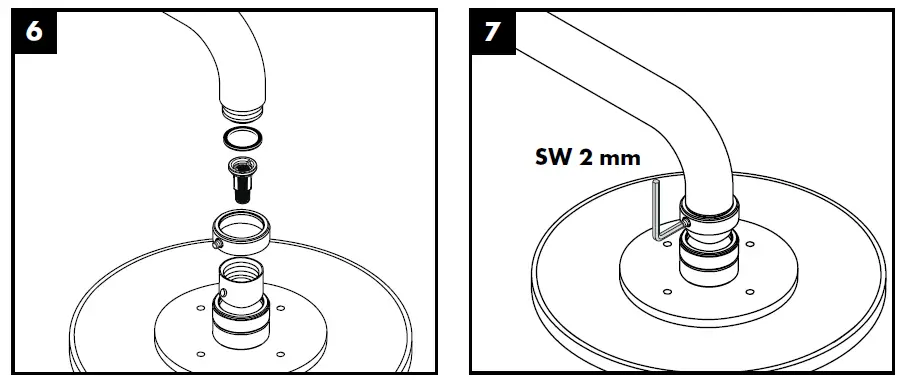

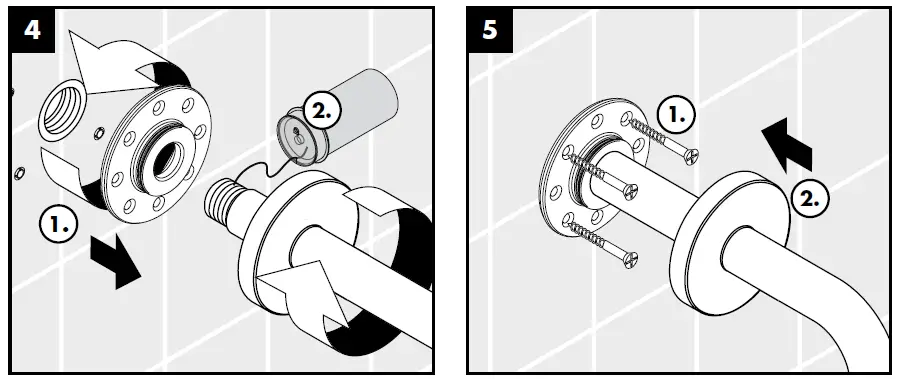

Assembly Instruction

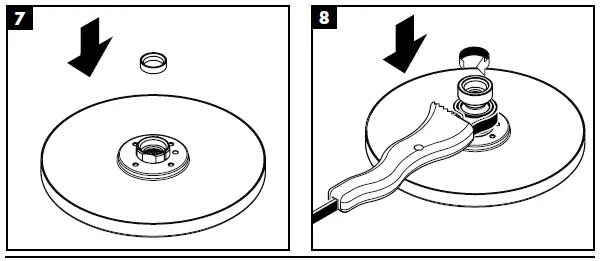

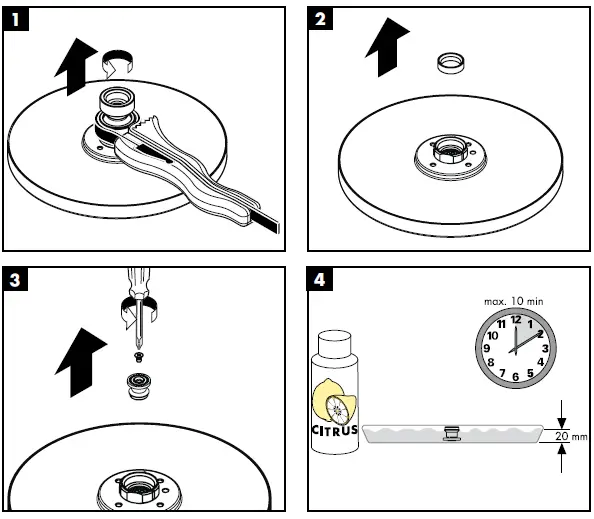

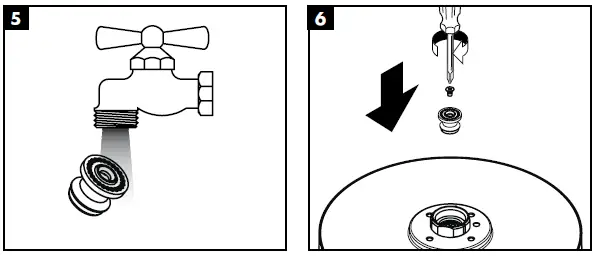

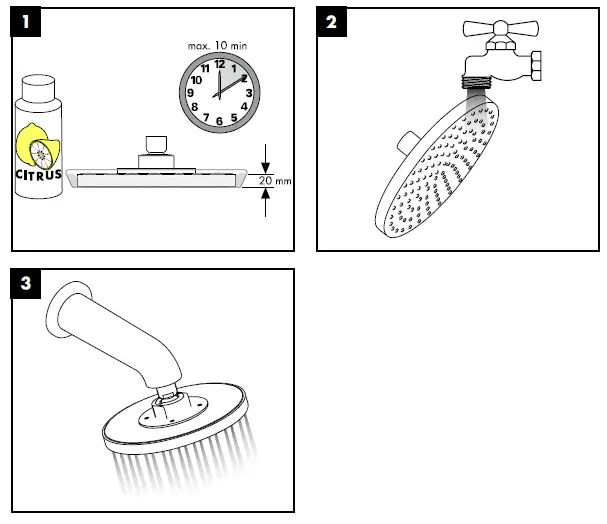

Cleaning

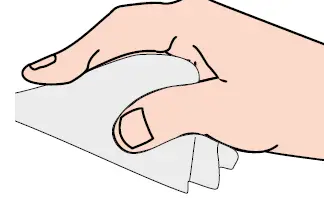

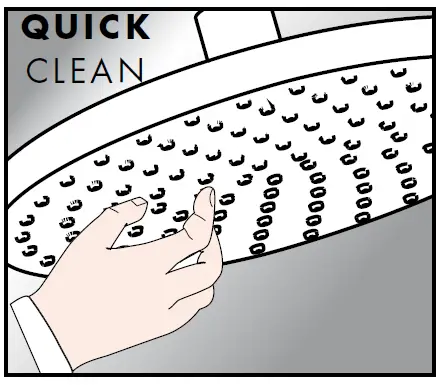

Just clean: simply rub over the spray nozzles to remove lime scale.

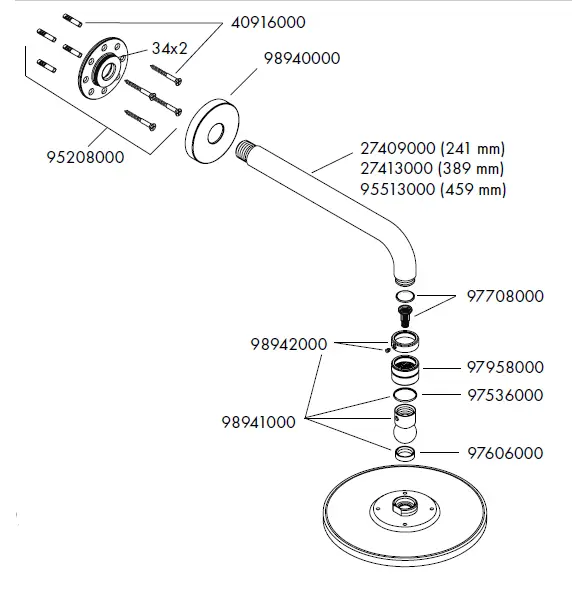

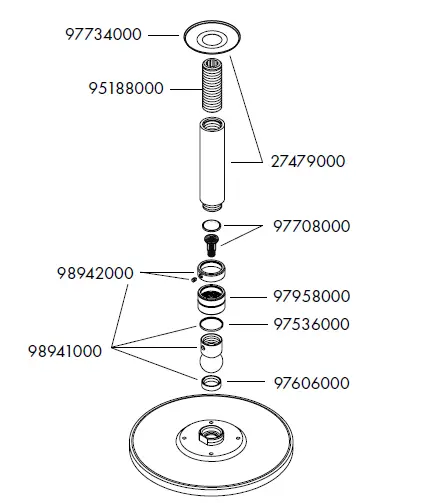

Spare Parts
Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
