Hansgrohe 28551000 Ecosmart Hand Shower Instruction Manual

28551000 EcoSmart Hand Shower
Instruction Manual

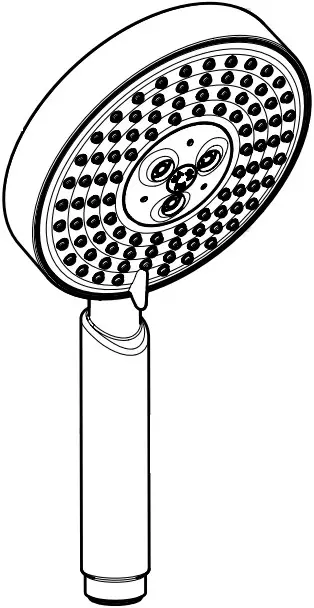

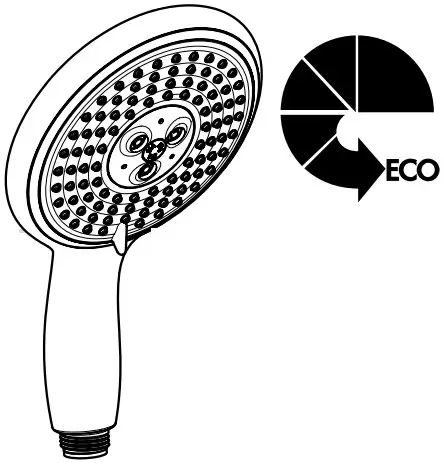

28551000 EcoSmart Hand Shower

Raindance E 150 AIR 3jet 28551000 Raindance E 120 AIR 3jet 28549000 Raindance E 100 AIR 3jet 28553000	Raindance S 150 AIR 3jet 28550000 Raindance S 120 AIR 3jet 28554000 Raindance S 100 AIR 3jet 28552000

Safety Notes

Gloves should be worn during installation to preventcrushing and cutting injuries.
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
The shower may only be used for bathing, hygiene and body cleansing purposes.

Installation Instructions

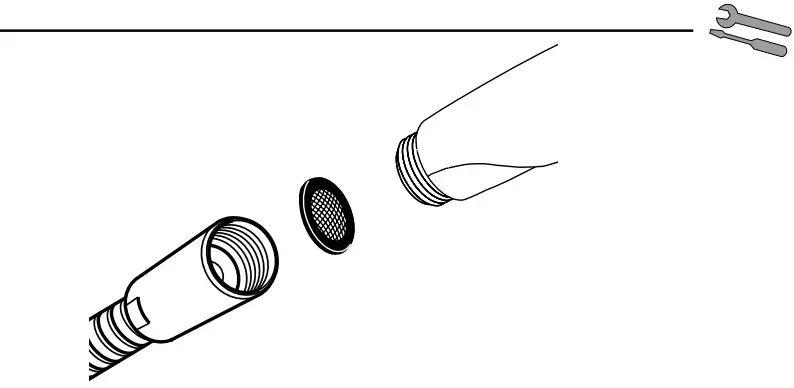

• The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.

Technical Data

Operating pressure: max. 0,6 MPa
Recommended operating pressure: 0,1 – 0,4 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C

Symbol description

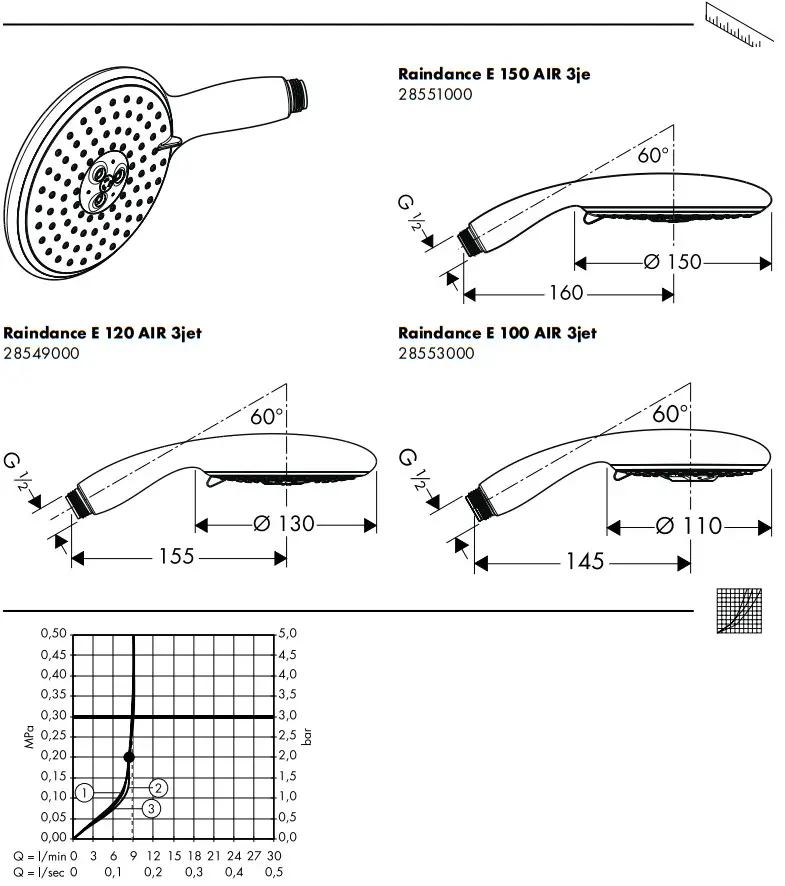

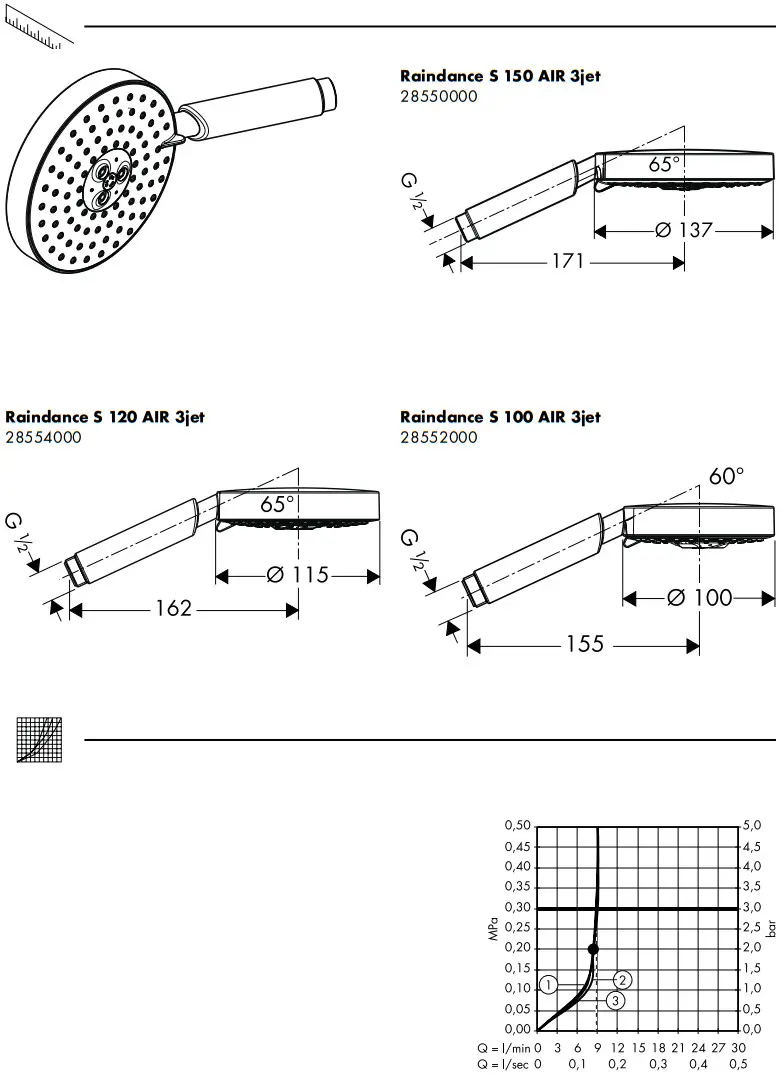

	Dimensions (see page 17 – 18)

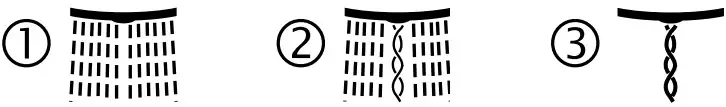

	Flow diagram (see page 17 – 18)
	Test certificate (see page 19)
	Operation (see page 20)
	Cleaning (see page 21 – 22) enclosed brochure

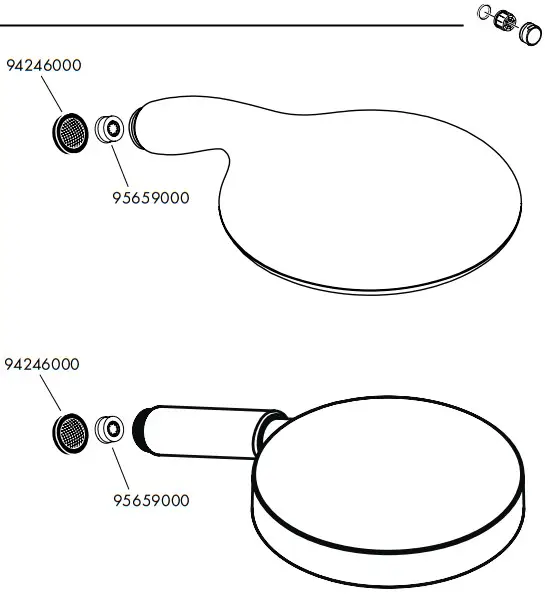

	Spare parts (see page 23)
	Assembly see page 19

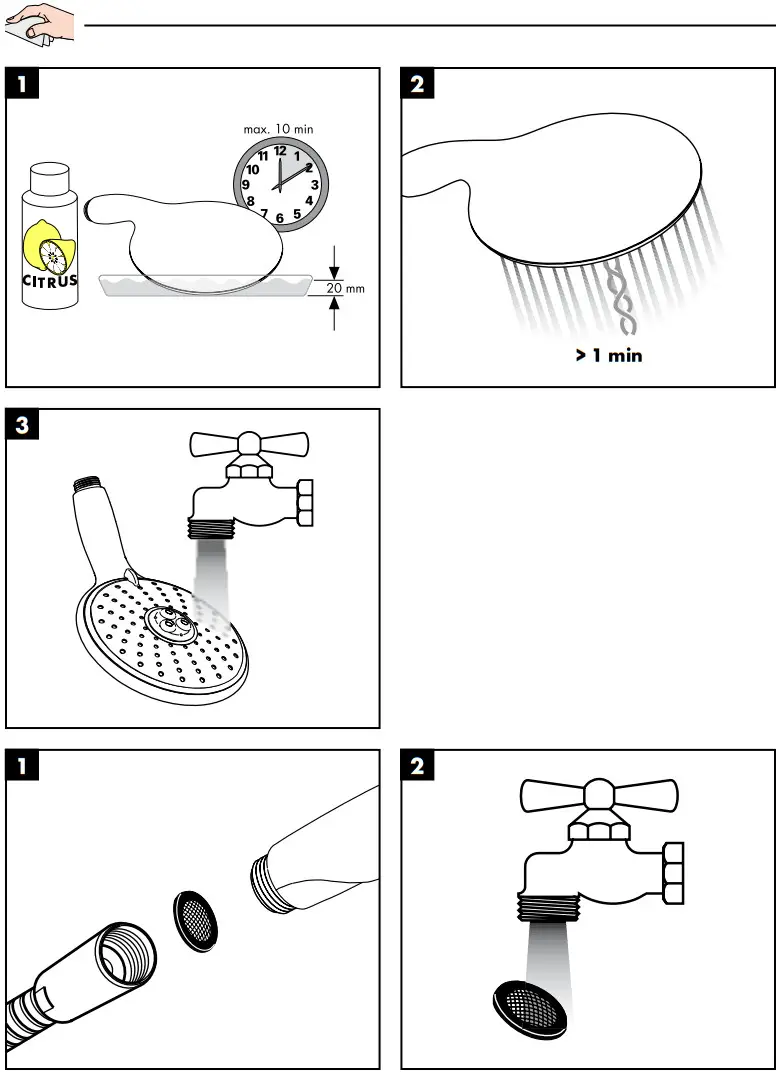

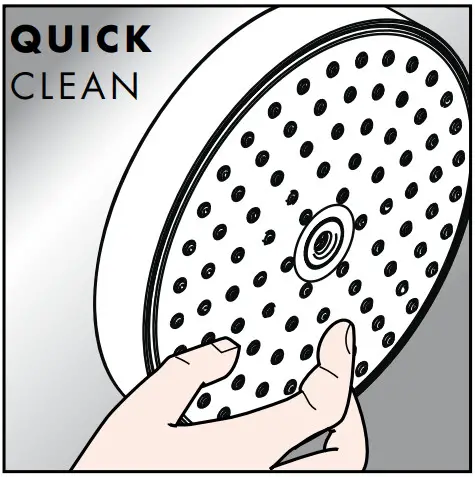

Just clean: simply rub over the spray nozzles to remove lime scale.

Hansgrohe · Postfach 1145 · D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
9.05961.06
