Instructions for use
assembly instructions
Instruction Manual
PuraVida 150
28567XXX
Safety Notes
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
The shower system may only be used for bathing, hygienic and body cleansing purposes.

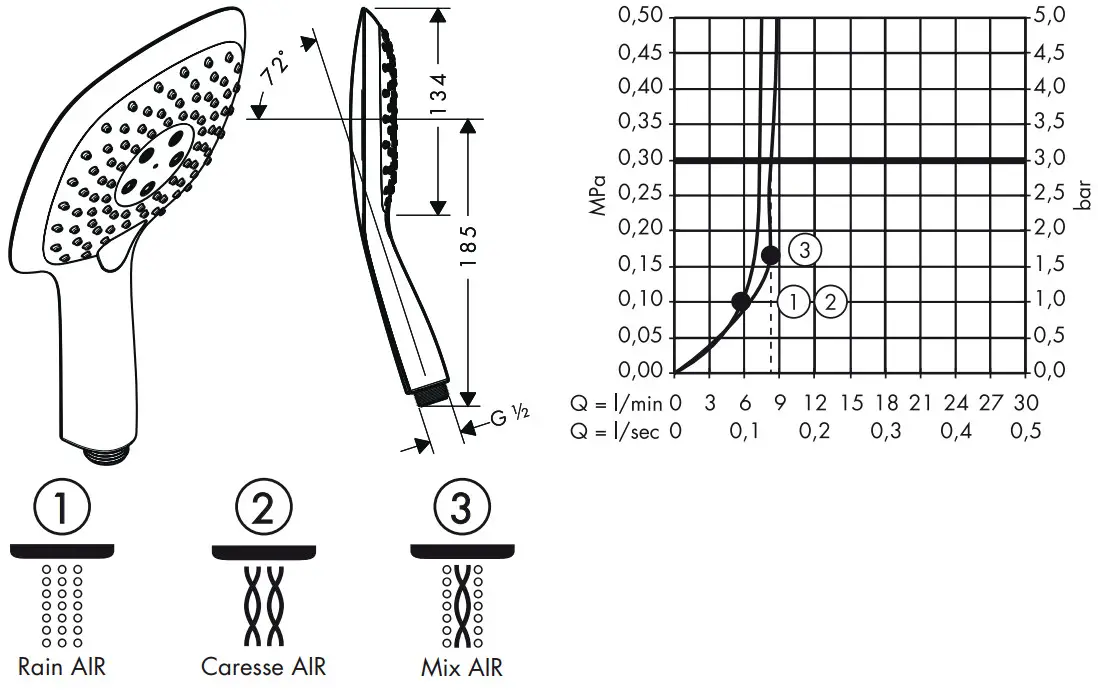

Technical Data (see page 10)
Operating pressure: max. 0,6 MPa
Recommended operating pressure: 0,15 – 0,4 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60 °C
Assembly (see page 10)
The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.

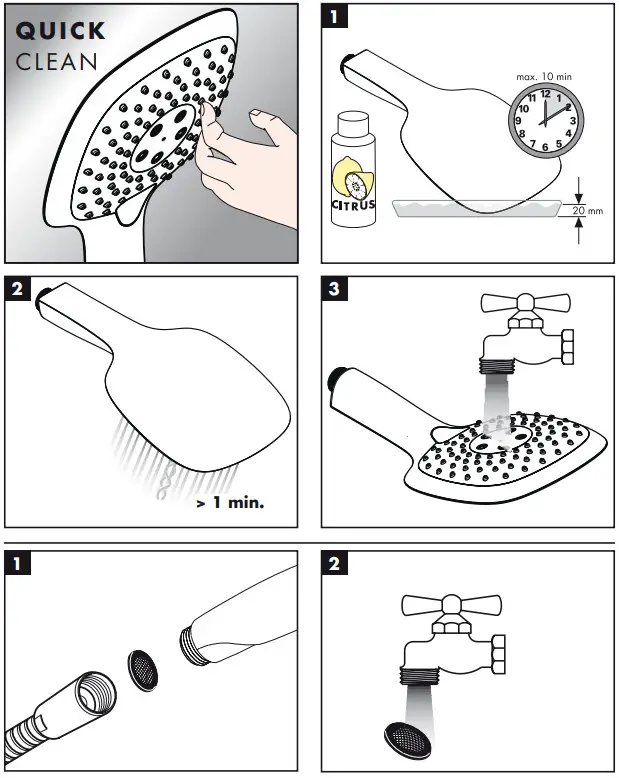

Cleaning (see page 11)
Just clean: simply rub over the spray nozzles to remove lime scale.

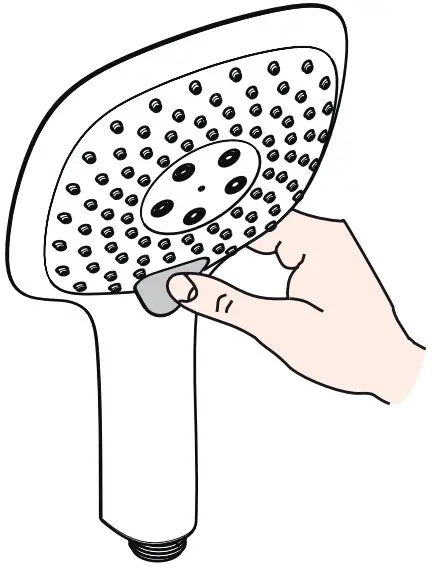

Operation (see page 12)
Technical Data
Assembly
Cleaning
Operation
Postfach 1145
D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
02/2010
9.01052.01
