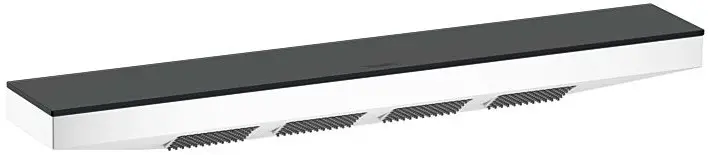

Hansgrohe 26243XXX Rainfinity 500 1 Jet Shoulder Shower
Safety Notes
- Gloves should be worn during installation to prevent crushing and cutting injuries.
- The product may only be used for bathing, hygienic, and body cleaning purposes.
Installation Instructions
- Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
- The pipes and the fixture must be installed, flushed, and tested as per the applicable standards.
- The plumbing codes applicable in the respective countries must be observed.
- During the installation of the product by qualified trained personnel, make sure that the entire fastening surface is even and smooth (no protruding seams or tile offset), and that the finish of the wall is suitable to apply the product and has no weak points.
- The premounted dirt collection screen must be used to prevent dirt from entering through the pipes. Dirt entering can affect the function and/or lead to damage to the functional components of the fitting. Hansgrohe will not be held liable for any resulting damage.
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,14 – 0,5 MPa
- Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 60°C
- Thermal disinfection: 70°C / 4 min
The product is exclusively designed for drinking water!

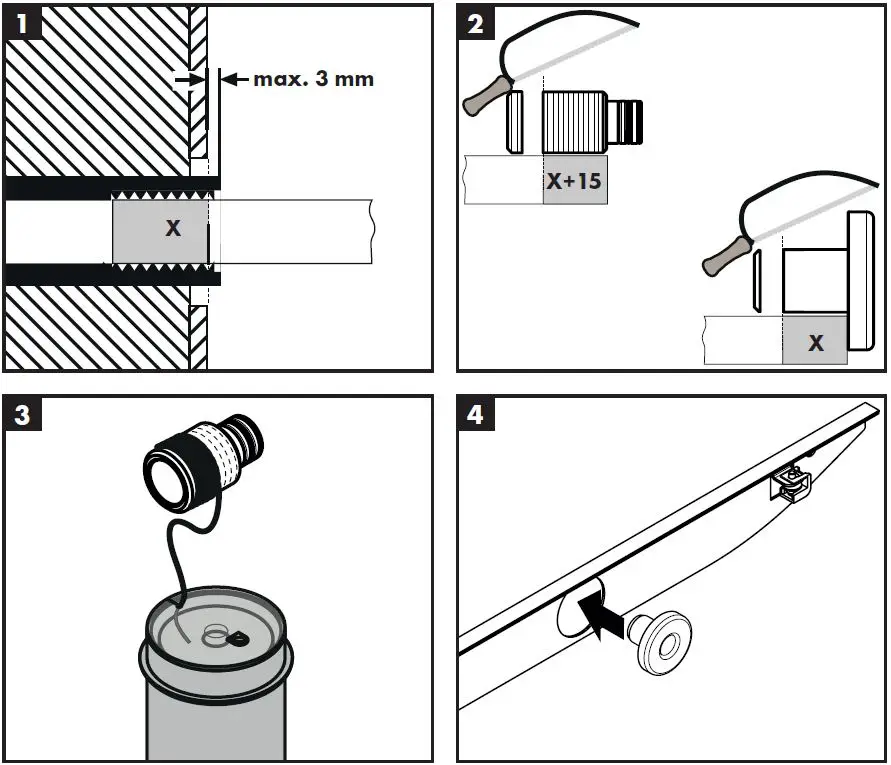

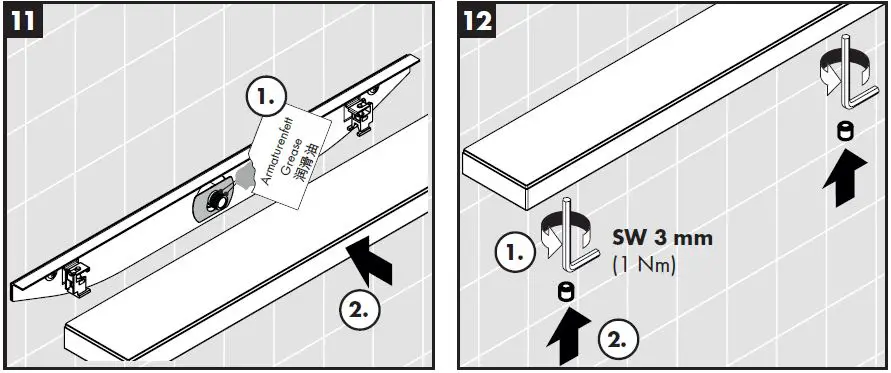

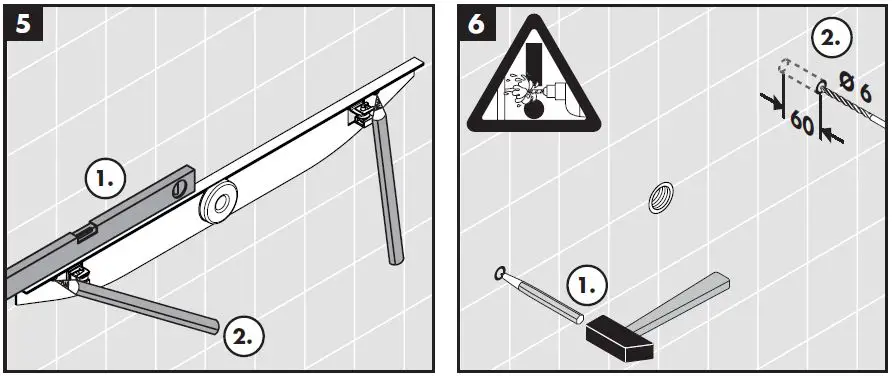

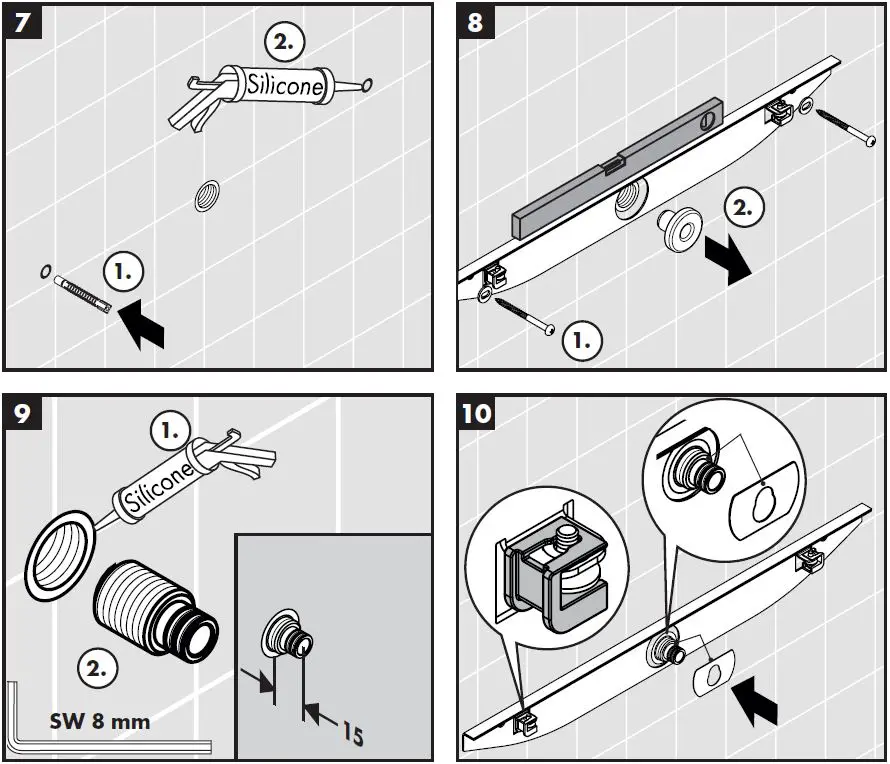

Installation Instructions
Symbol Description
- Do not use silicone-containing acetic acid!

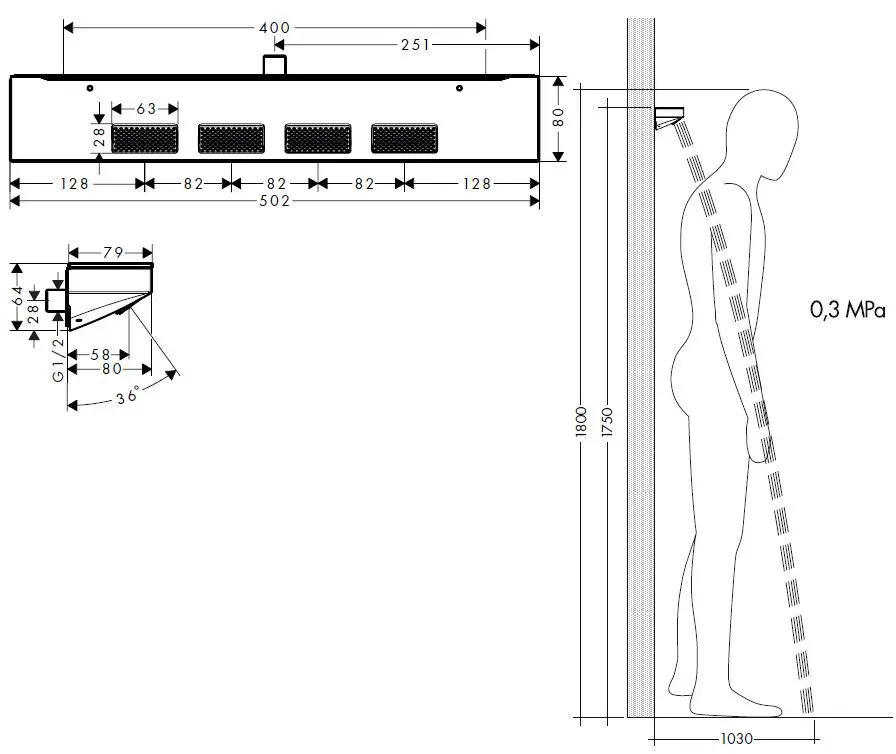

Dimensions

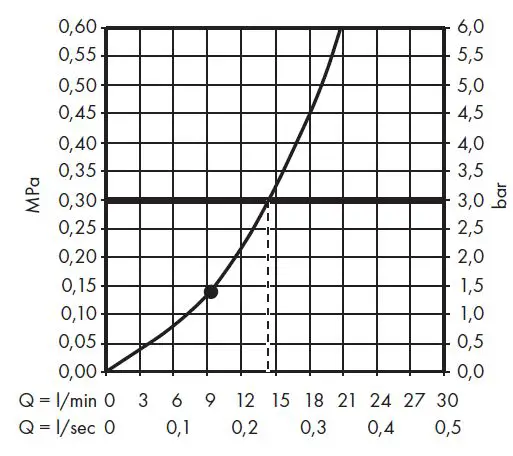

Flow diagram
Cleaning recommendation/Warranty/Contact
www.hansgrohe.com/cleaning-recommendation.

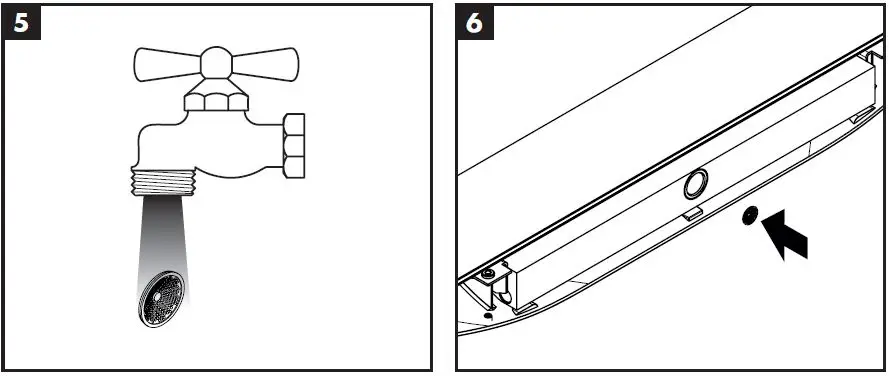

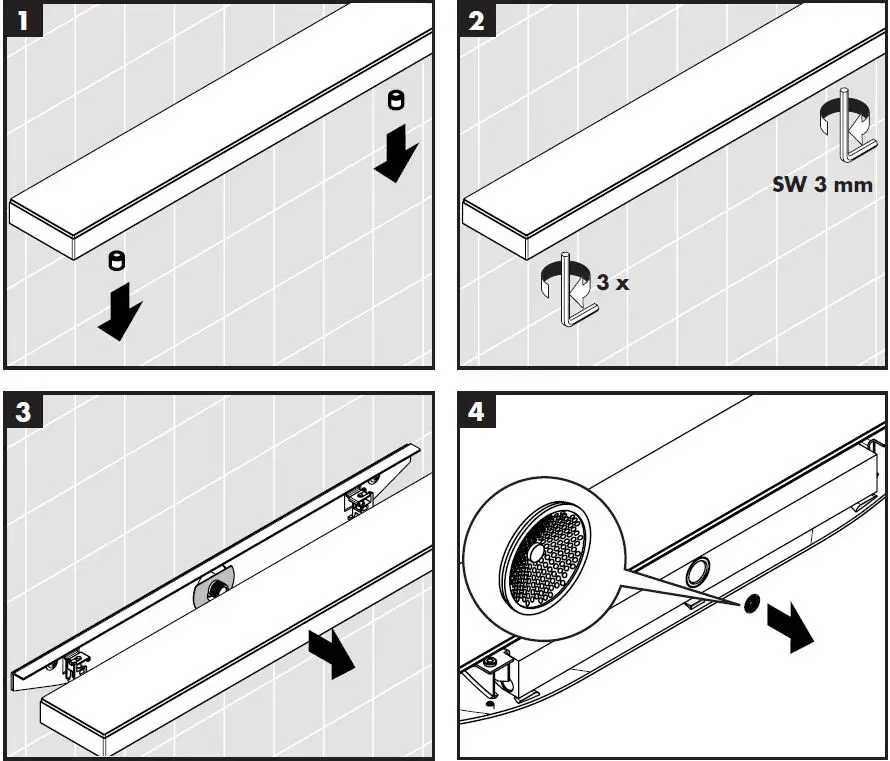

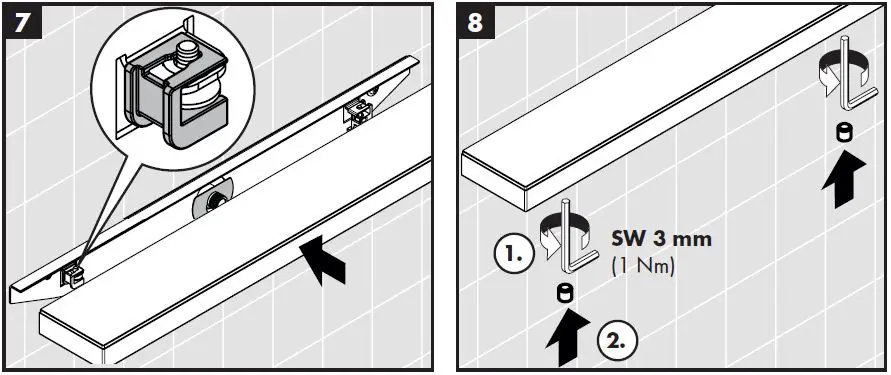

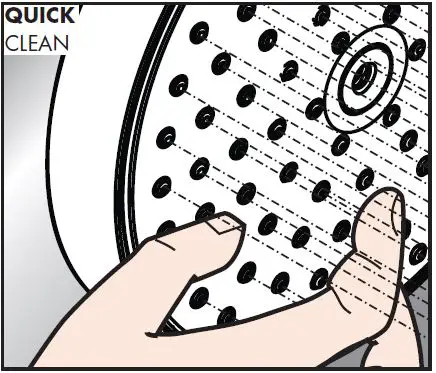

Cleaning

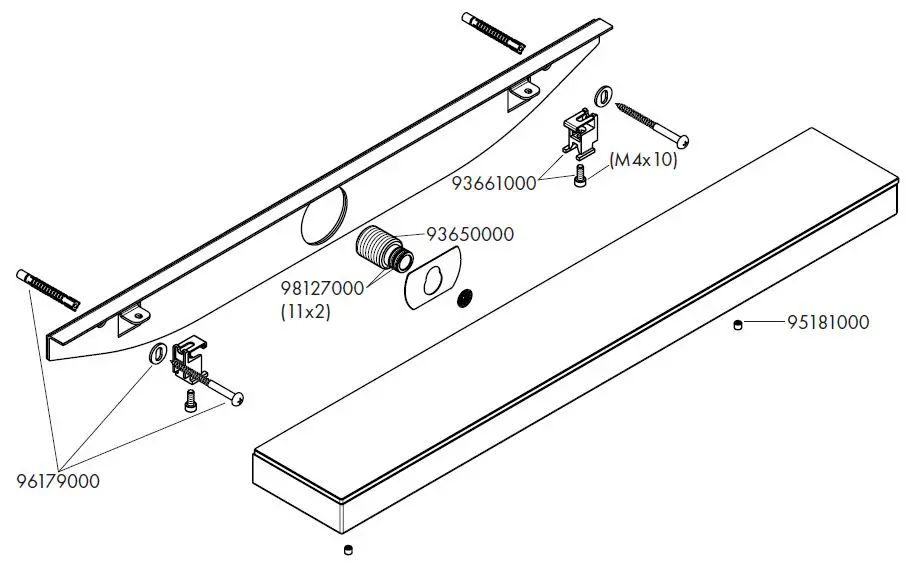

Spare parts
- XXX = Colors
- 000 = Chrome Plated
- 140 = Brushed Bronze
- 670 = Matt Black
- 700 = Matt White
- 830 = Polished Nickel
Test certificate
hansgrohe
Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach ·
Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected]. Internet: www.hansgrohe.com.
