assembly instructions
Croma 100 1jet
28583000
Croma 100 Vario
28537000
Croma 100 Multi
28538000
Safety Notes
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
Assembly
The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.
Cleaning (see page 20) and enclosed brochure

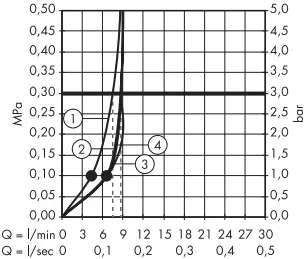

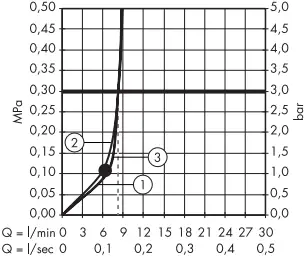

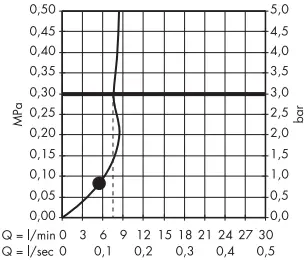

Technical Data
Operating pressure: max. 0,6 MPa
Recommended operating pressure: 0,1 - 0,4 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Test certificate
Spare parts
Croma 100 1jet 28583000 Croma 100 Vario 28537000
Crometta Multi 28538000
| 28583000 | 28537000 | 28538000 | |
| P-IX | P-IX 18335/ID | P-IX 18336/ID | |
| DVGW | |||
| SVGW | X | X | |
| ACS | X | X | |
| WRAS | |||
| NF | X | X | |
| KIWA | X | X |
Croma 100 1jet 28583000
Croma 100 Vario 28537000
Croma 100 Multi 28538000
Croma 100 Vario 28537000 Croma 100 Multi 28538000
Hansgrohe • Postfach 1145 • D-77761 Schiltach • Telefon +49 (0) 78 36/51-1282 • Telefax +49 (0) 7836/511440
E-Mail: [email protected] • Internet: www.hansgrohe.com
3/2011
9.05965.06
