Hansgrohe Crometta 85 Hand Showers Instruction Manual

assembly instructions
Crometta 85 Hand Showers
Instruction Manual

Crometta 85 Hand Showers

Safety Notes

Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
Assembly (see page 19)
The premounted filter insert must be used to ensure a normal flow of the shower and to prevent dirt from entering through the pipes. Dirt entering can affect the function and/ or lead to damages to the shower.
Hansgrohe will not be held liable for this type of damage.

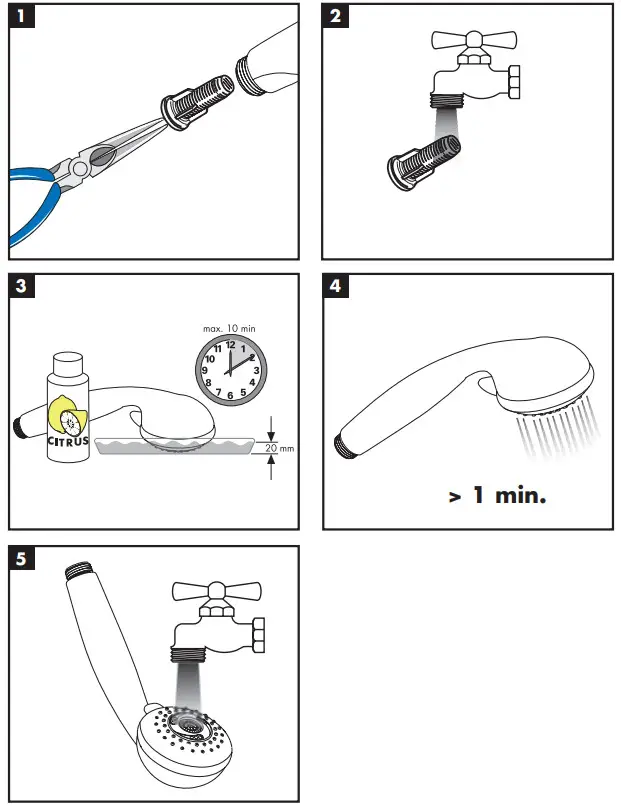

Cleaning (see page 20) and enclosed brochure

Technical Data

Operating pressure: max. 0,6 MPa
Recommended operating pressure: 0,1 – 0,4 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C

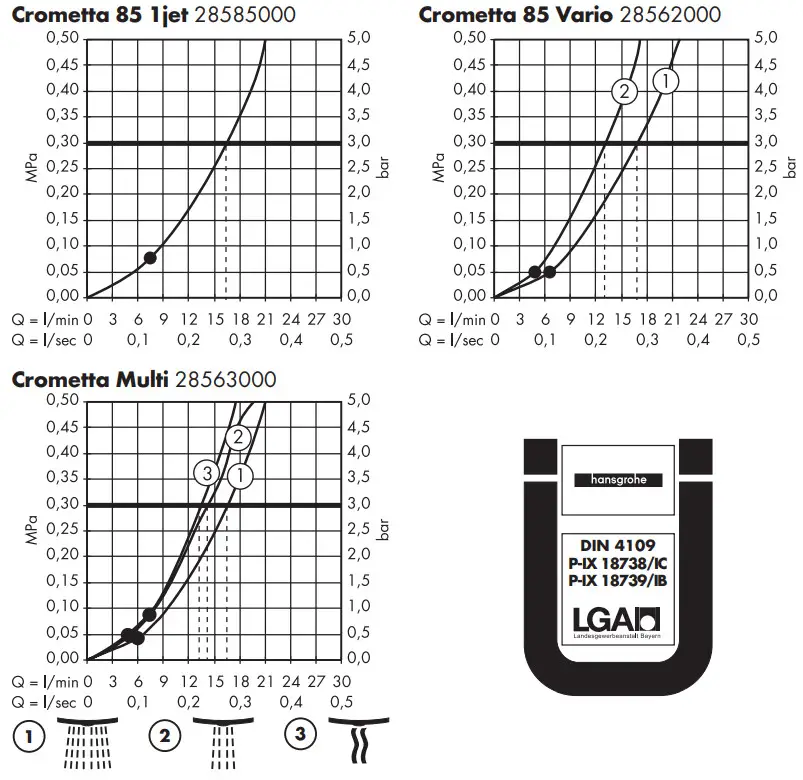

Test certificate (see page 17)

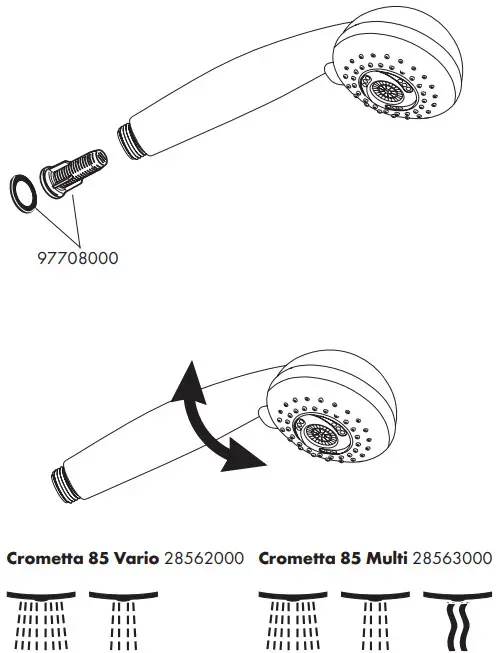

Spare parts (see page 19)

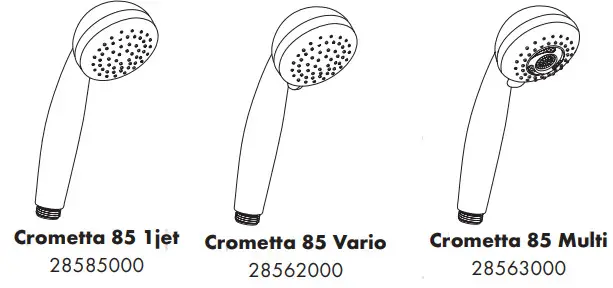

Crometta 85 1jet 28585000Crometta 85 Vario 28562000Crometta 85 Multi 28563000

Postfach 1145
D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
3/2011
9.04575.03
