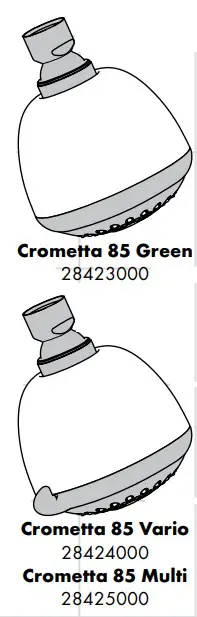

28423000 Crometta 85 Green Overhead Showers
Instruction Manual
28423000 Crometta 85 Green Overhead Showers
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
Assembly (see page 8)
The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirtleads to defects or/and can damage parts of the showersuch caused faults voids all liability and guarantee claim
Cleaning (see page 8) and enclosed brochure

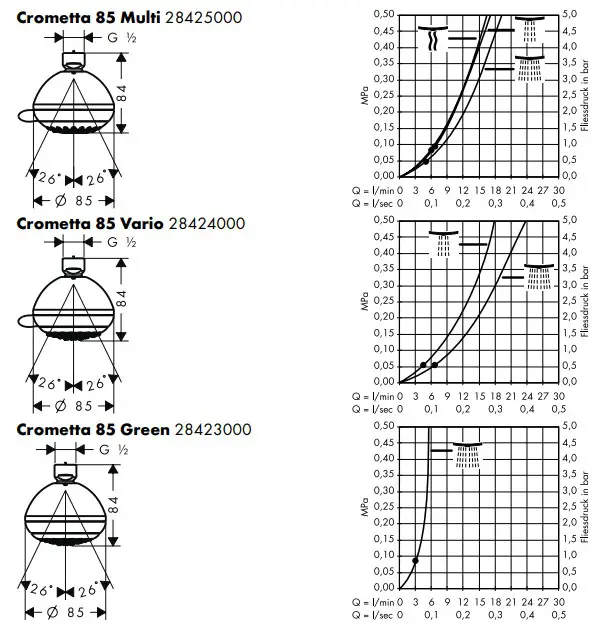

Technical Data
| Operating pressure: | max. 0,6 MPa |
| Recommended operating pressure | 0,1 – 0,4 MPa |
| (1 MPa = 10 bar = 147 PSI) | |
| Hot water temperature: | max. 60°C |
Assembly
Classification
| P-IX | ACS | |
| 28423000 | P-IX 19375/IZ | X |
| 28424000 | X | |
| 28425000 | X |

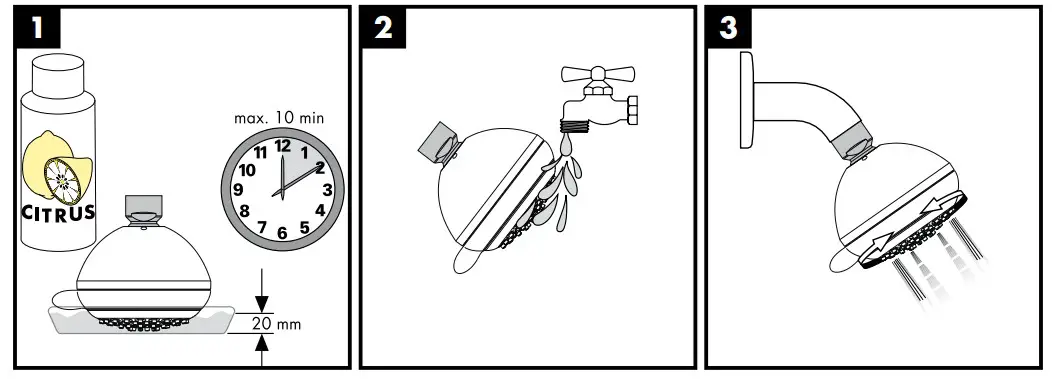

Cleaning
