Hansgrohe Croma Classic 100 Shower Set Instruction Manual

Instructions for use
assembly instructions

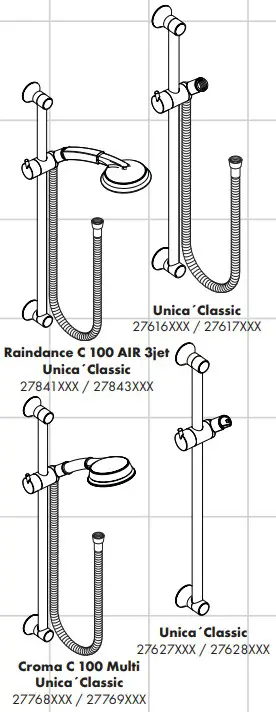

CROMA Classic 100 Shower Set
Instruction Manual

CROMA Classic 100 Shower Set

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
Children as well as adults with physical, mental and/ or sensoric impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
The product may not be used as a holding handle. A separate handle must be installed.
Shower hoses are only suitable for a connection from the shower to the fitting. Never fit a shut-off device between the fitting and the hose.

Installation Instructions

• Optimal functioning is only guaranteed with the combination of Hansgrohe hand showers and Hansgrohe shower hoses.
• Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
• The premounted filter insert must be used to ensure a normal flow of the shower and to prevent dirt from entering through the pipes. Dirt entering can affect the function and/or lead to damages to the shower. Hansgrohe will not be held liable for this type of damage. (see page 32)

Technical Data

Operating pressure: max. 0,6 MPa
Recommended operating pressure: 0,1 – 0,4 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60 °C

Symbol description

Do not use silicone containing acetic acid!
Dimensions (see page 33)
Flow diagram (see page 35)
Spare parts (see page 36)
XXX = Colors
000 = chrome plated
820 = brushed nickel
Operation (see page 37)
Cleaning (see page 38) and enclosed brochure
Test certificate (see page 39)
Assembly see page 31

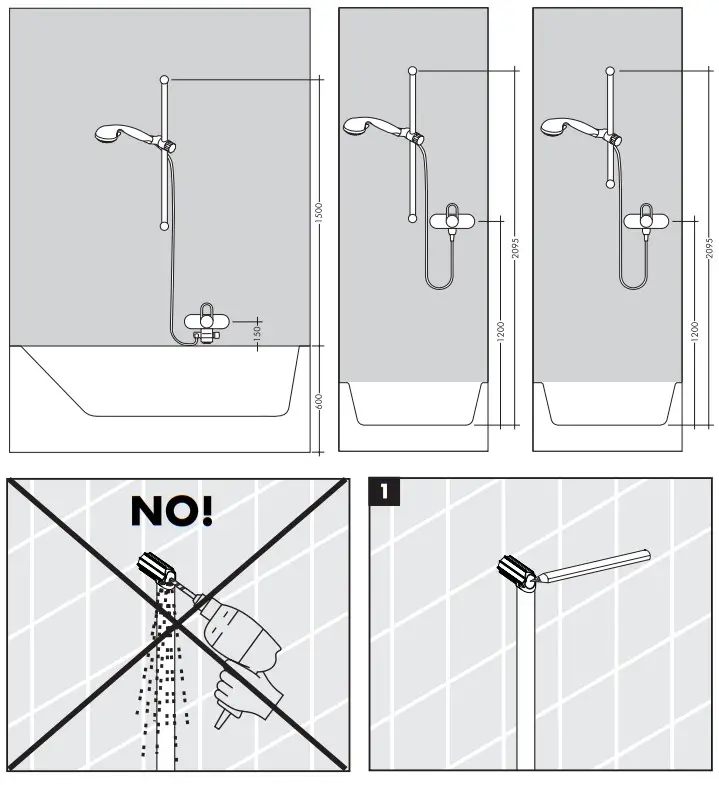

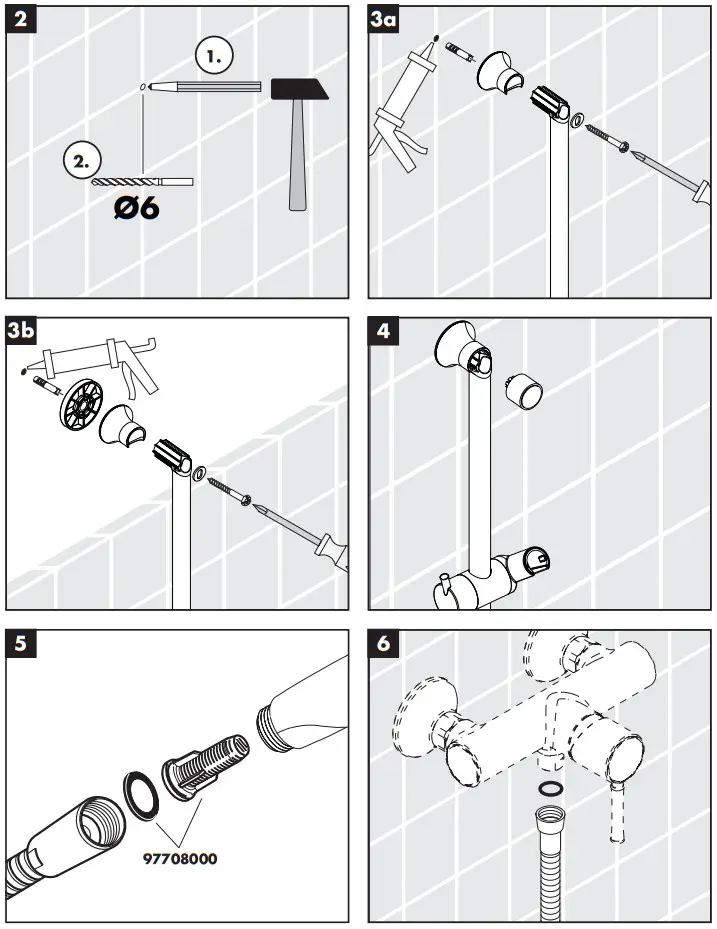

Assembly

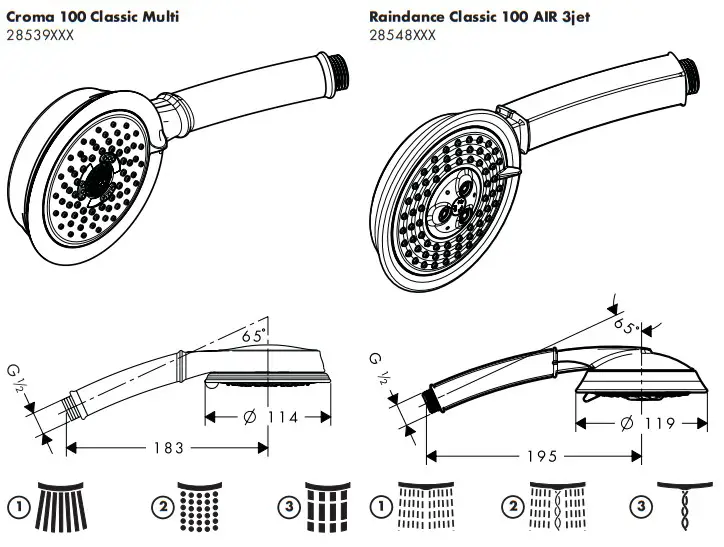

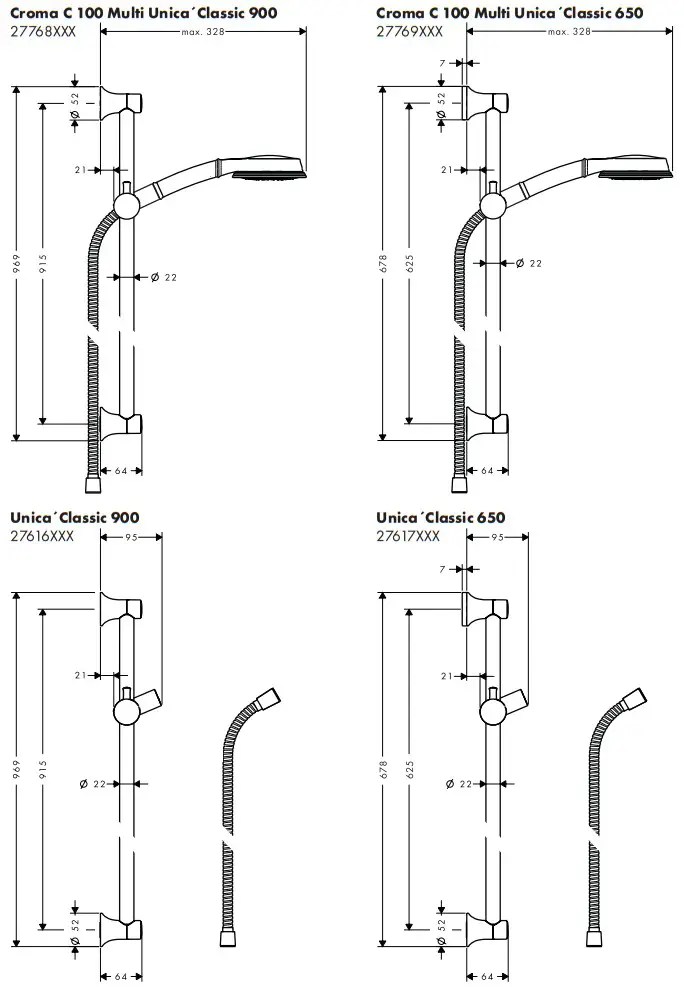

Dimensions

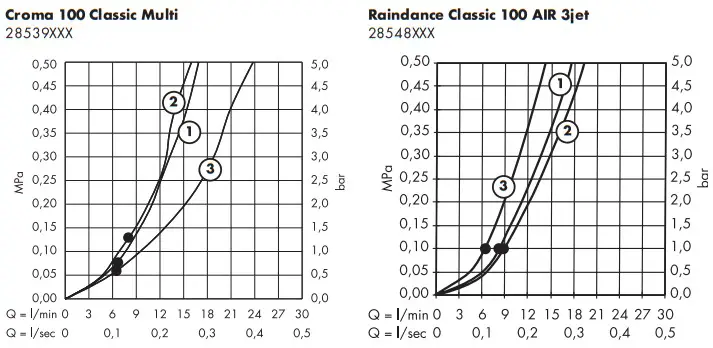

Flow diagram

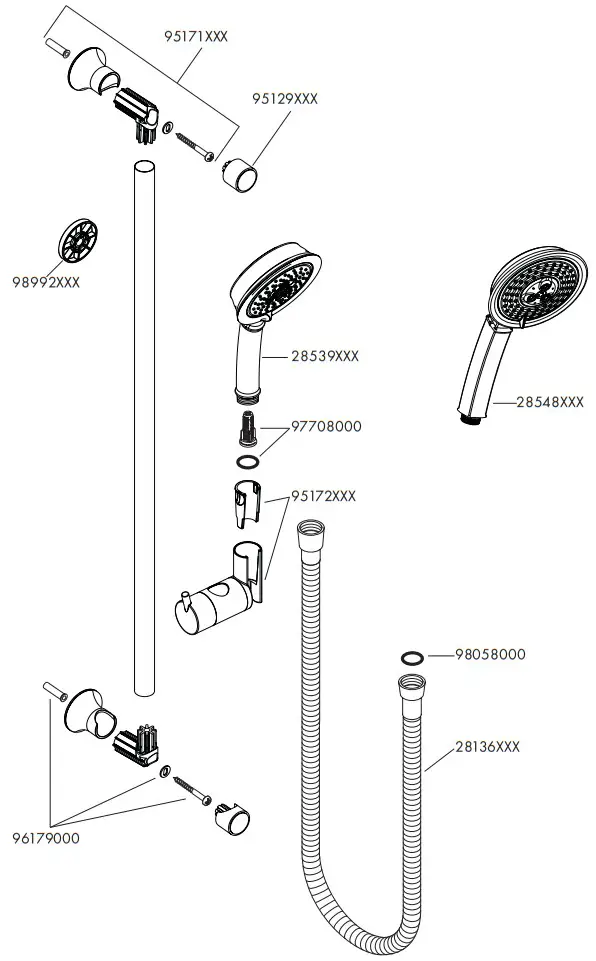

Spare parts

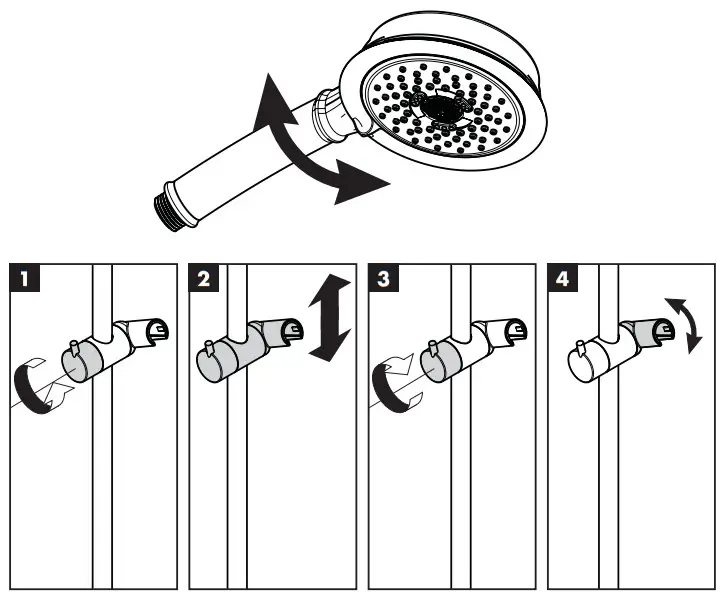

Operation

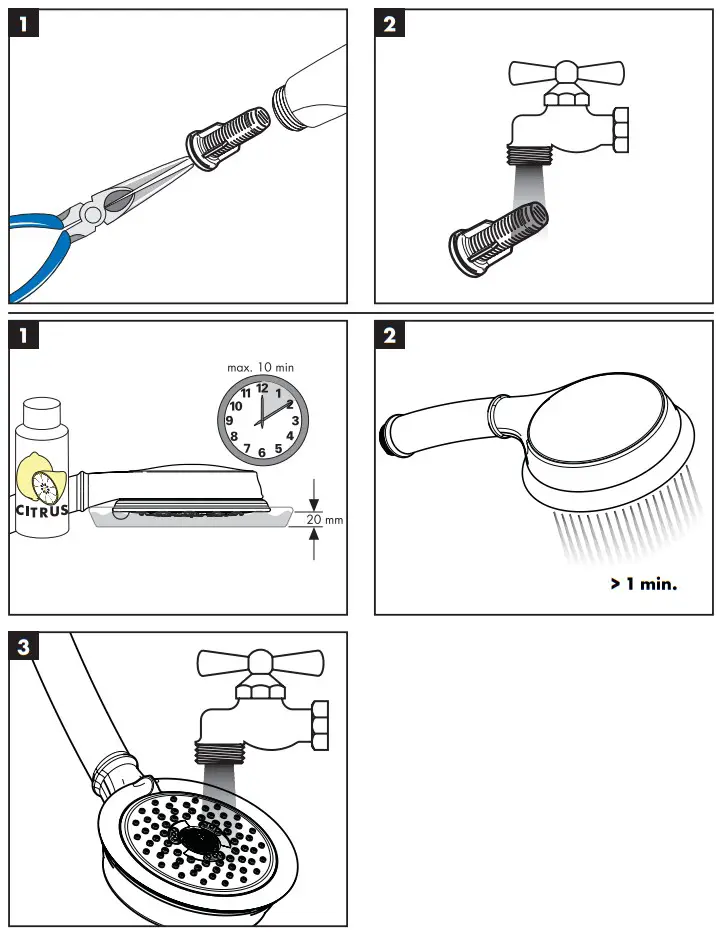

Cleaning

Test certificate

Postfach 1145
D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
9/2010
9.04627 .04
