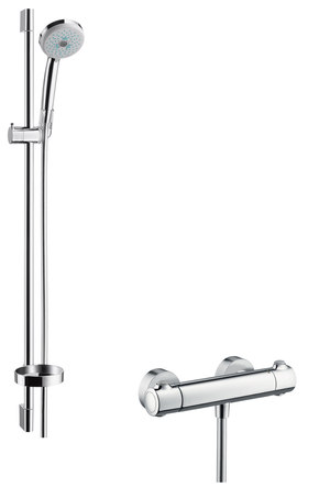

hansgrohe CROMA 100 Shower Combination Multi, Ecostat 1001 SL
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The shower system may only be used for bathing, hygienic and body cleansing purposes. Children as well as adults with physical, mental and/ or sensoric impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system. The hot and cold supplies must be of equal pressures.
Installation Instructions
The fitting must be installed, flushed and tested after the valid norms!
Thermostatic mixer in conjunction with combination boilers
- If fitting a hand shower remove the water limiter from the shower.
- If the continuous water heater causes any problems, or you have different water pressures you must install a water limiter to the cold supply, (ordered separately, article number 97510000).
- Thermostatic mixer Shower: When using the Ecostat with combination boilers, the Ecostop safety set 95042000 has to be removed.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5MPa
Test pressure: 1,6MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp anti-pollution function.: 65°C\
Symbol description
- Do not use silicone containing acetic acid!
- Safety Function
- Adjustment
- ECOSTOP
- Maintenance
- Operation
- Dimensions
- Flow diagram
- Spare parts
- Test certificate
Troubleshooting
| Fault | Cause | Remedy |
| Insufficient water | Supply pressure inadequate | Check water pressure (If a pump has been installed check to see if the pump is working). |
| Filters are dirty (96922000) | Clean filter in front of the mixer and on the MTC-thermo cartridge (96922000) | |
| Shower filter seal dirty | Clean filter seal between shower and hose | |
| Crossflow, hot water being forced into cold water pipe, or vice versa, when mixer is closed | Backflow preventers dirty or leaking | Clean backflow preventers, exchange if necessary |
| Spout temperature does not correspond with temperature set | Thermostat has not been adjusted | Adjust thermostat |
| Hot water temperature too low | Increase hot water temperature to 42 ºC to 65 ºC | |
| Temperature regulation not possible | thermo cartridge calcified | Exchange thermo cartridge |
| Shower or spout dripping | Dirt or sedimentation on valve seat, shut-off unit damaged | Clean or exchange shut-off unit |
| Instantaneous heater didn’t work with thermostat | Eco stop ring not removed. | Remove Eco stop ring (95042000) |
| Flow limiter in hand shower isn’t removed | Remove flow limiter | |
| Filters are dirty | Clean the filter / exchange filter | |
| Non return valve hasn’t moved back | Exchange non return valves |

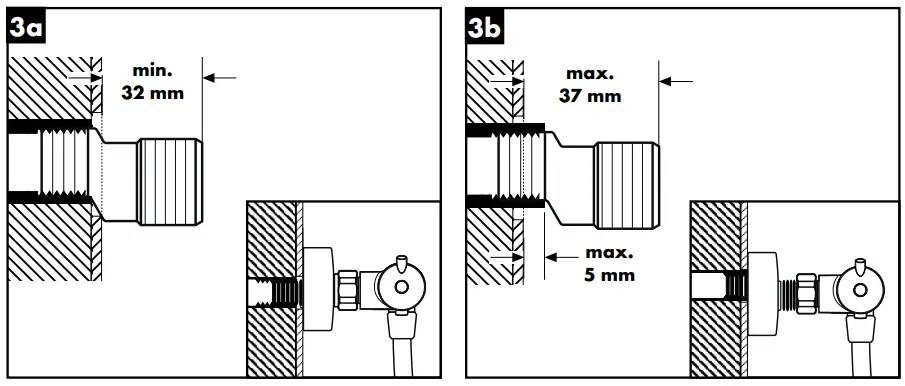

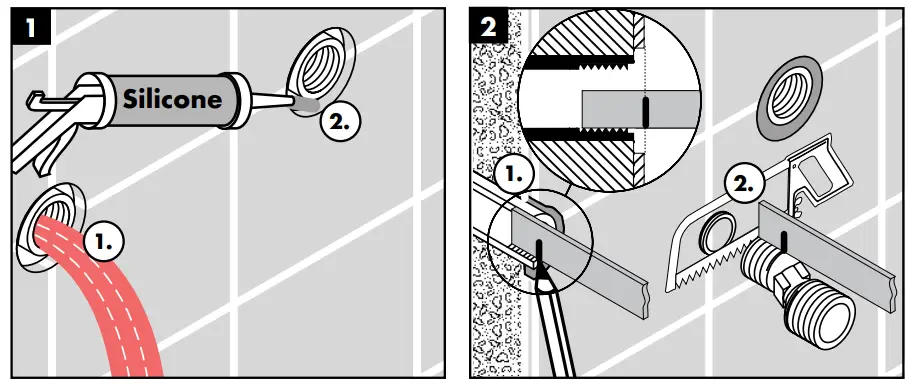

Assembly

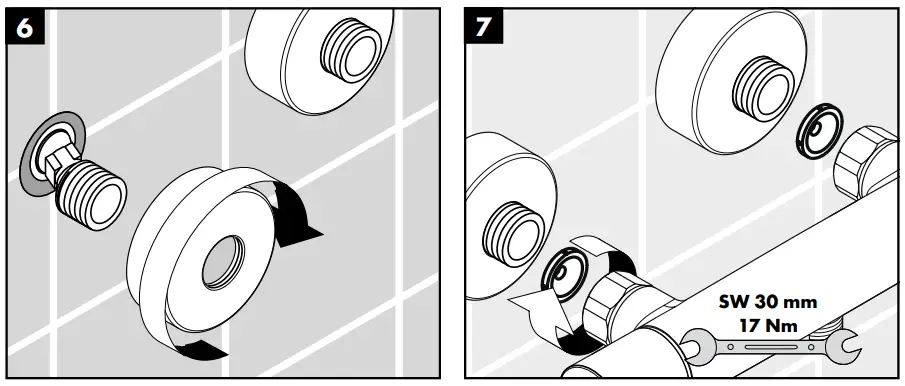

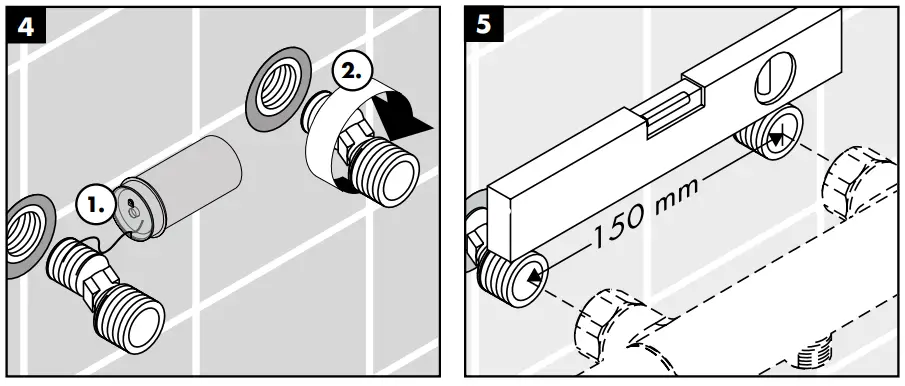

Assembly

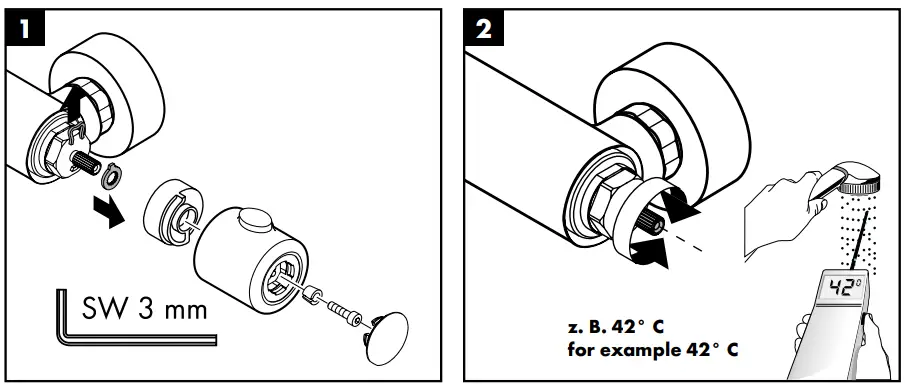

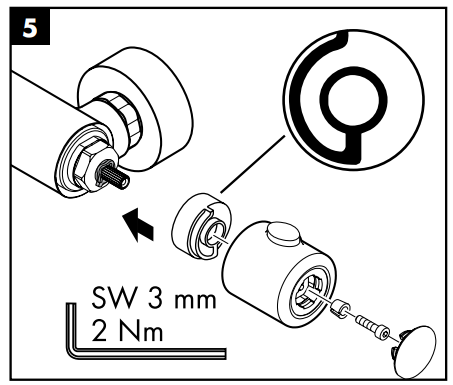

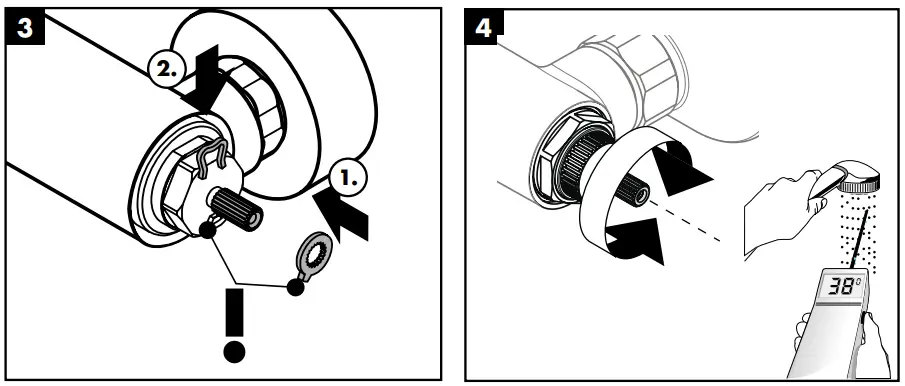

Safety Function
The desired maximum temperature for example max. 42º C can be pre-set thanks to the safety function.

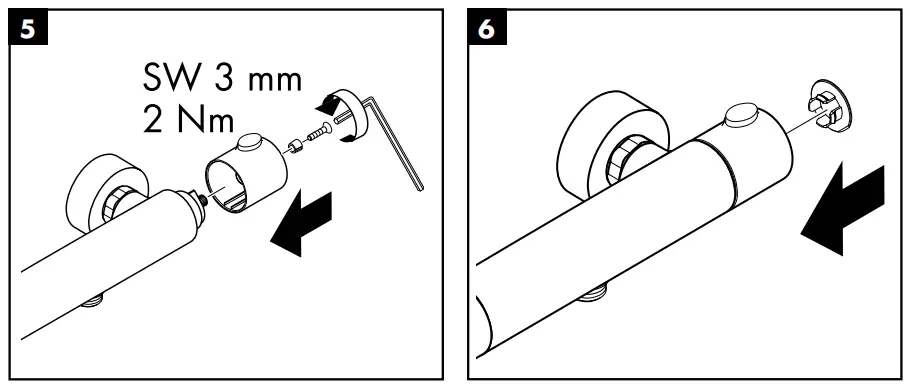

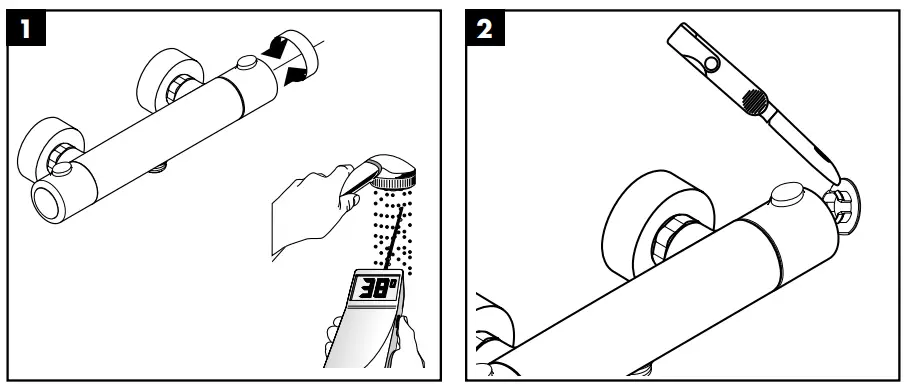

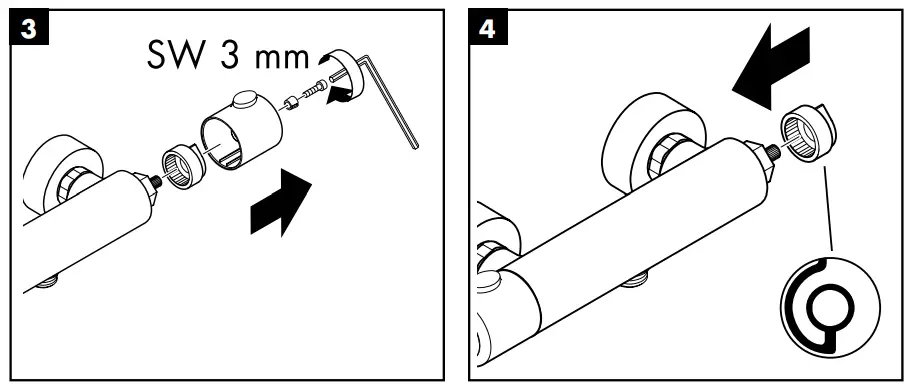

Adjustment
After the installation, the output temperature of the thermostat must be checked. A correction is necessary if the temperature measured at the output differs from the temperature set on the thermostat.

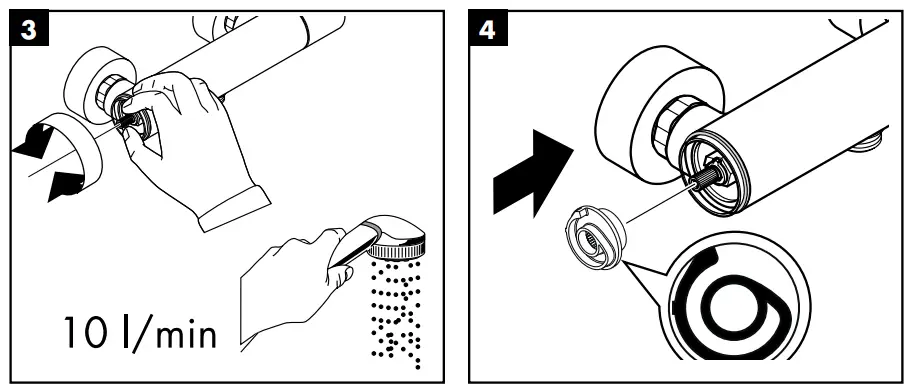

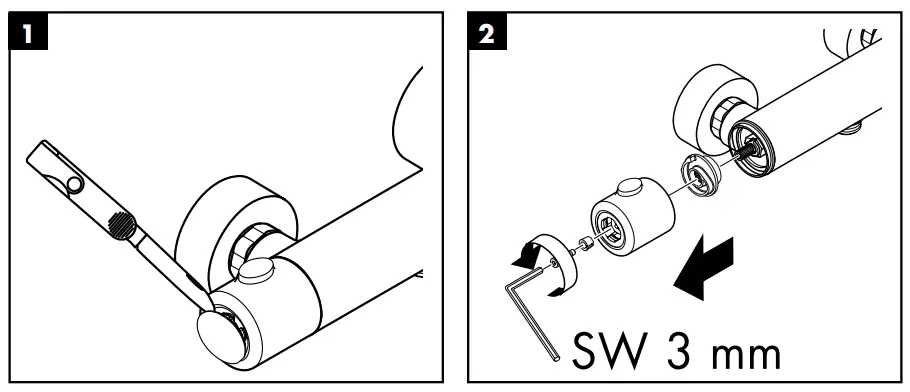

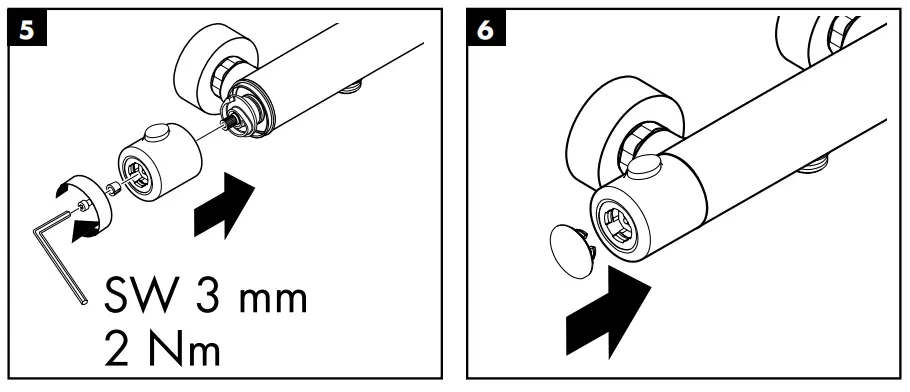

ECOSTOP

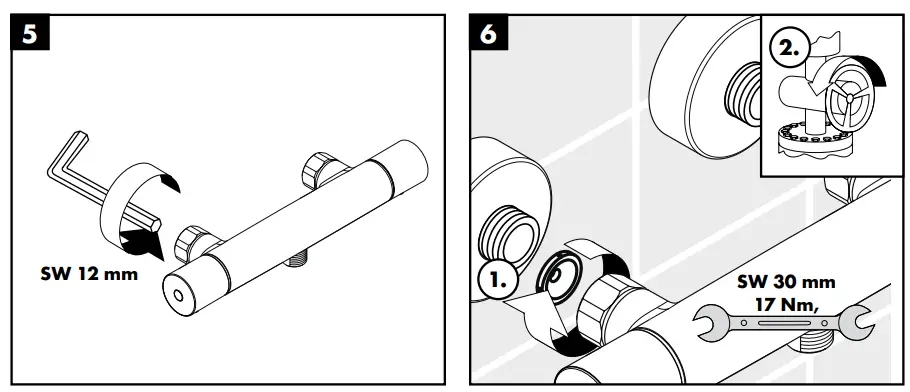

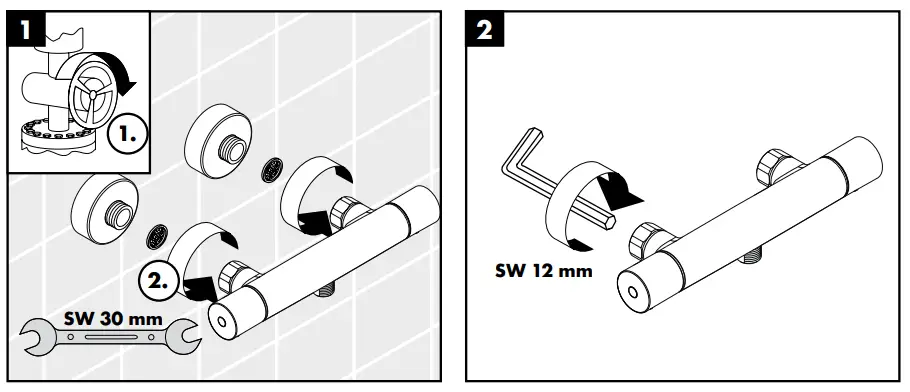

Maintenance
- To guarantee the smooth running of the thermostat, it is necessary from time to time to turn the thermostat from total hot to total cold.
- The mixer is equipped with non return valves. The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).

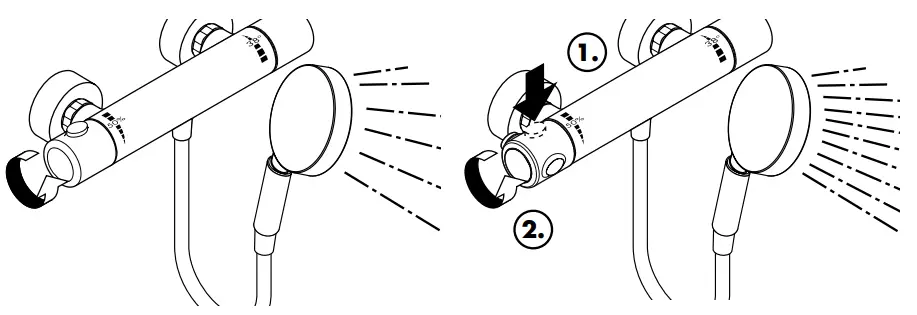

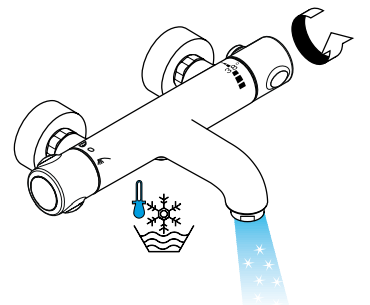

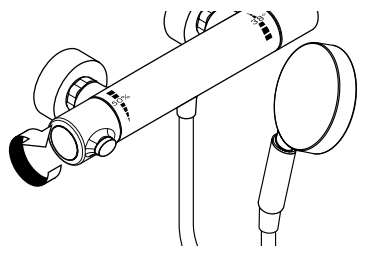

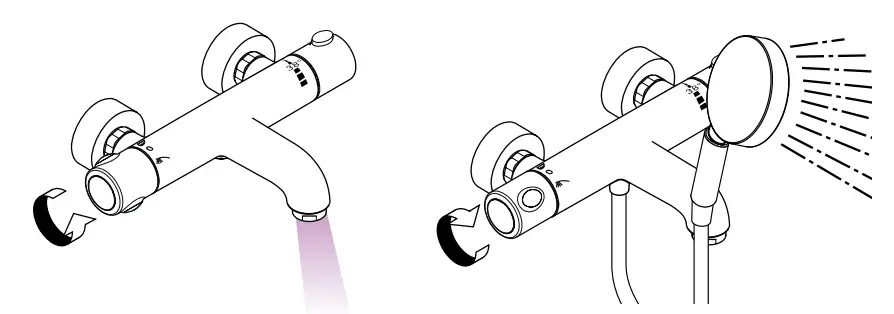

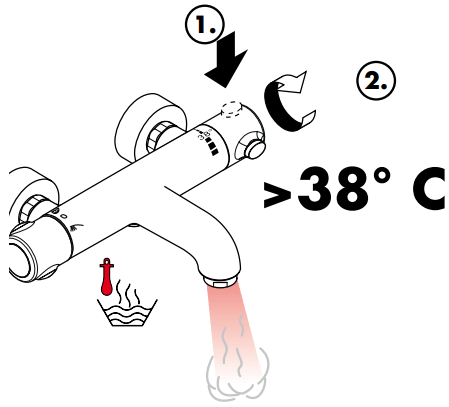

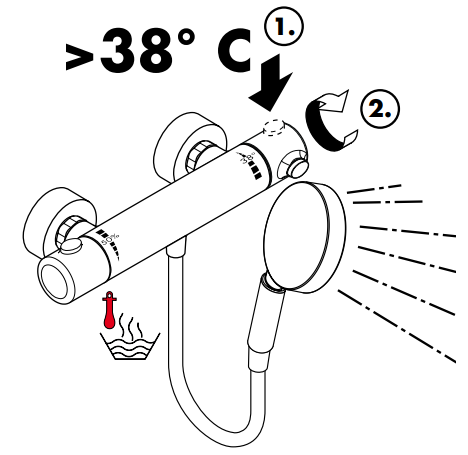

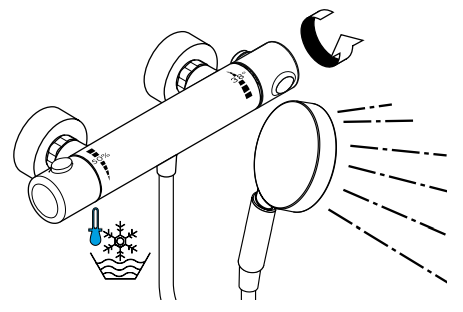

Operation
open
cold
hot
close
open
cold
hot
close

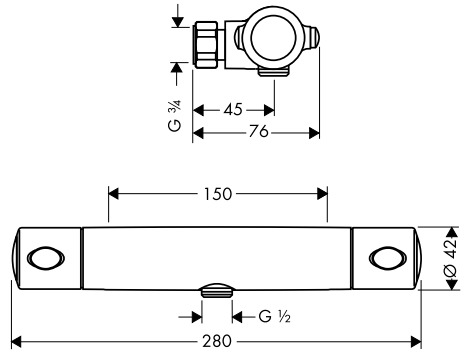

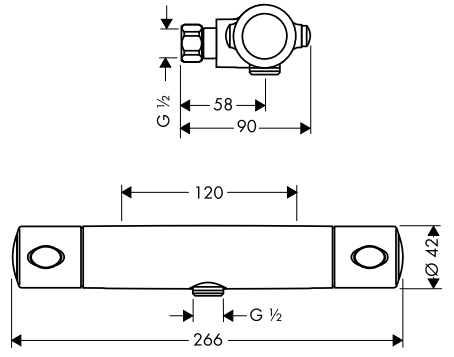

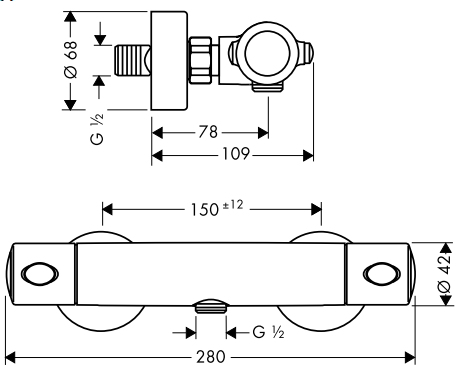

Dimensions
Ecostat 1001 SL
13241XXX
Ecostat 1001 SL
13261XXX
Ecostat 1001 SL
13266000
Ecostat 1001 SL
13278000

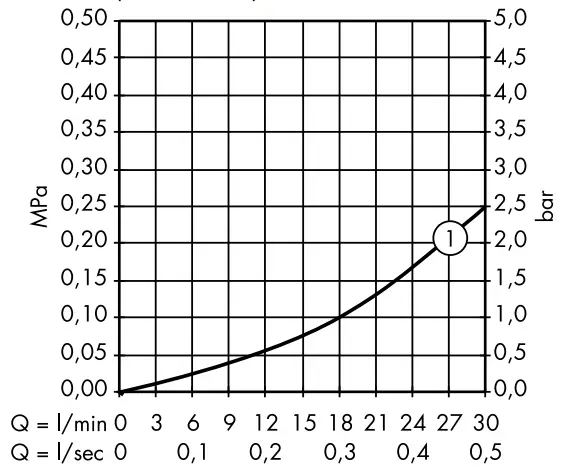

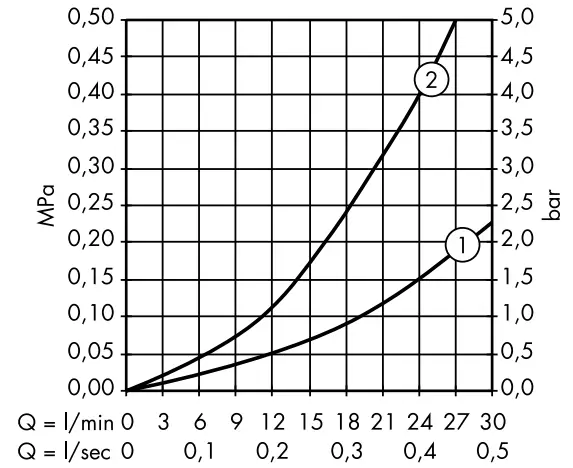

Flow diagram
① Shower
② Bath tub
Ecostat 1001 SL
13241XXX
Ecostat 1001 SL
13261XXX / 13266000 / 13278000
Test certificate
| PA-IX | SVGW | ACS | WRAS | MCA | ETA | KIWA | NF | |
| 13241XXX | PA-IX 9374/IBB | X | X | X | X | X | X | X |
| 13261XXX | PA-IX 9373/IB | X | X | X | X | X | X | X |
| 13266000 | ||||||||
| 1328000 | X | X |

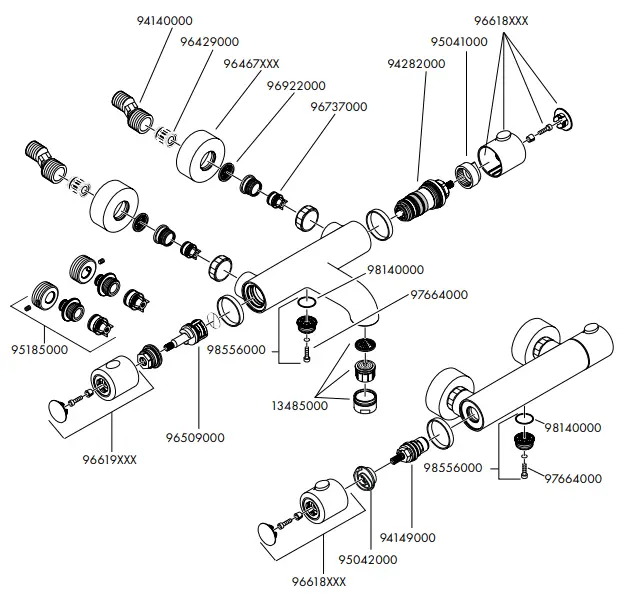

Spare parts
XXX = Colors
000 = chrome plated
800 = stainless steel optic

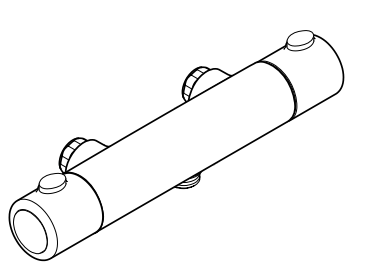

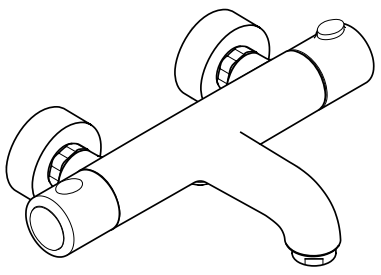

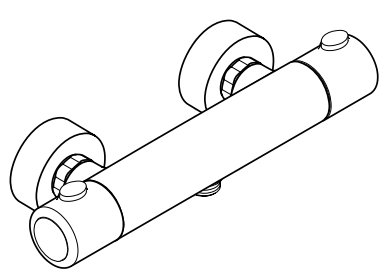

Other models
Ecostat 1001 SL
13266000 / 13278000
Ecostat 1001 SL
13261XXX
Ecostat 1001 SL
13241XXX
