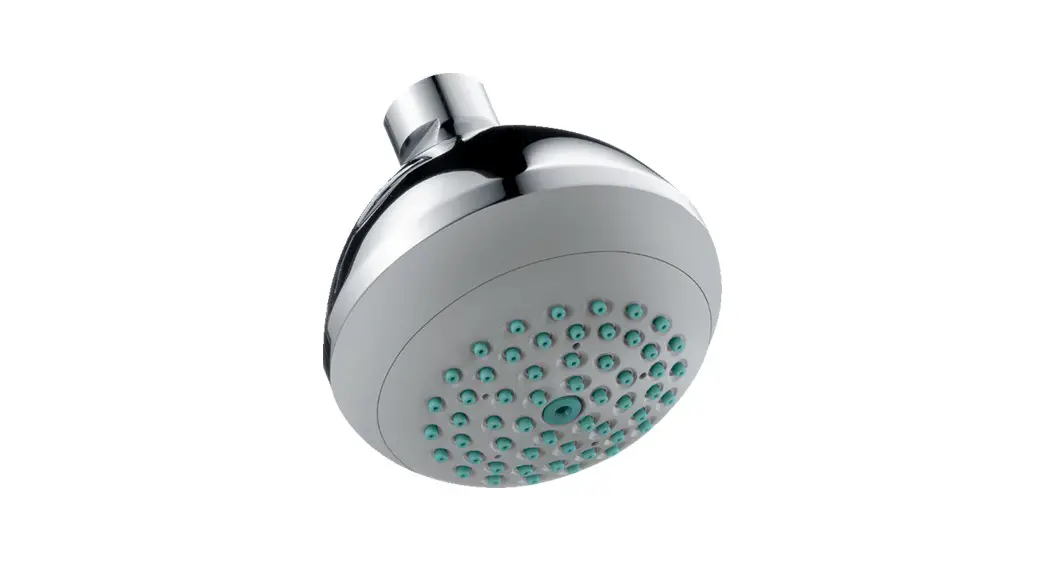

28423000 Crometta 85 Shower
Instruction Manual

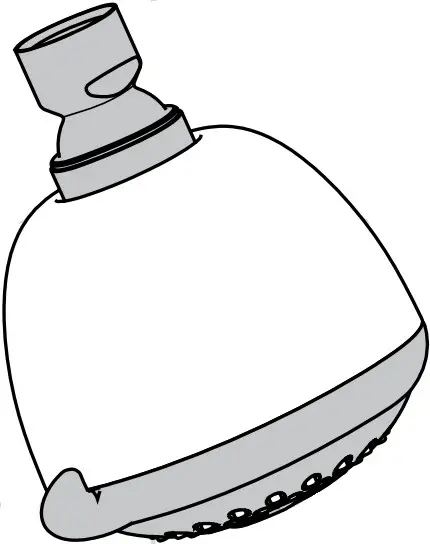

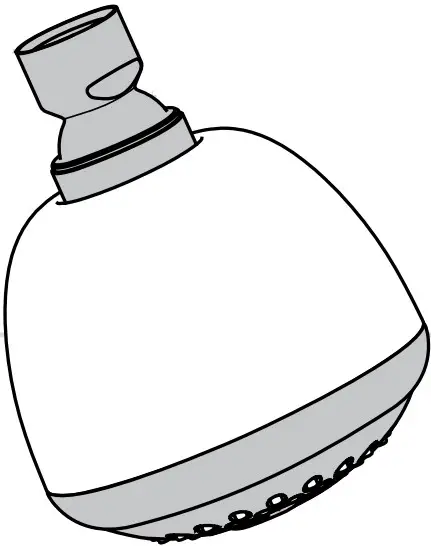

28423000 Crometta 85 Shower
 |  |
| Crometta 85 Green 28423000 | Crometta 85 Vario 28424000 Crometta 85 Multi 28425000 |

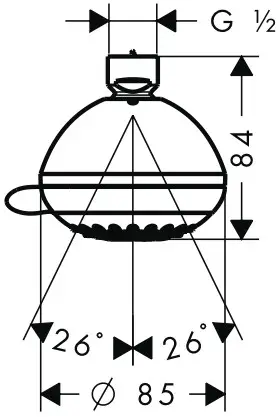

Crometta 85 Multi 28425000

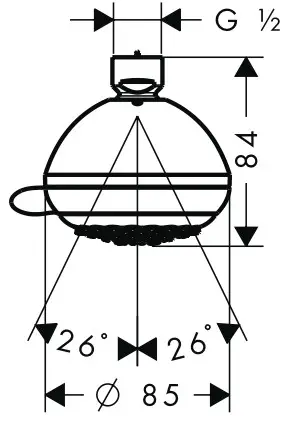

Crometta 85 Vario 28424000

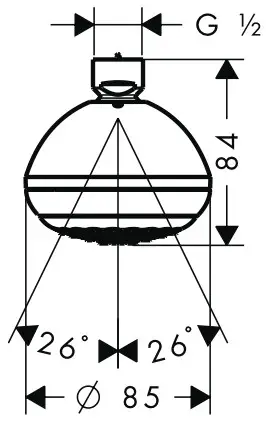

Crometta 85 Green 28423000
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.

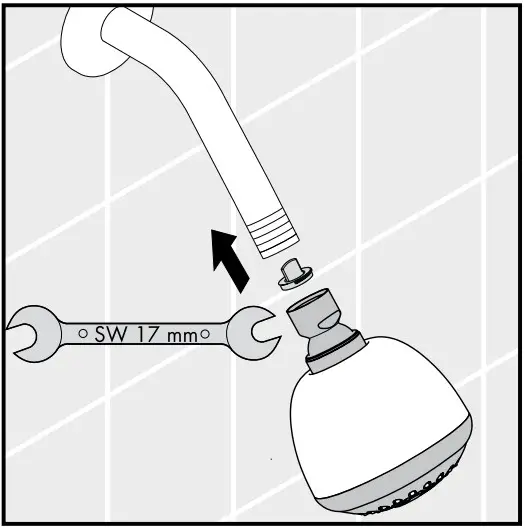

Assembly
(see page 8)
The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower;such caused faults voids all liability and guarantee claims.
Cleaning (see page 8) and enclosed brochure
Technical Data
| Operating pressure: | max. 0,6 MPa |
| Recommended operating pressure: (1 MPa = 10 bar = 147 PSI) | 0,1 – 0,4 MPa |
| Hot water temperature: | max. 60°C |
Assembly

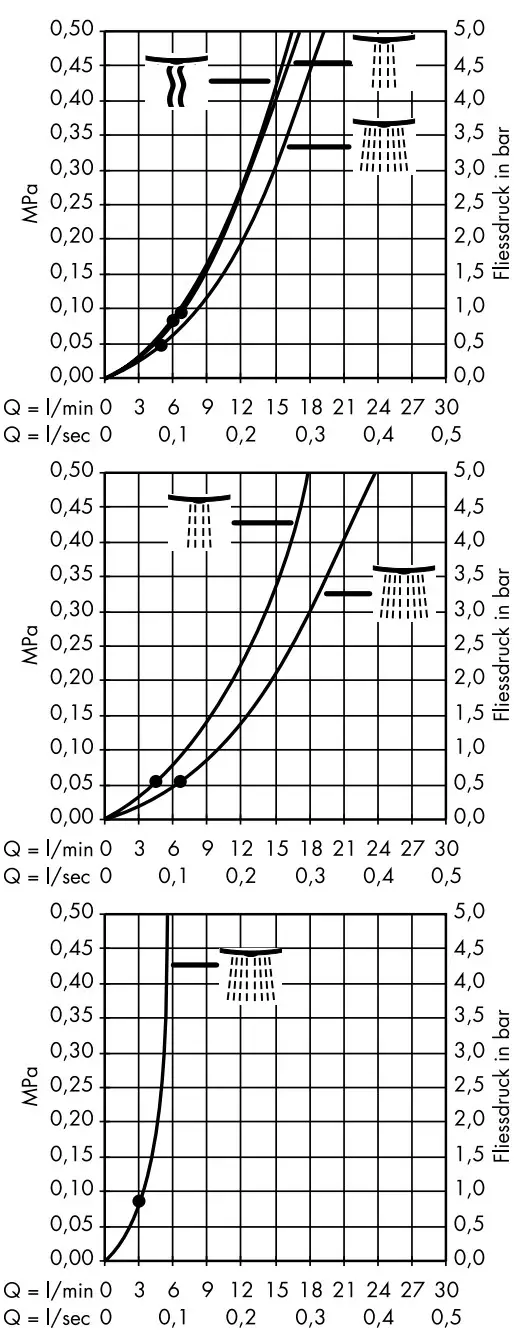

Acoustic classification and flow
| P-IX | ACS | |
| 28423000 | P-IX 19375/IZ | X |
| 28424000 | X | |
| 28425000 | X |
Cleaning
1 1/2010
9.04576.01
Hansgrohe · Postfach 1145 · D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
