Skandic KR 100 Shower
Instruction Manual
Skandic KR 100 Shower
Installation instructions for skilled craftsmen!
Following installation, hand the installation instructions over to the end customer.

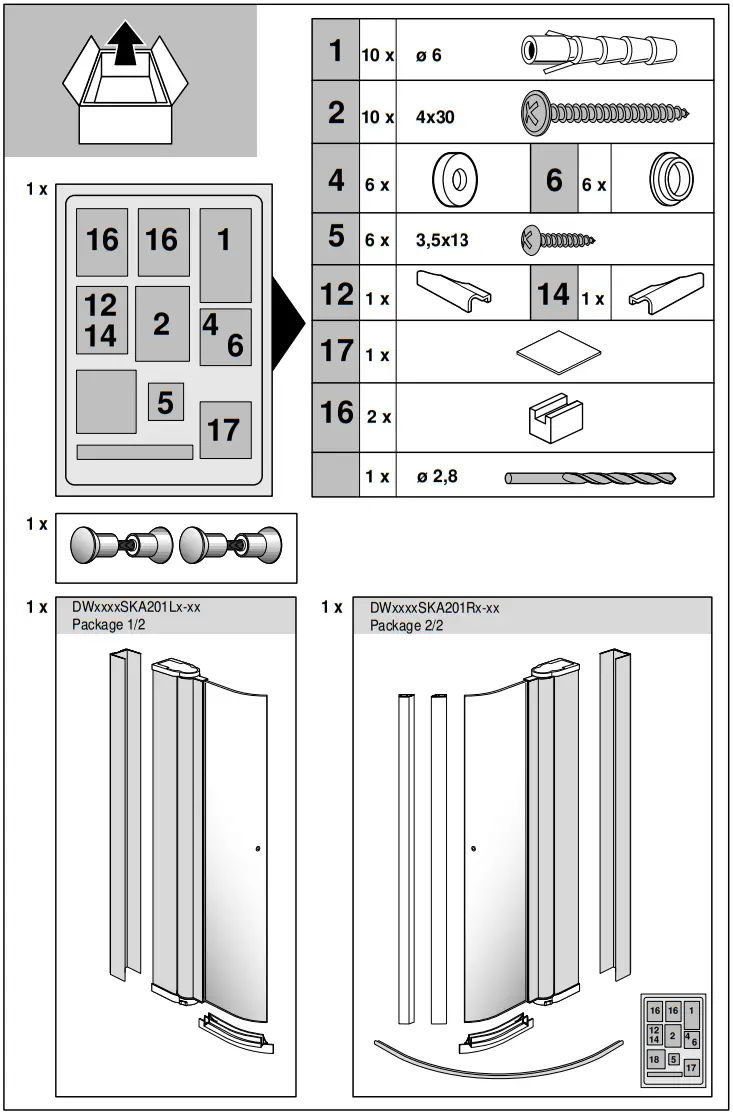

Please check that all products are present and undamaged before commencing installation.
We will not be held responsible for visible defects after the product is installed.
Before fitting, clean the glass around the clamping areas using standard glass cleaner.

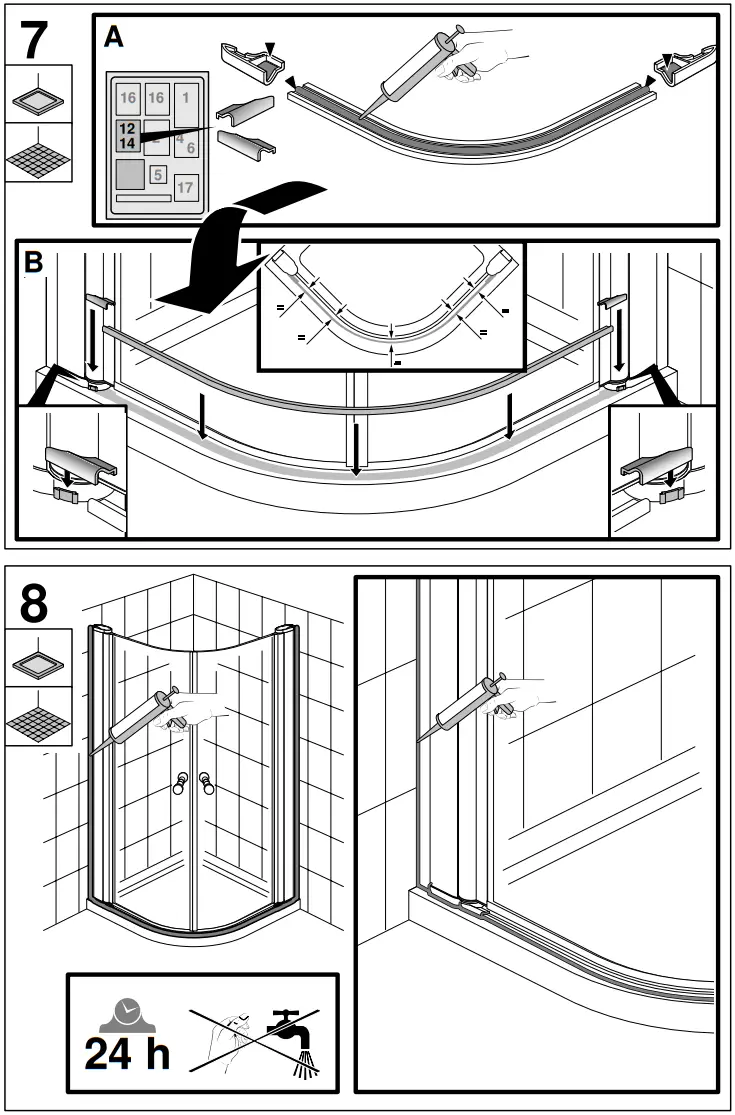

Do not use thinners. Use sanitary silicon only.
After unpacking the glass, always protect it (for example with cardboard) when placing on the floor. Avoid knocking to the edges and corners of the glass.
For design reasons, perfect sealing is not possible on frameless splash shields. Fitting the provided sealing lips provided assures the maximum leak tightness which can be achieved.

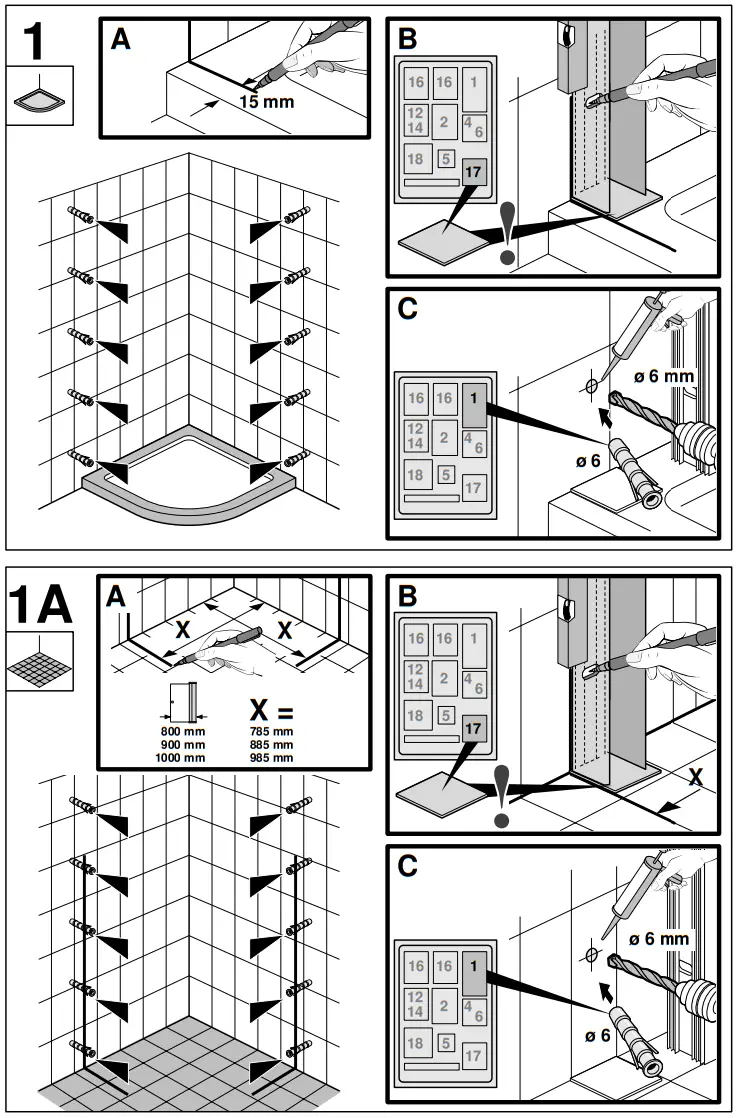

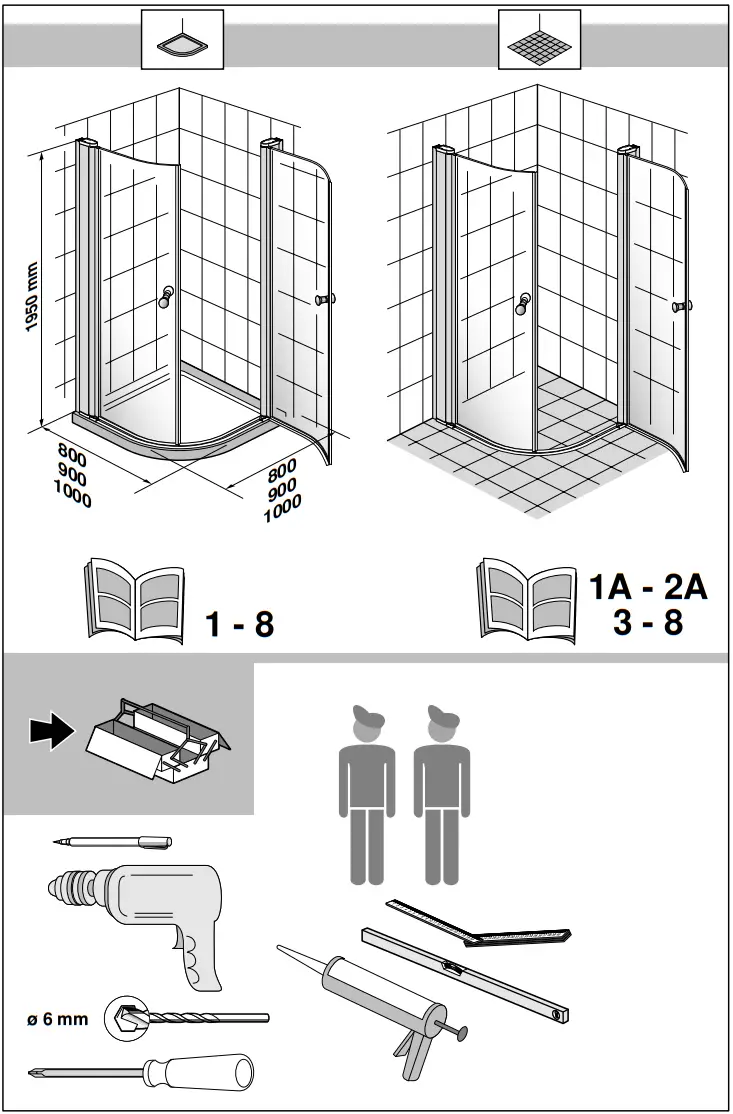

All dimensions are in mm.
Villeroy & Boch Norge AS
Postboks 13, 1471 Lørenskog
Tel.: 67 97 82 50 / Faks: 67 97 16 57
www.gustavsberg.no
[email protected]
999J700701702_Version 01/2008
