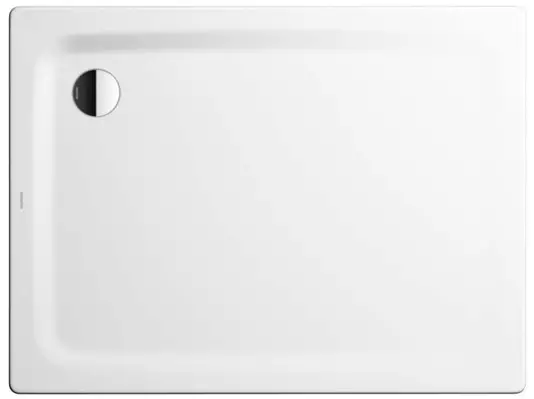

567 Superplan Shower Bath
Instruction Manual
Model: 567/568/569/573/576/680/681/880/881
NOTES
Transport the shower tub in its transport box only and avoid improper loads. Kaldewei shall not assume any liability for damage incurred due to improper intermediate storage and improper transport. The installation must be carried out by an authorized sanitary shop. All work has to be carried out using special technical tools. When mounting the shower tub, protect the surface and casing of the shower tub and the wall and floor tiles from damage. Observe the manufacturer’s instructions when mounting the siphon trap. Avoid soiling of any kind and, in particular, soiling which might cause clogging of the drain. The ground has to be dust free, fat-free and dry when glueing on the shower tub carrier and/or the shower tub. The adhesive to be applied must be suitable for use with styrofoam. The general manufacturer’s instructions have to be observed. To prevent the adhesive from hardening during the individual steps, all the steps have to be taken in direct succession (observe the drying times of the adhesive).

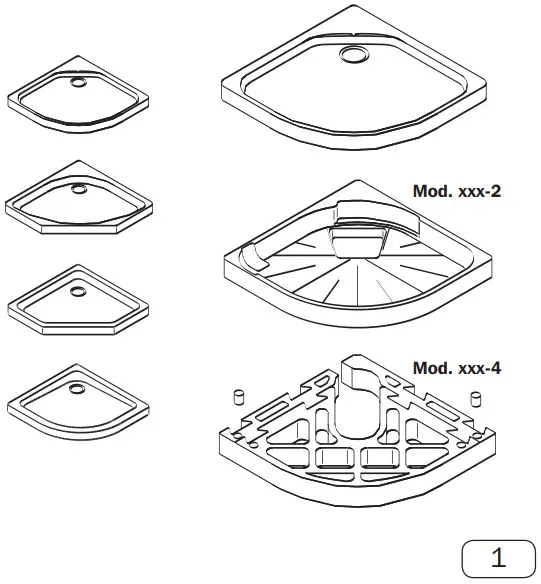

SCOPE OF SUPPLY
FONTANA Mod. 567/568/569
BELLEZZA Mod. 573/576
CORNEZZA Mod. 680/681
ARRONDO Mod. 880/881

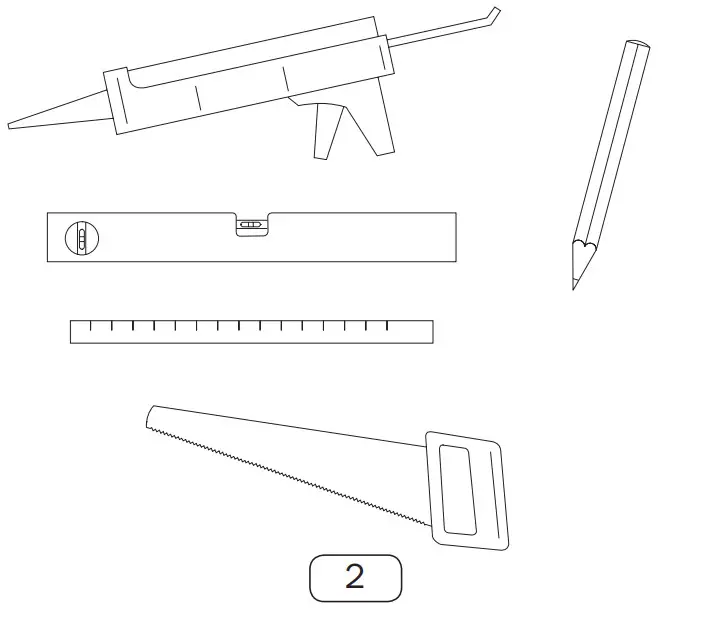

REQUIRED TOOLS

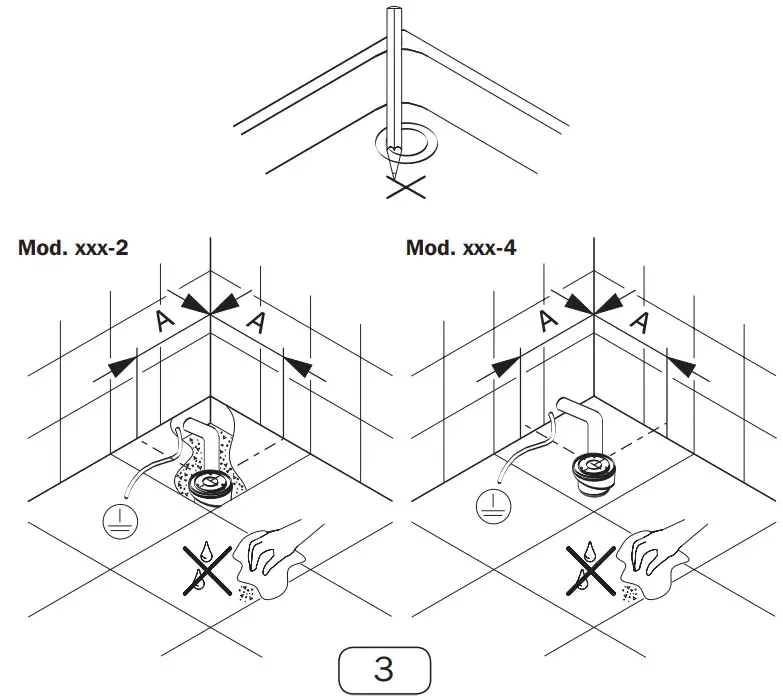

MOUNTING THE SIPHON TRAP
A = 27,5 cm (FONTANA)
A = 23,5 cm (BELLEZZA)
A = 19,0 cm (CORNEZZA/ARRONDO)

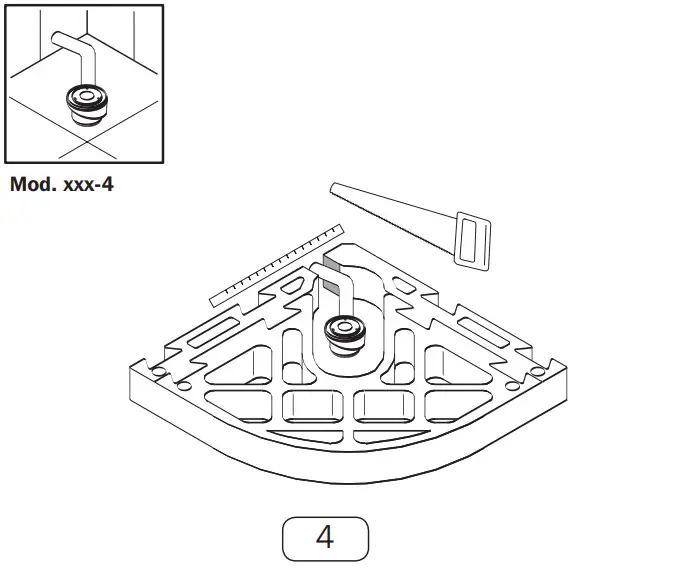

CUTTING THE BASE PLATE TO SIZE

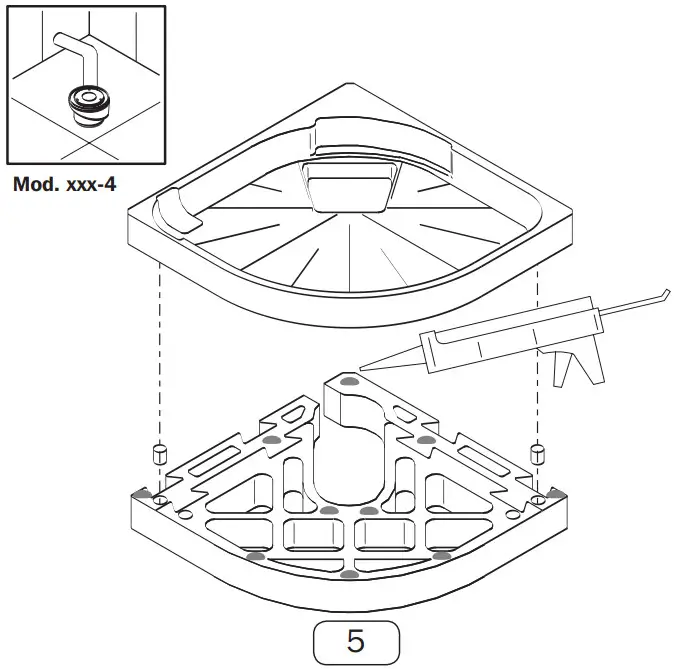

CONNECTING BASE PLATE AND SHOWER TUB CARRIER

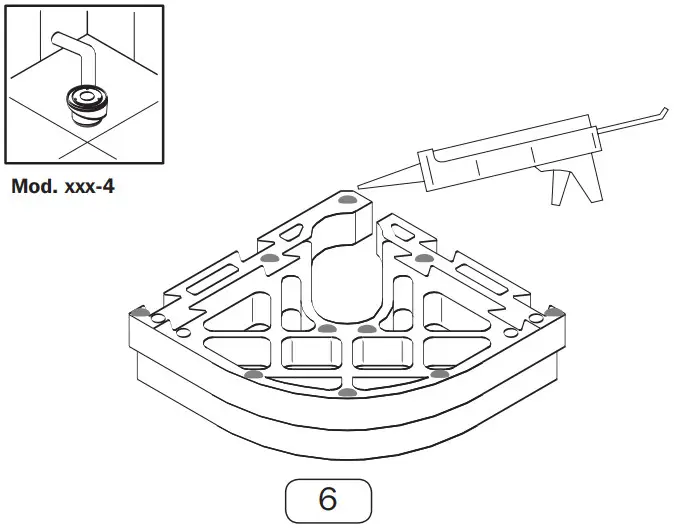

GLUEING ON THE BASE PLATE

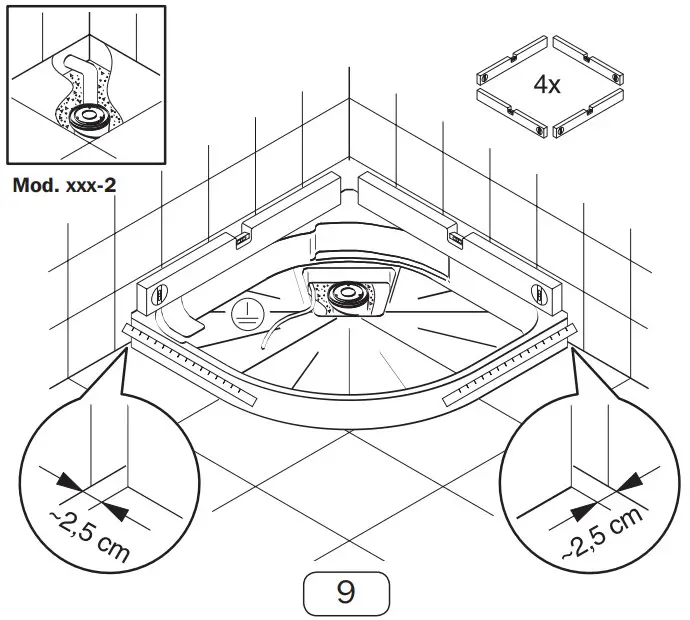

ALIGNING THE SHOWER TUB CARRIER

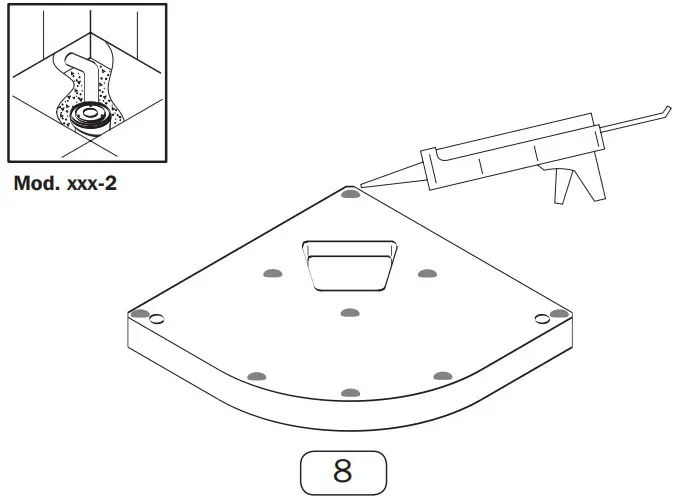

GLUEING ON THE SHOWER TUB CARRIER
ALIGNING THE SHOWER TUB CARRIER

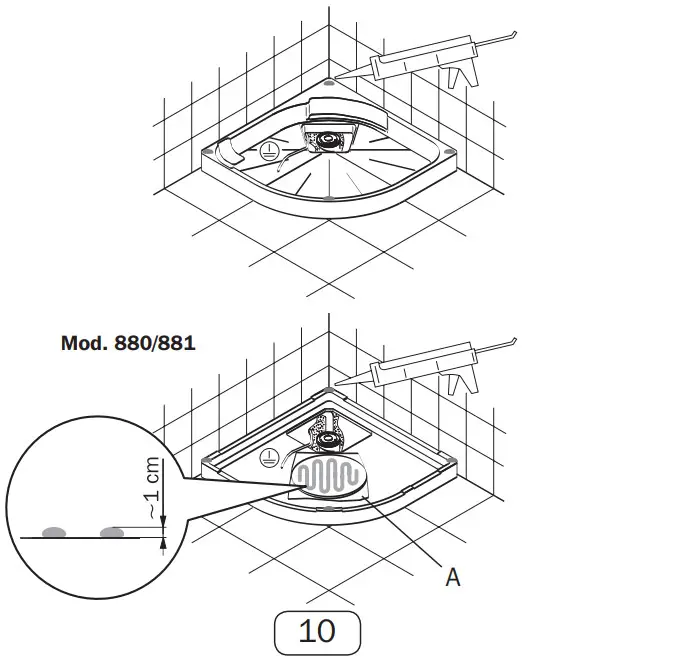

GLUEING ON THE SHOWER TUB
A = Plastic foil

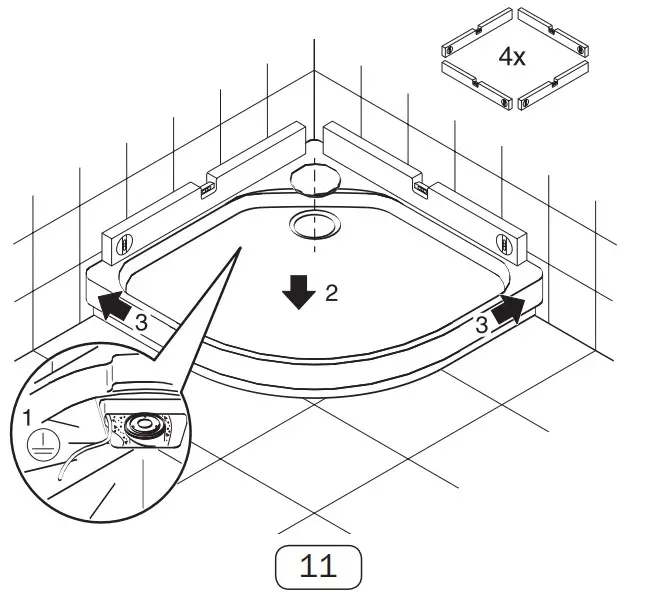

ALIGNING THE SHOWER TUB AND FASTENING THE SIPHON TRAP

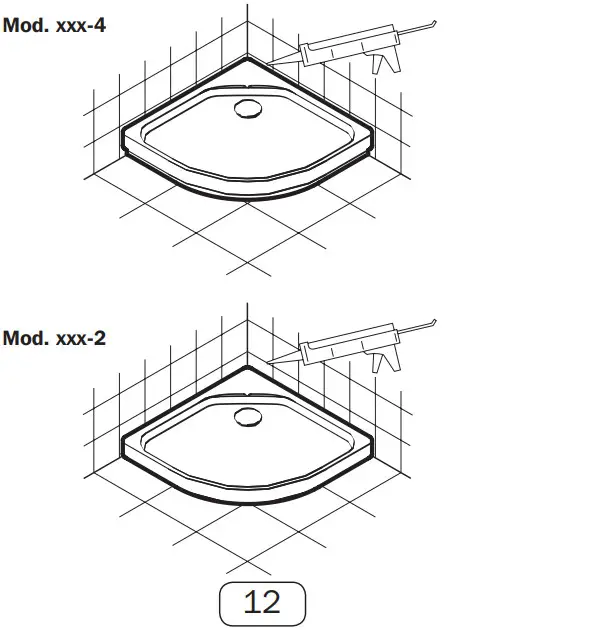

POINTING THE SHOWER TUB JOINTS
Franz Kaldewei GmbH & Co. KG
Beckumer Straße 33-35
59229 Ahlen
Deutschland
Tel. +49 2382 785 0
Fax +49 2382 785 200
Internet: www.kaldewei.com
223.409 02/2007
