Hansgrohe 39882000 Axor Citterio Fixfit Stop Wall Outlet Instruction Manual

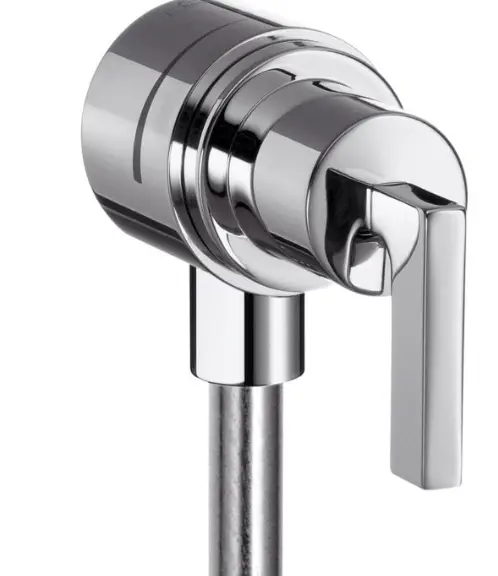

hansgrohe 39882000 AXOR Citterio Fixfit Stop Wall Outlet

Product Information

The user manual provides instructions in different languages for  the use and assembly of various products. The products mentioned in the manual are Starck Montreux 10882XXX, Carlton 17882XXX, Carlton  17883XXX, Steel 35882800, Terrano Terrano 37882XXX, Uno 38882XXX, Citterio 39882XXX, and Citterio 39883XXX. The manual also provides safety instructions, symbol descriptions, dimensions, operation and maintenance instructions, cleaning recommendations, spare parts information, and test certificate details.

Product Usage Instructions

To use the product safely and correctly, follow the safety  instructions provided in the manual. Wear gloves during installation to prevent crushing and cutting injuries. Do not use  silicone containing acetic acid. Check the non-return valves regularly as per DIN EN 1717 and national or regional regulations  (at least once a year) for anti-pollution function. For cleaning recommendations and spare parts information, refer to the enclosed brochure. Assembly instructions for the product can be found on page 16 of the manual.

Safety Notes

• Gloves should be worn during installation to prevent crushing and cutting injuries.

Symbol description

• Do not use silicone containing acetic acid!
• Dimensions
• Operation
• Maintenance
  The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regula-tions (at least once a year).
  anti-pollution function

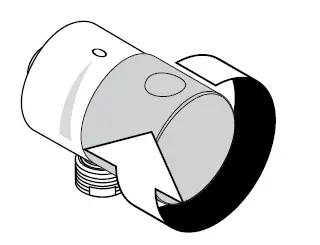

• Cleaning
  Cleaning recommendations, see enclosed brochure.
• Spare parts
  XXX = Colors
  000 = chrome plated
  090 = chrome plated/gold plated
  120 = chrome plated/porcelain colour
  820 = brushed nickel
  830 = polished nickel

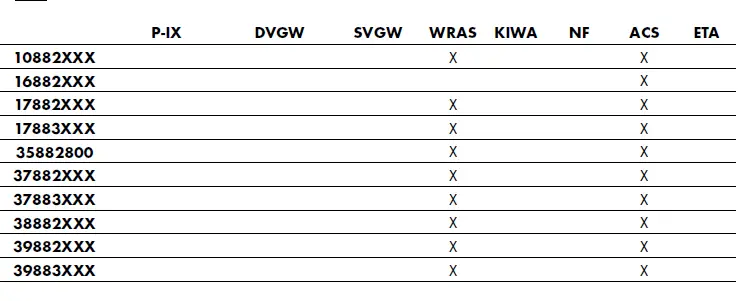

• Test certificate

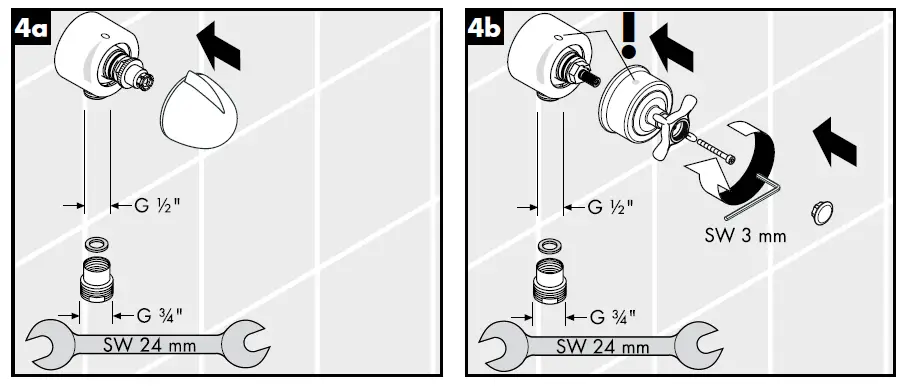

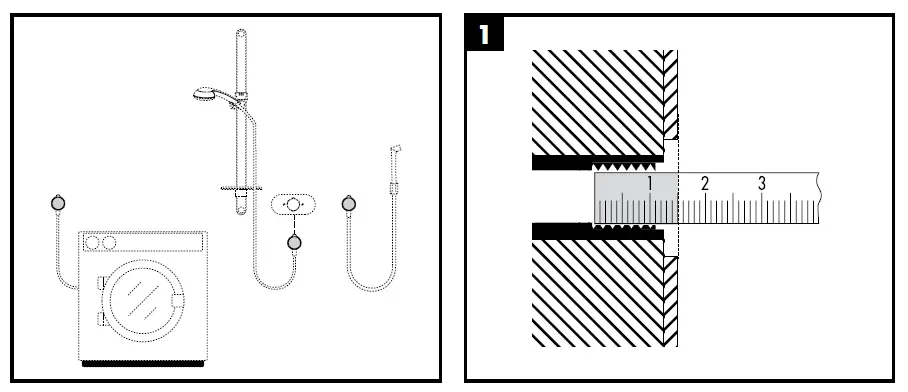

Assembly Instruction

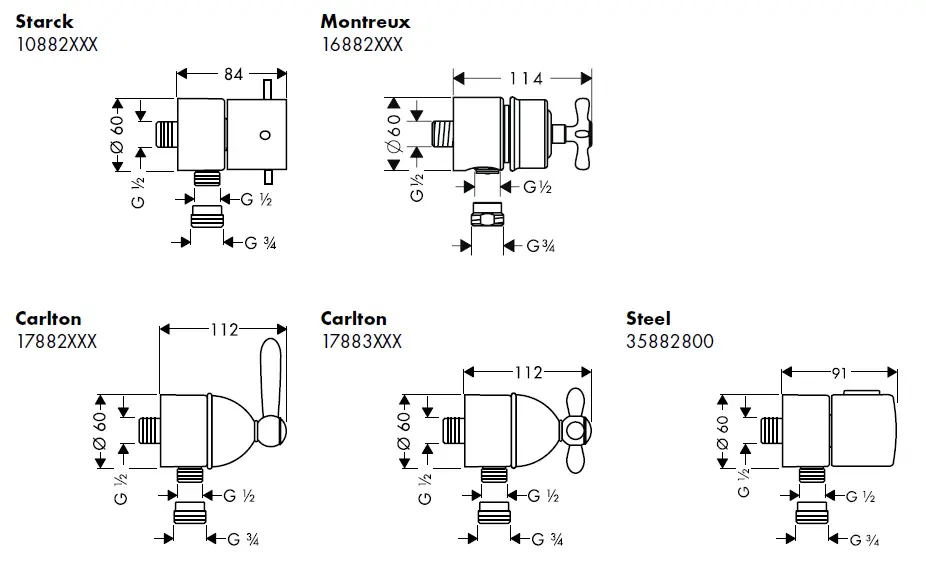

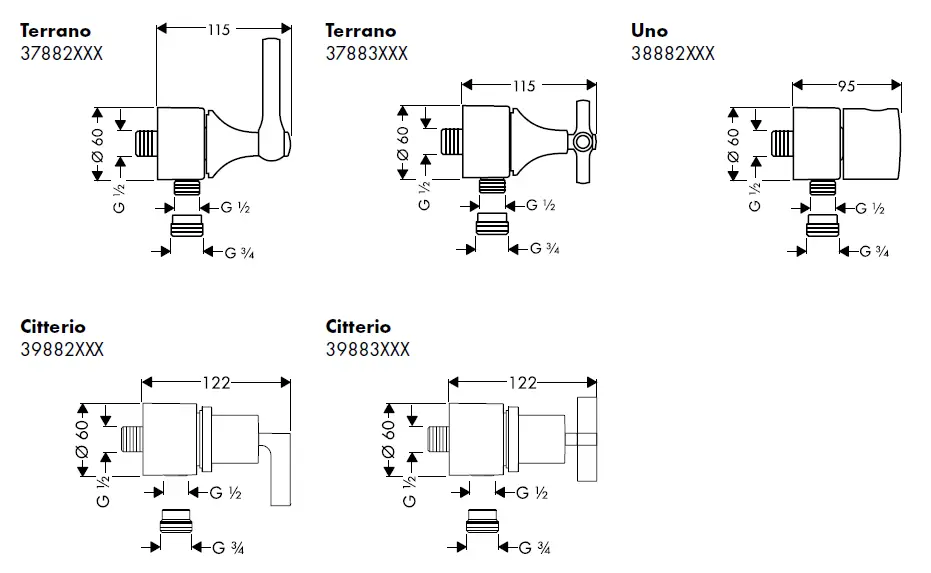

Dimension

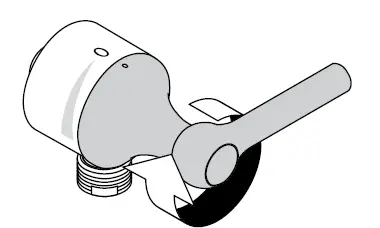

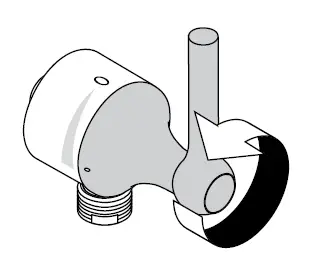

Operation

open

close

open

close

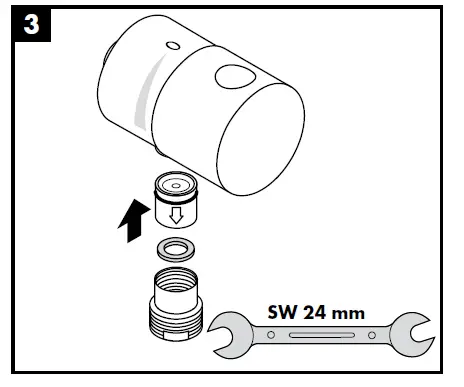

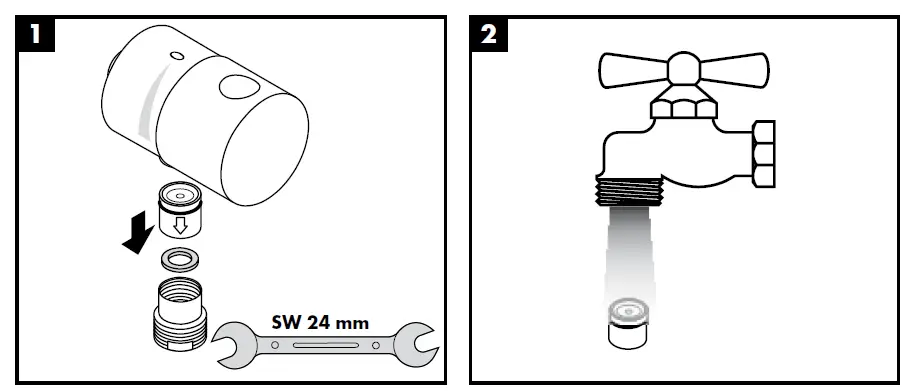

Maintenance

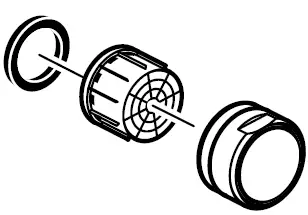

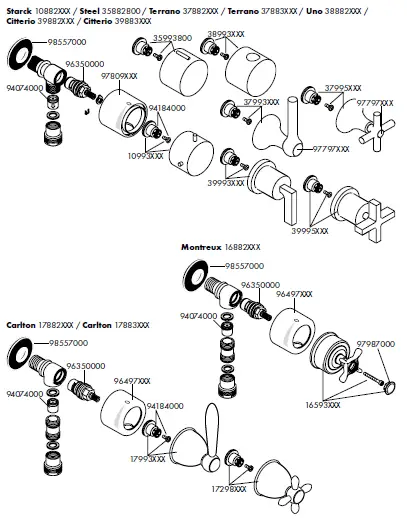

Spare Parts

Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
