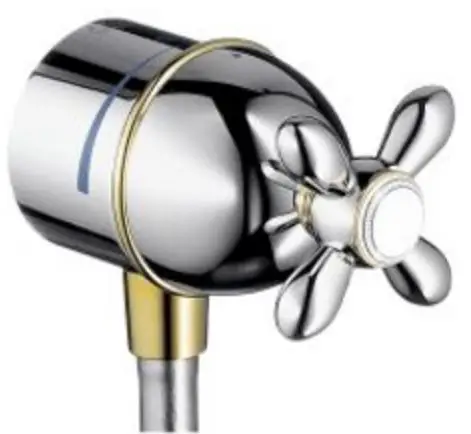

Hansgrohe 17883090 AXOR CARLTON Fixfit Stop
Product Information
The user manual provides instructions for use and assembly in multiple languages including German, French, English, Italian, Spanish, Dutch, Danish, Polish, Chinese, Russian, Swedish, Lithuanian, Croatian, Turkish, Romanian, Greek, Slovenian, Estonian, Latvian, Norwegian, and Bulgarian. The manual includes safety instructions, symbol descriptions, dimensions of the product, operation instructions, maintenance recommendations, cleaning suggestions, spare parts information, and test certificate details.
The product comes in different models including Starck Montreux 10882XXX, Carlton 17882XXX and 17883XXX, Steel 35882800, Terrano Terrano 37882XXX and 37883XXX, Uno 38882XXX, Citterio 39882XXX and 39883XXX. The product has different color codes such as 000 for chrome-plated, 090 for chrome plated/gold-plated, 120 for chrome-plated/porcelain color, 820 for brushed nickel, and 830 for polished nickel.
Product Usage Instructions
During installation, wear gloves to prevent crushing and cutting injuries. Do not use silicone-containing acetic acid. The manual provides the dimensions of the product on page 17.
For operation instructions and maintenance recommendations refer to pages 18 and 19 respectively. The non-return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year). The product has an anti-pollution function.
Refer to the enclosed brochure for cleaning recommendations. Spare parts information is available on page 20. The product assembly instructions are provided on page 16.

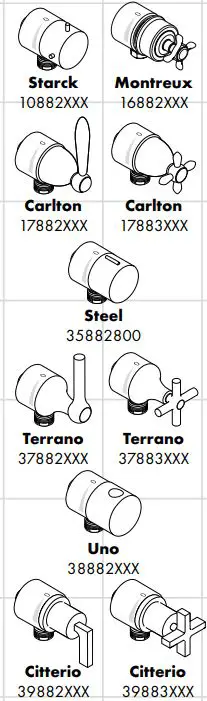

MODELS
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
Symbol Description
Do not use silicone-containing acetic acid!

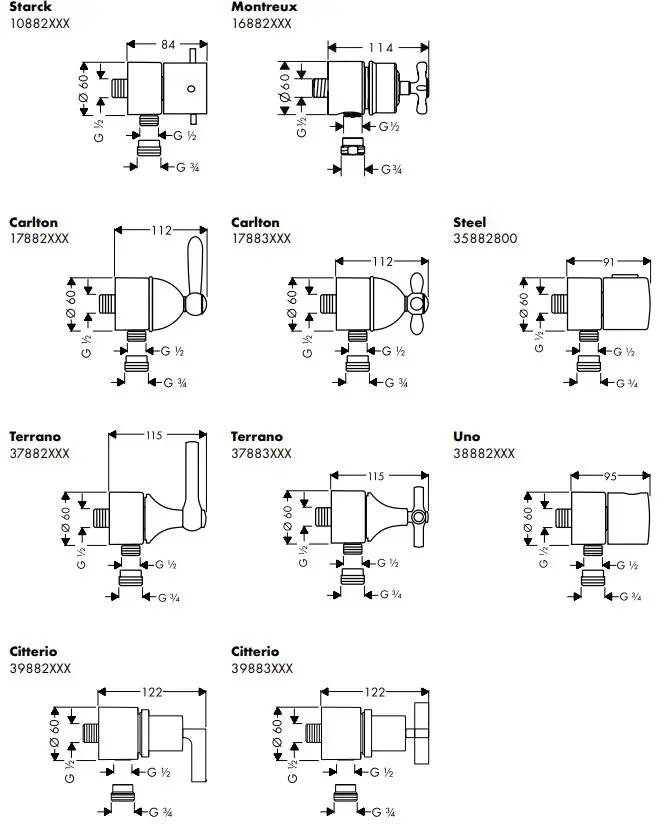

Dimensions
Dimensions
Operation
Operation

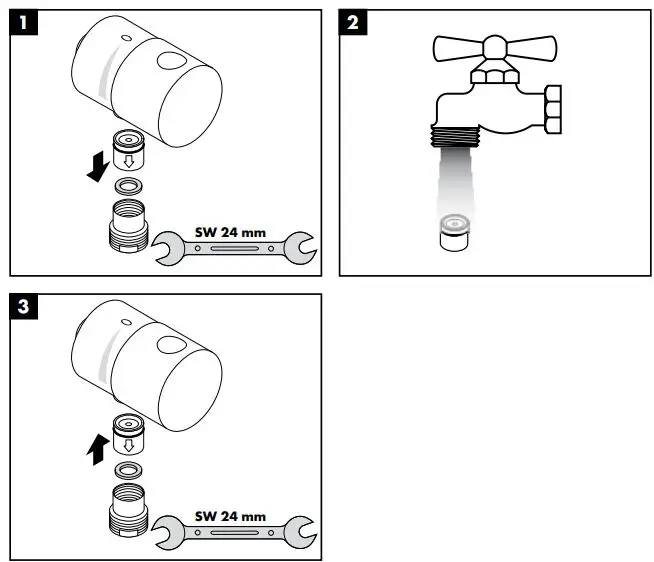

Maintenance
Maintenanceopen
close
The non-return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year). anti-pollution function
Cleaning
CleaningFor cleaning recommendations, see the enclosed brochure.

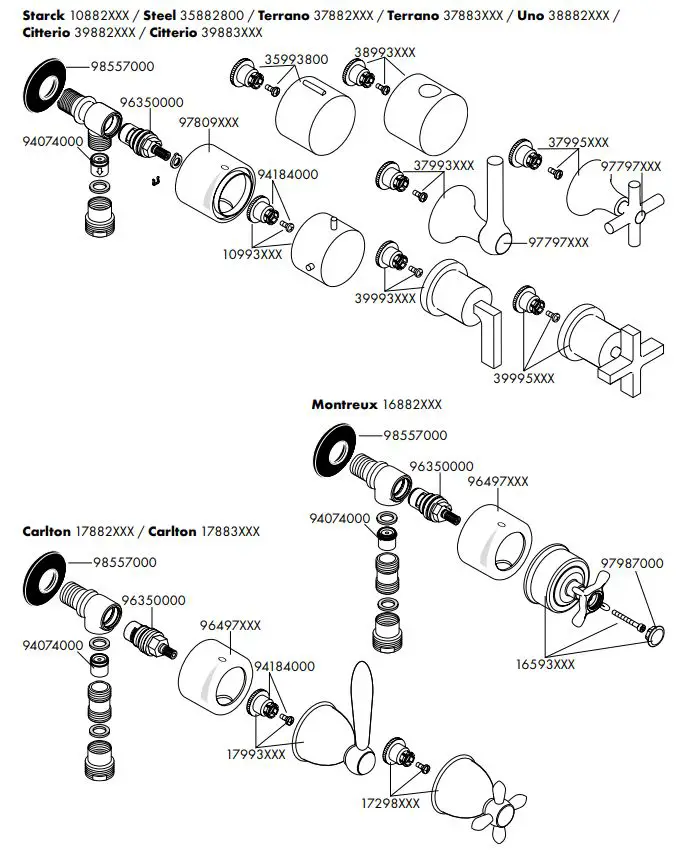

Spare parts
Spare parts
- XXX = Colors
- 000 = chrome plated
- 090 = chrome plated/gold plated
- 120 = chrome plated/porcelain color
- 820 = brushed nickel
- 830 = polished nickel

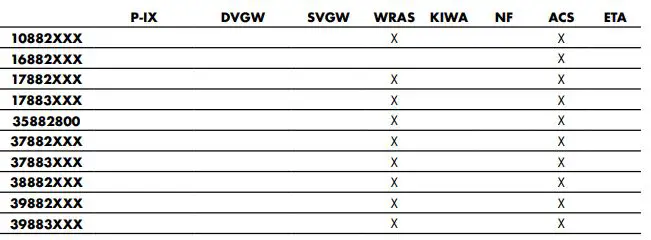

Test certificate

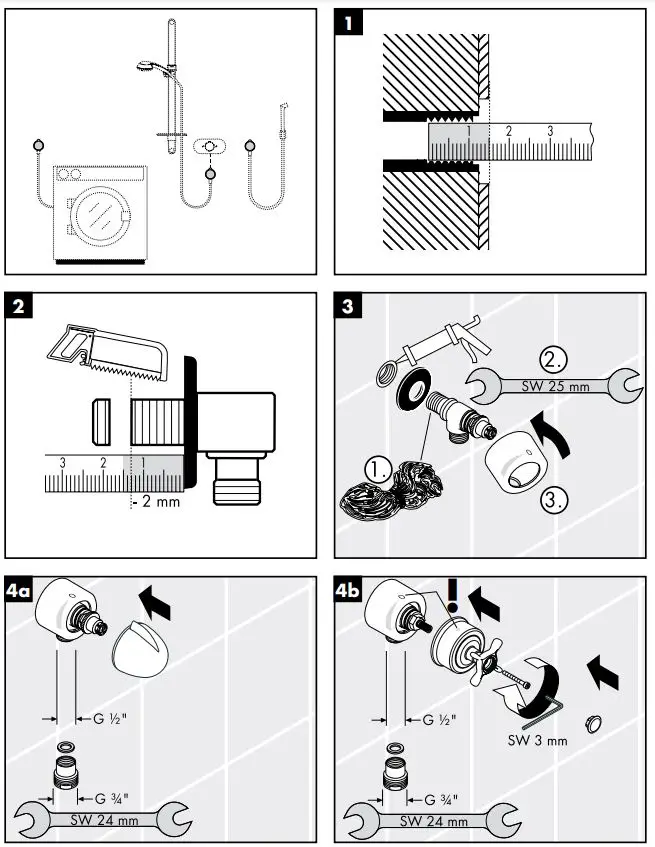

Test certificateAssembly
Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: [email protected] · Internet: www.hansgrohe.com
