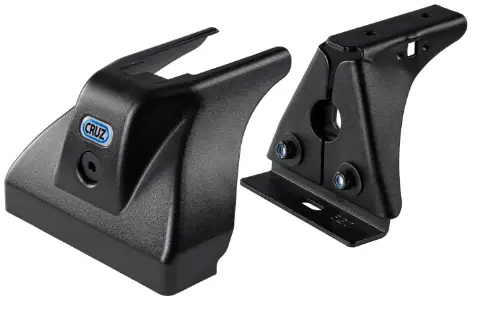

CRUZBER SA 934-414 Fixation Kit
Product Information
- Model: Kit soportes LCV
- Lot: 01-18
- Weight: 3.04 kg
- Max Capacity: 150 kg

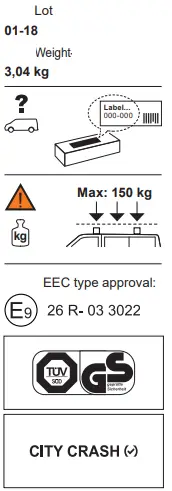

- CEE – EEC type approval
- Manufacturer: CRUZBER SA ES-A14018311 P.I. Las Salinas II 14960
- Rute – Spain
- Website: www.cruzber.com
Product Usage Instructions

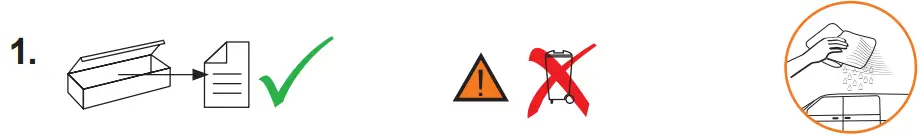

- Check the package contents before assembly.

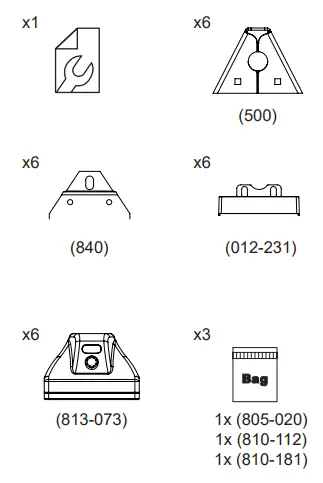

- Assemble the product using the following parts:
- x1
- x6 (840)
- x6 (813-073)
- x6 (500)
- x6 (012-231)
- x3 (805-020), (810-112), (810-181)

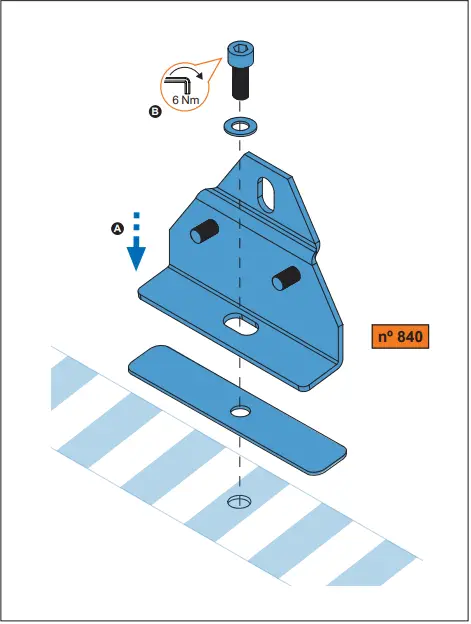

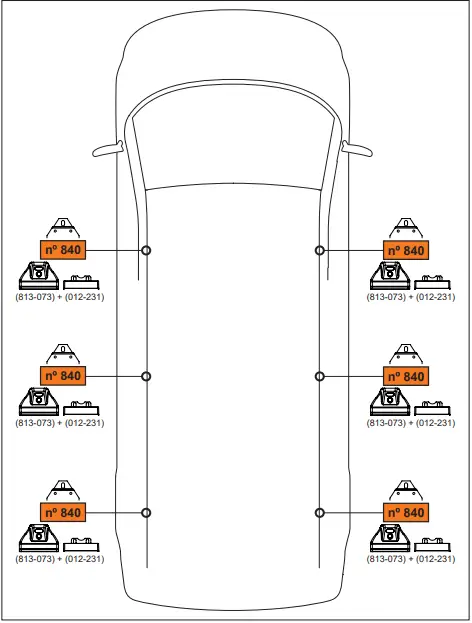

- Combine parts (813-073) and (012-231) six times.
- Use a torque wrench to tighten screws to 6 Nm.

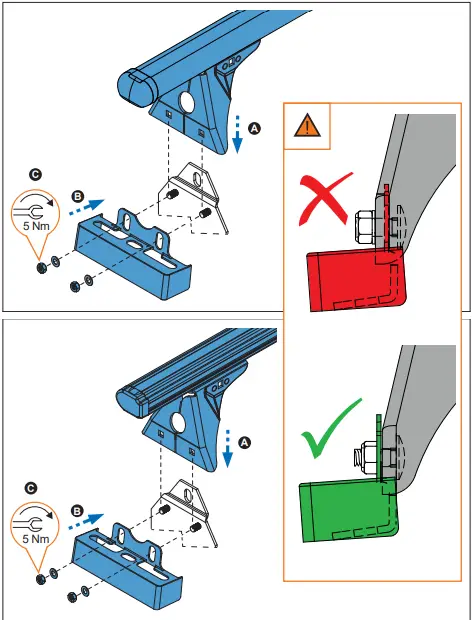

- Attach the aluminum parts using screws (50×30 mm and 52×35 mm) and tighten them to 5 Nm in the following order:
- A, B, C, D, A, B
- C, B, A, A, C, B

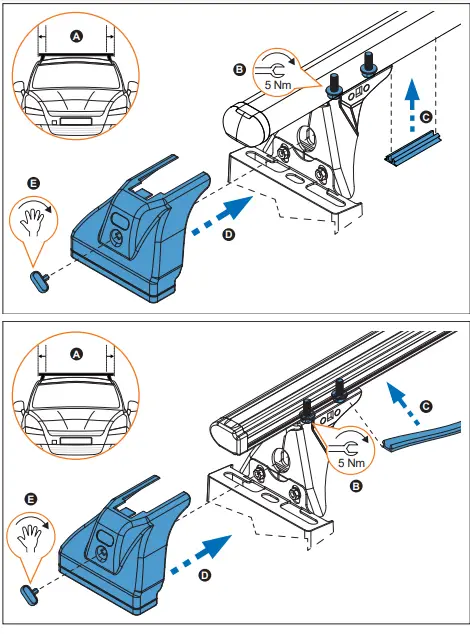

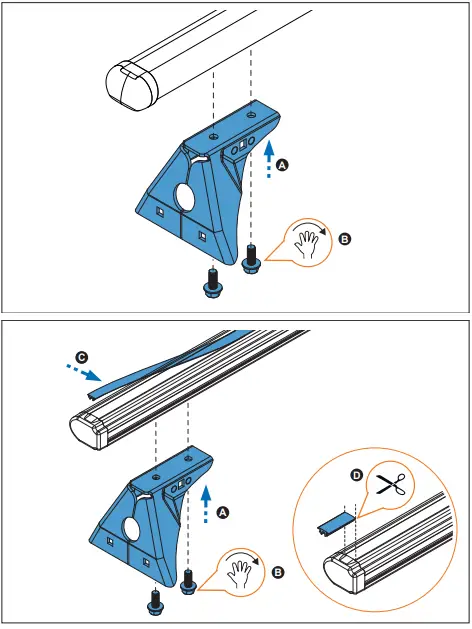

- Attach parts A and E to the aluminum parts using screws (50×30 mm and 52×35 mm) and tighten them to 5 Nm in the following order:
- A, E, B, C, D
- C, 5 Nm, B, D, A
