CRUZ Kit Soportes LCV Fixation Kit
Product Information

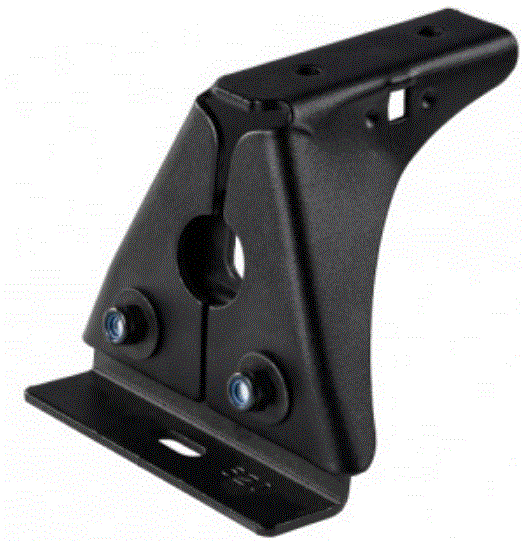

The product is a kit of supports for LCV with a model number of 934-422. The kit weighs 3.46 kg and has a maximum weight capacity of 150 kg. It comes with CEE-EEC type approval from CRUZBER SA, located in Spain. The package includes various components such as screws, bolts, and aluminum pieces.
Product Usage Instructions
- Check the package contents before assembly.

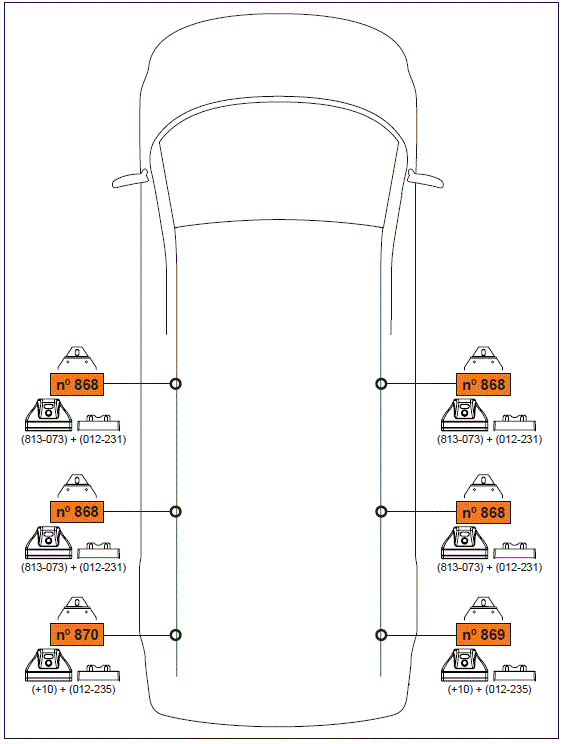

- Use components (813-073) and (012-231) together twice and add component (+10) and (012-235) once.

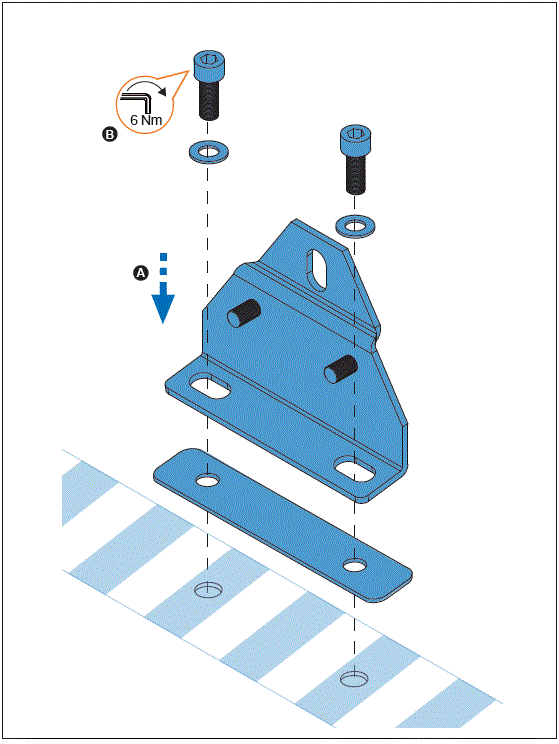

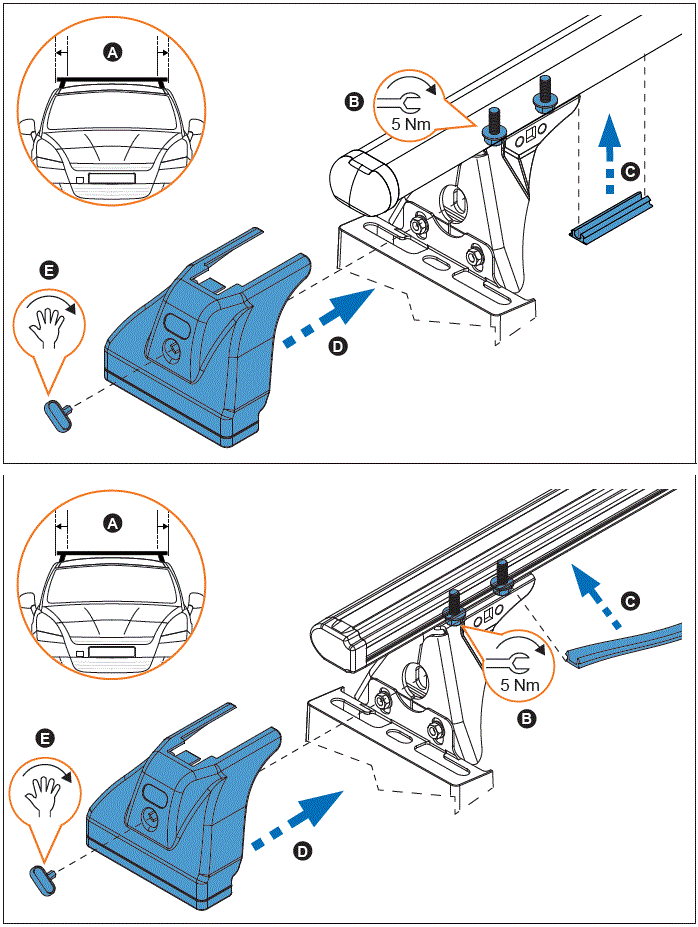

- Use a torque wrench to tighten screws to 6 Nm for component B and 5 Nm for component A and C.

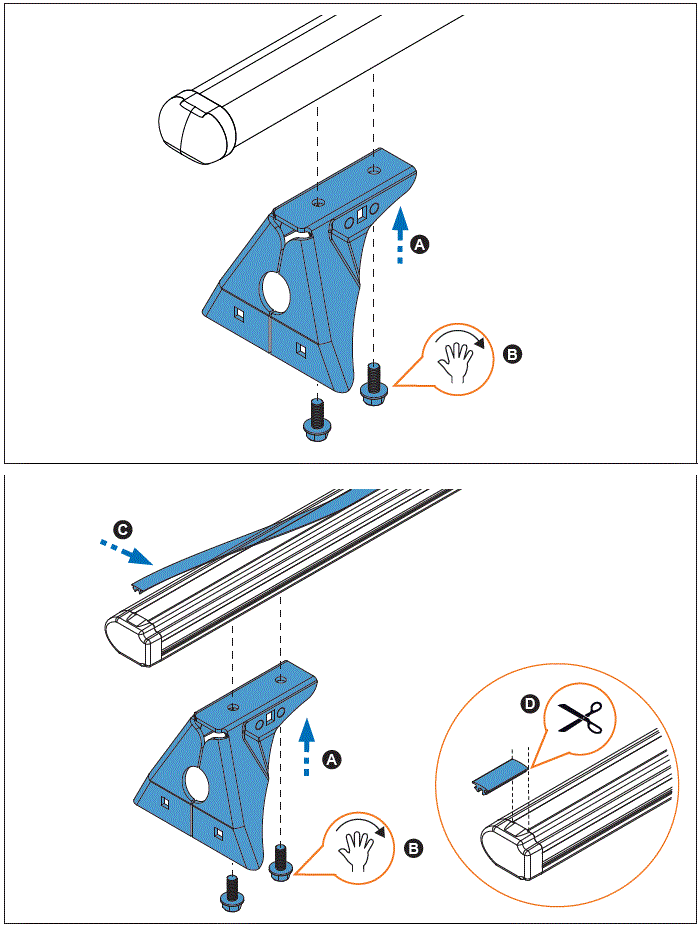

- Use a screwdriver to attach component D to component A using four screws with dimensions of 50×30 mm.

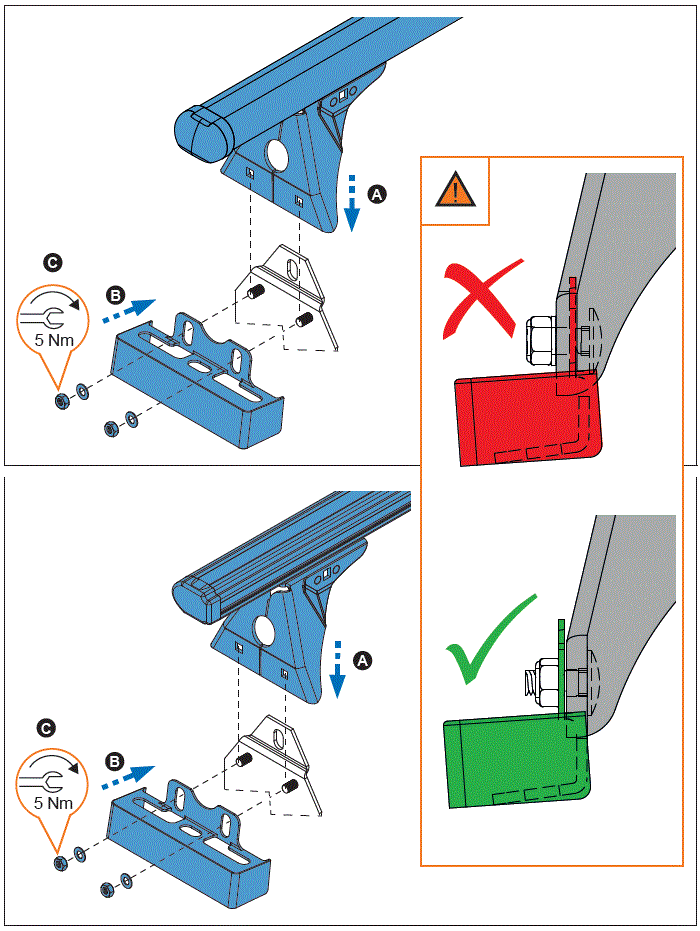

- Attach component C to component B using two screws with dimensions of 52×35 mm and tighten them to 5 Nm. Then, attach component A to component C using two screws with dimensions of 50×30 mm.
- Attach component E to component A and B using four screws with dimensions of 50×30 mm and tighten them to 5 Nm.
Information
- Model: Kit soportes LCV
- Lot: 01-19
- Weight: 3,46 kg
Info
CEE – EEC type approval
- (E9) 26 R- 03 3022

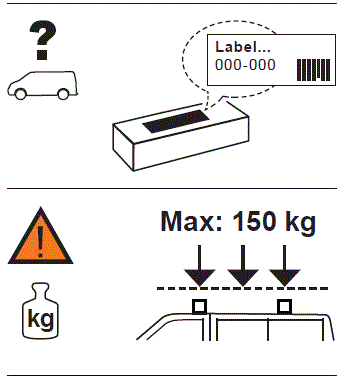

Warning

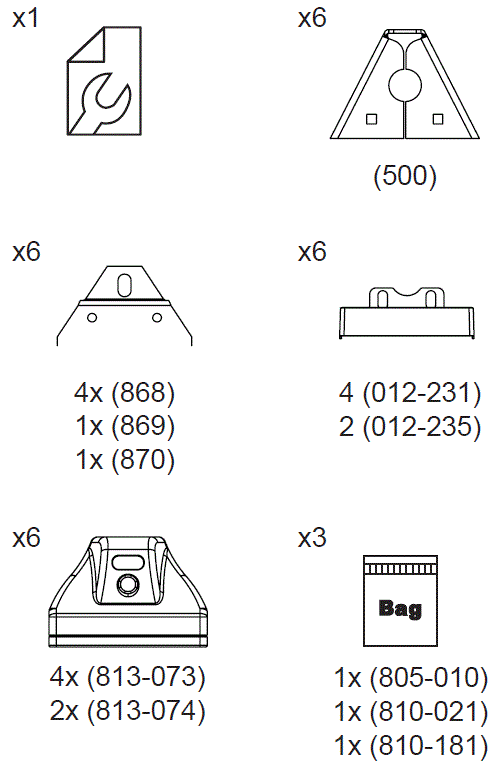

Package content
Check!
Installation Instructions
CRUZBER SA
- ES-A14018311
- P.I. Las Salinas II
- 14960 – Rute – Spain
- www.cruzber.com
CRUZ - roof racks & accessories
