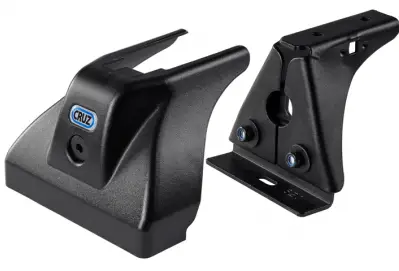

CRUZ 934-310 Fixation Kit
Product Information
- Model: Kit Soportes LCV
- Lot: 01-18
- Weight: 2.26 kg
- Maximum Capacity: 100 kg
- Approval: CEE – EEC Type Approval
- Manufacturer: Cruzber SA
- Address: P.I. Las Salinas II 14960 – Rute – Spain
- Website: www.cruzber.com.
Product Usage Instructions
- Check the package contents to ensure that all components are present.
- Assemble the kit using the provided components as follows:

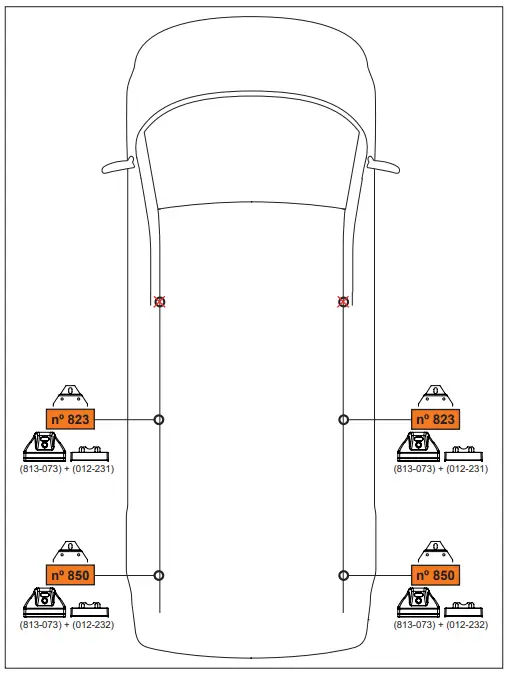

- Use (813-073) and either (012-231) or (012-232) to assemble the first part.
- Use (813-073) and either (012-231) or (012-232) to assemble the second part.

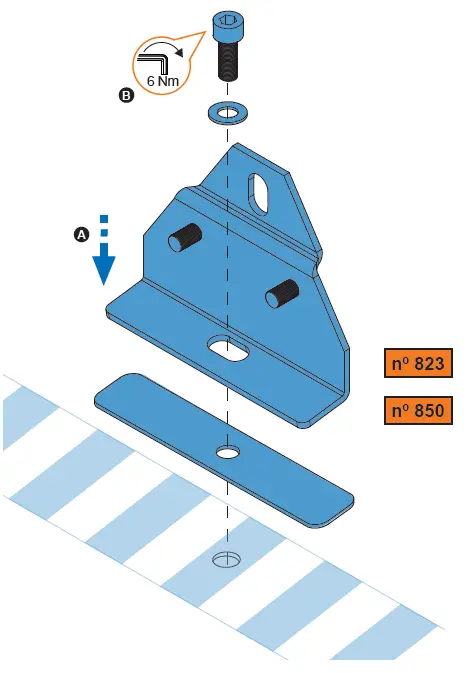

- Tighten all bolts to 6 Nm.

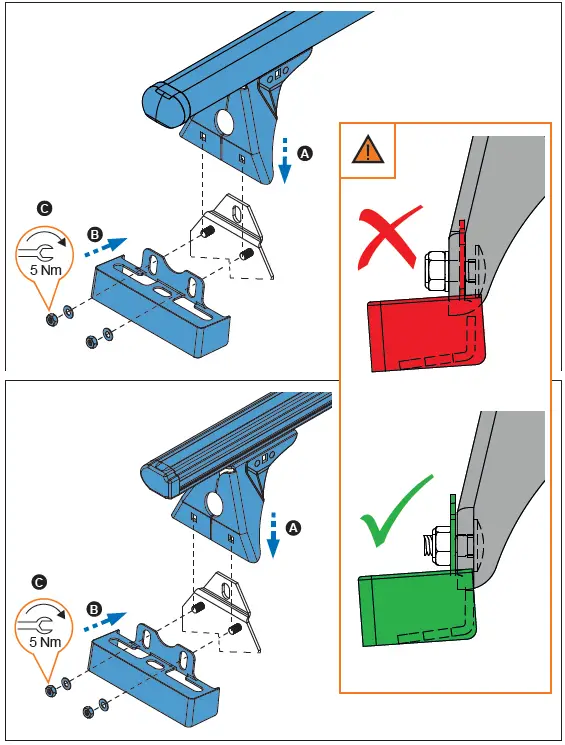

- Attach the aluminum plates using the bolts and nuts provided.
- Tighten the bolts to 5 Nm.

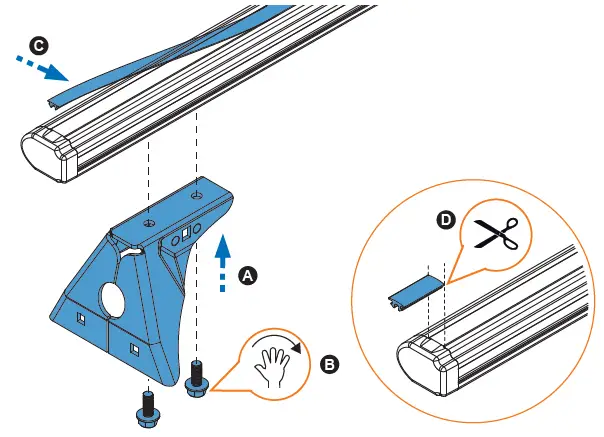

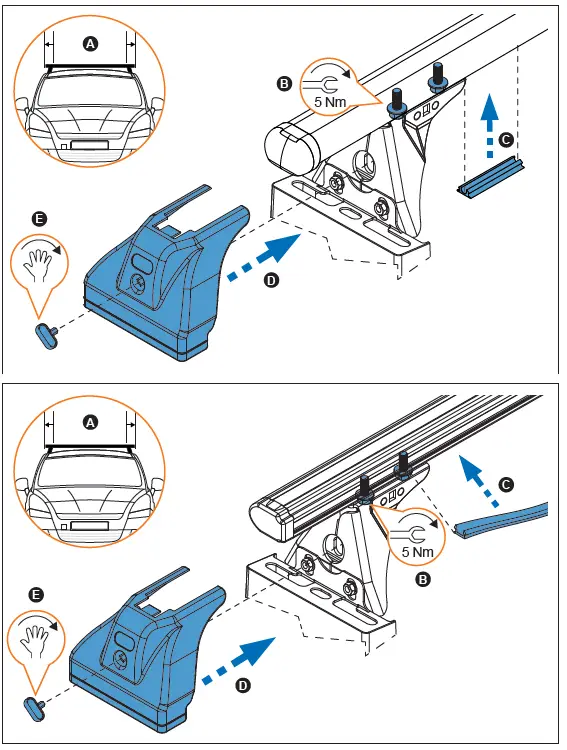

- Attach components A and E using the bolts and nuts provided.
- Tighten the bolts for components A to 5 Nm and for components B, C, and D to 6 Nm.
INFORMATION
- Modelo-model: Kit soportes LCV
- Lot: 01-18
- Weight: 2,26 kg
- CEE – EEC type approval: 26 R- 03 3022
CRUZBER SA
- ES-A14018311
- P.I. Las Salinas II
- 14960 – Rute – Spain
- www.cruzber.com.

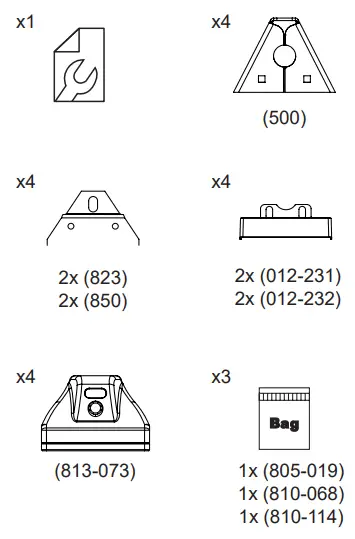

Package content

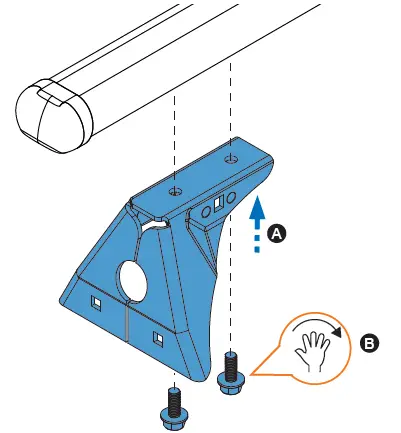

INSTALLATION
