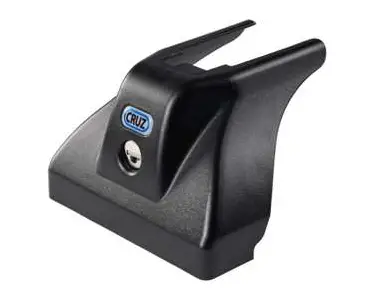

CRUZ 934-313 Talento H2 Fixation Kit
Product Information
Model: Kit soportes LCV
Lot: 01-18
Weight: 2.38 kg

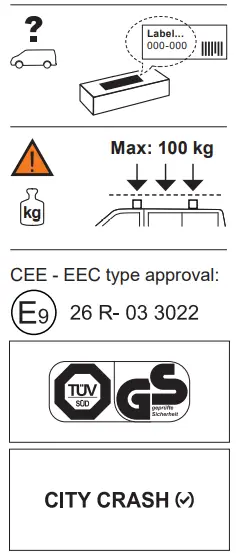

Max Load Capacity: 100 kg
Manufacturer: CRUZBER SA
Type Approval: CEE – EEC
Manufacturer Address: P.I. Las Salinas II, 14960 – Rute – Spain
Manufacturer Website: www.cruzber.com
Product Usage Instructions

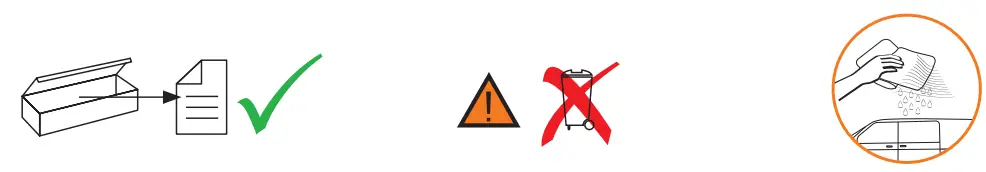

- Check the package contents before assembly.
- Assemble the product as per the instructions provided in the assembly manual.

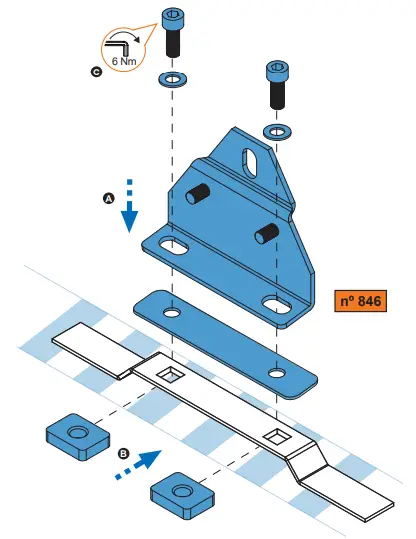

- Tighten the screws provided with a torque of 6 Nm.

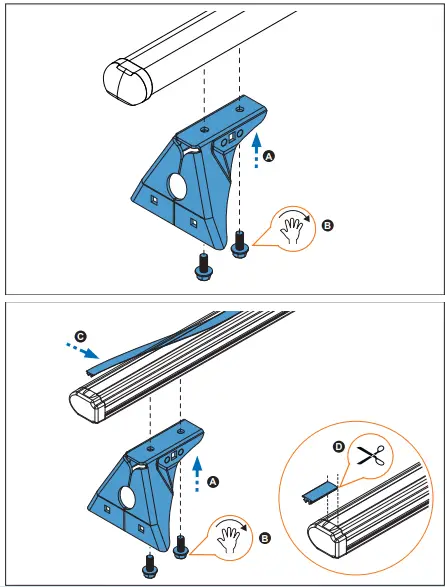

- Use the components labelled A, B, C, D as per the instructions.

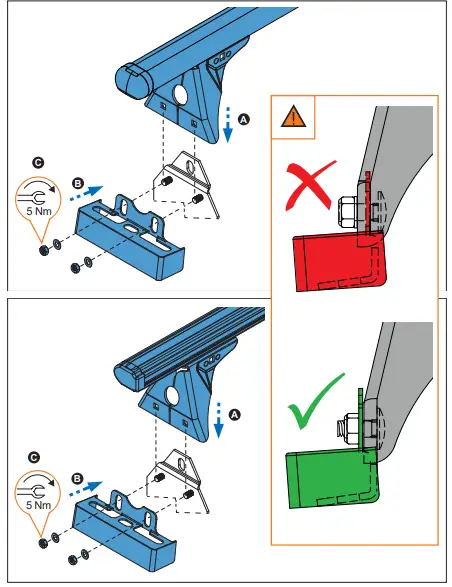

- For components labelled A, B, C, tighten the screws with a torque of 5 Nm.

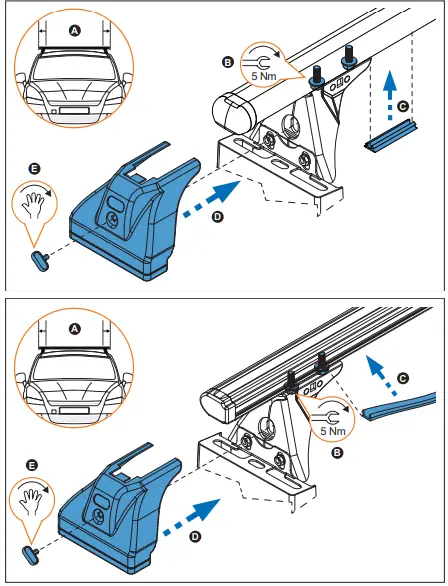

- For components labelled A, E, B, C, D, use the screws provided with a torque of 5 Nm.
Note: Refer to the assembly manual for detailed instructions on how to assemble the product.
934-313
Lv7 2021-r2
model: Kit soportes LCV
Lote-Lot-Lot-Lot: 01-18
Peso-Weight-: 2,38 kg
CRUZBER SA
ES-A14018311
P.I. Las Salinas II
14960 – Rute – Spain
www.cruzber.com

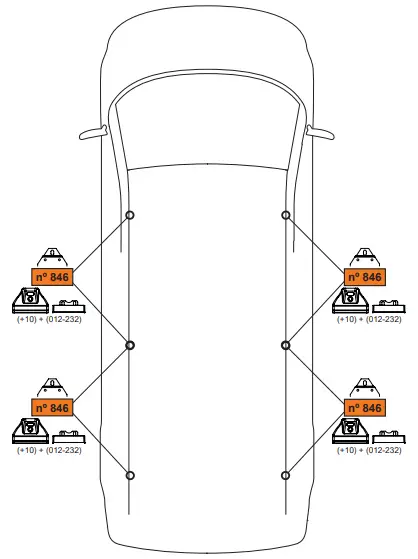

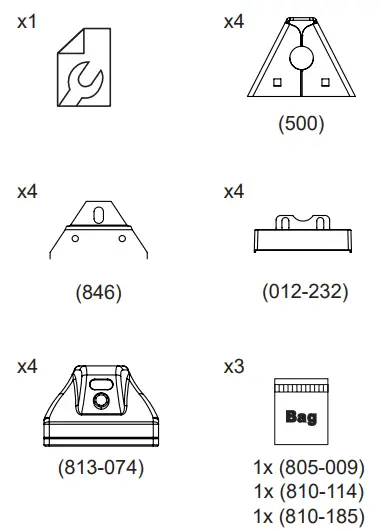

Package content
Package content
Assembly instructions
Fixation Kit
