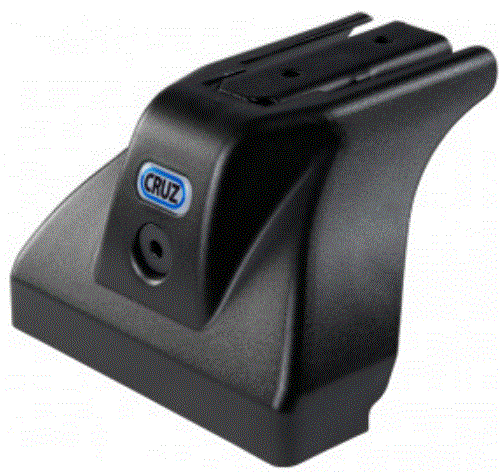

CRUZ 934-311 Fixation Kit
Product Information
- Model: Kit soportes LCV
- Lot: 01-18
- Weight: 2.25 kg

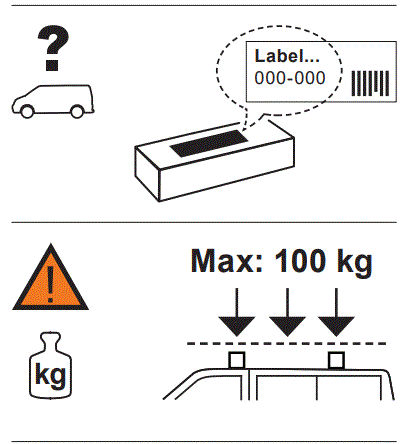

- Max Weight Capacity: 100 kg
- Manufacturer: CRUZBER SA
- Type Approval: CEE – EEC
- Manufacturer Address: P.I. Las Salinas II 14960 – Rute – Spain
- Manufacturer Website: www.cruzber.com
Product Usage Instructions

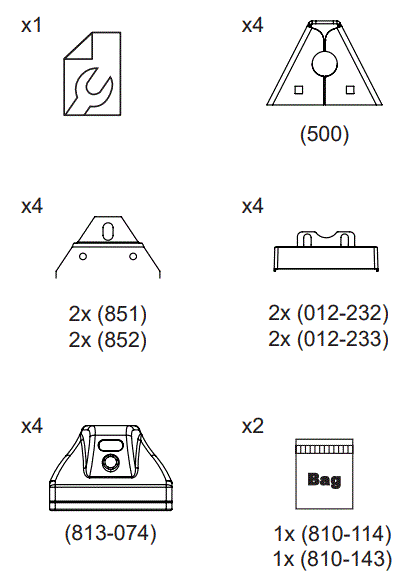

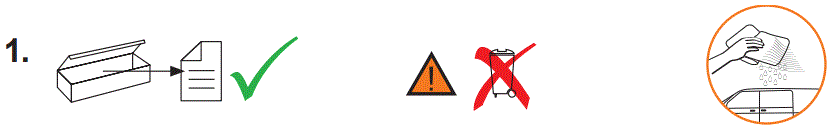

- Check the package contents to ensure all parts are included.

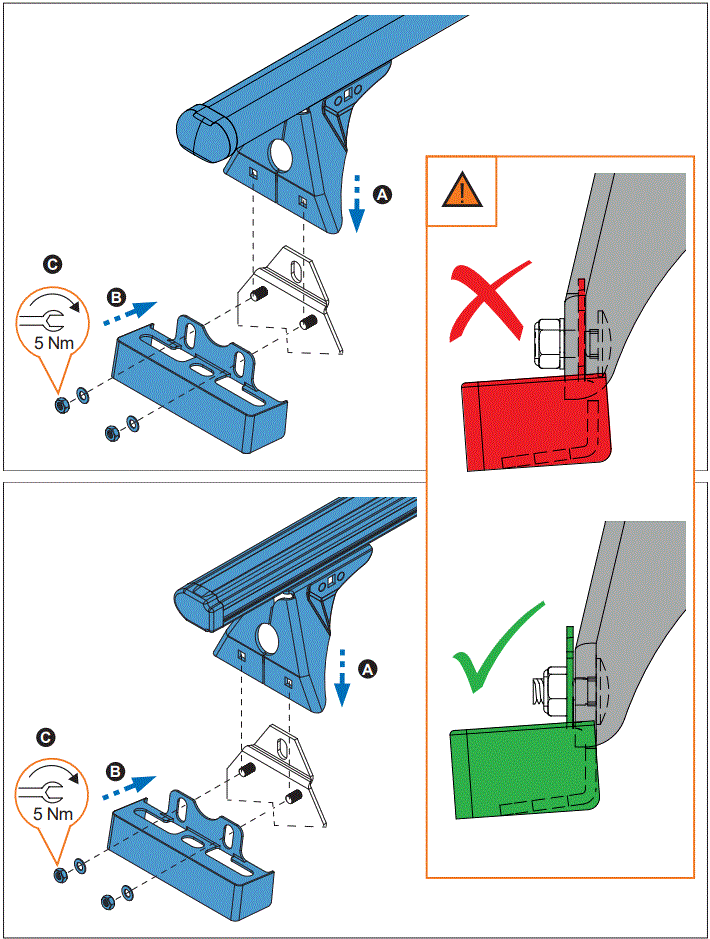

- Assemble the product using the provided parts and following the diagram:

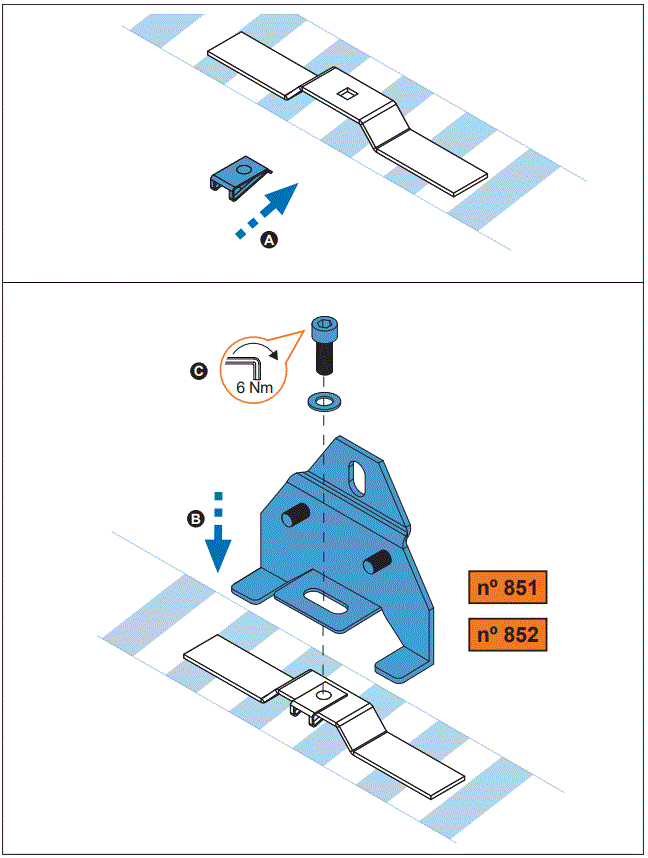

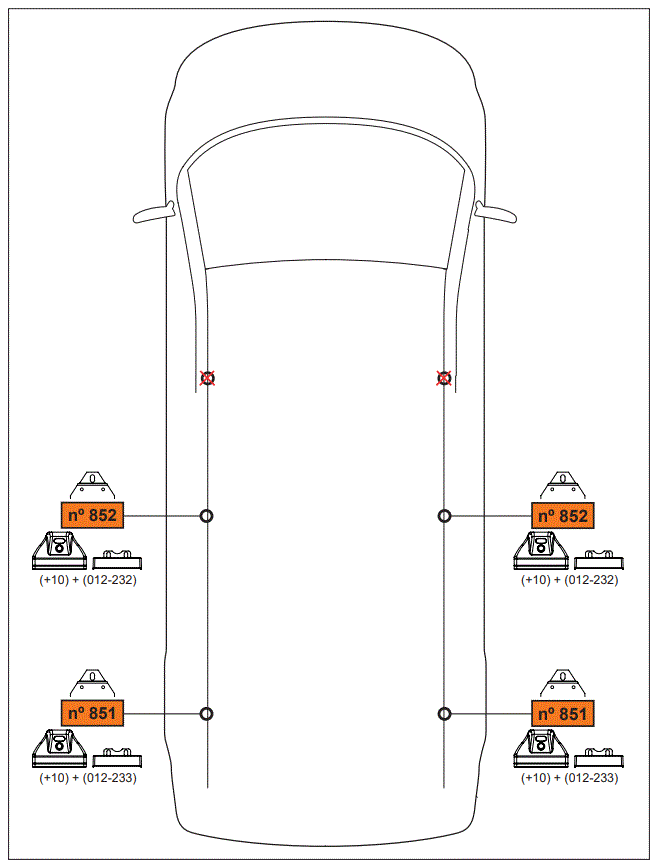

- Attach part (851) and (852) to part (+10) + (012-232) and (+10) + (012-233).
- Attach part (813-074) to part (+10) + (012-232) and (+10) + (012-233).
- Attach part (500) to part (810-114) and (810-143).

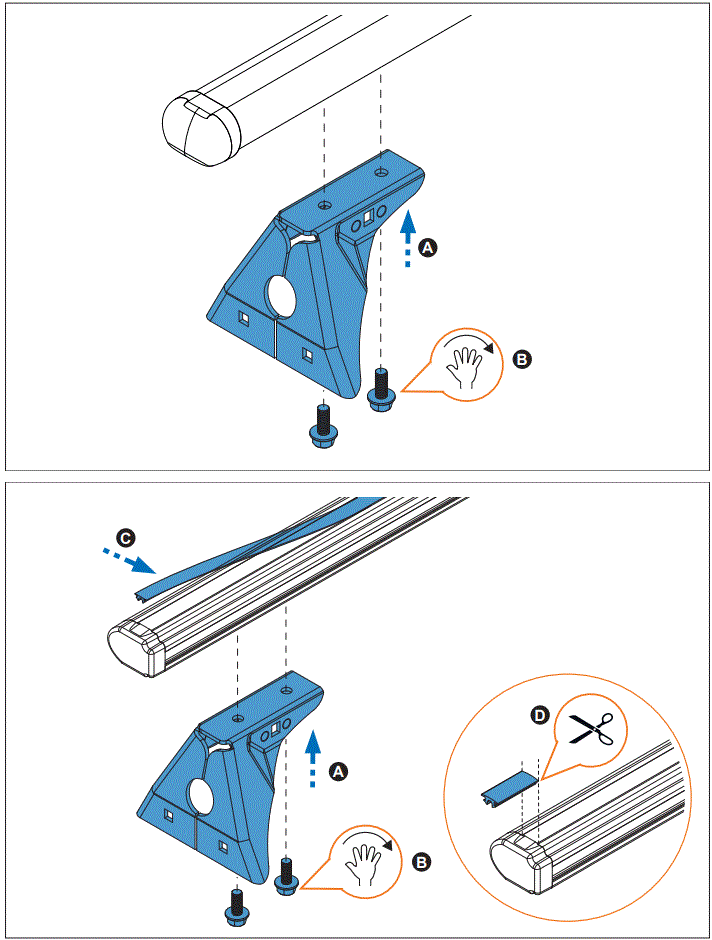

- Attach part A to part B using a torque of 6 Nm.

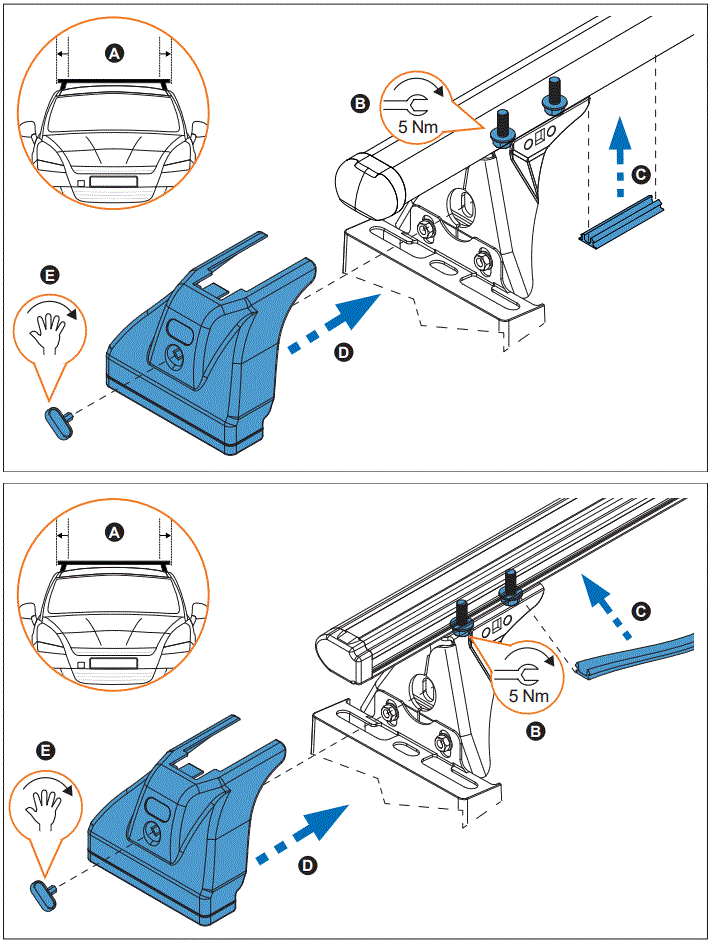

- Attach part C to part B using a torque of 5 Nm.
- Attach part A to part E using a torque of 5 Nm.
- Attach part C to part D using a torque of 5 Nm.
- The final product should have the following dimensions:
- Part A: 50×30 mm
- Part B: 52×35 mm Aluminium
- Part C: 50×30 mm
- Part D: N/A
- Part E: 50×30 mm
Information
- Model: Kit soportes LCV
- Lot: 01-18
- Weight: 2,25 kg
Info
CEE – EEC type approval
- E9: 26 R- 03 3022
Warning
Package content
Check!
Installation Instructions
Warning
CRUZBER SA
- ES-A14018311
- P.I. Las Salinas II
- 14960 – Rute – Spain
- www.cruzber.com
CRUZ - roof racks & accessories
