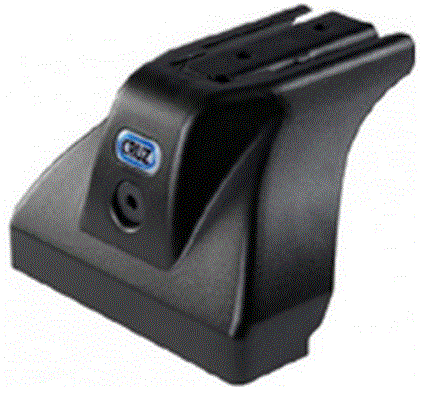

CRUZ 92-934-309 Kit Soportes LCV
Product Information

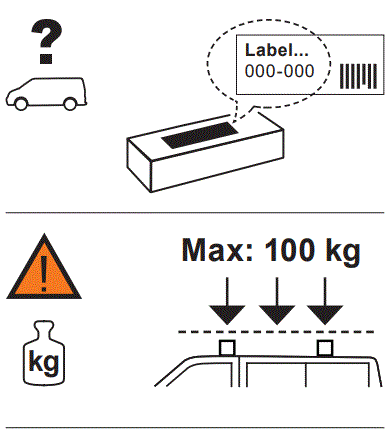

The product is a set of mounting supports for LCV. The lot number is 01-18, and it weighs 2.26 kg. The maximum weight capacity is 100 kg. The product has CEE-EEC type approval from CRUZBER SA ES-A14018311 P.I. Las Salinas II 14960 – Rute – Spain www.cruzber.com.
Product Usage Instructions

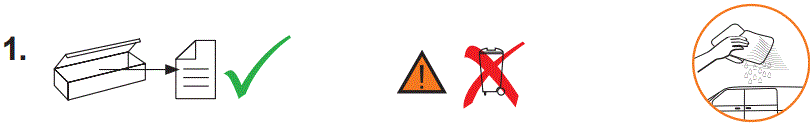

- Check the package contents.
- Use the following parts:
- 1x (836)
- 1x (837)
- 2x (838)
- 4x (813-073)
- 4x (813-074)
- 2x (500)
- 2x (012-233)
- 1x (805-023)
- 1x (810-064)
- 1x (810-114)

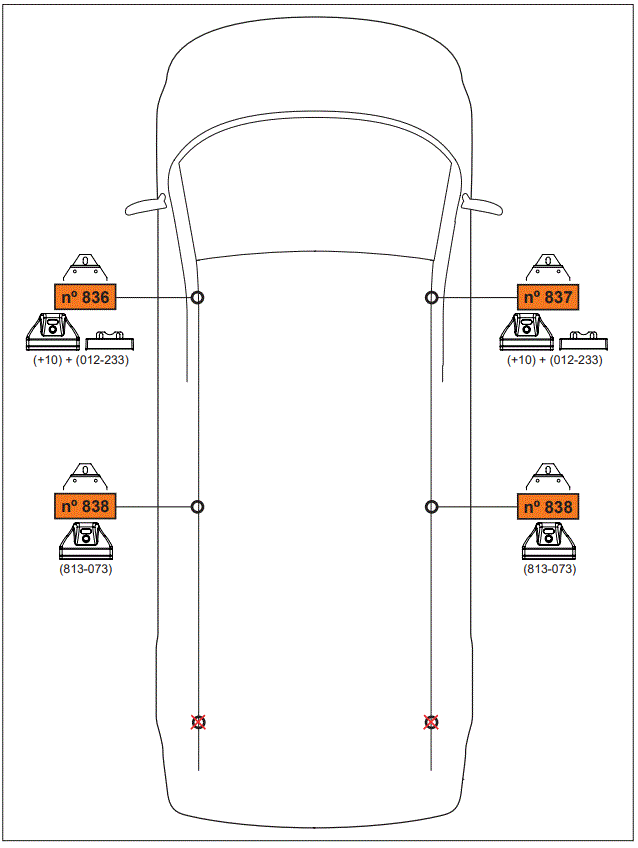

- Use the parts (+10) + (012-233) and (813-073) to assemble the product.

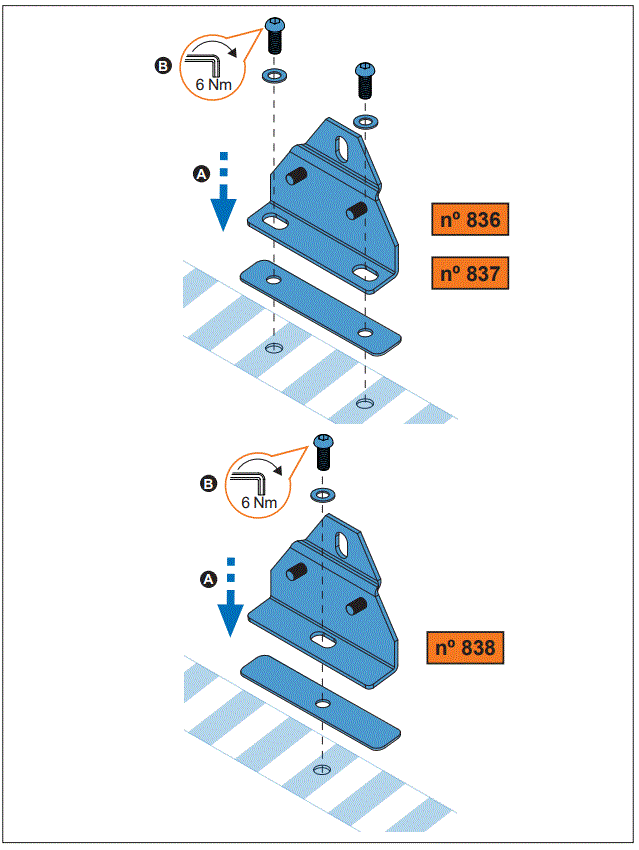

- Use a torque wrench to tighten the screws as follows:
- B: 6 Nm

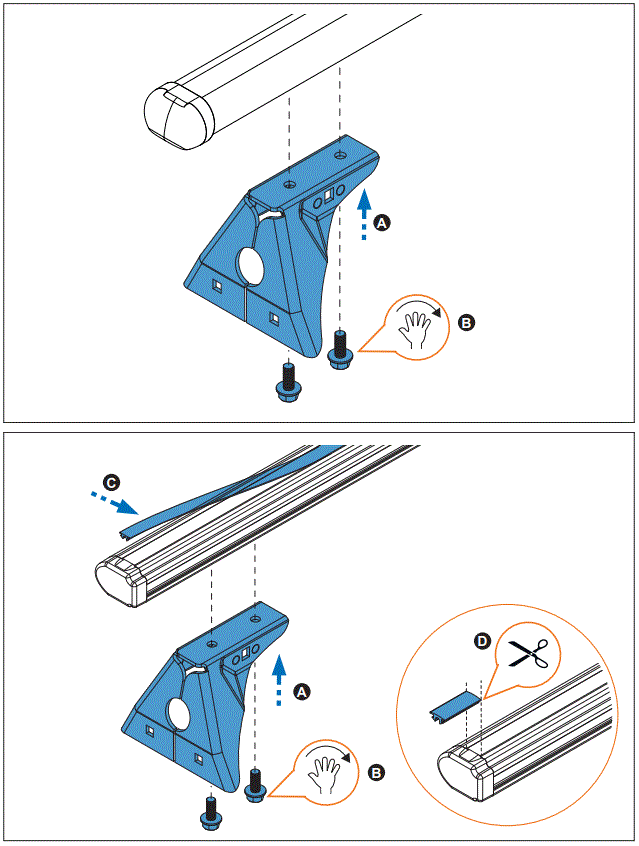

- A: Tighten until snug
- Use the parts as follows:
- A and B with 50×30 mm and 52×35 mm Aluminum
- C and D with 50×30 mm and 52×35 mm Aluminum

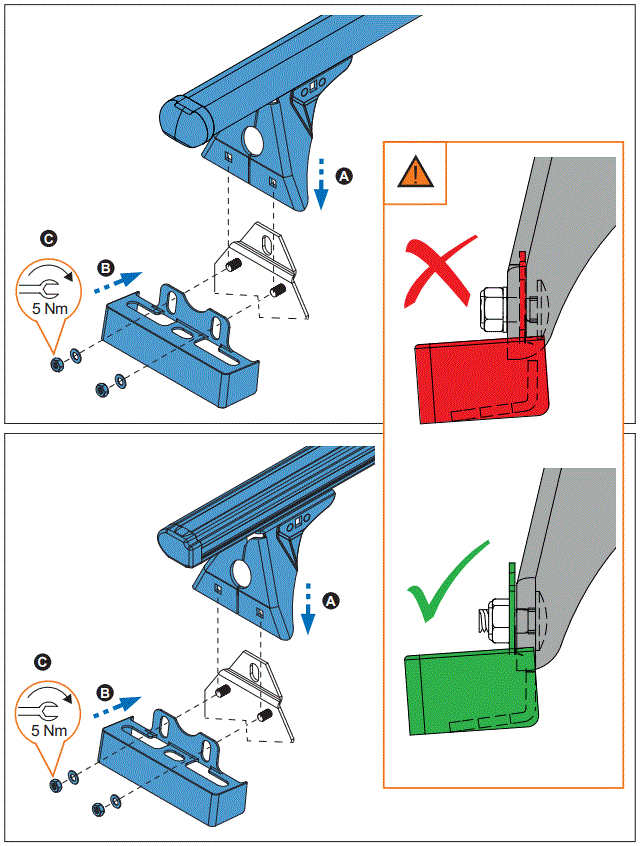

- C and D with B: 5 Nm torque

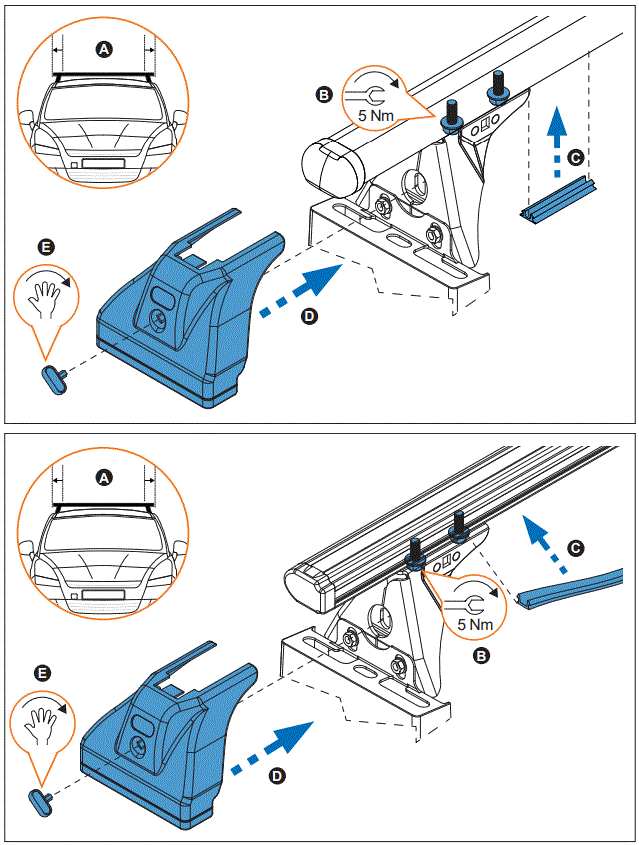

- A and E with 50×30 mm and 52×35 mm Aluminum
- B and C with 5 Nm torque
Information
Model: Kit soportes LCV
Lot: 01-18
Weight: 2,26 kg
Info
CEE – EEC type approval
- E9: 26 R- 03 3022
Package content
Check!
Warning
Installation Instructions
Warning
CRUZBER SA
- ES-A14018311
- P.I. Las Salinas II
- 14960 – Rute – Spain
- www.cruzber.com
CRUZ - roof racks & accessories
