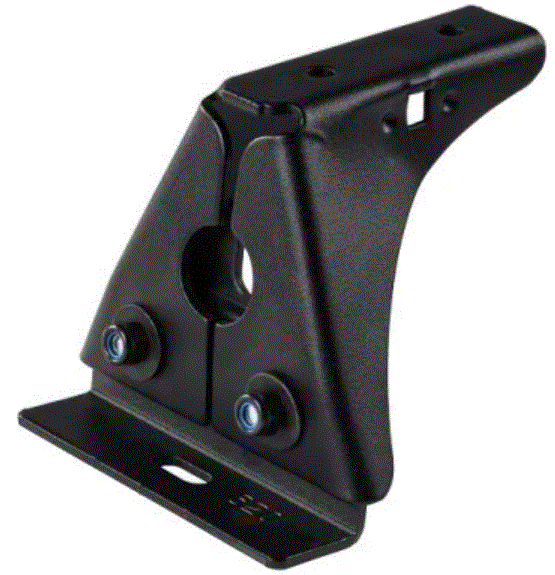

CRUZ 934-306 LCV Legs Bars and Roof Rack
Product Information
- Model: Kit soportes LCV
- Lot: 01-18
- Weight: 2.39 kg

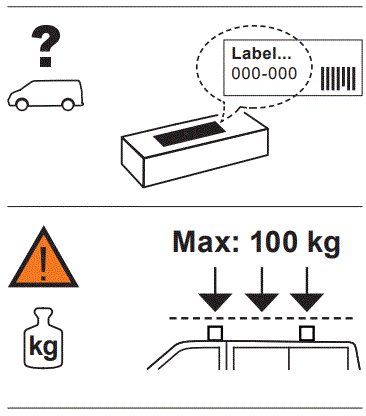

- Max Weight Capacity: 100 kg
- Manufacturer: CRUZBER SA
- Type Approval: CEE-EEC
Product Usage Instructions
- Check the package contents to ensure that all parts are included.
- Refer to the parts list and assemble the product accordingly.
- Tighten the bolts using a torque wrench according to the following specifications:
- Bolts A and D: 5 Nm
- Bolts B and C: 5 Nm

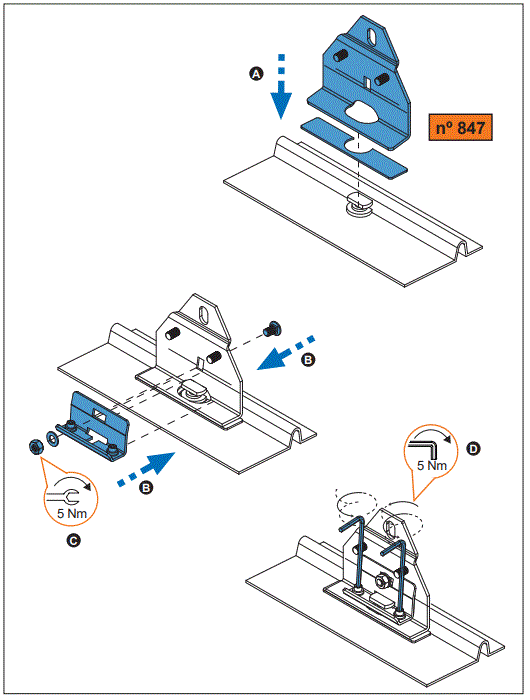

- Attach the aluminum pieces as shown in the diagram.
- Tighten bolts A and B to 5 Nm.
- Attach piece E to piece A using bolts C and D. Tighten bolt C to 5 Nm.
Note: Please read the assembly instructions carefully before starting the assembly process.
Information
- Model: Kit soportes LCV
- Lot: 01-18
- Weight: 2,39 kg
Info
CEE – EEC type approval
- E9: 26 R- 03 3022
Warning

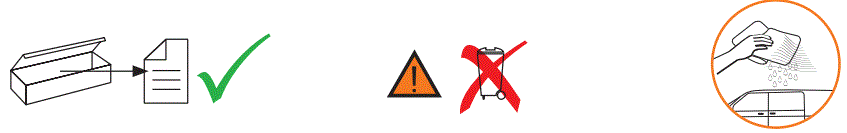

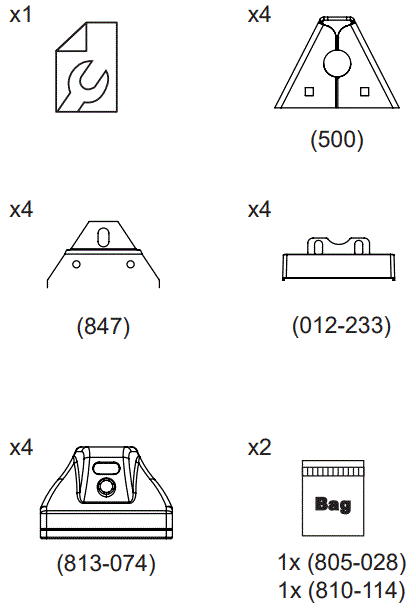

Package content
Check

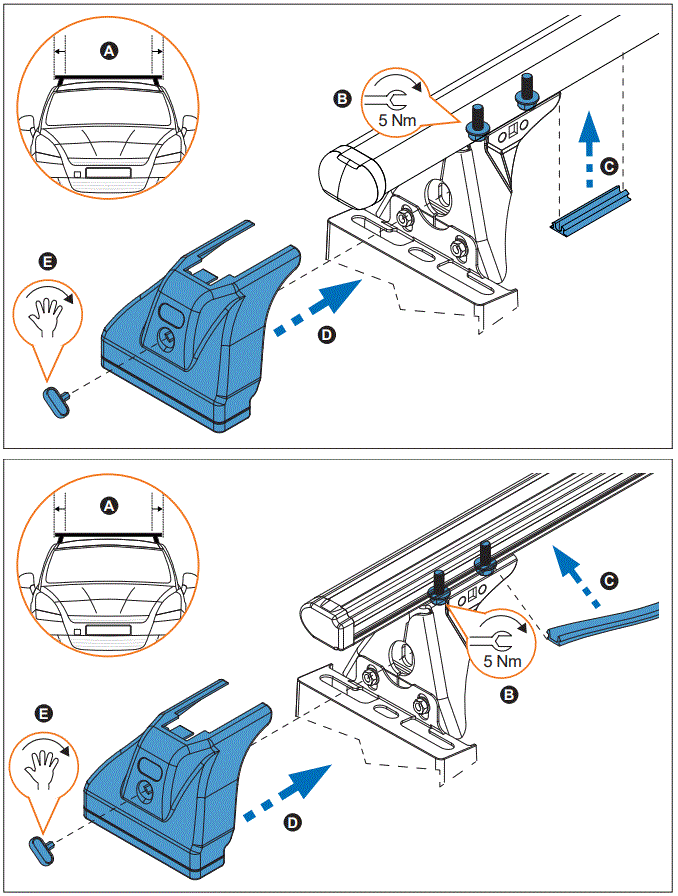

Installation Instuctions
Warning
CRUZBER SA
- ES-A14018311
- P.I. Las Salinas II
- 14960 – Rute – Spain
- www.cruzber.com
CRUZ - roof racks & accessories
