hansgrohe AXOR CARLTON Holders
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. Intended use of the handle 41430XXX: The handle is not a medical product, it is not intended for physically impaired persons, but only for general private use. Use only the handle for support, the remaining products are not intended to be used as supports.Check the proper attachment and tight seating of the installed products periodically (annually).
Installation Instructions
- Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
- Decor ring only for chrome plated/gold plated variant!
Symbol description
- Do not use silicone containing acetic acid!
- Dimensions
- Spare parts

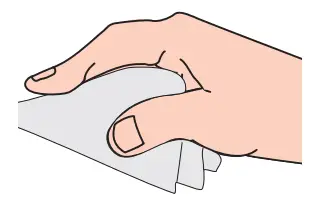

- Cleaning
- Dismounting

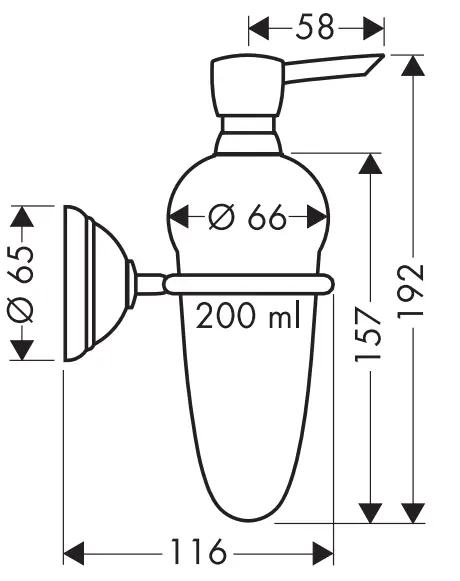

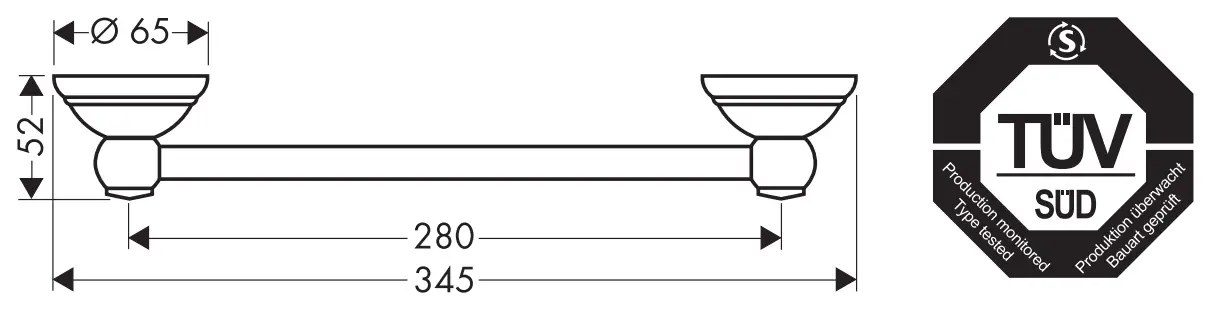

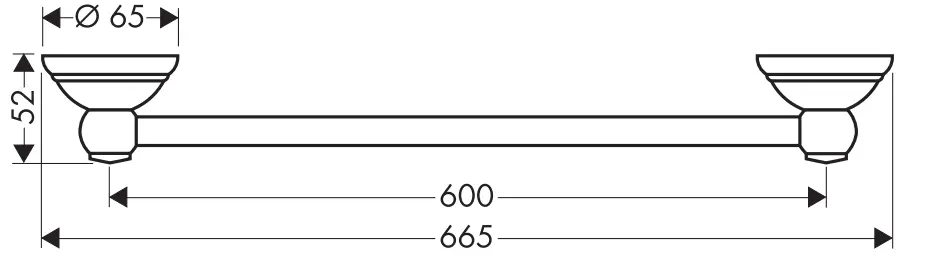

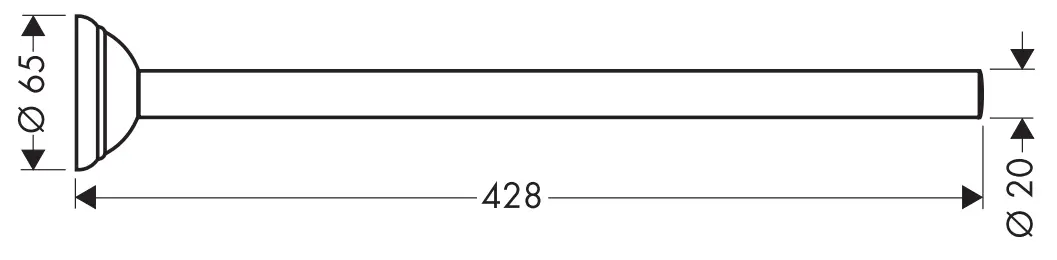

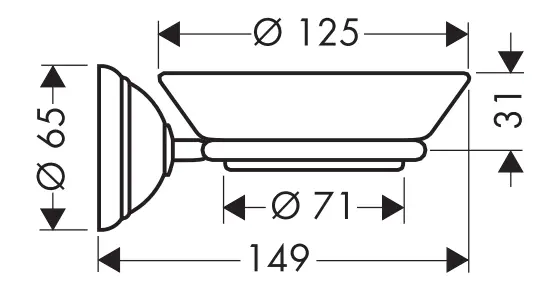

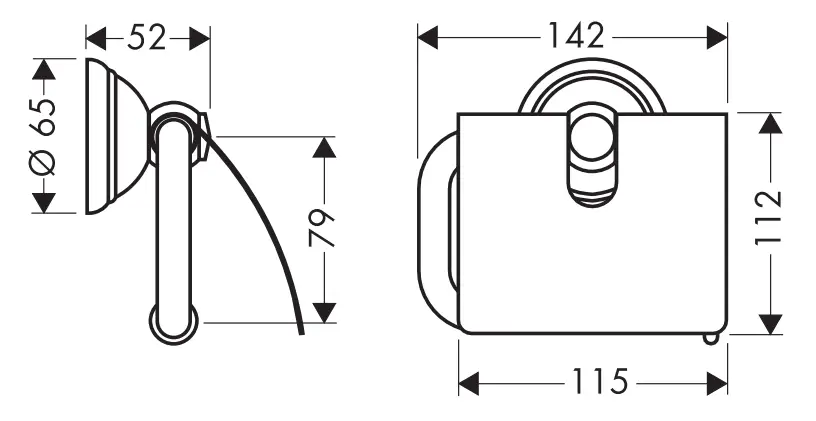

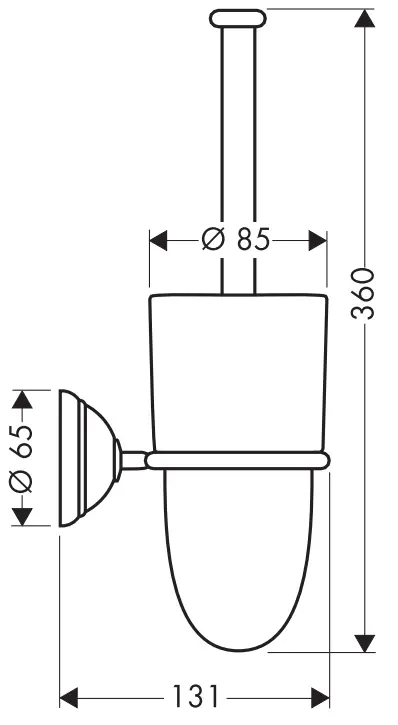

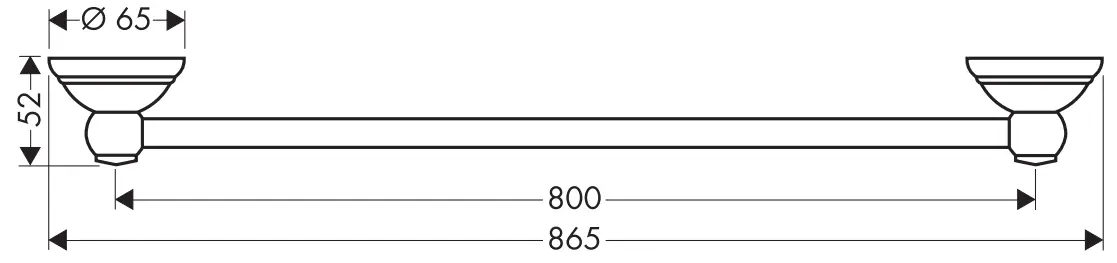

Dimensions
The glass could be of a different size as illustrated due to it being blown by mouth.
41428XXX
41433XXX
41421XXX
41420XXX
41438XXX
41434XXX
41419XXX
41430XXX
41435XXX
41406XXX
41408XXX

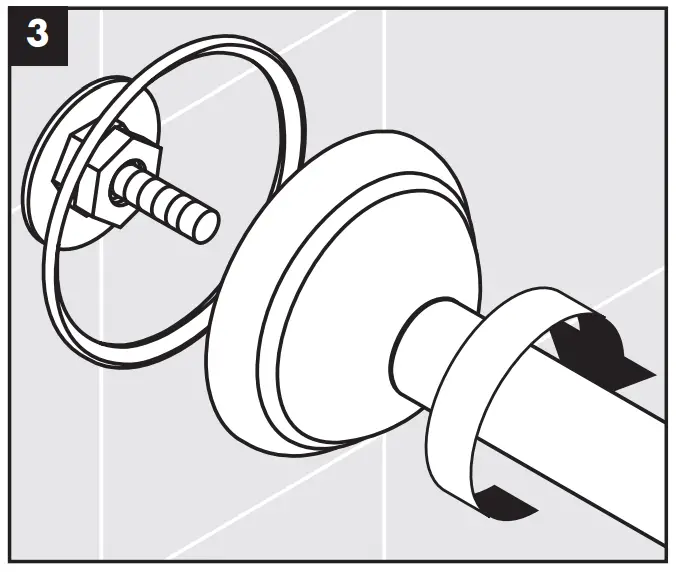

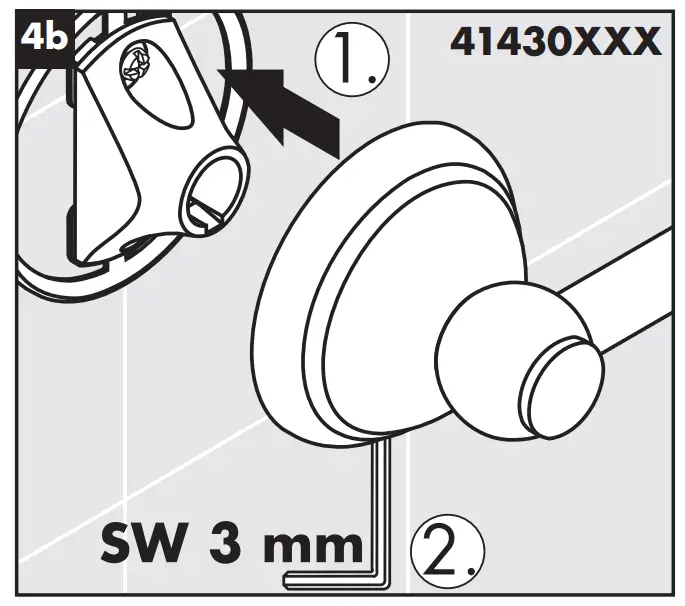

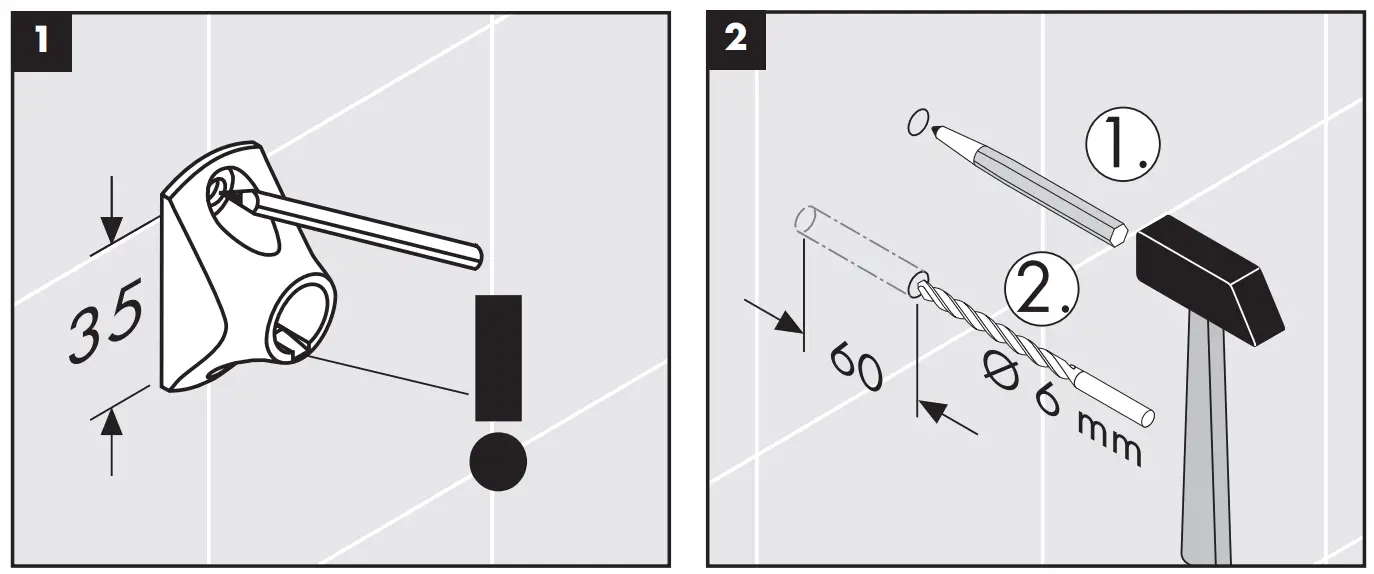

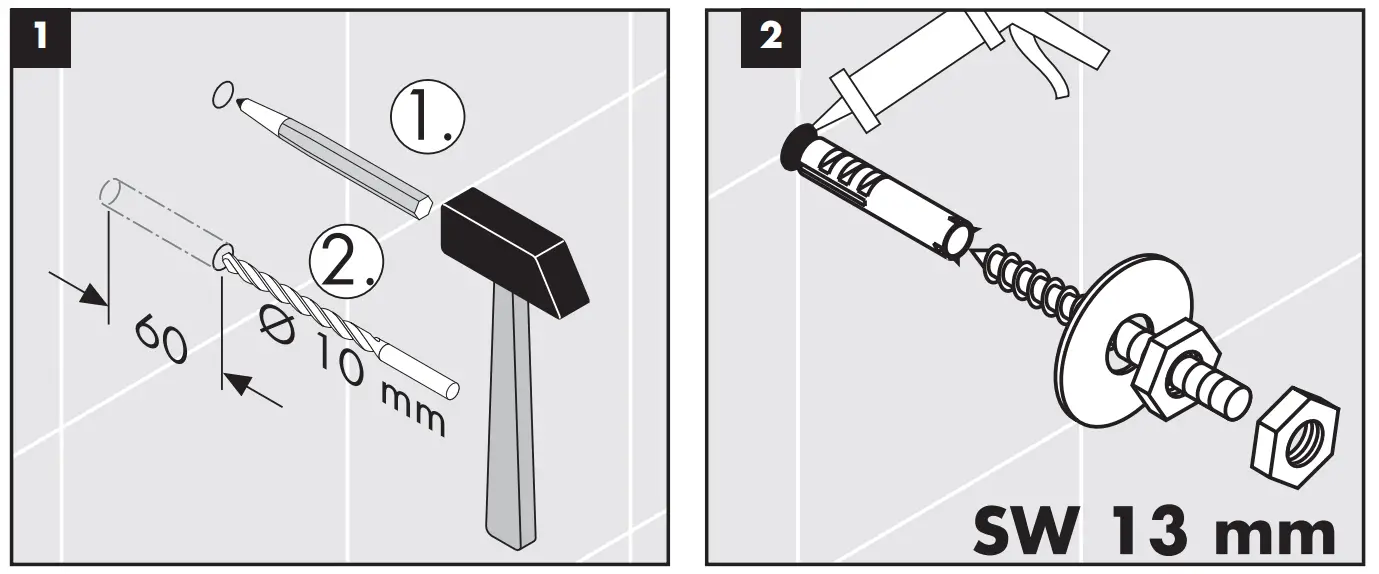

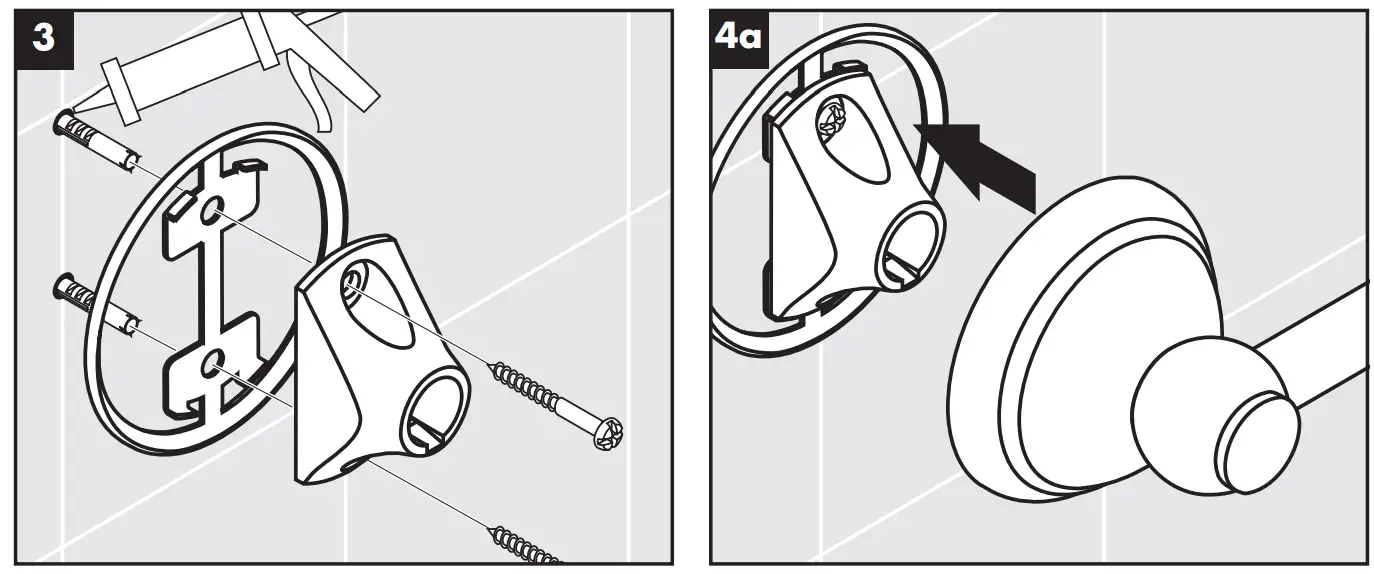

Assembly
Assembly41406XXX / 41408XXX / 41419XXX / 41421XXX / 41430XXX / 41433XXX / 41434XXX / 41435XXX / 41438XXX
41420XXX / 41428XXX

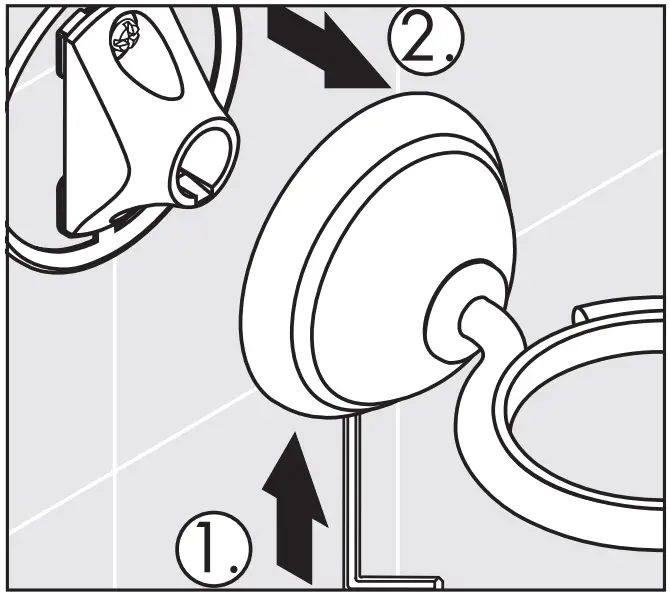

Dismounting

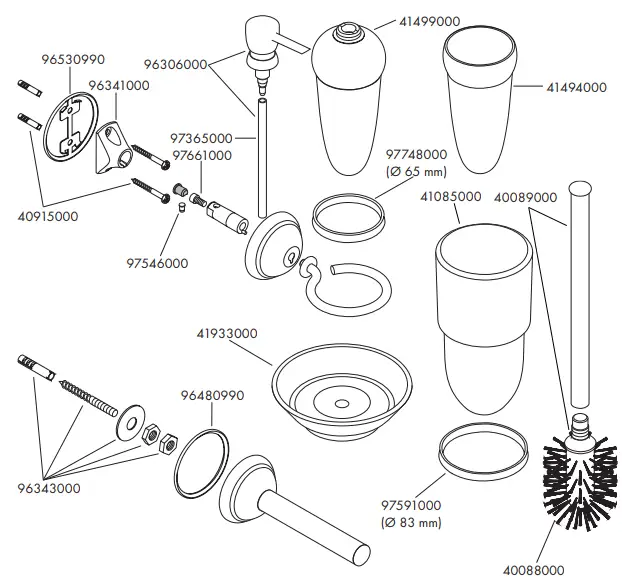

Spare parts

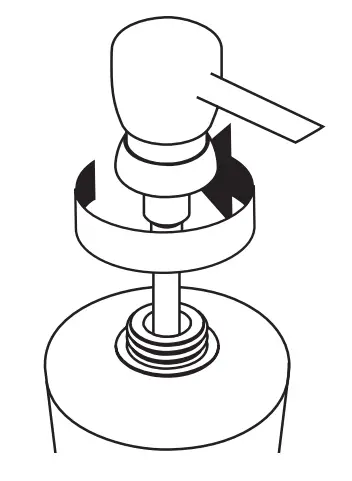

Cleaning
Lift off pump and lid for filling and cleaning.

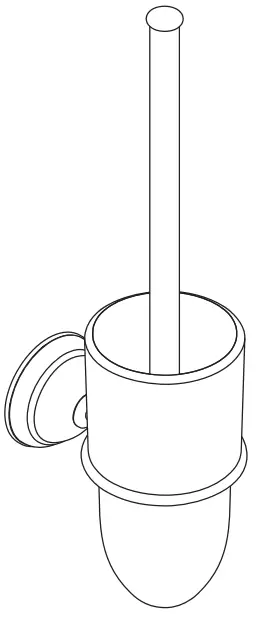

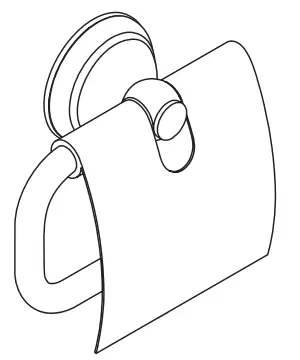

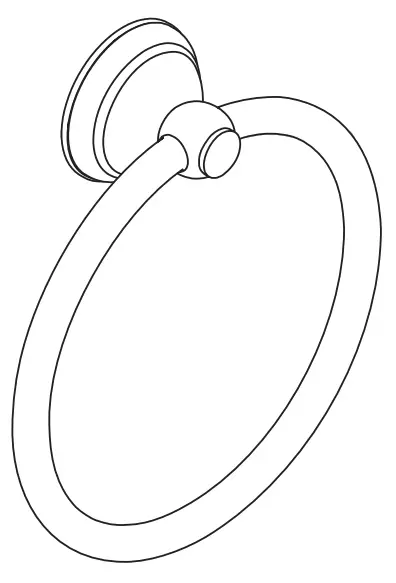

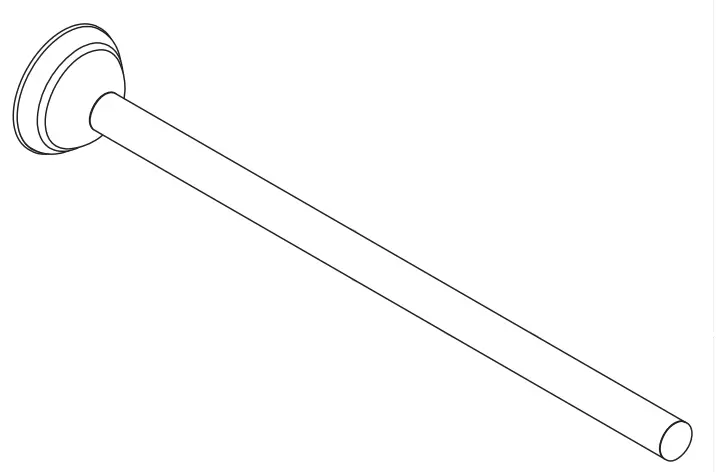

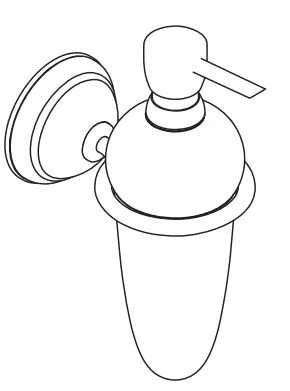

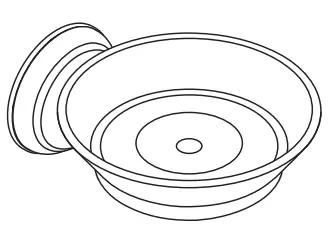

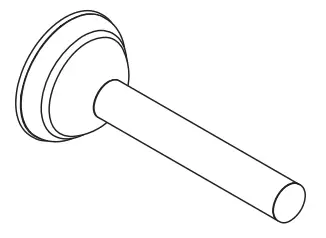

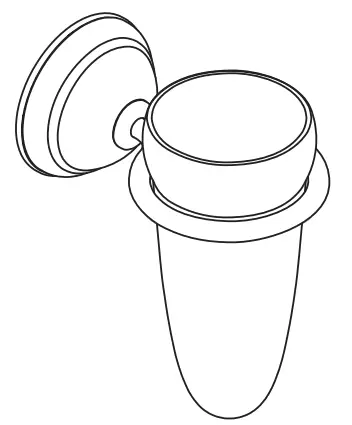

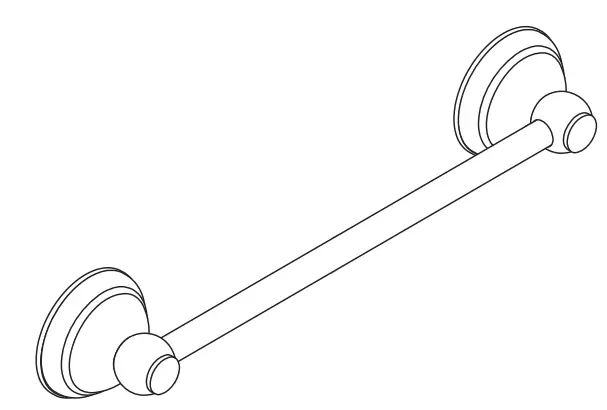

Other Models
Carlton
41406XXX
41408XXX
41430XXX
Carlton
41428XXX
Carlton
41433XXX
Carlton
41420XXX
Carlton
41438XXX
Carlton
41419XXX
Carlton
41434XXX
Carlton
41421XXX
Carlton
41435XXX
