GViSiON I55ZI-OI-45P0D 55 Inch 4K Built In Android PCAP Touch Screen
INTRODUCTION
I55ZI-OI-45P0D
These innovative designs, comprised of 55” displays and above, are creating opportunities in digital signage, corporate webinars and infotainment. Feel free to inquire about our large touch screen LCDs or engage us with your latest solution project and let our engineers position you for something big
ADVANTAGES

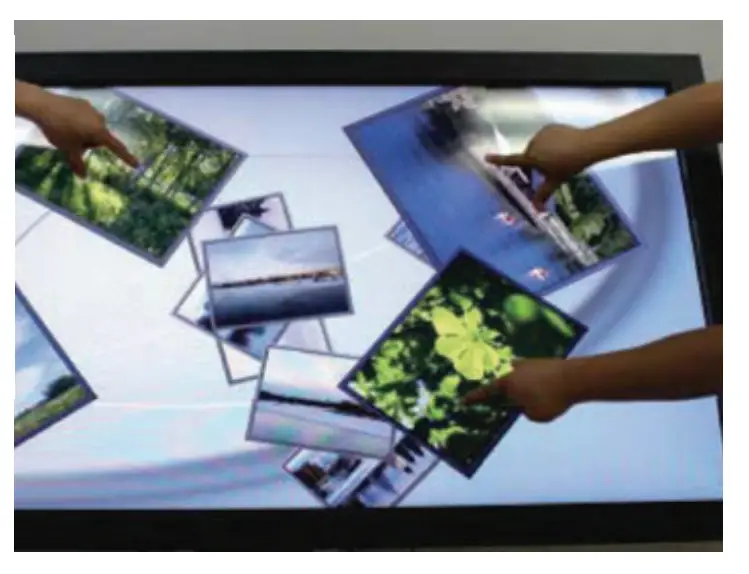

TOUCH TECHNOLOGY
55-inch 4K UHD screen with projected capacitive PCAP touchscreen monitor with zero bezel touch and perform 40-point multi-touch
VARIOUS MULTIMEDIA CONTENTS
FUN and EASY lecture by using various multimedia contents makes audience to pay more attention

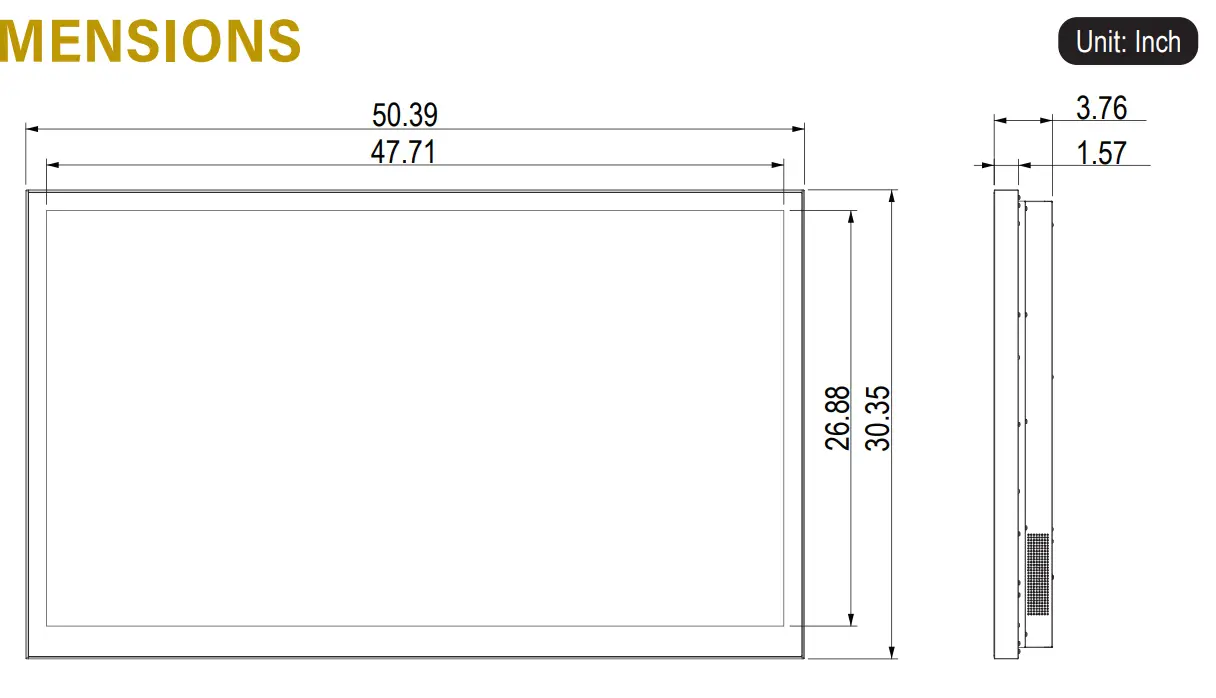

DIMENSIONS
FEATURES
- 55-Inch / 3840 x 2160
Resolution - 40-Point Projective Capacitive PCAP Touch
- Interface: HDMl In&Out / DP In (UHD) / VGA In / AV In&Out
- Built-In OPS Computer Slot / Built-In ANDROID OS System
- 3-Year Warranty
ResolutionSPECIFICATIONS
| DISPLAY | I55ZI-OI-45P0D |
| Screen Size | 55” |
| Resolution | 3840 x 2160 |
| Backlight | LED |
| Aspect Ratio | 9 Backlight LED Color 1,0 |
| Color | 1,06 billion color |
| Response Time | 8ms |
| Brightness | 500cd/m² |
| Viewing Angle (H/V) | 178° / 178° |
| Contrast Ratio | 1100 : 1 |
| INTERFACE | |
| HDMI In / Out | 2 / 1 |
| VGA In | 1 |
| AV In / Out | 1 / 1 |
| DP (UHD) In | 1 |
| RS232C In | 1 |
| Audio In / Out | 1 / 1 |
| RJ45 In / Out | 1 / 1 |
| USB In / Out | 2 / 2 |
| TOUCH | |
| Touch Technology | PCAP (Projected Capacitive) / 40-Point |
| Tempered Glass | Anti-Glare 3mm |
| ANDROID | |
| System Version | Android 5.0.1 |
| CPU / GPU | ARM Cortex A53 / Quad Core |
| CPU / GPU RAM / ROM | 1.5GB DDR3 / 8GB |
| AUDIO | |
| Speake | 15W x 2 |
| POWER | |
| Consumption | < 200W |
| Input Voltage | AC 100V ~ 240V, 50/60Hz |
| TEMPERATURE | |
| Operating | 32° F ~ 122° F (0° C ~ 50° C) |
| Storage | -4° F ~ 140° F (-20° C ~ 60° C) |
| DIMENSIONS (WxHxD) | |
| Inches (in) | 50.39 x 30.35 x 3.76 |
| Millimeter (mm) | 1280.00 x 771.00 x 95.70 |
| WEIGHT | |
| Net Weight | 90.4 lbs (41 kg) |
| VESA™ | |
| Mount Holes (mm) | 400 × 400mm |
Address. 30398 Esperanza, Rancho Santa Margarita, CA 92688 / Phone. 888.651.9688 / 949.586.3338
Email. [email protected]/URL. www.gvision-usa.com/ ©Copyright GVision USA, Inc. All rights reserved
