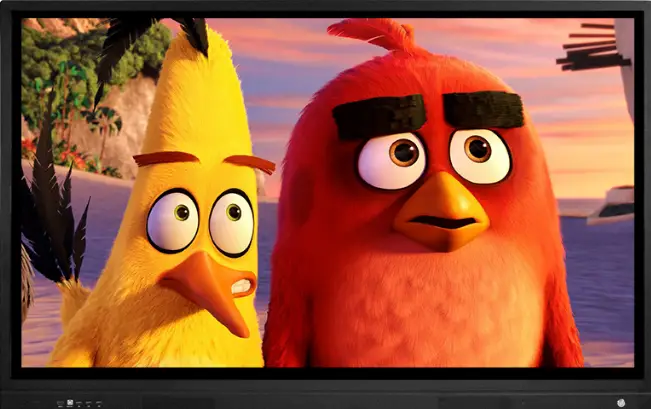

ASTOUCH A55-IWB01 55 Inch Interactive Touch Screen Interactive TV Touch Screen Whiteboard
Interactive Display User manual
The final interpretation of all information in this document belongs to the company, and all unauthorized and permitted reproductions are not recognized and should be banned.
【This document may not fully reflect all recent changes to the product, whichever is the actual product.】
Product Specification
| Panel Parameter | Panel Size | 55/65/75/86/98 inch (16:9) | |
| Model | A55-IWB01/A65-IWB01/A75-IWB01/A86-IWB01/98-IWB01 | ||
| Max. Brightness | 350cd/m² | ||
| Max. Resolution | 3840*2160 | ||
| Contrast Ratio | 4000:1 | ||
| Panel Life | 50000 hours | ||
| Responsive Time | 6ms | ||
| Viewing Angle | H178/V178 | ||
| Touch Panel Parameter(optional) | Touch Max Resolution | 4980*4980 | |
| Touch Type | IR touch | ||
| Touch point | 40 Points(based on windows); 10 points on android system | ||
| Transparency | > 90%, Up to 100% | ||
| Scanning Speed | >50Scans/S | ||
| Response Speed | <12ms | ||
| Communication | USB | ||
| Glass | Anti-glare mohs 7 | ||
| Android spec | chipset | Android 8.0, dual cpu A73 + A53, 4GB RAM, 32GB storage(2G RAM, 3G RAM are optional, 8G, 16G ROM is optional) | |
| Wireless | WiFi 802.11 a/b/g/n/ac – （2.4g default, 5g is optional） | ||
| bluetooth | 2.4g default, 5g is optional | ||
| Speakers | 15W x 2 | ||
| Frame color | Black(silver optional) | ||
| Features | Support UHD video, pictures and music | ||
| Set up time on/off | |||
| Support Remote controller | |||
| Support Media Format | MPEG1/2/4, AVI, RM, WMV, DAT, JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc. | ||
| Temperature | Storage:-20 Celsius degree to 80 Celsius degree | ||
| Working: -10 Celsius degree to 65 Celsius degree | |||
| Fixing Method | Wall mounting (Default)/ Floor standing(Optional) | ||
| Power Supply | AC 100V-240V, 50HZ/60HZ | ||
| Applications | Classroom, meeting room, etc. | ||
| Certificate Approval | CE,RoHS,CCC,FCC,ISO9001 | ||
| Warranty | one year | ||
Packing List:
- Interactive display*1

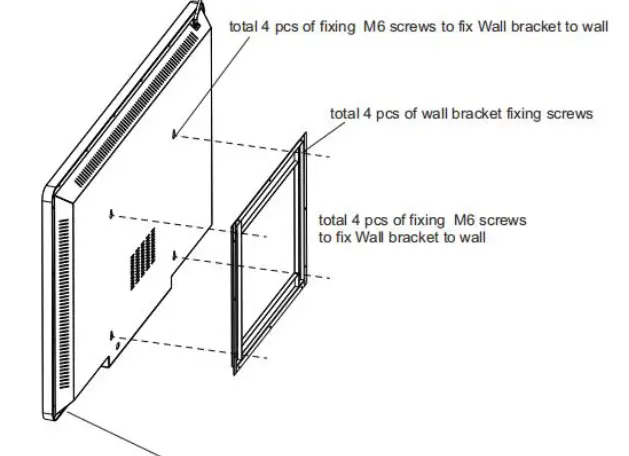

- Wall mount bracket*1
- Power cable*1
- Remote control*1
- Touch pen*2
- User manual*1
Operation indicator:
- Plug in power cable
- Switch on
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC RF warning statement:
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RFexposure compliance.
