Asus Proart Pa147cdv Lcd Touchscreen Owner's Manual

Prorate PA147CDV LCD Touchscreen
Owner’s Manual

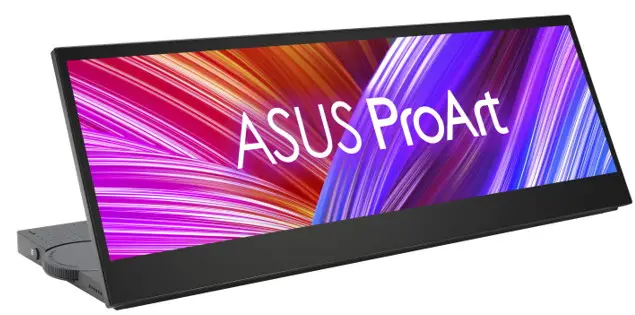

Pro Art PA147CDV LCD Touchscreen

ASUS Pro Art PA147CDV 35.6 cm (14″) 1920 x 550 pixels LCD
Touchscreen Black
Brand : ASUS
Product family: Pro Art
Product code: 90LM0720B01170
Product name : PA147CDV

– 14-inch, 32:9 Full HD (1920 x 550) IPS panel with 10-point multitouch and Microsoft Pen Protocol 2.0 support
– Colman Verified and factory calibrated to Delta E < 2 for exceptional color accuracy, with 100% sRGB and 100% Rec. 709 coverage
– ASUS Dial and Control Panel provide shortcuts in supported Adobe creative software
– Patented mechanical kickstand design folds out smoothly and props the display up in portrait or landscape orientation to fit different creator’s scenario
– Includes one standard HDMI® and two USB Type-C® (DP Alt mode) ports for variety devices connection
– ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience
ASUS Pro Art Display PA147CDV Creative Tool – 14-inch, 32:9, IPS, Full HD (1920 x 550), 100% sRGB, 100% Rec.709, Color Accuracy ΔE < 2, Colman Verified, USB-C, 10-point Touch, MPP2.0, ASUS Dial, Control Panel, Compatible with Adobe Software

Display

Display diagonal *	35.6 cm (14″)
Display resolution *	1920 x 550 pixels
Native aspect ratio *	32:09:00
Display technology *	LCD
Panel type *	IPS
Backlight type	LED
Touchscreen *
Display brightness (typical)	400 cd/m²
Response time	5 ms
Display surface	Matt
Anti-glare screen
Screen shape *	Flat
Contrast ratio (typical) *	1200:01:00
Maximum refresh rate *	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours *	16.7 million colours
Pixel pitch	0.179 x 0.179 mm
Pixel density	143 pip
Viewable size, horizontal	34.4 cm
Viewable size, vertical	9.86 cm
Digital horizontal frequency	24 – 83 kHz
Digital vertical frequency	23 – 60 Hz
RGB colour space	DCI-P3
sRGB coverage (typical)	100%

Performance

Flicker-free technology
Low Blue Light technology

Multimedia

Built-in speaker(s) *
Built-in camera *
Number of speakers	2

Design
Product colour *	Black
Ports & interfaces
Built-in USB hub *
USB Type-C downstream ports quantity	2
USB Type-C DisplayPort Alternate Mode
HDMI *
HDMI ports quantity	1
HDMI version	1.4
Headphone out *
HDCP
HDCP version	1.4
Ergonomics
Pivot
Pivot angle	0-90°
Tilt angle range	25-70°
Tilt adjustment
Ergonomics
Pivot	10 W
Pivot angle	0.5 W
Tilt angle range	100 – 240 V
Tilt adjustment	50/60 Hz
Power
Power consumption (typical) *	10 W
Power consumption (Power Save)	0.5 W
AC input voltage	100 – 240 V
AC input frequency	50/60 Hz
Weight & dimensions
Width (with stand)	357.2 mm
Depth (with stand)	20.7 mm
Height (with stand)	127.7 mm
Weight (with stand)	950 g
Packaging data
Package width	440 mm
Package depth	92 mm

Publication date: 04-MAR-2023. Prints or copies of Information are only valid on the printed Publication date
