GVISION PE10ZJ-OS-45P0D Android Touch Screen Monitor
SYMBOLS
PE10ZJ-OS-45P0D

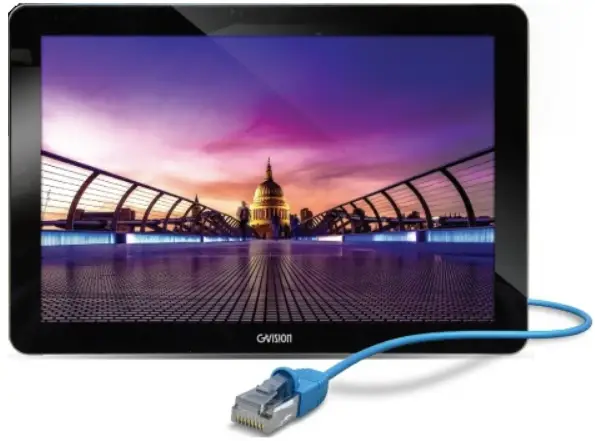

PoE is a technology that deliver’s DC power to devices over ethernet cabling, reducing extra cables while providing more flexibility. GVision’s 10.1″ monitor with built-in Android 10 is specially designed to operate 24/7, and is equipped with optional PoE, allowing more flexibility to meet your needs.

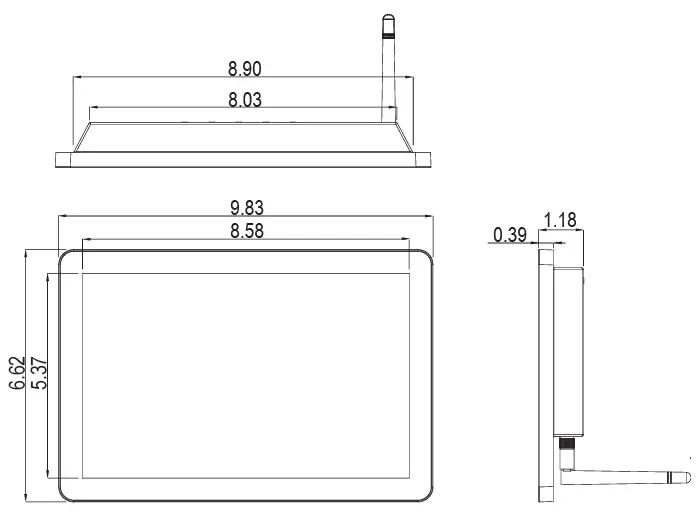

DIMENSIONS
Unit: Inch
FEATURES
- 10.1-Inch Screen Size / 1280 x 800 Resolution
- Ethernet 10/100 RJ45 PoE Port Input Interface
- Built-In ANDROID 10 Operating System
- Rockchip RK3399, Dual-Core Cortex-A72 & Quad-Core Cortex-A53 with Separate NEON coprocessor
- 10-Point PCAP Projected Capacitive Touch Technology
- Interface: Mini HDMI / USB Type-C / RJ45 (PoE) / USB2.0 / USB3.0
- 170° / 170° Wide Viewing Angle
- 24 / 7 Operation Design
- 3-Year Warranty
- PoE Injector not Included
SPECIFICATION
| DISPLAY PE10ZJ-OS-45P0D | |
| Screen Size | 10.1 In |
| Resolution | 1280 x 800 |
| Display Area | 216.96(H) x 135.6(V) |
| Backlight | LED Direct |
| Aspect Ratio | 16 : 10 |
| Viewing Angle | 170° / 170° |
| Response Time | 25ms |
| Brightness | 350cd/m² |
| Contrast Ratio | 800 : 1 |
| Color Depth | 16.7M |
| INTERFACE | |
| Mini HDMI In | 1 |
| RJ45 (PoE) | 1 |
| USB 2.0 / 3.0 | 1 / 1 |
| USB Type-C | 1 |
| Earphone Out | 1 |
| TOUCH | |
| Type | Projected Capacitive PCAP |
| Points | 10-Points |
| Surface Hardness | 7H |
| SYSTEM | |
| OS | Android 10 |
| Chipset | Rockchip RK3399, Dual-Core Cortex-A72 & Quad-Core Cortex-A53 with Separate NEON Coprocessor |
| RAM/ROM | 4GB / 32GB Flash |
| Network | WiFi |
| CABINET | |
| Material | Metal |
| POWER | |
| Consumption | < 15W |
| Saving Mode | < 1W |
| Type Input | RJ45 PoE |
| TEMPERATURE | |
| Operating | 32° F ~ 122° F (0° C ~ 50° C) |
| Storage | -4° F ~ 140° F (-20° C ~ 60° C) |
| DIMENSIONS (WxHxD) | |
| Inch (in) | 9.83 x 6.62 x 1.18 |
| Millimeter (mm) | 249.8 x 168.4 x 30.0 |
| WEIGHT | |
| Net Weight | 7.7 lbs (3.5 kg) |
| VESA™ | |
| Mý out Size (mm) | 75 x 75 |
| PACKAGE CONTENTS | |
| Accessories | Power cable and power adaptor |
Specifications subject to change without any notice.
